TECHNICAL SPECIFICATION

Model name HD 5395 TS (Heavy Duty 95tonnes Tridem Steered) Axle driveline configuration 10x6 (72,6% driven weight at loaded condition) Nominal G.V.W. @ 40km/h 95.000 / 95 tonnes Nominal target payload @ 40 km/h 70.000kg / 70 tonnes Category “HEAVY DUTY DUMPERS” Speed Loaded: Limited at 40 km/h** Unloaded: Limited at 60 km/h* HV 1310.5mm HA 1307.5mm Loaded Front axle loads @ 40km/h Rear axle loads @ 40km/h Axle #1 Axle #2 Axle #3 Axle #4 Axle #5 13.000kg / 13.000kg / 23.000kg / 23.000kg / 23.000kg / 13 tonnes 13 tonnes 23 tonnes 23 tonnes 23 tonnes *at the mentioned axle reduction **or other to be specified GINAF HD – Series: HIGH-END EQUIPMENT, REVOLUTIONARY PAYLOAD Model name Cummins QSX15 610 bhp TIER 3 HPI Type Diesel engine, four stroke, turbocharged, intercooled, emission complies with TIER 3 Maximum performance 449 kW (610hp)/1900 rpm (600hp/2100rpm) Maximum torque 2542 Nm/1400 rp

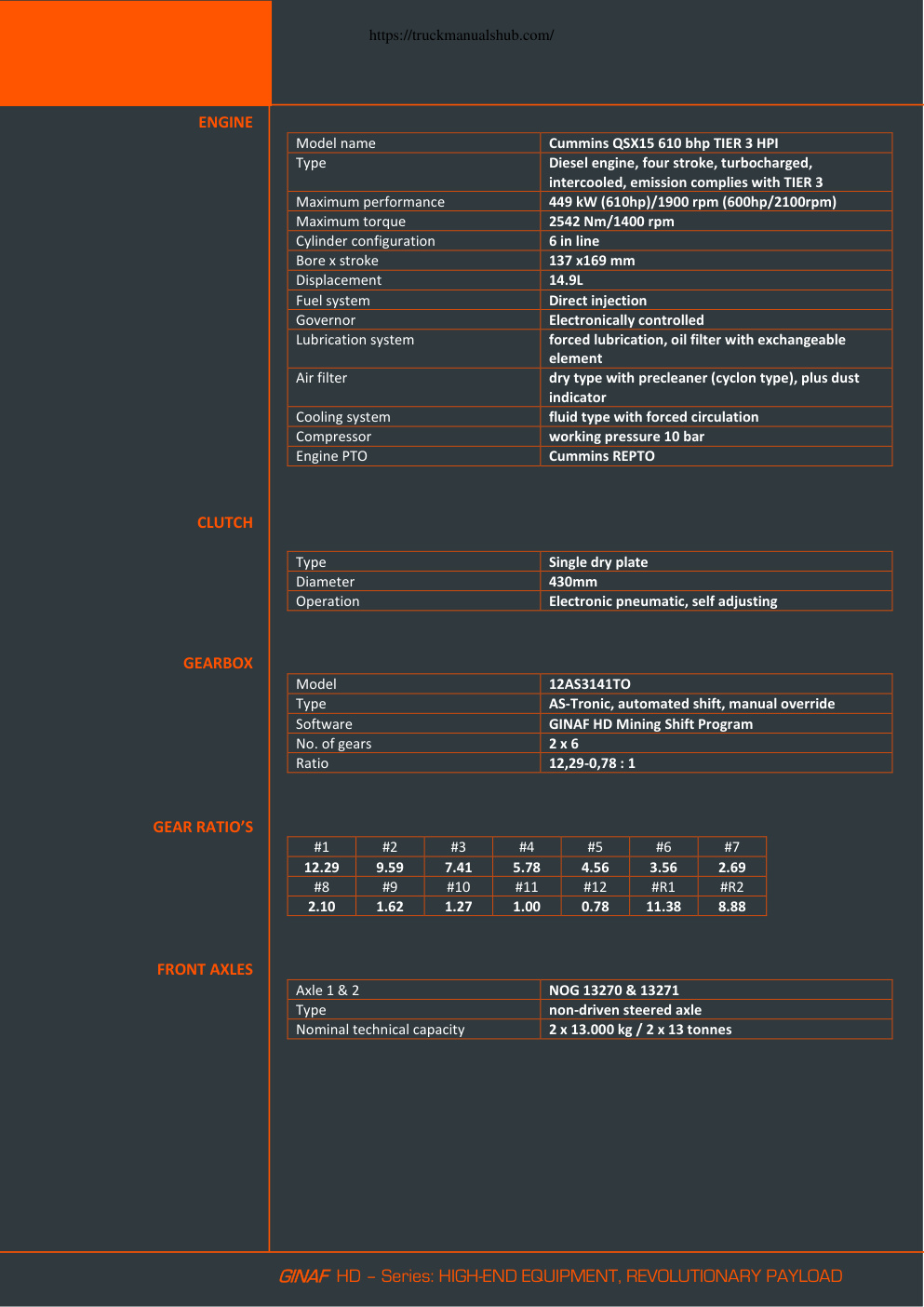

https://truckmanualshub.com/ TECHNICAL SPECIFICATION HD5395TS BASICS Model name HD 5395 TS (Heavy Duty 95tonnes Tridem Steered ) Axle driveline configuration 10x6 (72,6% driven weight at loaded condition) Nominal G.V.W. @ 40km/h 95.000 / 95 tonnes Nominal target payload @ 40 km/h 70.000kg / 70 tonnes Category “HEAVY DUTY DUMPERS” Speed Loaded: Limited at 40 km/h** Unloaded: Limited at 60 km/h* HV 1310.5mm HA 1307.5mm Loaded Front axle loads @ 40km/h Rear axle loads @ 40km/h Axle #1 Axle #2 Axle #3 Axle #4 Axle #5 13.000kg / 13.000kg / 23.000kg / 23.000kg / 23.000kg / 13 tonnes 13 tonnes 23 tonnes 23 tonnes 23 tonnes *at the mentioned axle reduction **or other to be specified GINAF HD – Series: HIGH-END EQUIPMENT, REVOLUTIONARY PAYLOAD https://truckmanualshub.com/ ENGINE Model name Cummins QSX15 610 bhp TIER 3 HPI Type Diesel engine, four stroke, turbocharged, intercooled, emission complies with TIER 3 Maximum performance 449 kW (610hp)/1900 rpm (600hp/2100rpm) Maximum torque 2542 Nm/1400 rpm Cylinder configuration 6 in line Bore x stroke 137 x169 mm Displacement 14.9L Fuel system Direct injection Governor Electronically controlled Lubrication system forced lubrication, oil filter…
