Upperstructures - 0232412 Undercarriage - G02003 February 18, 2015 406 Mill Avenue S.W. New Philadelphia, OH, 44663, USA Telephone: (330) 339-2211 Fax: (330) 339-3579 HYDRAULIC EXCAVATOR Table of Contents Upperstructure Starting Serial No. 0232412 XL2300 Original Issue 8-99 SECTION 1 — INTRODUCTION Table of Contents......................................................................................................................... UP1-1 Alphabetical Index........................................................................................................................ UP1-4 Service Kits.................................................................................................................................. UP1-8 Parts Index................................................................................................................................... UP1-9 SECTION 2

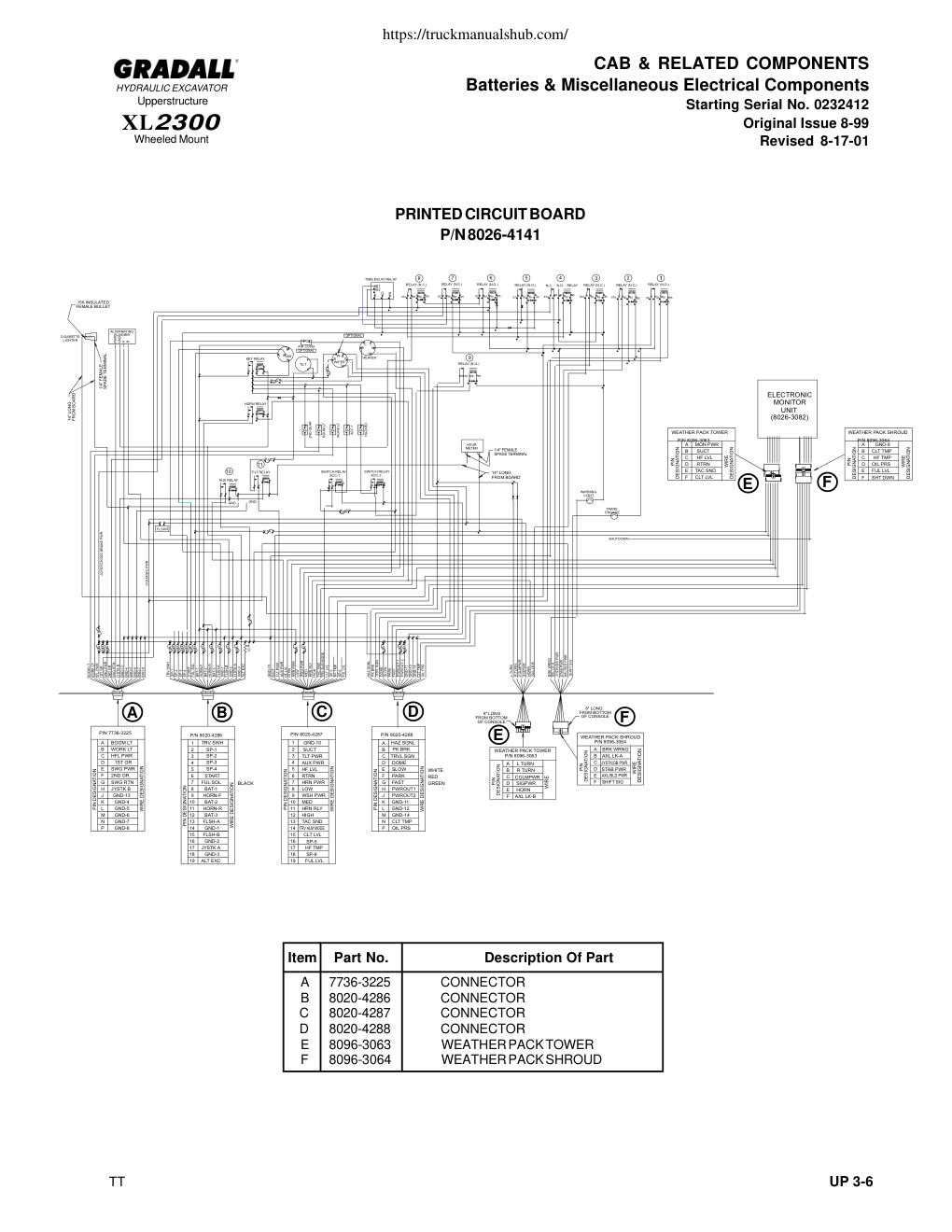

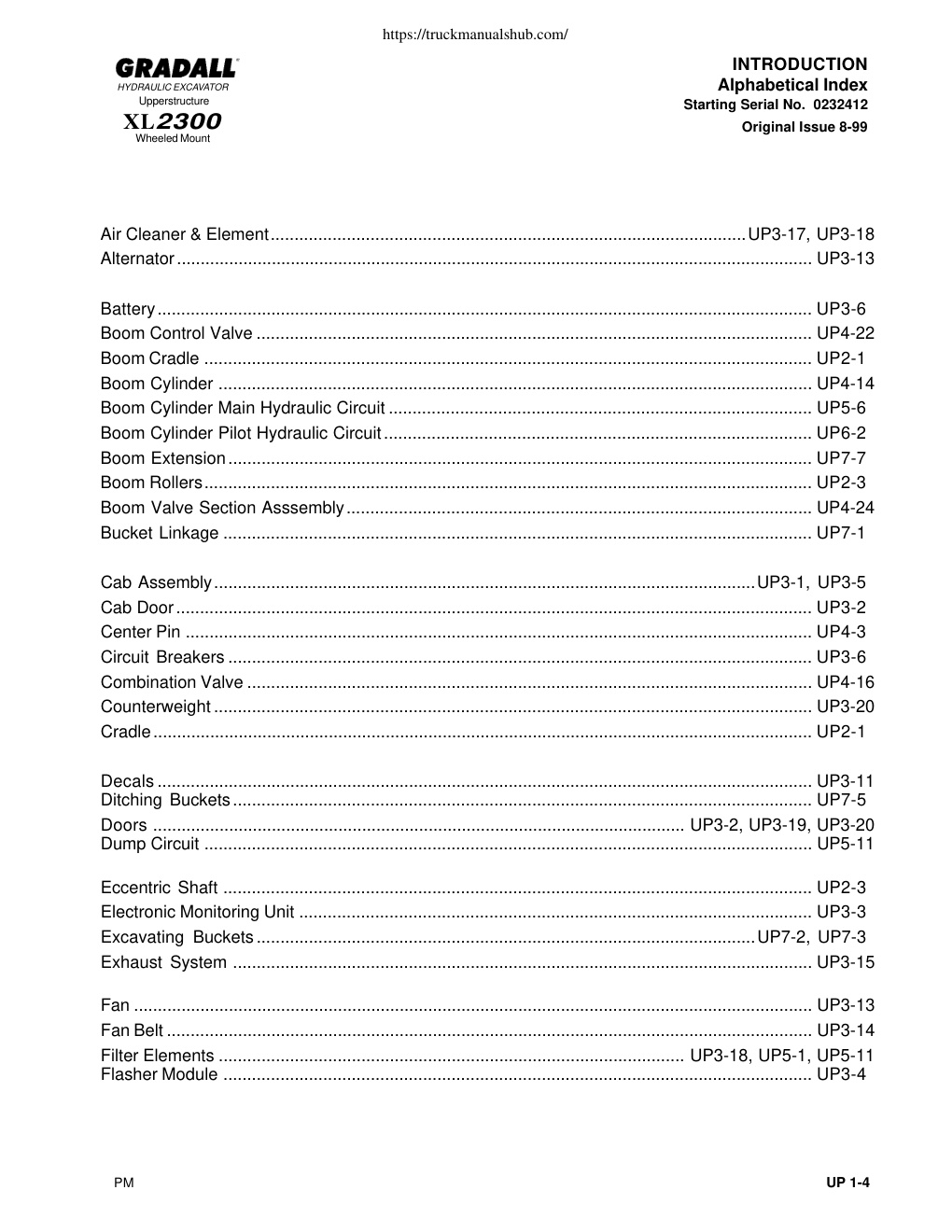

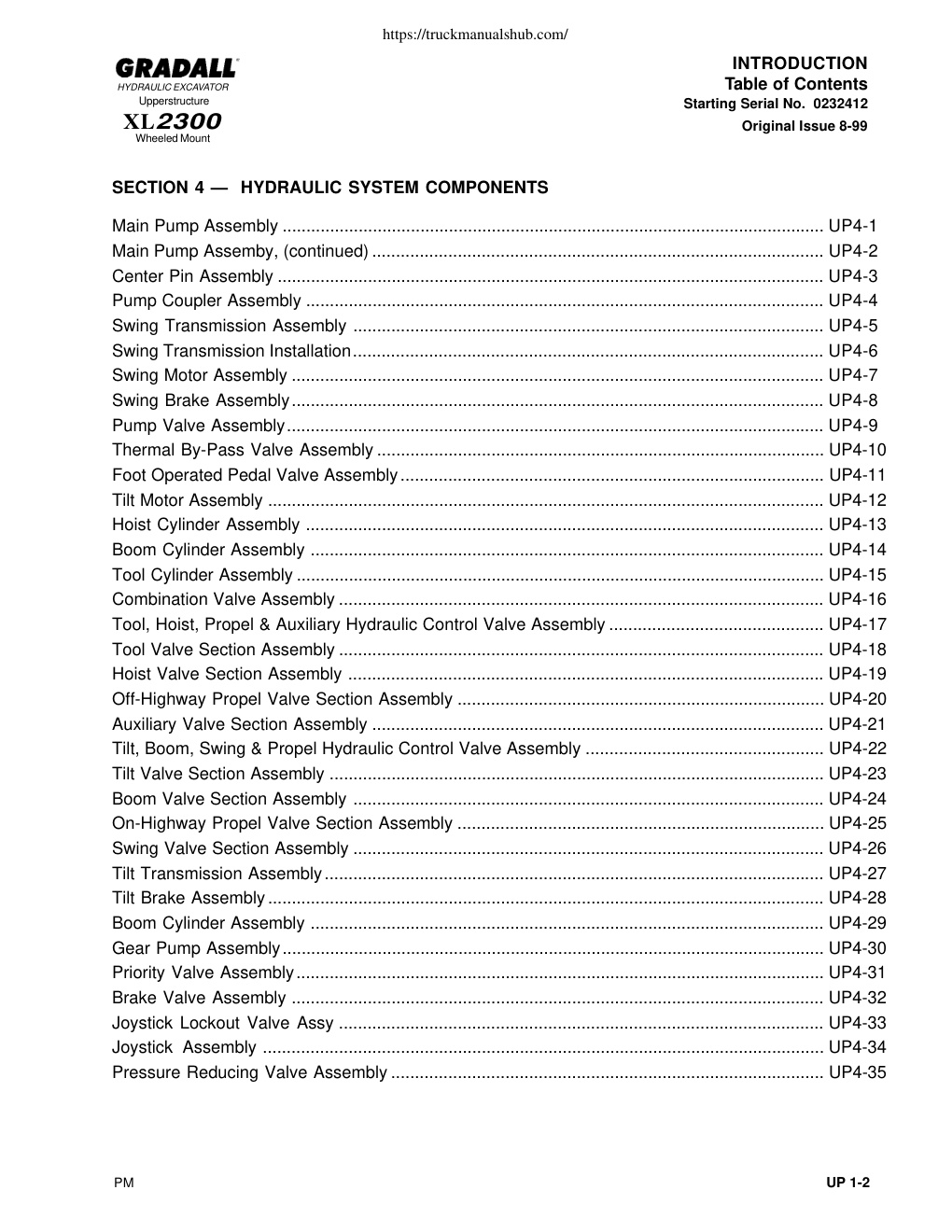

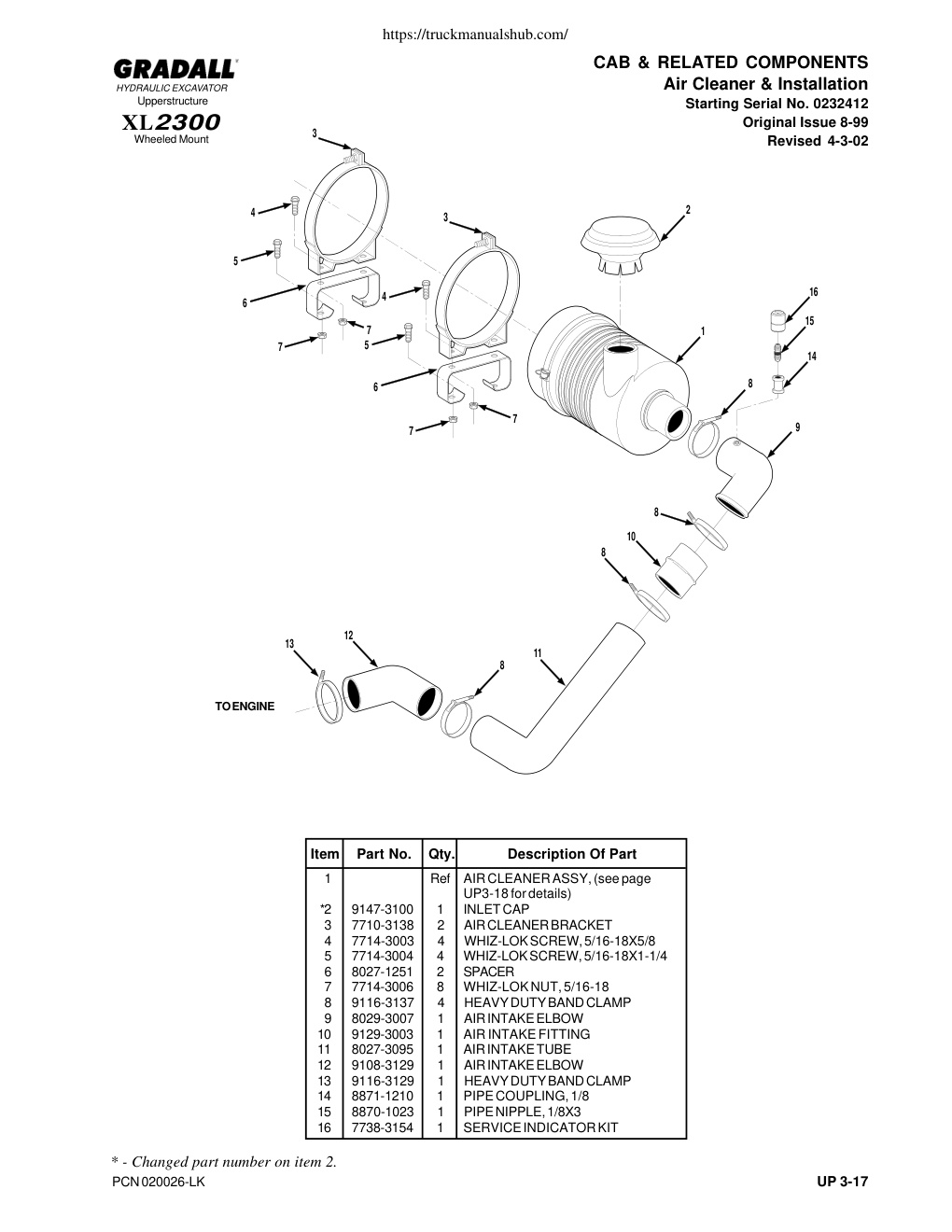

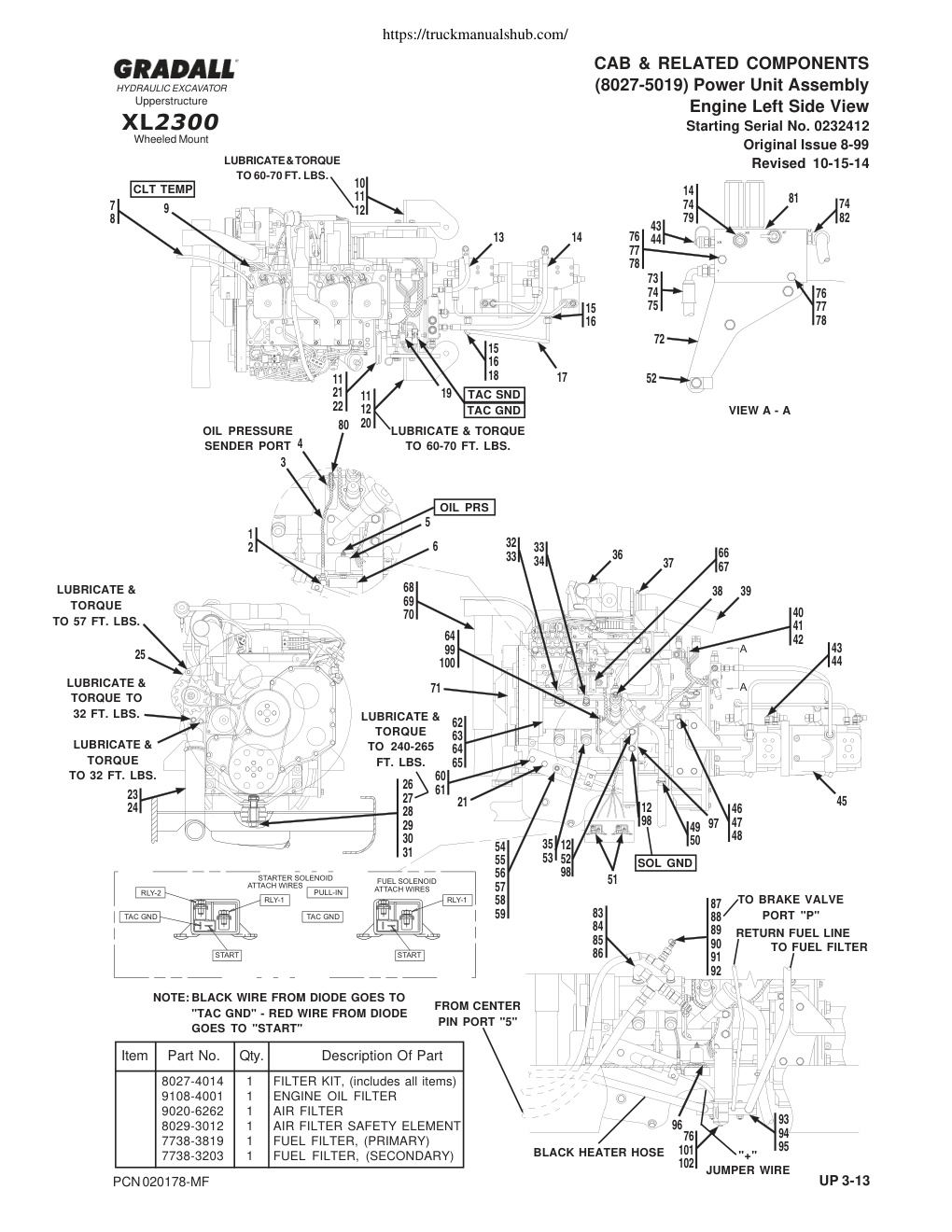

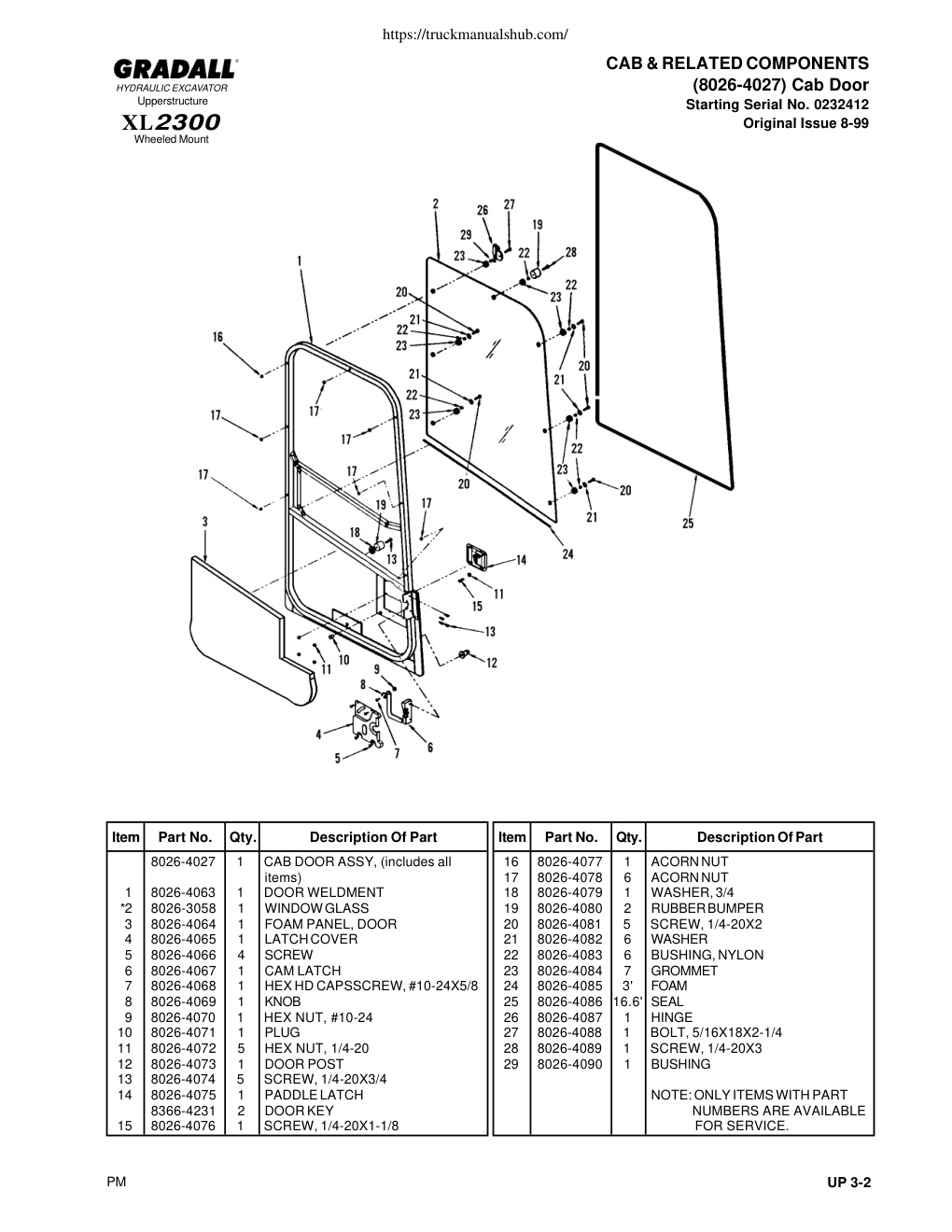

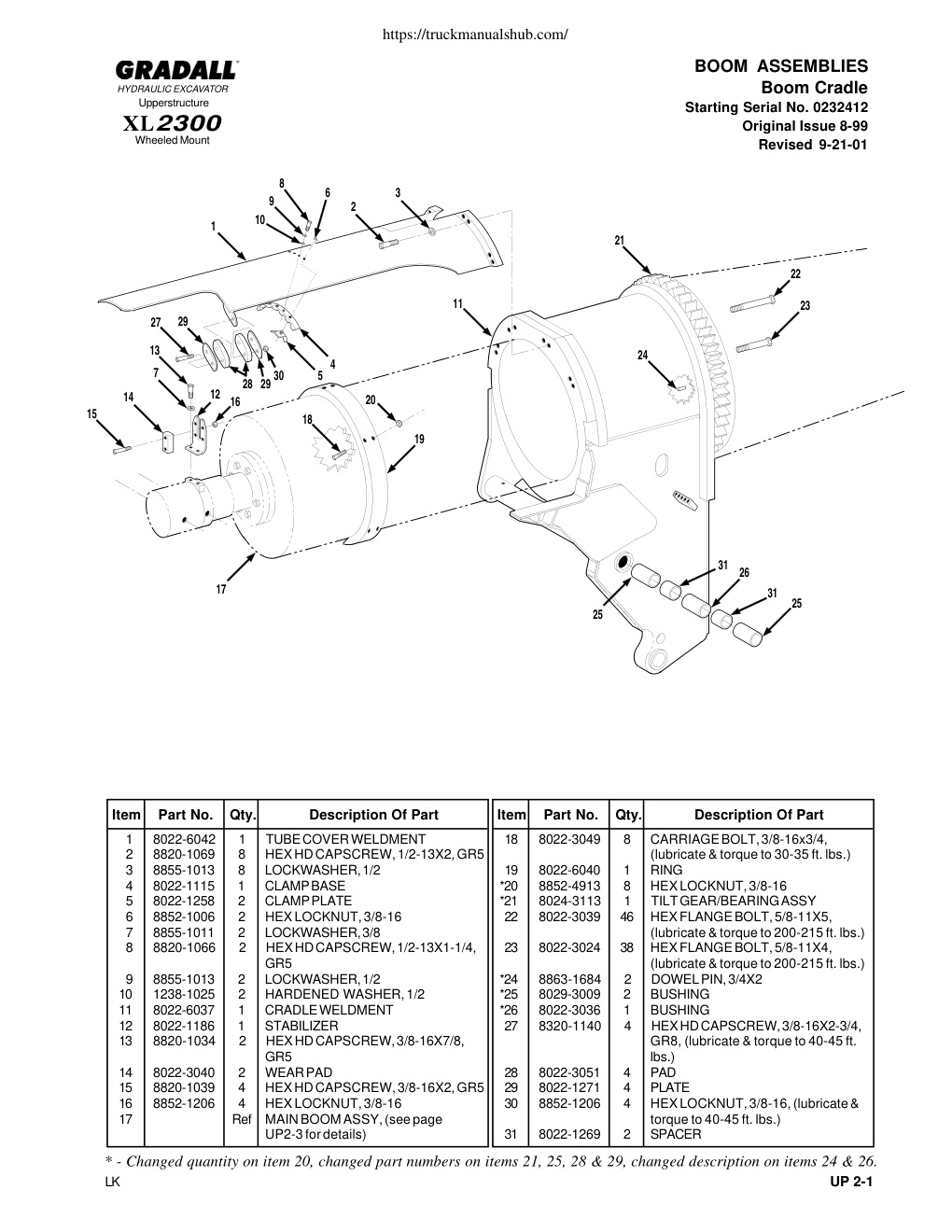

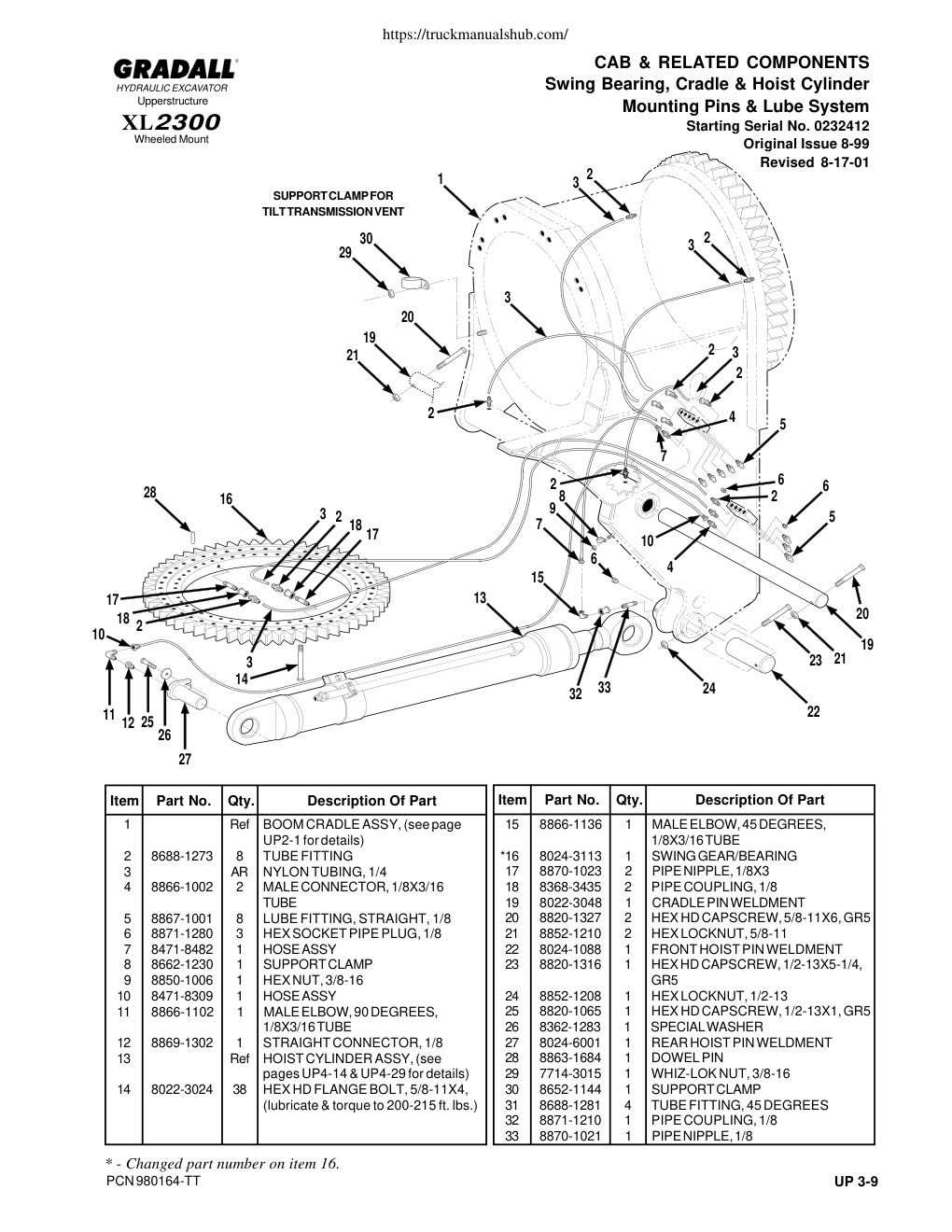

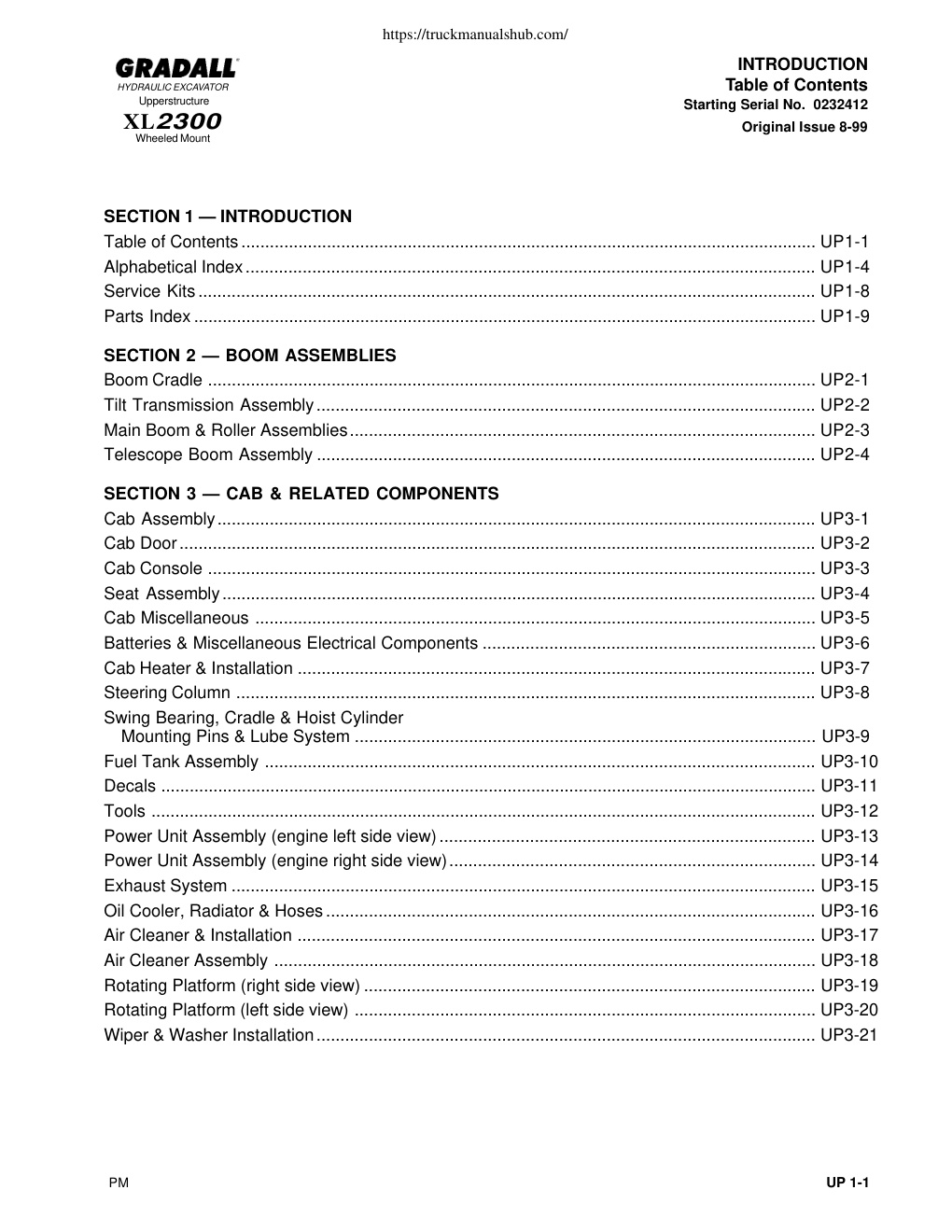

https://truckmanualshub.com/ PART MANUAL XL2300 2300-4001 June 2012 Starting S/N Upperstructures - 0232412 Undercarriage - G02003 Revised February 18, 2015 H GRADALL 406 Mill Avenue S.W. New Philadelphia, OH, 44663, USA Telephone: (330) 339-2211 Fax: (330) 339-3579 https://truckmanualshub.com/ INTRODUCTION HYDRAULIC EXCAVATOR Table of Contents Upperstructure Starting Serial No. 0232412 XL2300 Original Issue 8-99 Wheeled Mount SECTION 1 — INTRODUCTION Table of Contents ......................................................................................................................... UP1-1 Alphabetical Index........................................................................................................................ UP1-4 Service Kits .................................................................................................................................. UP1-8 Parts Index ................................................................................................................................... UP1-9 SECTION 2 — BOOM ASSEMBLIES Boom Cradle…
