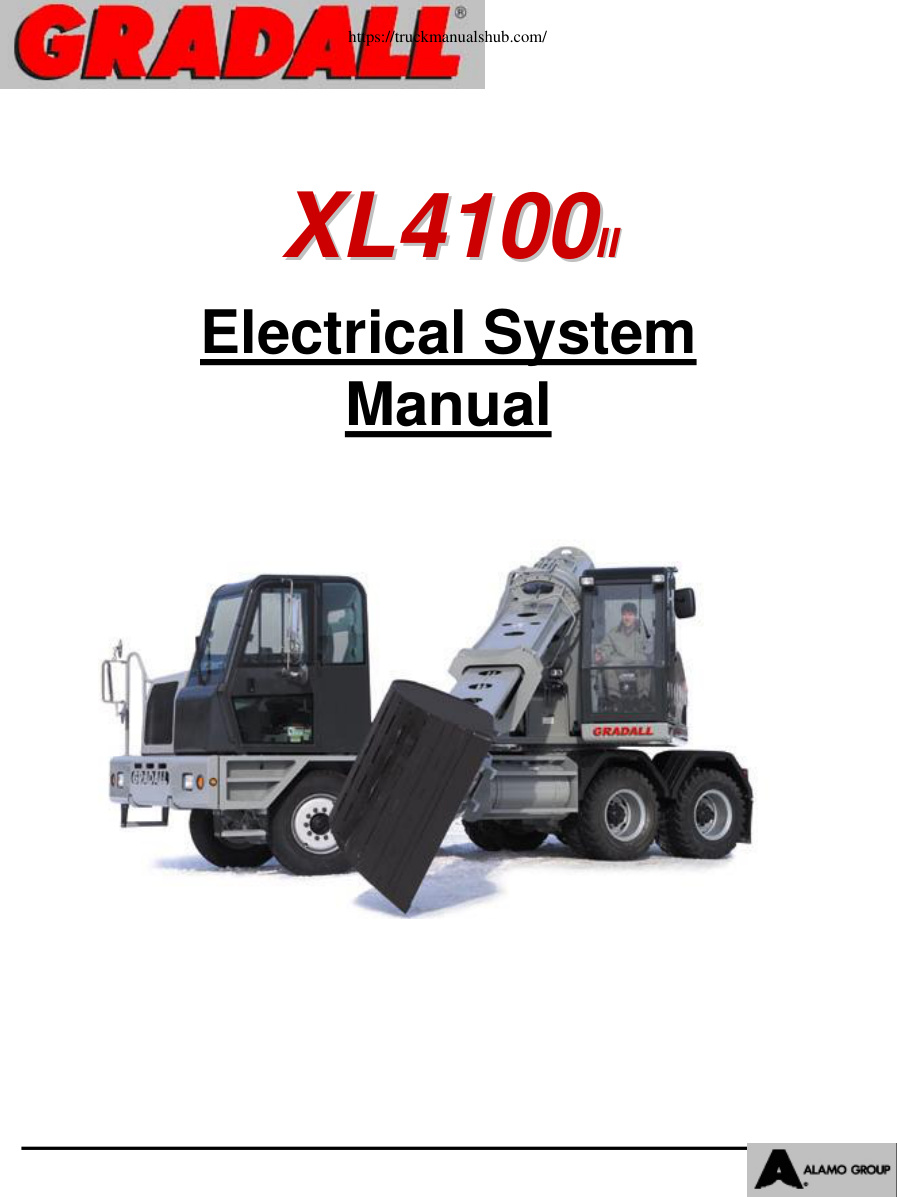

Technical Manual Part Number 80404137 (6x4) S/N 4100001 thru 4100145, 0210017431 thru 0210018099 & 4100000146 & After (6x6) S/N 4160001 thru 4160012, 0210017428 thru 0210018093 & 4160000013 & After Electrical System

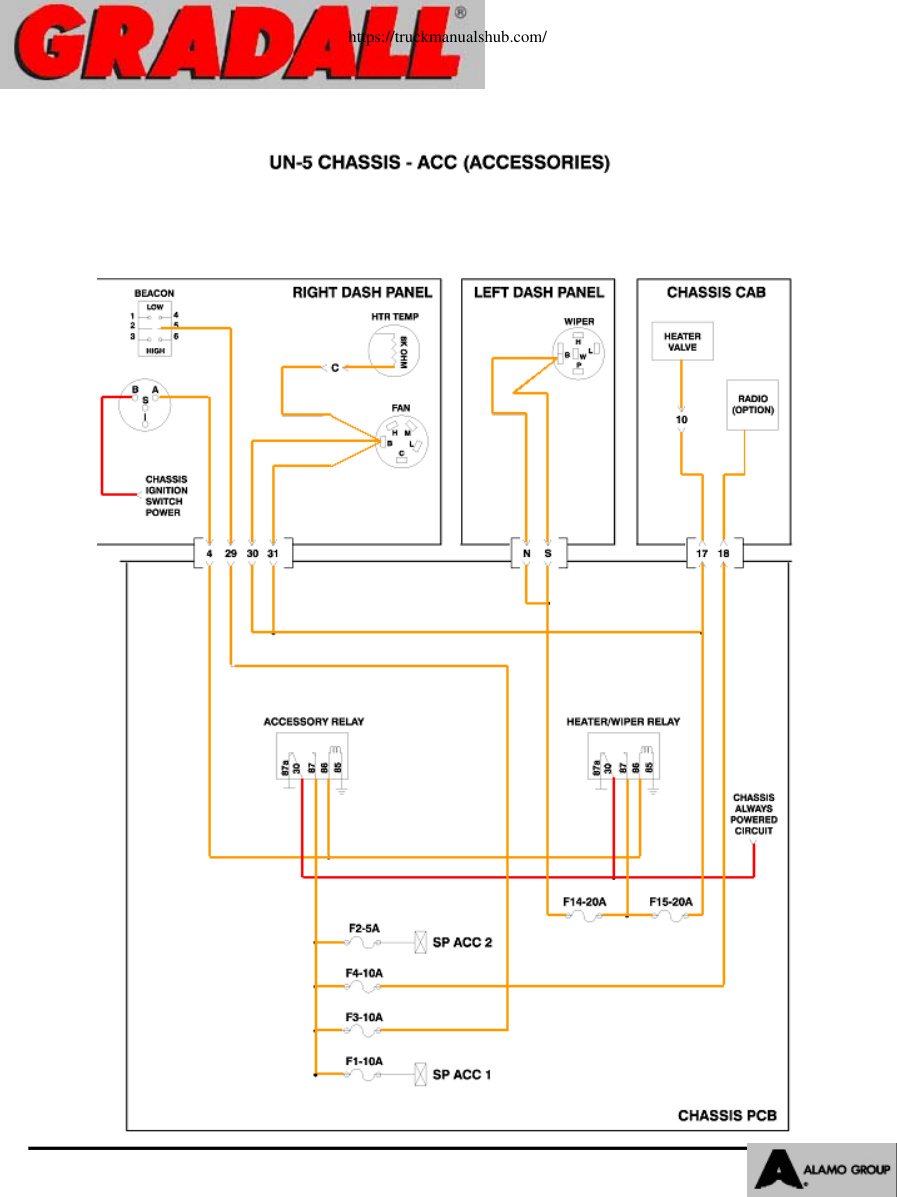

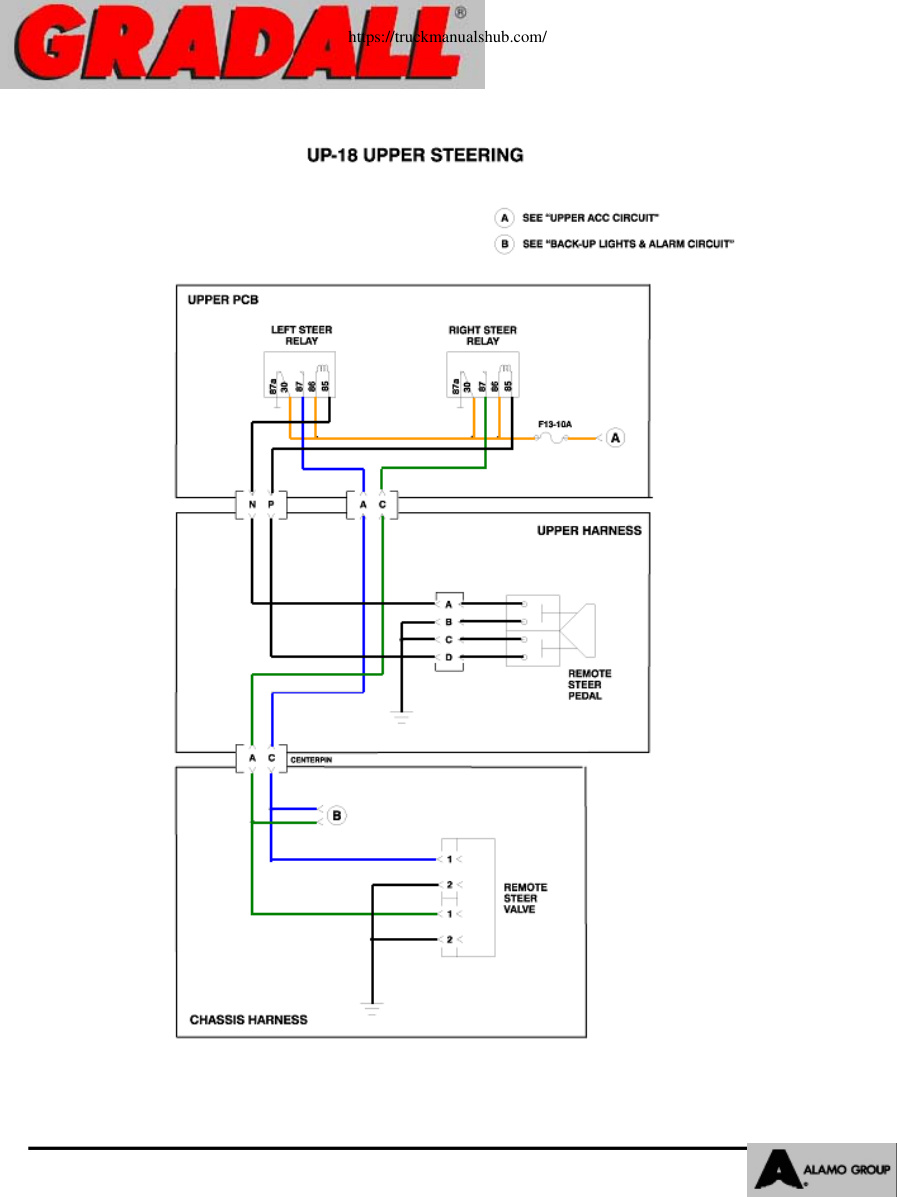

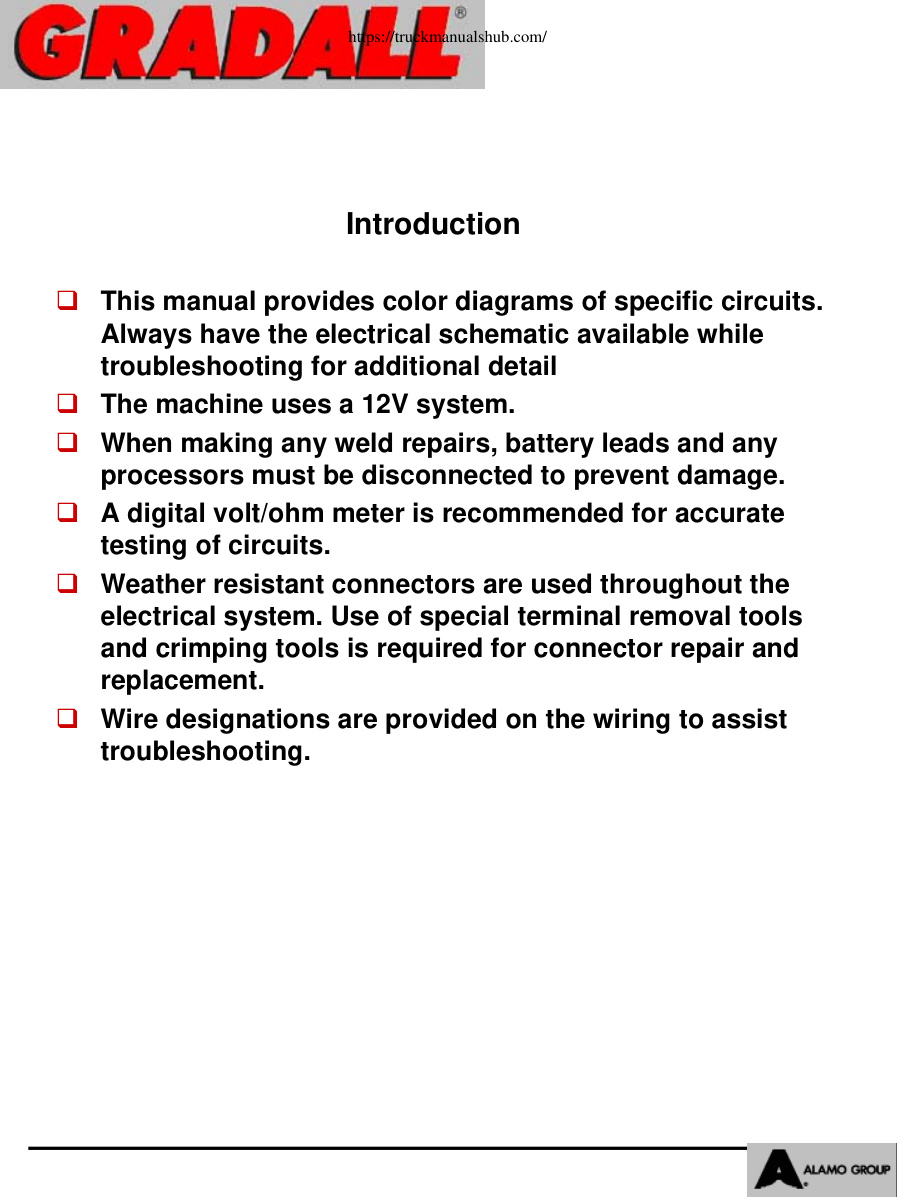

https://truckmanualshub.com/ Technical Manual Part Number 80404137 XL4100II (6x4) S/N 4100001 thru 4100145, 0210017431 thru 0210018099 & 4100000146 & After (6x6) S/N 4160001 thru 4160012, 0210017428 thru 0210018093 & 4160000013 & After Original Issue May 6th, 2011 https://truckmanualshub.com/ XL4100IIIIXL4100 Electrical System Manual https://truckmanualshub.com/ Introduction ‰ This manual provides color diagrams of specific circuits. Always have the electrical schematic available while troubleshooting for additional detail ‰ The machine uses a 12V system. ‰ When making any weld repairs, battery leads and any processors must be disconnected to prevent damage. ‰ A digital volt/ohm meter is recommended for accurate testing of circuits. ‰ Weather resistant connectors are used throughout the electrical system. Use of special terminal removal tools and crimping tools is required for connector repair and replacement. ‰ Wire designations are provided on the wiring to assist troubleshooting. https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/…
