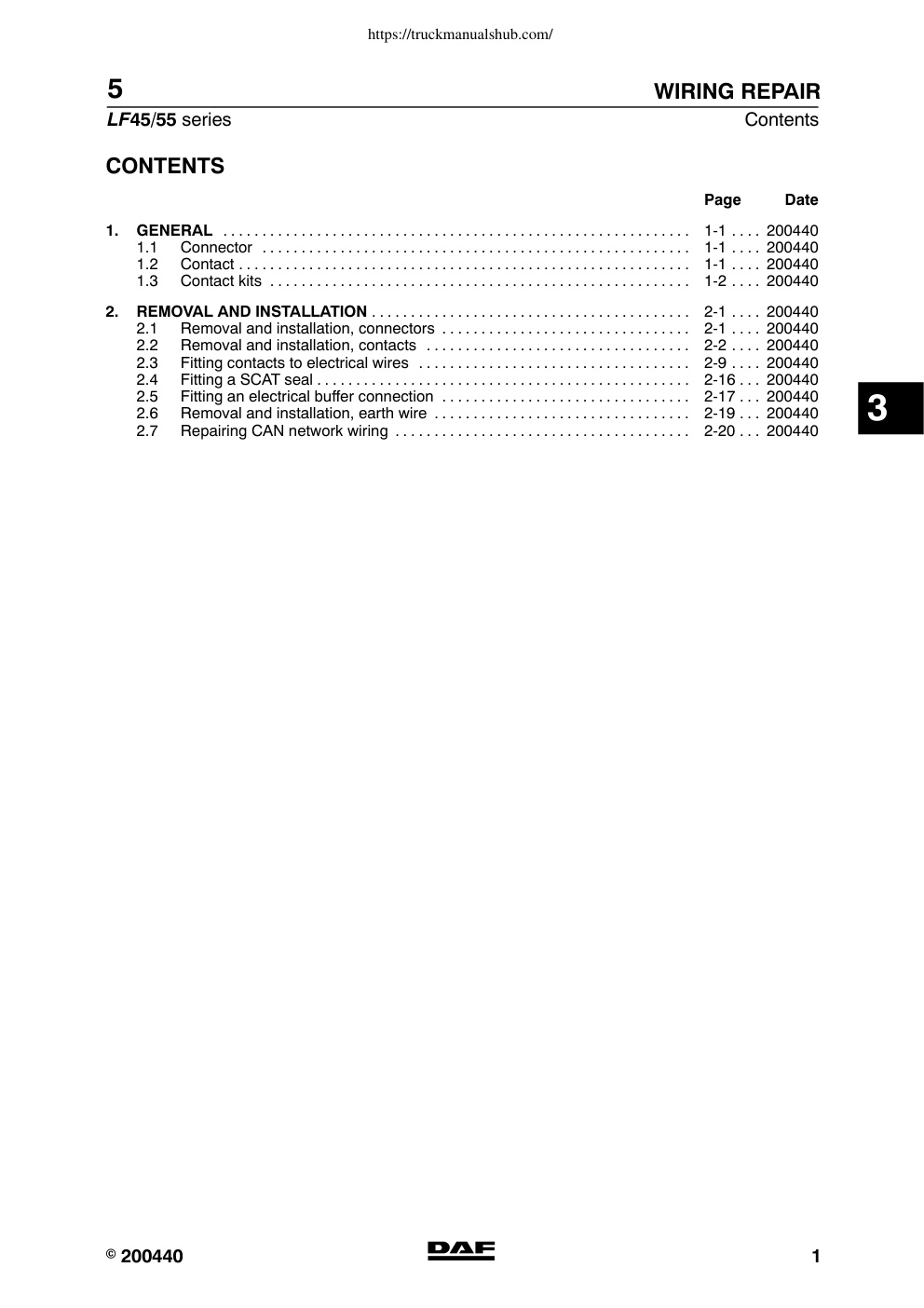

WIRING REPAIR 3

CONNECTION OF ACCESSORIES 6 READING DIAGRAMS 7 LOCATION OF COMPONENTS 8 LOCATION OF CONNECTORS 9 ELECTRICAL SYSTEM 10 CHANGES IN THE ELECTRICAL SYSTEM 11 200440 DW23259502

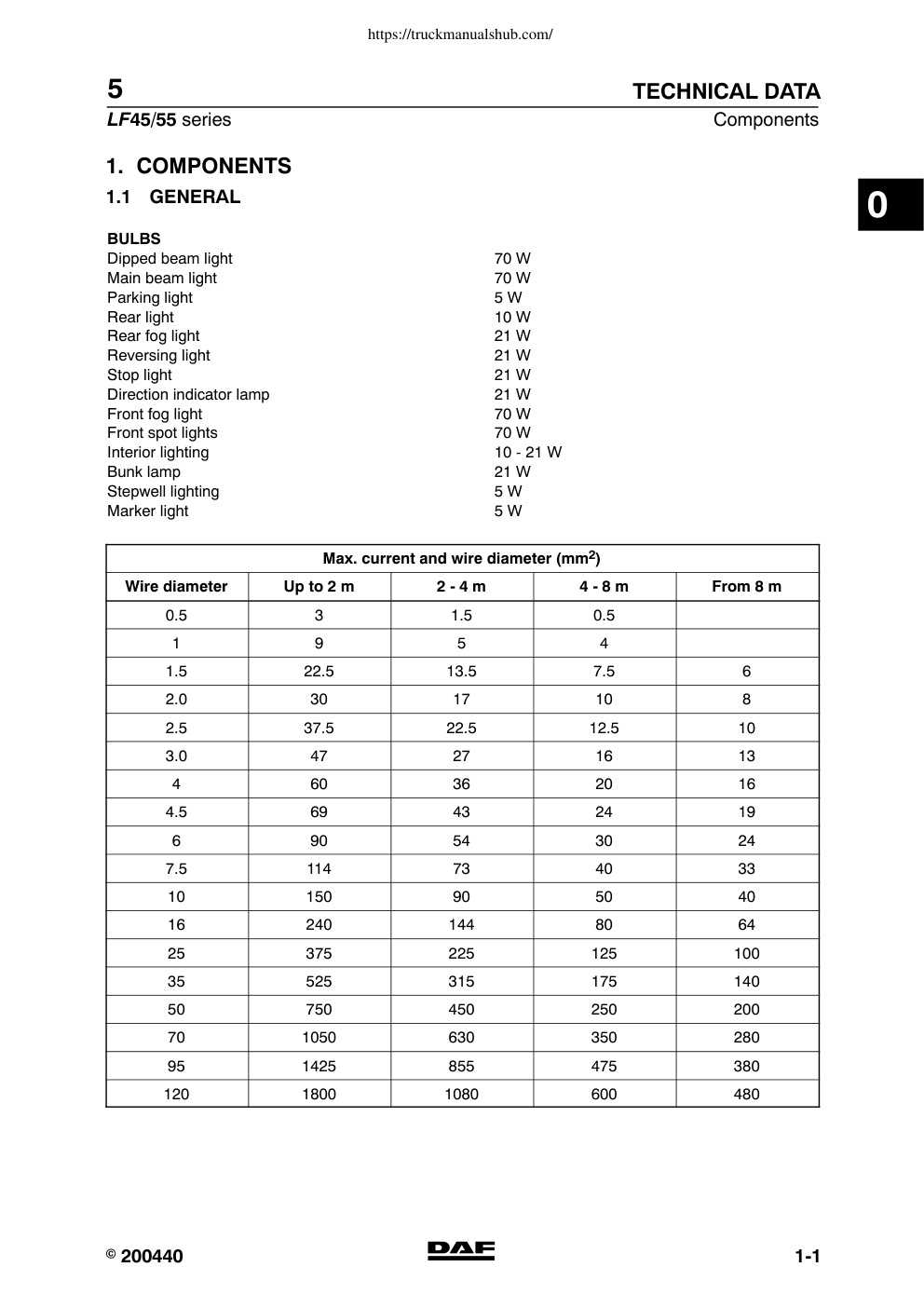

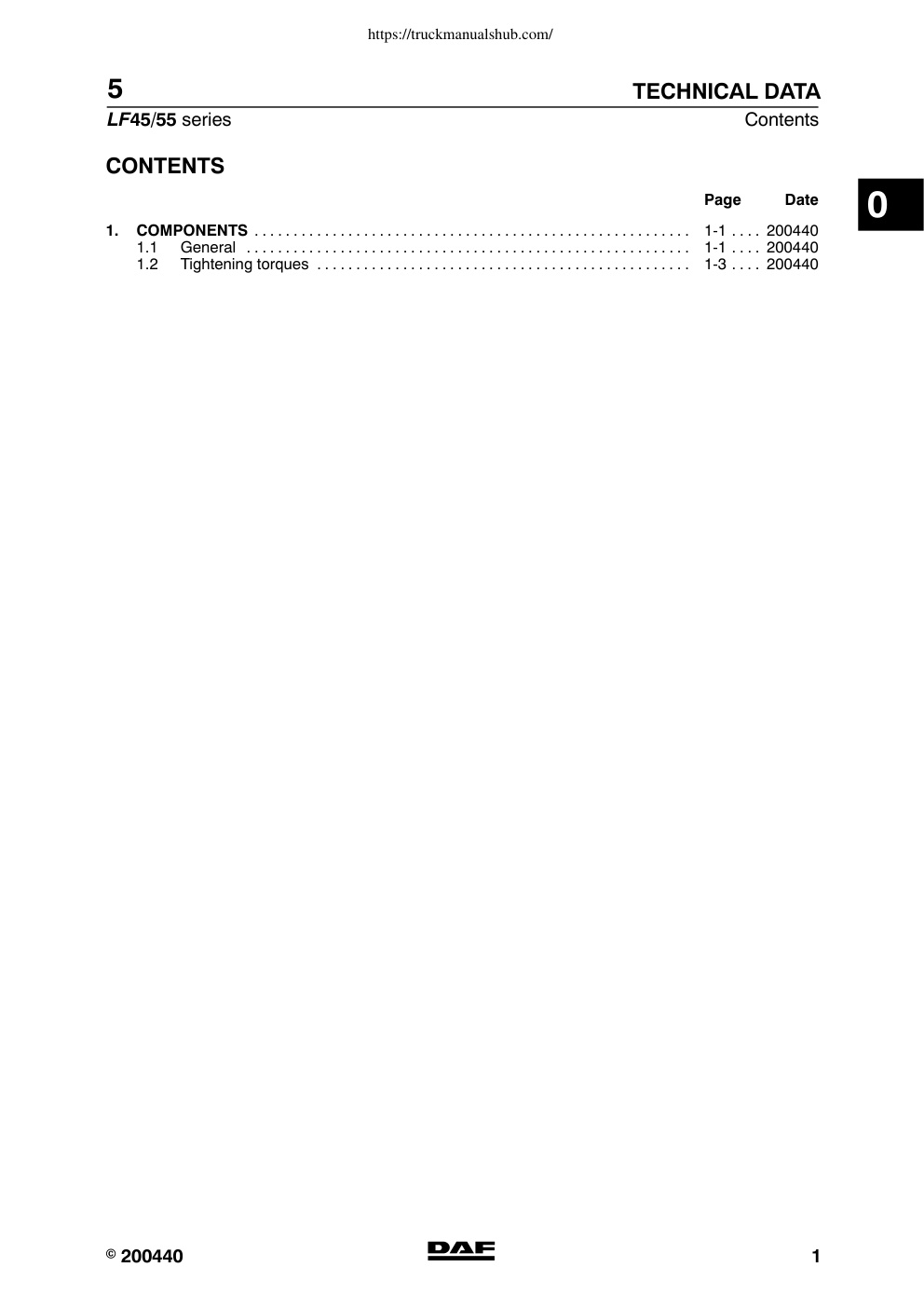

https://truckmanualshub.com/ 5 STRUCTURE LF45/55 series TECHNICAL DATA 0 DIAGNOSTICS 1 COMPONENTS 2 WIRING REPAIR 3 BATTERIES 4 5 CONNECTION OF ACCESSORIES 6 READING DIAGRAMS 7 LOCATION OF COMPONENTS 8 LOCATION OF CONNECTORS 9 ELECTRICAL SYSTEM 10 CHANGES IN THE ELECTRICAL SYSTEM 11 200440 DW23259502 https://truckmanualshub.com/ ssss https://truckmanualshub.com/ 5 TECHNICAL DATA LF45/55 series Contents CONTENTS Page Date 0 1. COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 . . . . 200440 1.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 . . . . 200440 1.2 Tightening torques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 . . . . 200440 200440 1 https://truckmanualshub.com/ TECHNICAL DATA 5 Contents LF45/55 series 0 2 200440 https://truckmanualshub.com/ 5 TECHNICAL DATA LF45/55 series Components 1. COMPONENTS 1.1 GENERAL 0 BULBS Dipped beam light 70 W Main beam light 70 W Parking light 5 W Rear light 10 W Rear fog light 21 W Reversing light 21 W Stop light 21 W Direction…
