6 STRUCTURE

Structure TECHNICAL DATA BRAKE DIAGRAMS FOR THE FULLY PNEUMATIC BRAKE SYSTEM OPERATION OF BRAKE COMPONENTS BRAKE SYSTEM AND COMPONENTS BRAKING PERFORMANCE AND BRAKE EQUALISATION © 200436 DW23259602

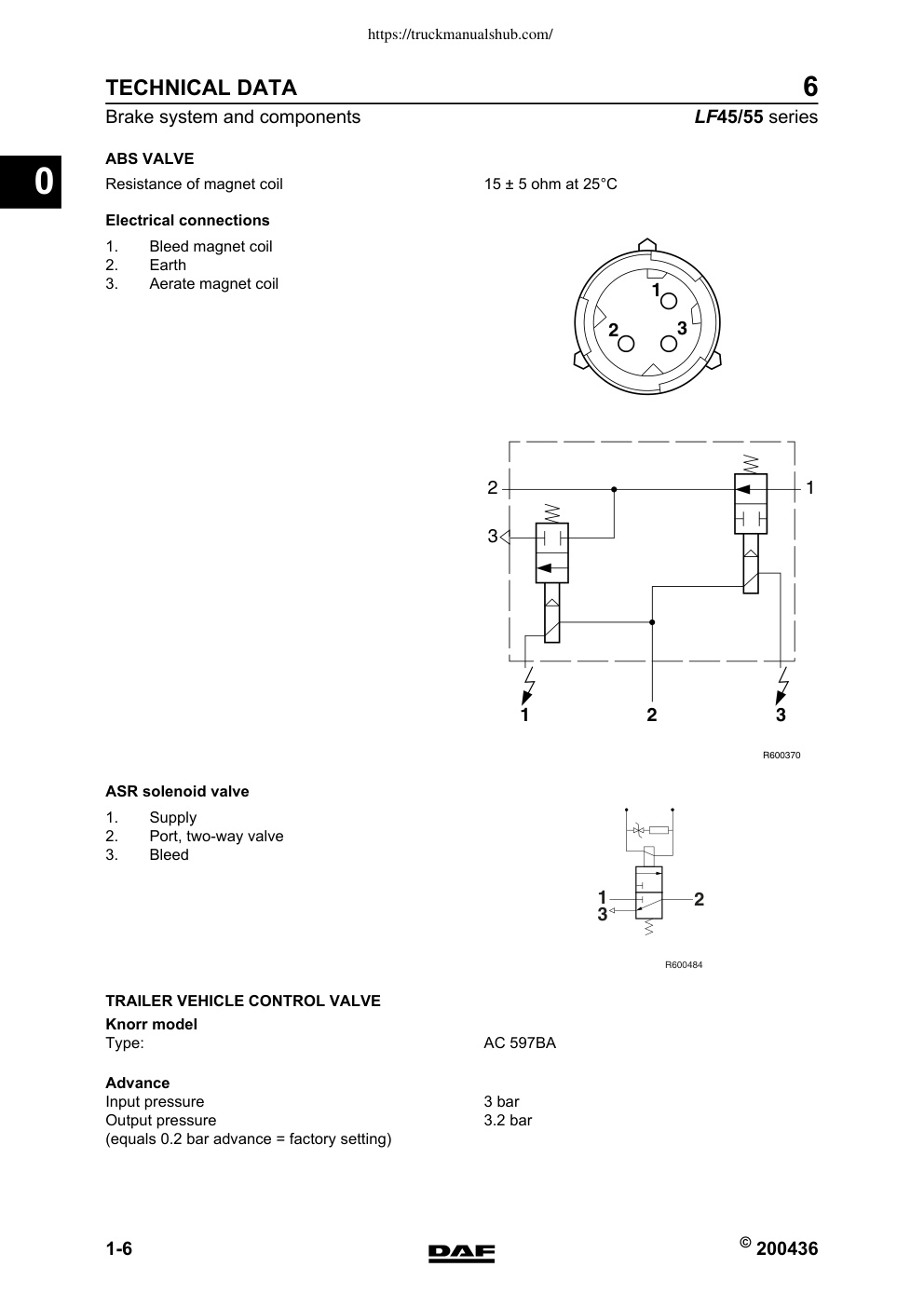

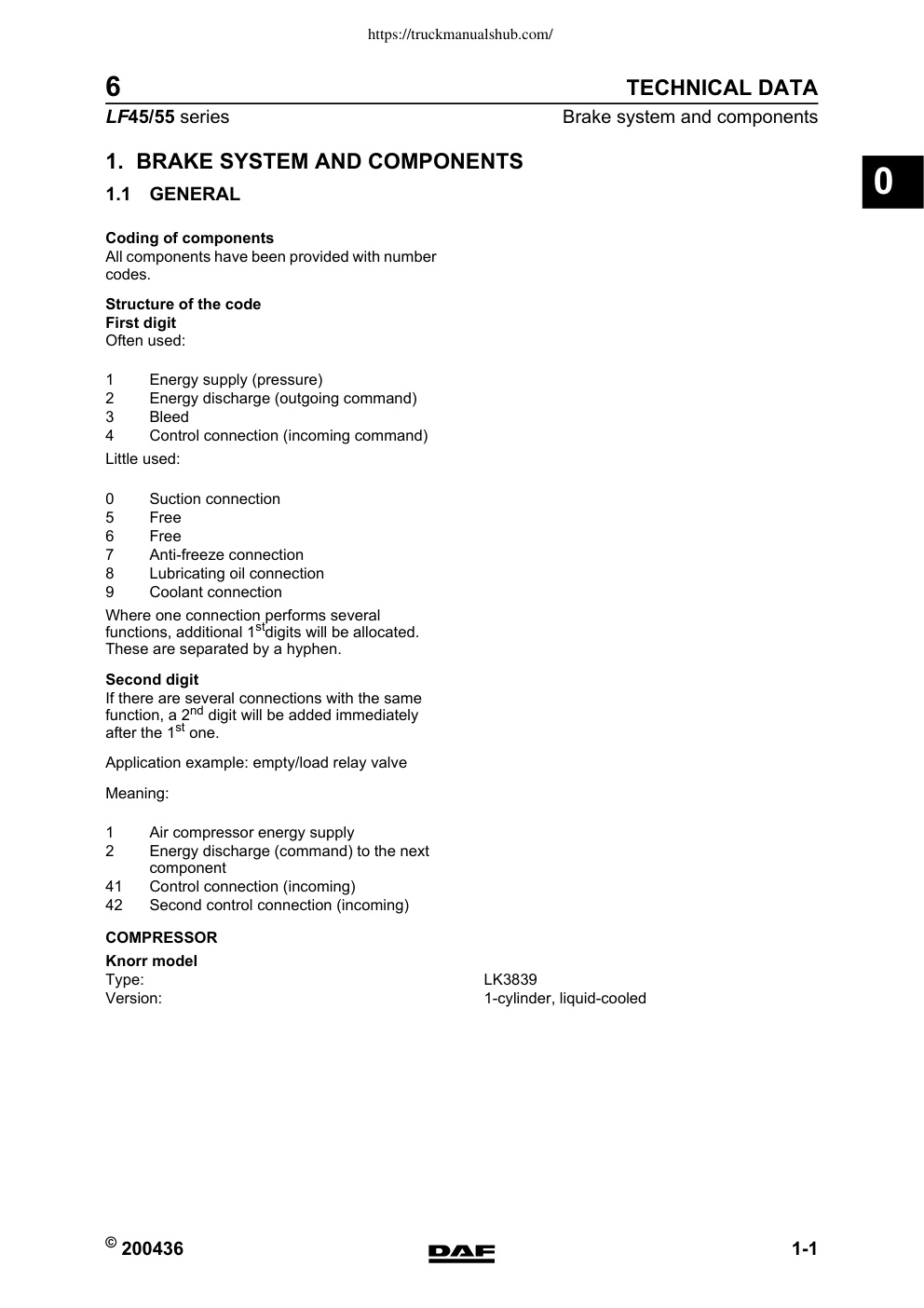

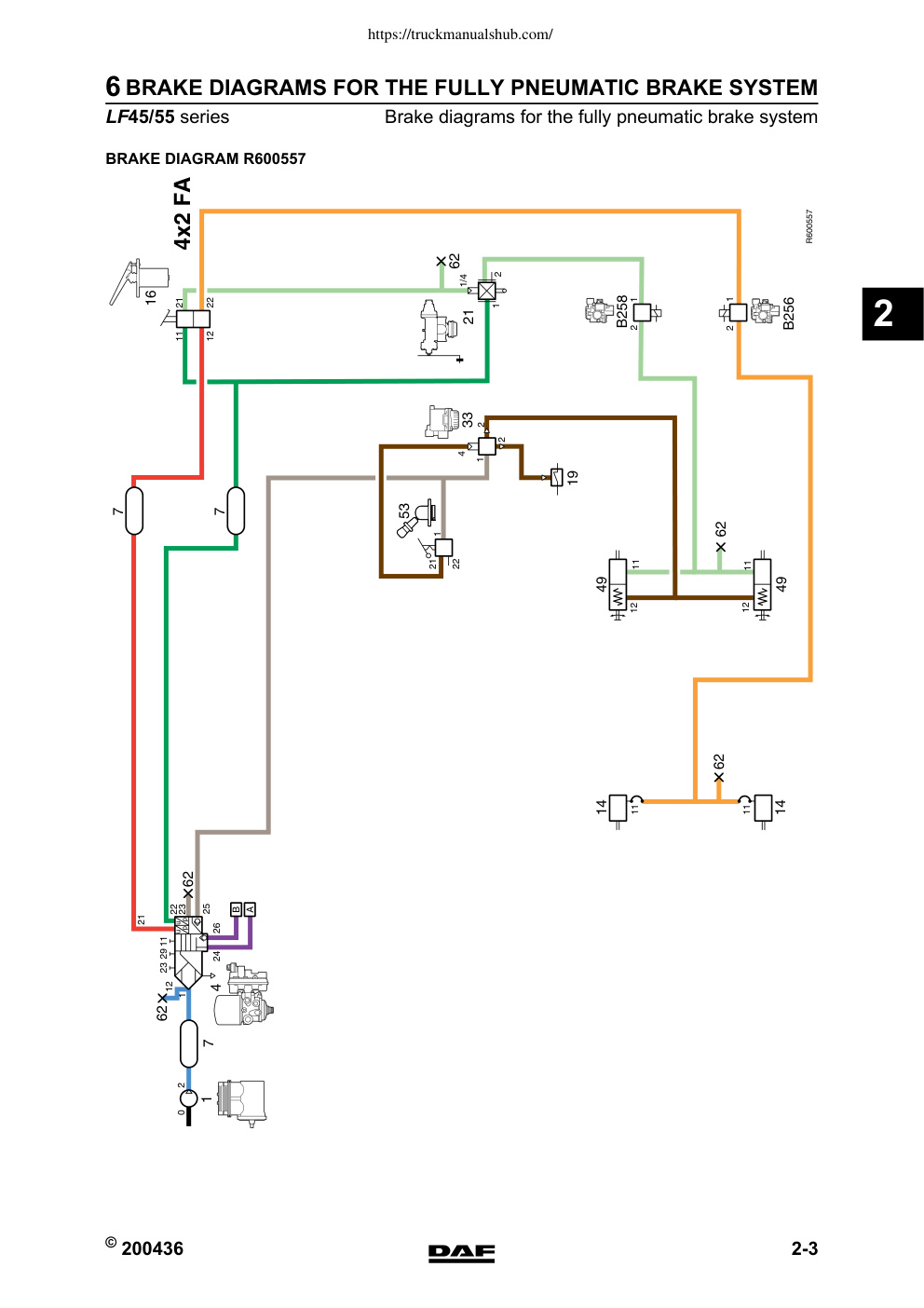

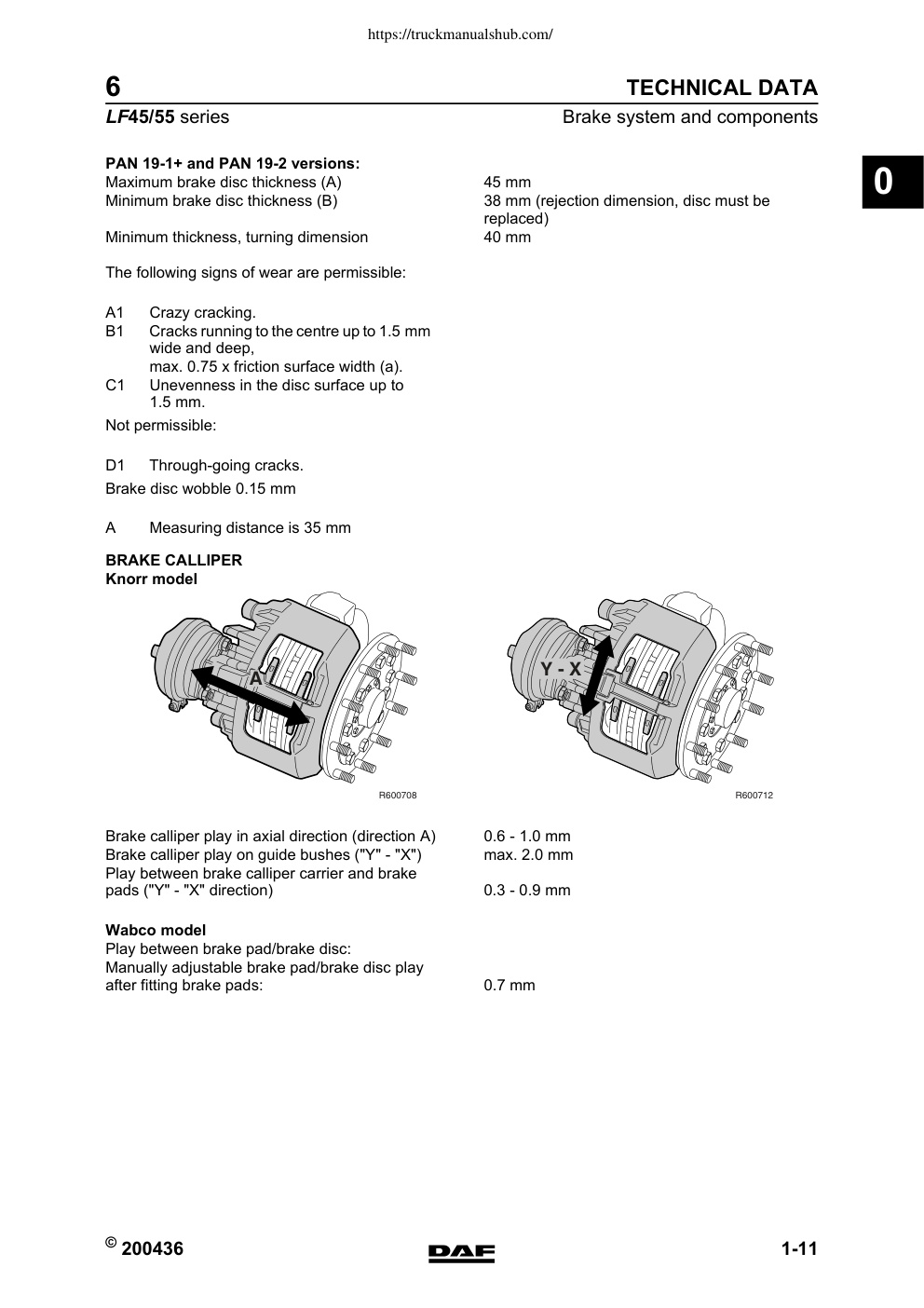

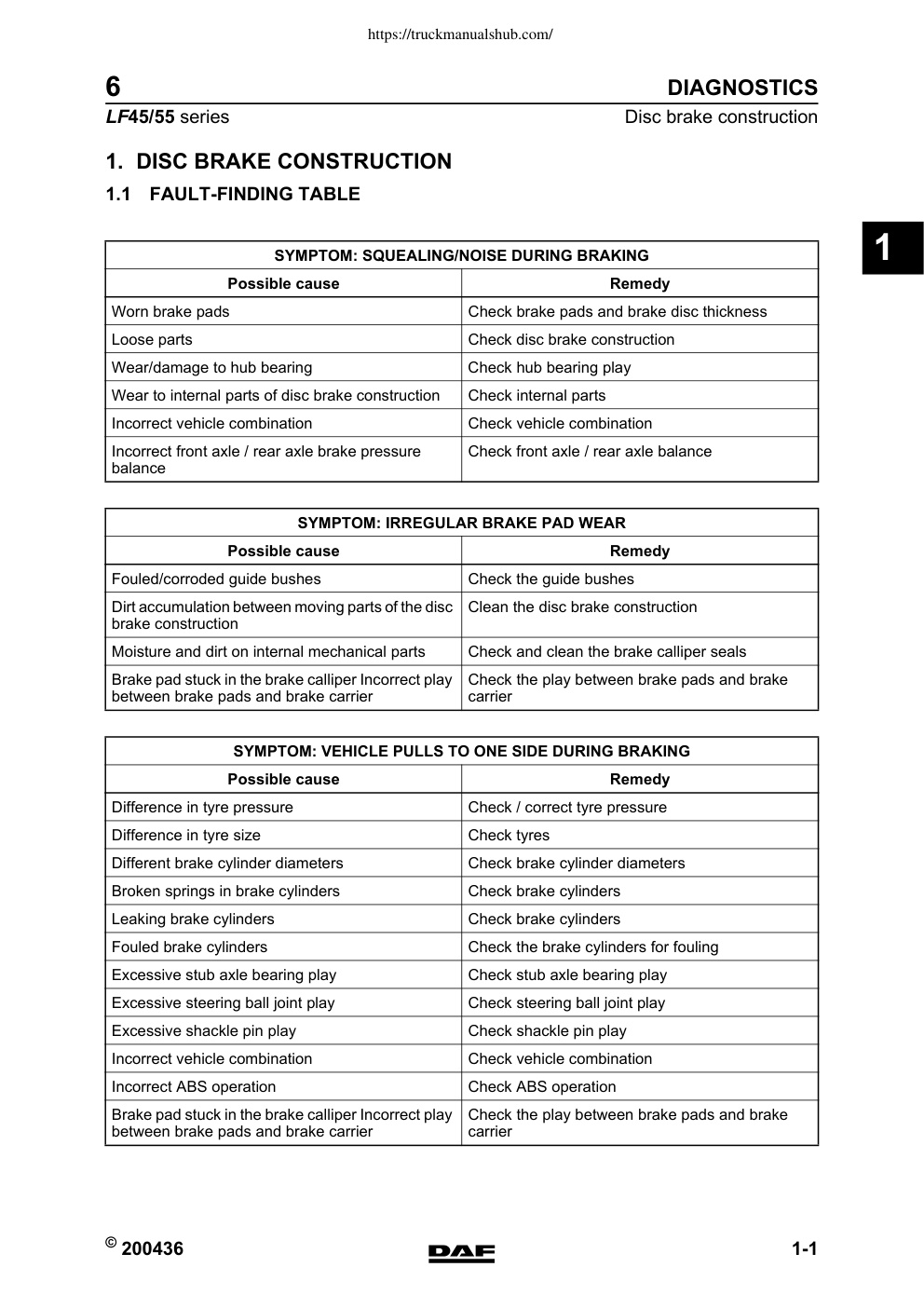

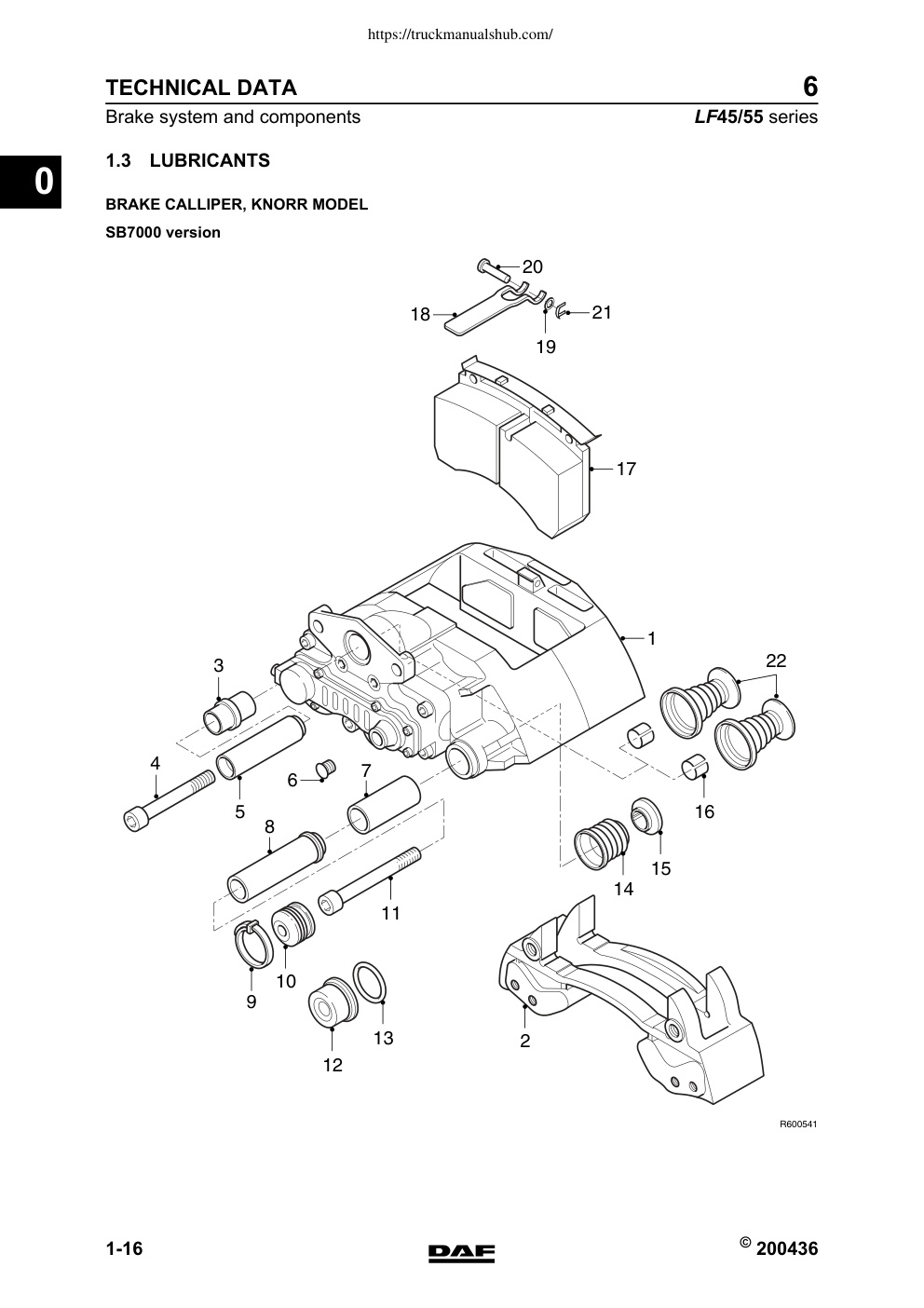

https://truckmanualshub.com/ 6 STRUCTURE ΛΦ45/55 series Structure TECHNICAL DATA 0 DIAGNOSTICS 1 BRAKE DIAGRAMS FOR THE FULLY PNEUMATIC BRAKE SYSTEM 2 OPERATION OF BRAKE COMPONENTS 3 BRAKE SYSTEM AND COMPONENTS 4 BRAKING PERFORMANCE AND BRAKE EQUALISATION 5 © 200436 DW23259602 https://truckmanualshub.com/ https://truckmanualshub.com/ 6 TECHNICAL DATA ΛΦ45/55 series Contents 0CONTENTSTechnical data Page Date 0 1. BRAKE SYSTEM AND COMPONENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 . . . . . 200436 1.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 . . . . . 200436 1.2 Tightening torques. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12 . . . . 200436 1.3 Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16 . . . . 200436 © 200436 1 https://truckmanualshub.com/ TECHNICAL DATA 6 Contents ΛΦ45/55 series 0 2 © 200436 https://truckmanualshub.com/ 6 TECHNICAL DATA ΛΦ45/55 series Brake system and components 1. BRAKE SYSTEM AND COMPONENTS 1.1 GENERAL 0 Coding of components All components have been…
