This workshop manual has been prepared to provide information on electrical circuits for the following Hino Vehicles. Applicable for FR1E, FS1E, FY1E, SH1E, SR1E and SS1E series, equipped with E13C engine As for maintenance items, refer to the Owner’s Manual. All information and specifications in this manual are based upon the latest product information available at the time of print- Hino Motors reserves the right to make changes at any time without prior notice. Please note that the publications below have also been prepared as relevant service manuals for the components and sys- tems in this vehicles. Manual Name Pub. No. Chassis Workshop Manual E13C Engine Workshop Manual S5-YE13E02C

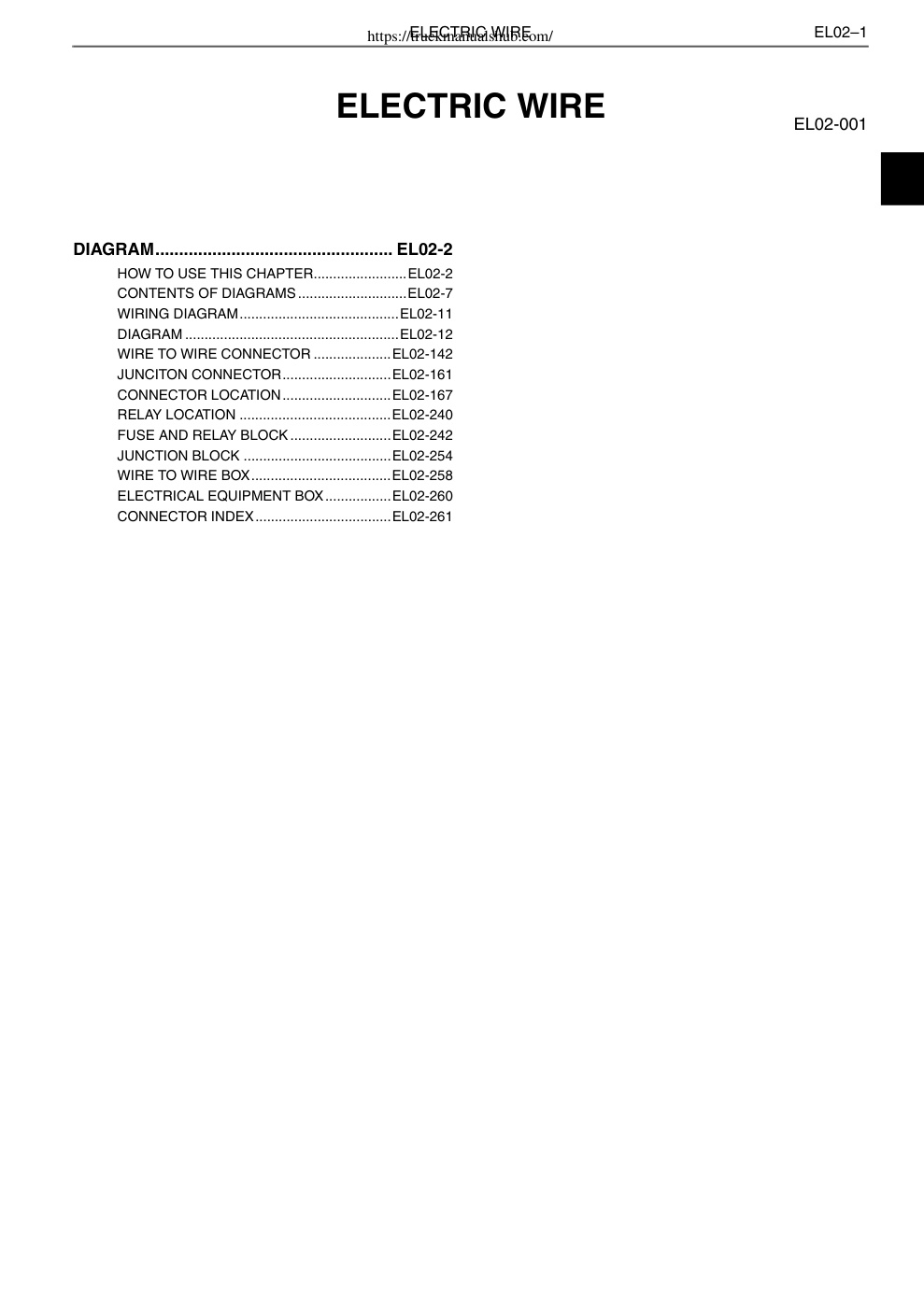

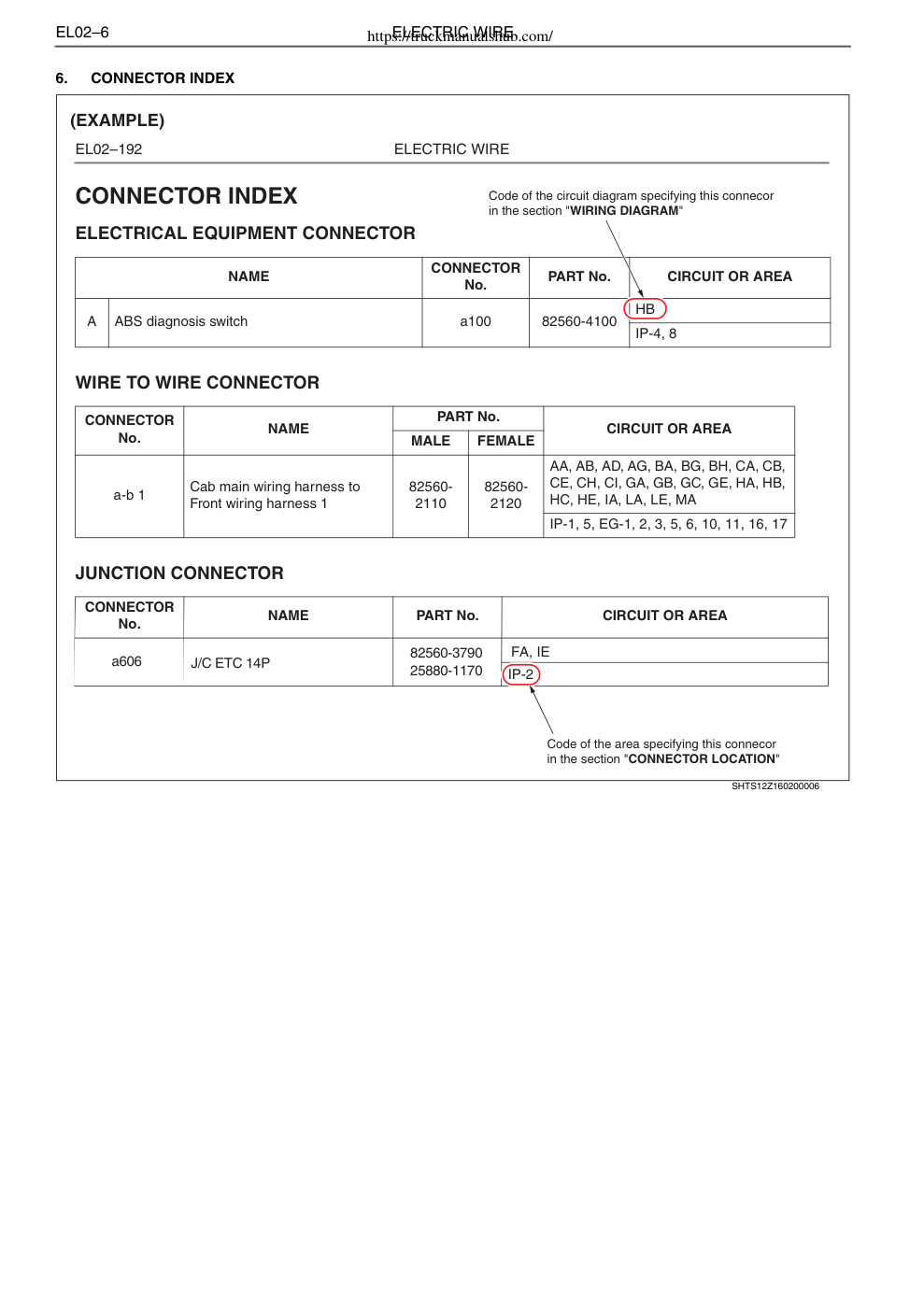

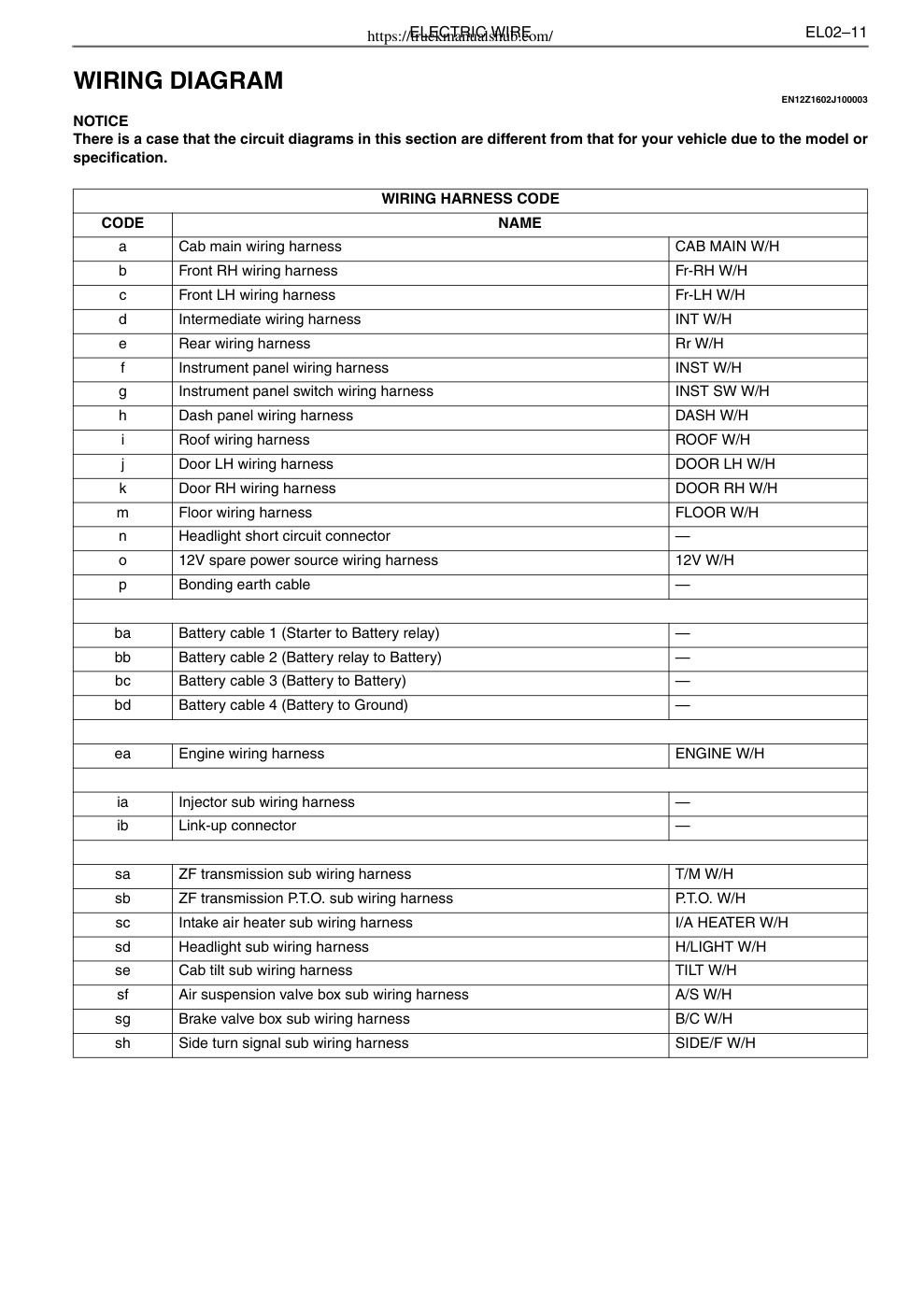

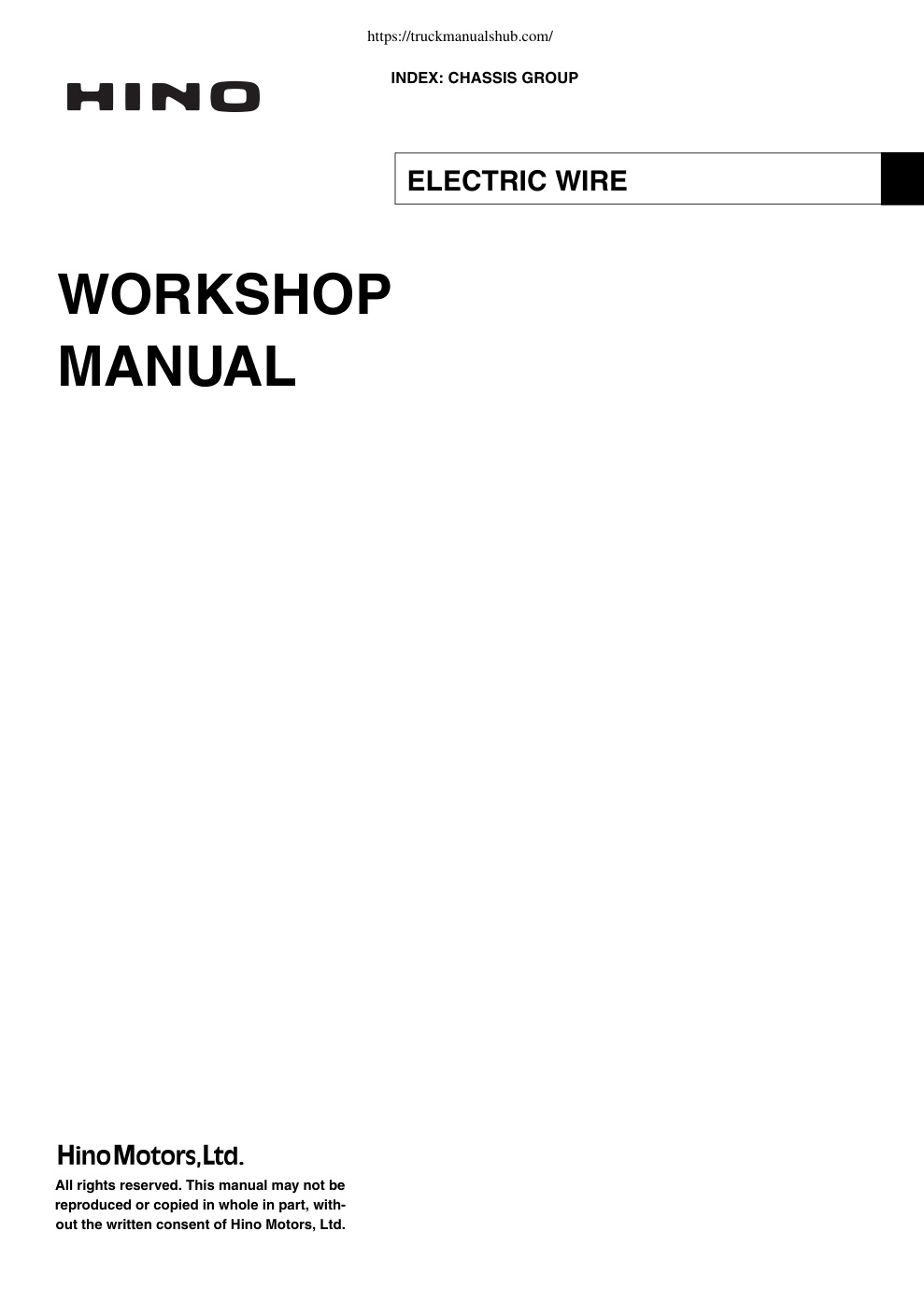

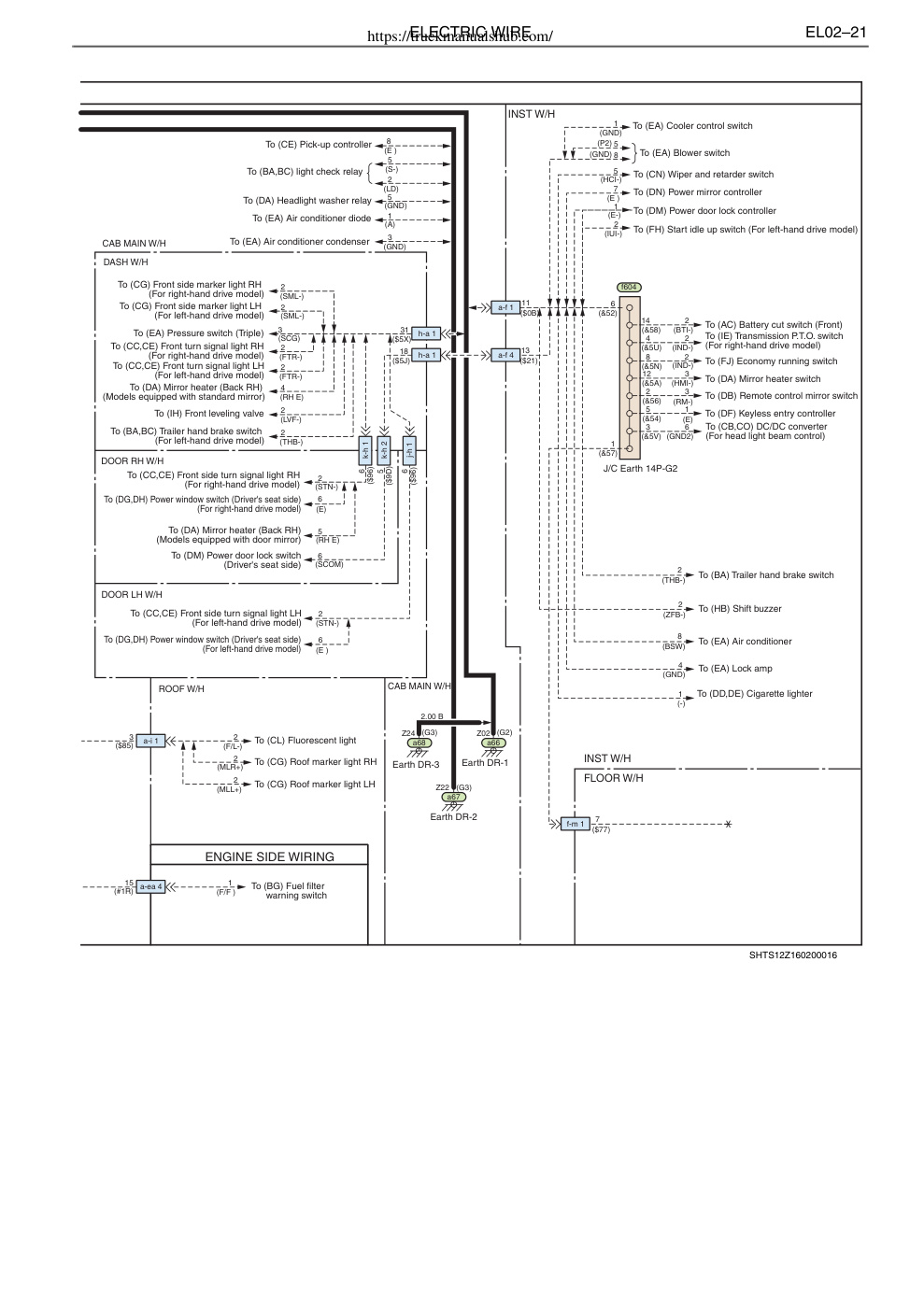

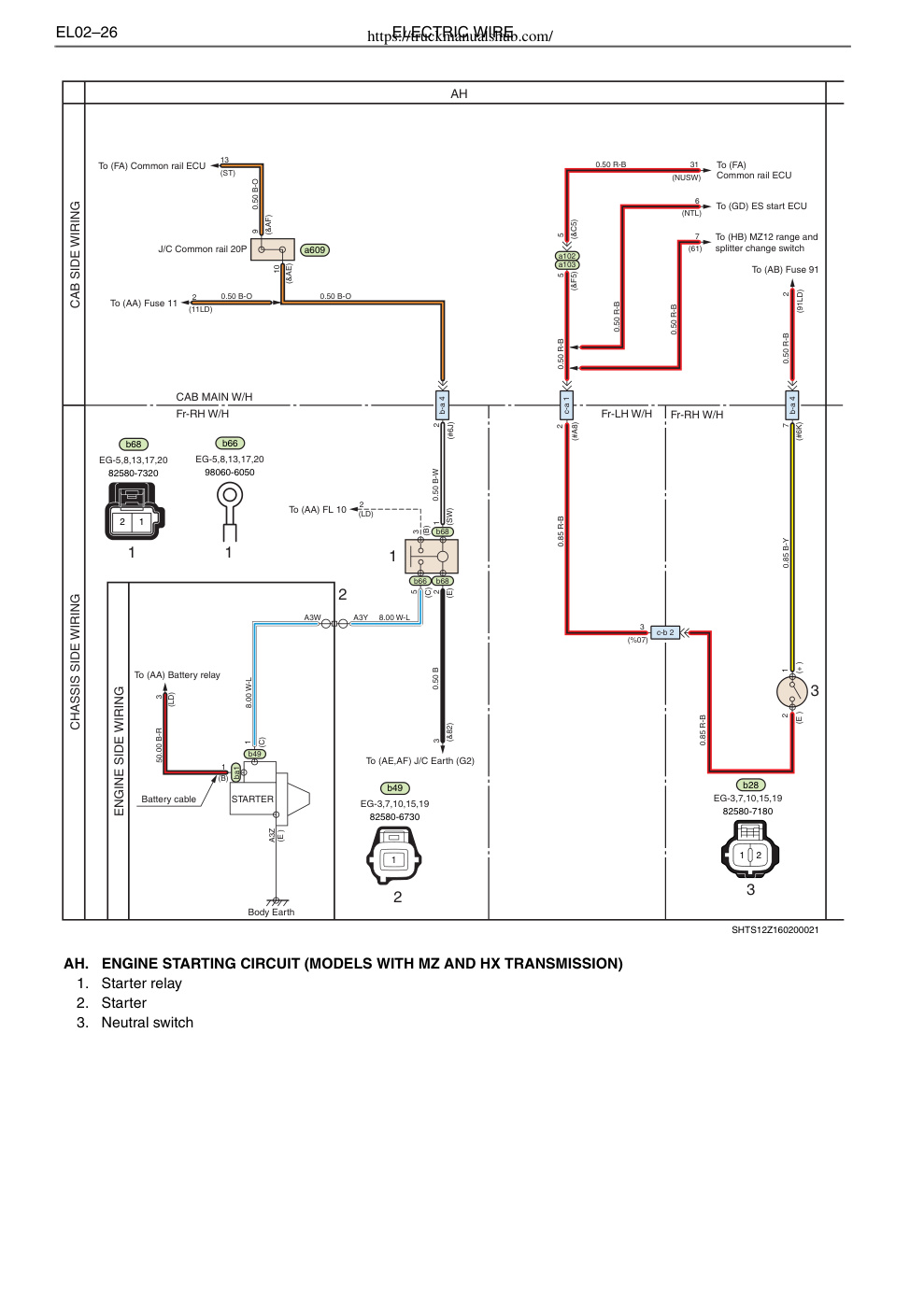

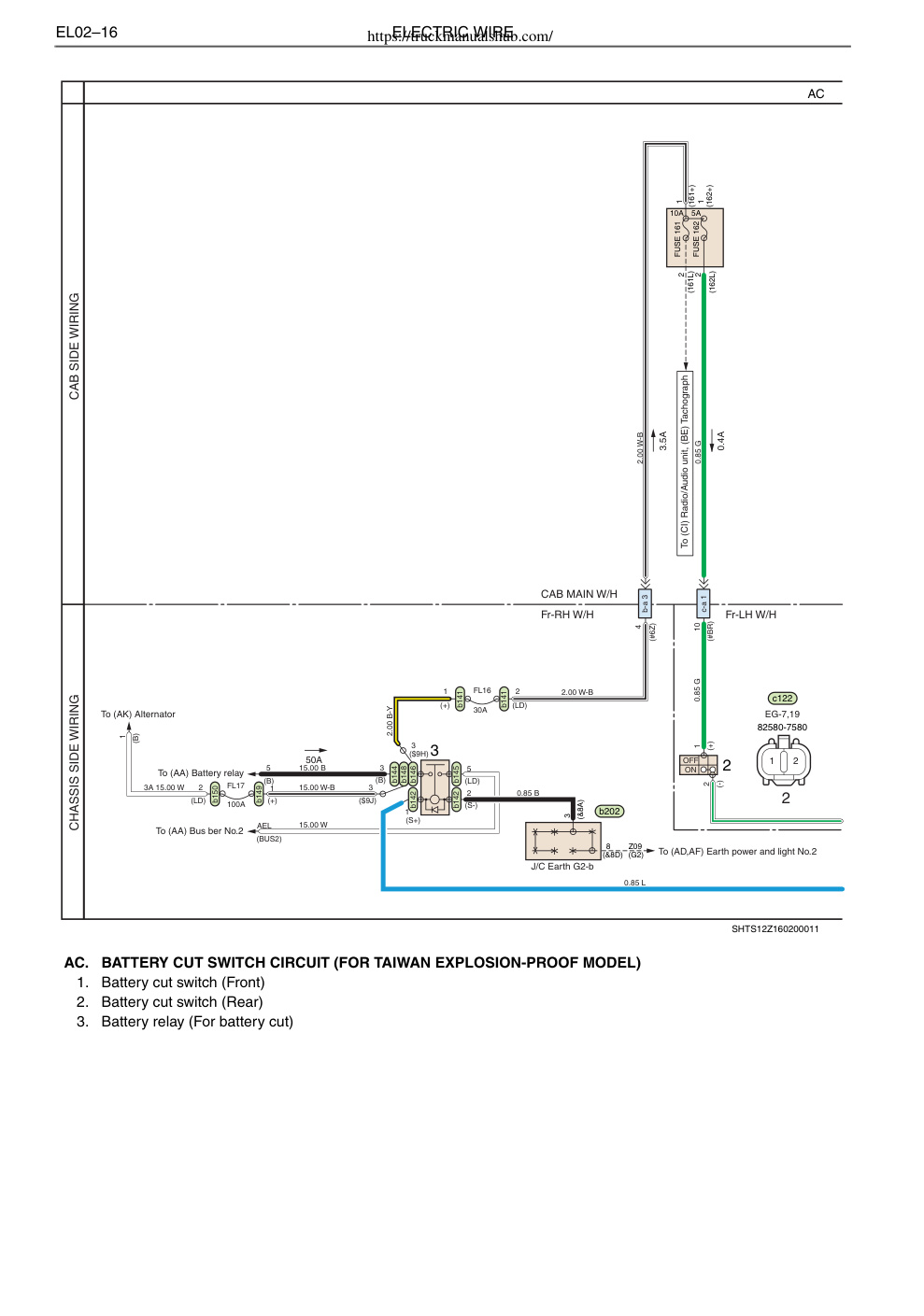

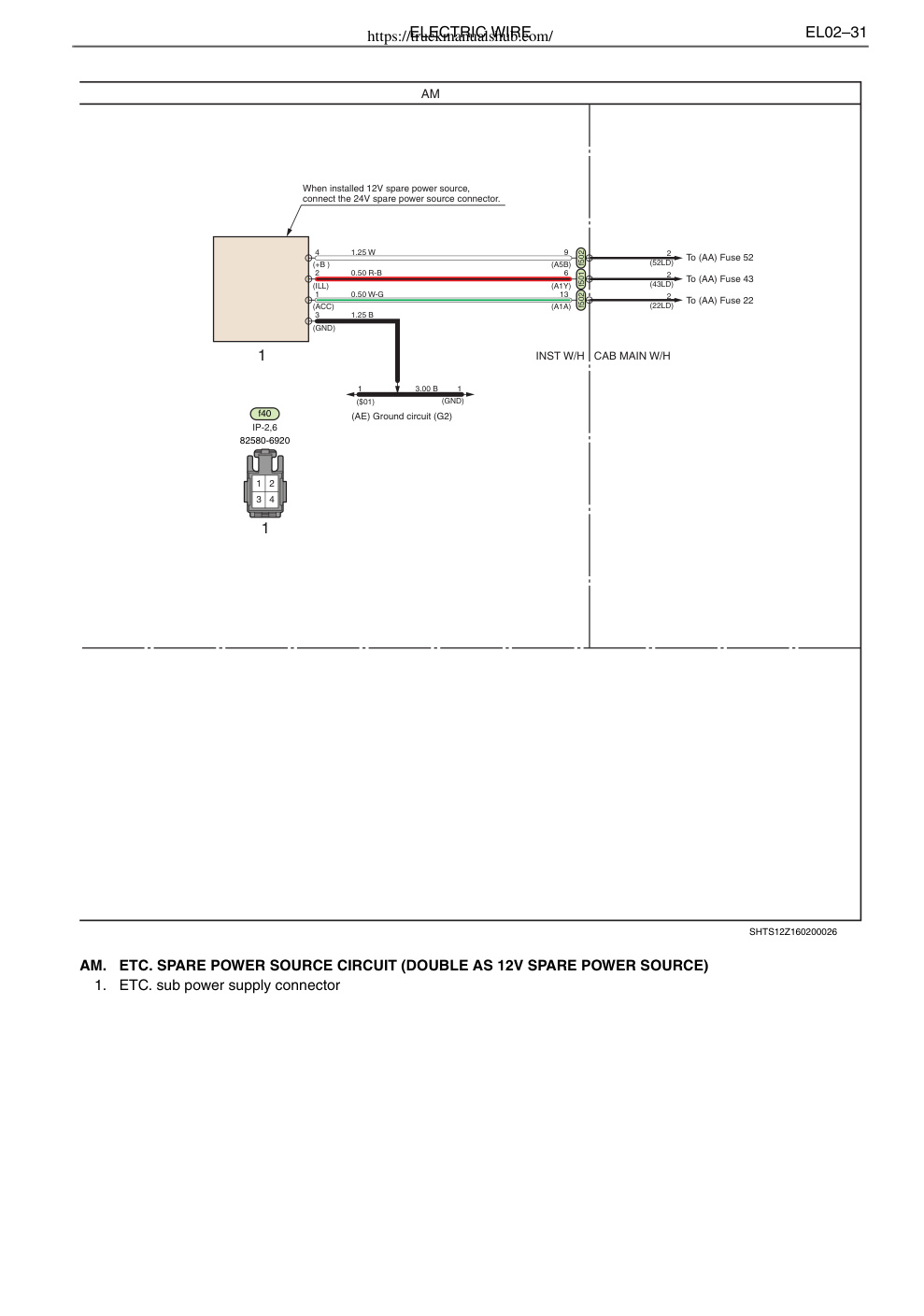

https://truckmanualshub.com/ FOREWORD This workshop manual has been prepared to provide information on electrical circuits for the following Hino Vehicles. Applicable for FR1E, FS1E, FY1E, SH1E, SR1E and SS1E series, equipped with E13C engine As for maintenance items, refer to the Owner’s Manual. All information and specifications in this manual are based upon the latest product information available at the time of print- ing. Hino Motors reserves the right to make changes at any time without prior notice. Please note that the publications below have also been prepared as relevant service manuals for the components and sys- tems in this vehicles. Manual Name Pub. No. S1-YFSE17C 1/2 Chassis Workshop Manual S1-YFSE17C 2/2 E13C Engine Workshop Manual S5-YE13E02C https://truckmanualshub.com/ https://truckmanualshub.com/ INDEX: CHASSIS GROUP ELECTRIC WIRE WORKSHOP MANUAL All rights reserved. This manual may not be reproduced or copied in whole in part, with- out the written consent of Hino Motors, Ltd. https://truckmanualshub.com/ https://truckmanualshub.com/ELECTRIC WIRE EL02–1 EL02ELECTRIC WIRE EL02-001 DIAGRAM.................................................. EL02-2 HOW TO USE THIS…
