problems, proper operation, maintenance and repairs are indispensable.

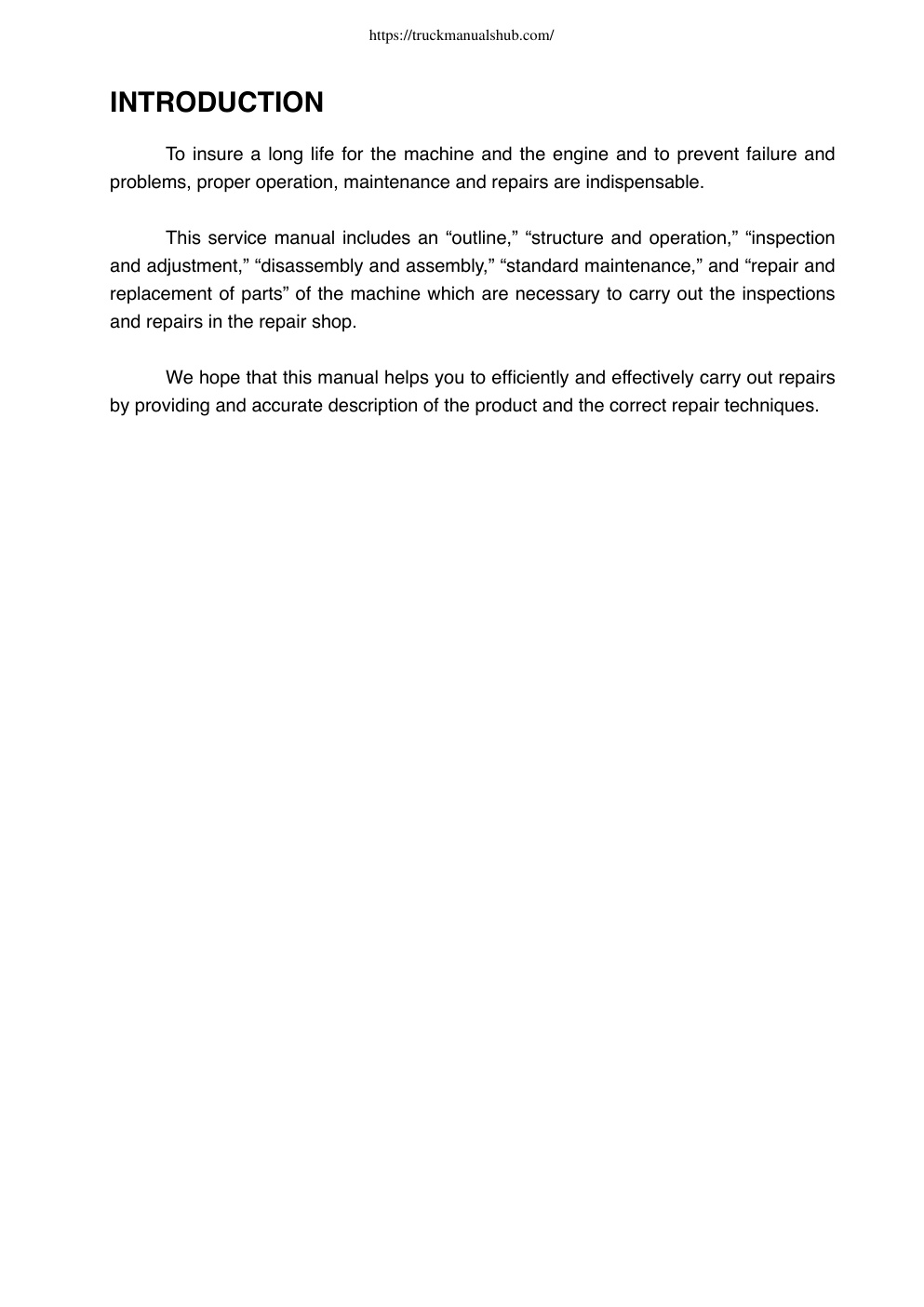

Japanese Craftsmanship == === To insure a long life for the machine and the engine and to prevent failure and This service manual includes an “outline,” “structure and operation,” “inspection and adjustment,” “disassembly and assembly,” “standard maintenance,” and “repair and replacement of parts” of the machine which are necessary to carry out the inspections and repairs in the repair shop. We hope that this manual helps you to efficiently and effectively carry out repairs by providing and accurate description of the product and the correct repair techniques.

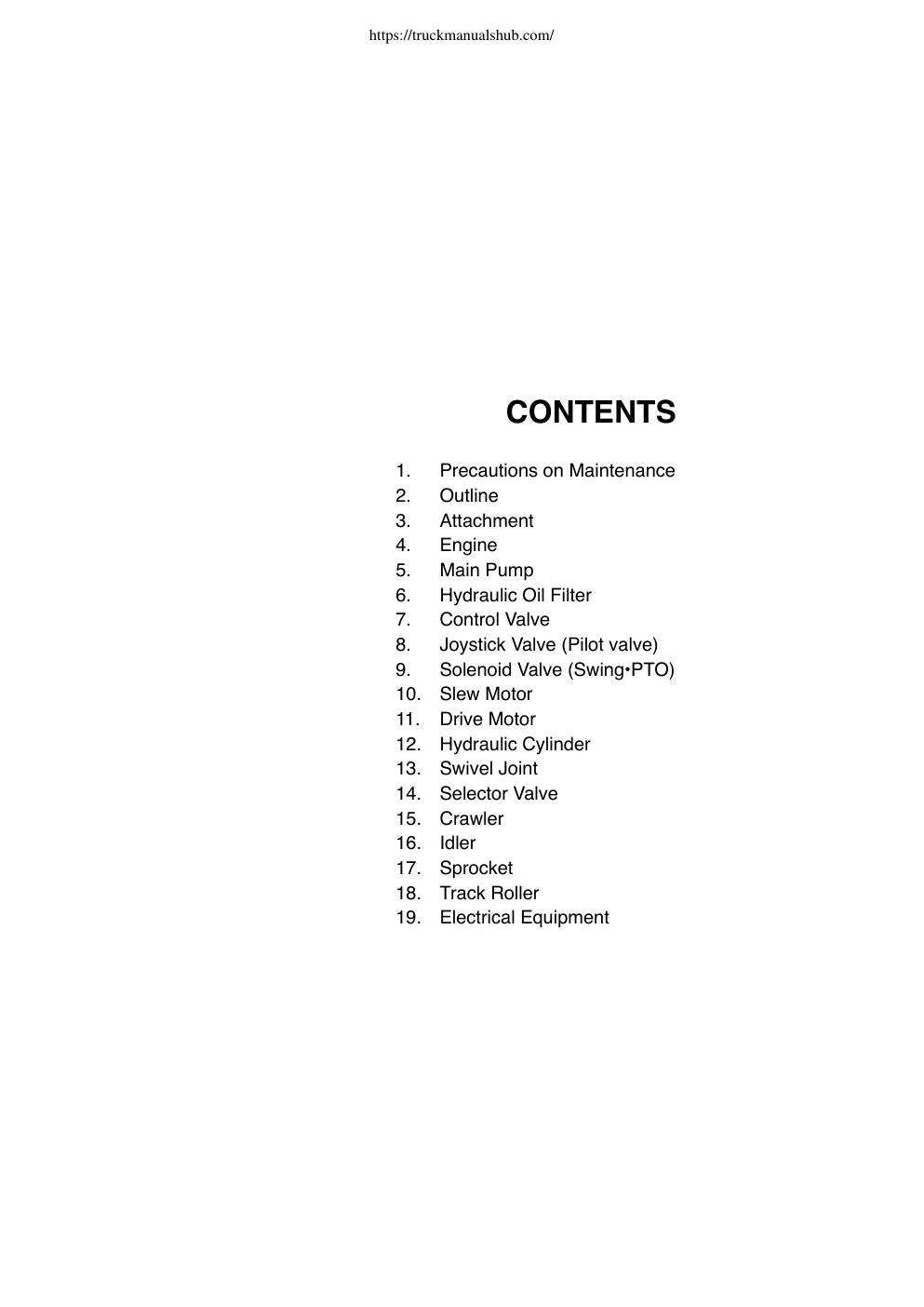

https://truckmanualshub.com/ H09D Service Manual H09D https://truckmanualshub.com/ INTRODUCTION To insure a long life for the machine and the engine and to prevent failure and problems, proper operation, maintenance and repairs are indispensable. This service manual includes an “outline,” “structure and operation,” “inspection and adjustment,” “disassembly and assembly,” “standard maintenance,” and “repair and replacement of parts” of the machine which are necessary to carry out the inspections and repairs in the repair shop. We hope that this manual helps you to efficiently and effectively carry out repairs by providing and accurate description of the product and the correct repair techniques. https://truckmanualshub.com/ CONTENTS 1. Precautions on Maintenance 2. Outline 3. Attachment 4. Engine 5. Main Pump 6. Hydraulic Oil Filter 7. Control Valve 8. Joystick Valve (Pilot valve) 9. Solenoid Valve (Swing•PTO) 10. Slew Motor 11. Drive Motor 12. Hydraulic Cylinder 13. Swivel Joint 14. Selector Valve 15. Crawler 16. Idler 17. Sprocket 18. Track Roller 19. Electrical Equipment https://truckmanualshub.com/ 1 PRECAUTIONS ON MAINTENANCE 1. Correct operation Correct operation means to…
