AC MOTOR CONTROL SYSTEM J2.00-3.20XM (J40-60Z) [A416]; V30ZD [D210]; E1.50-2.00XM (E25-35Z, E40ZS) [E114]; E2.00-3.20XM (E45-65Z) [G108] PART NO. 1534738 8000 SRM 1059 SAFETY PRECAUTIONS MAINTENANCE AND REPAIR • When lifting parts or assemblies, make sure all slings, chains, or cables are correctly fastened, and that the load being lifted is balanced. Make sure the crane, cables, and chains have the capacity to support the weight of the load. • Do not lift heavy parts by hand, use a lifting mechanism. • Wear safety glasses. • DISCONNECT THE BATTERY CONNECTOR before doing any maintenance or repair on electric lift trucks. • Disconnect the battery ground cable on internal combustion lift trucks. • Always use correct blocks to prevent the unit from rolling or falling. See HOW TO PUT THE LIFT TRUCK ON BLOCKS in the Operating Manual or the Periodic Mainte- • Keep the unit clean and the workin

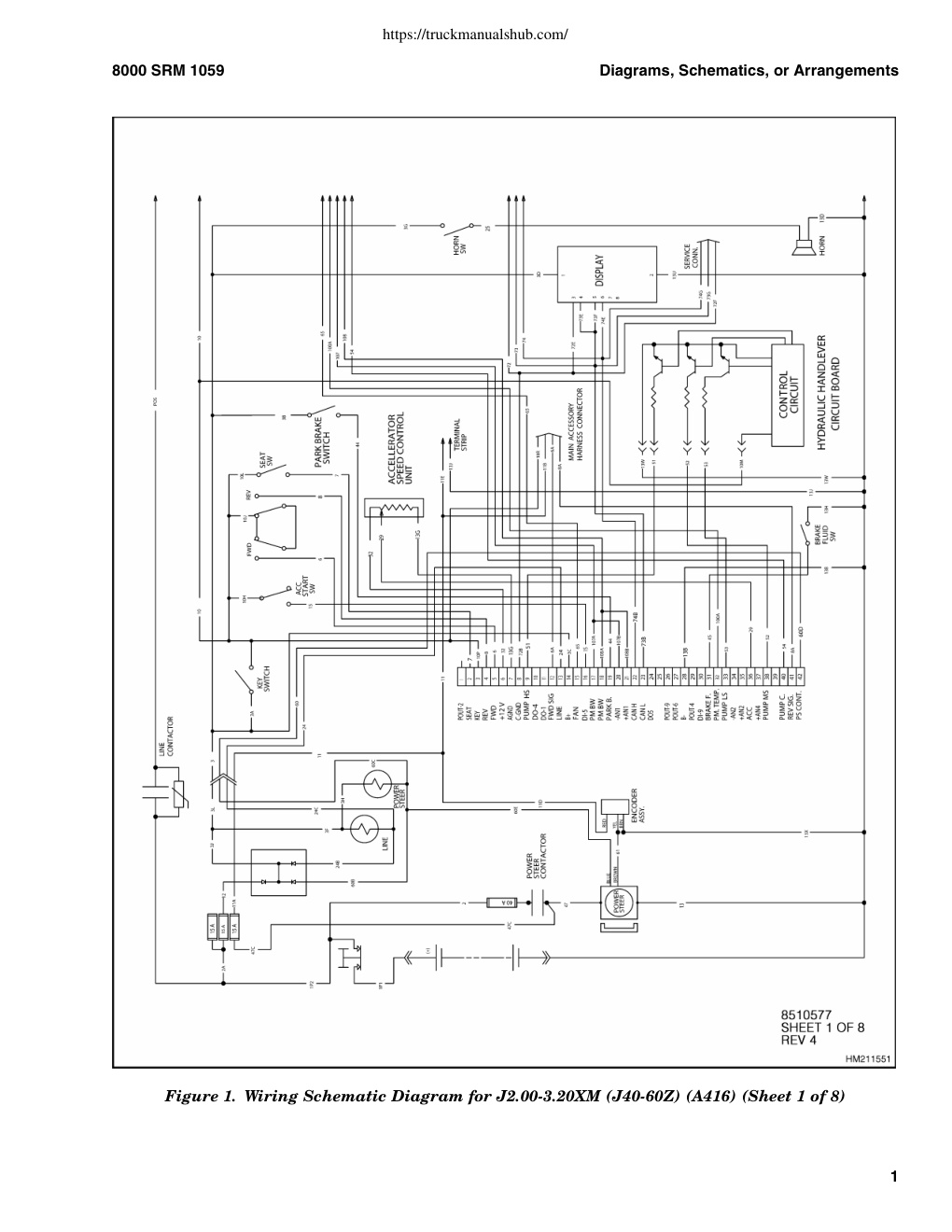

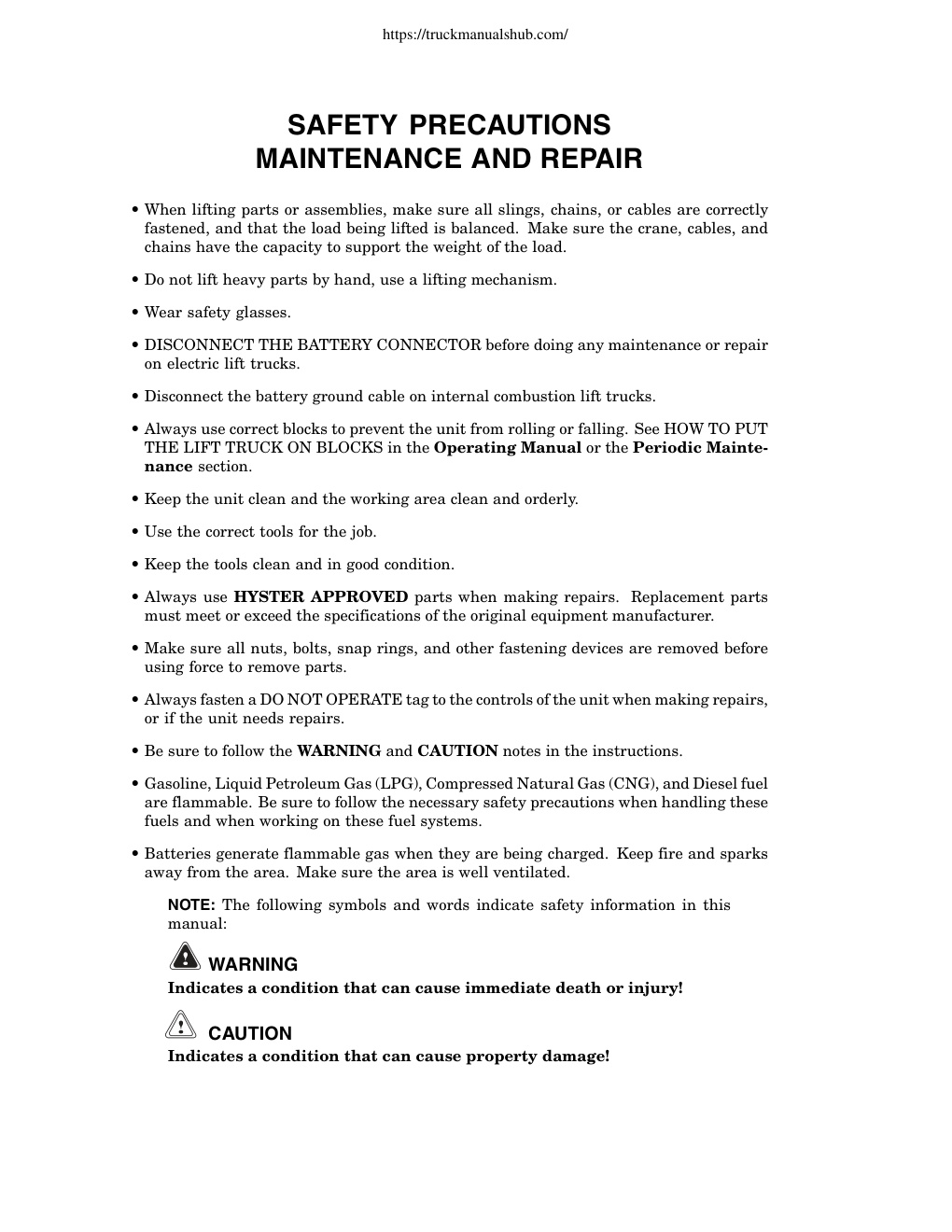

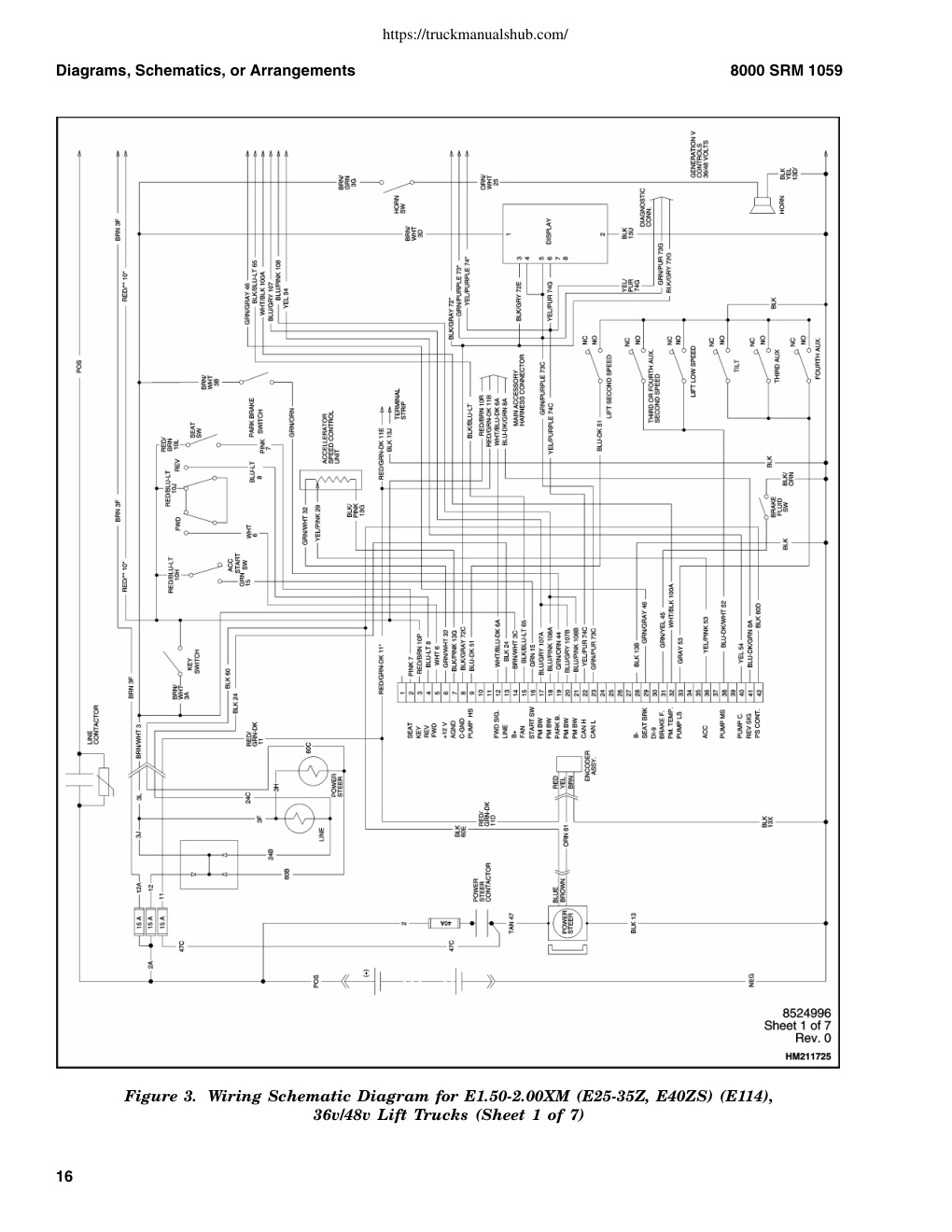

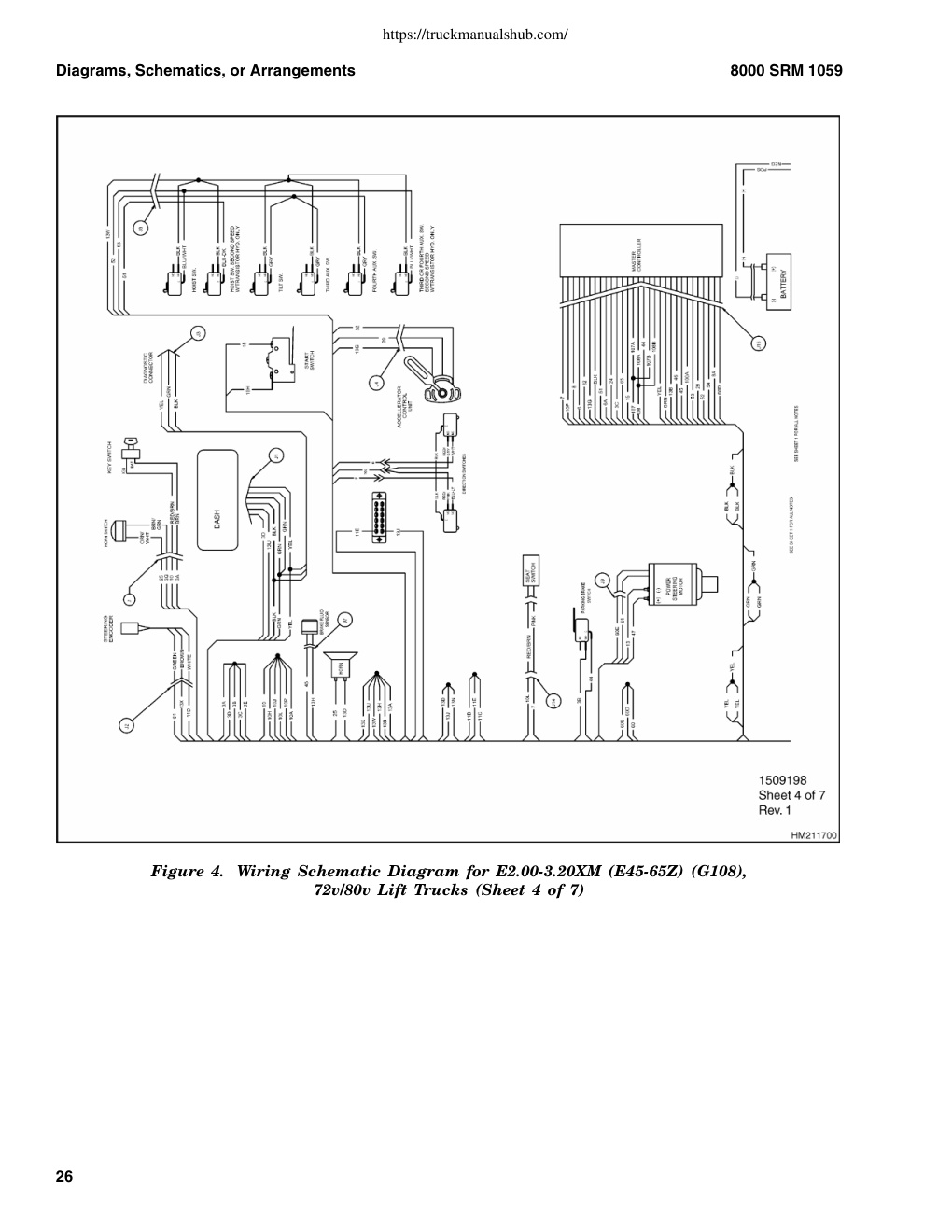

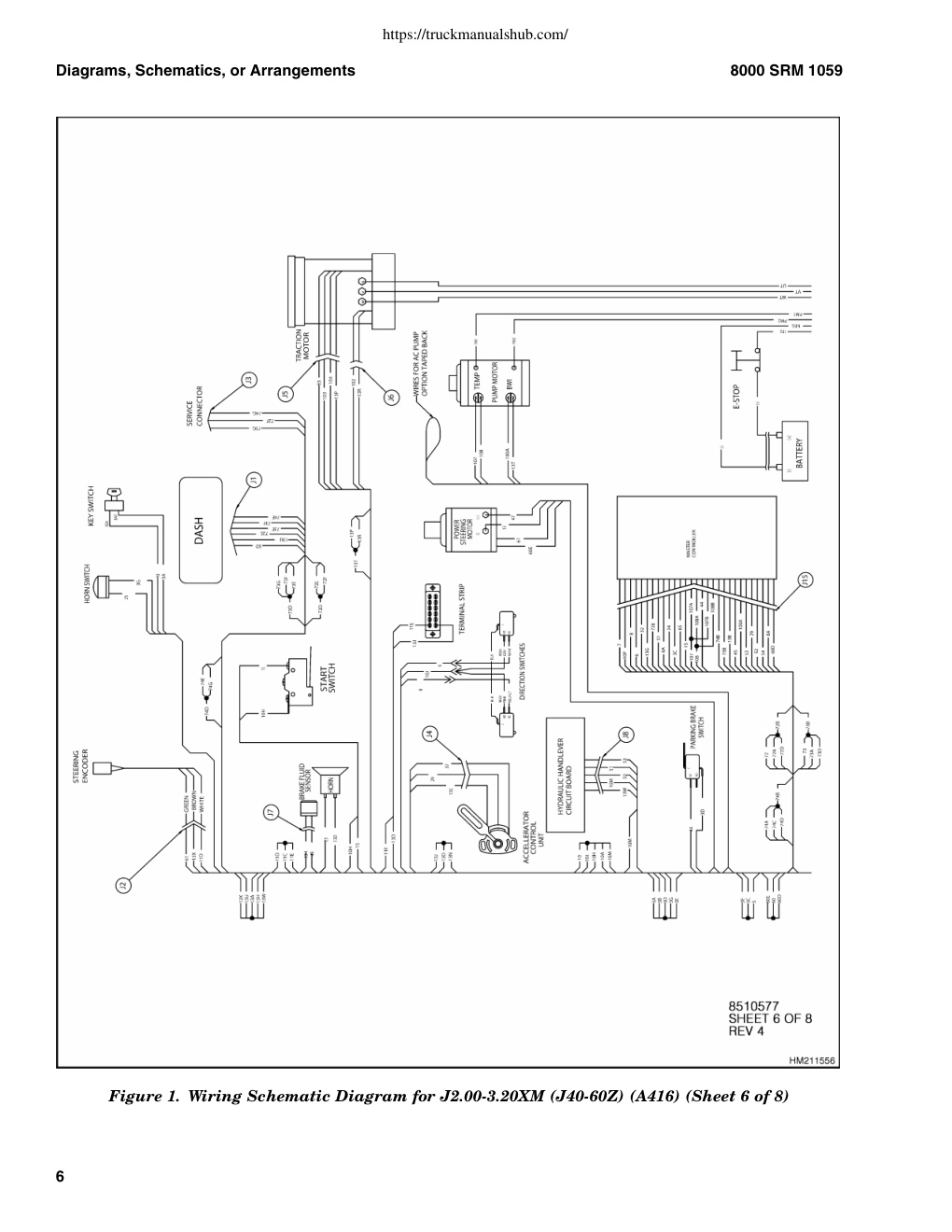

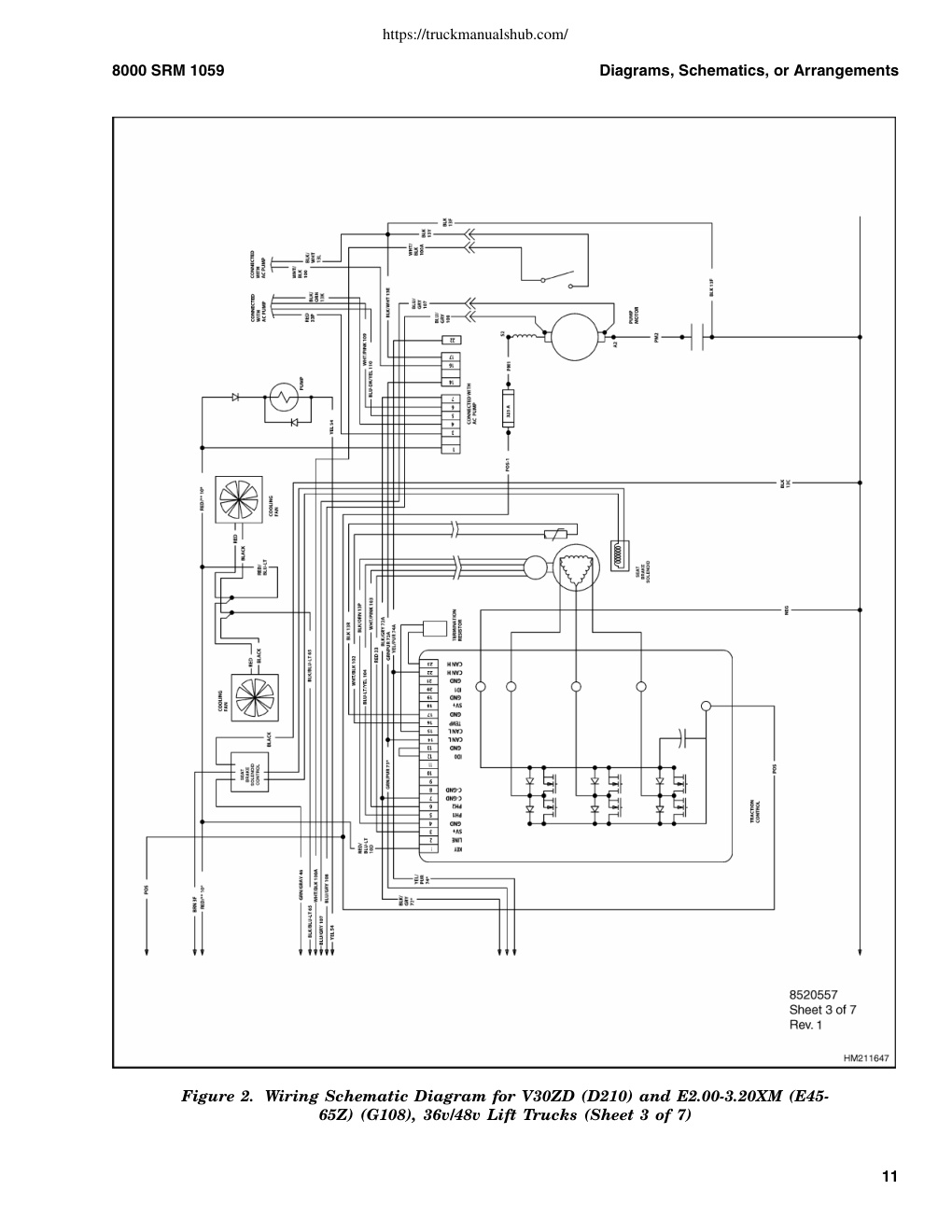

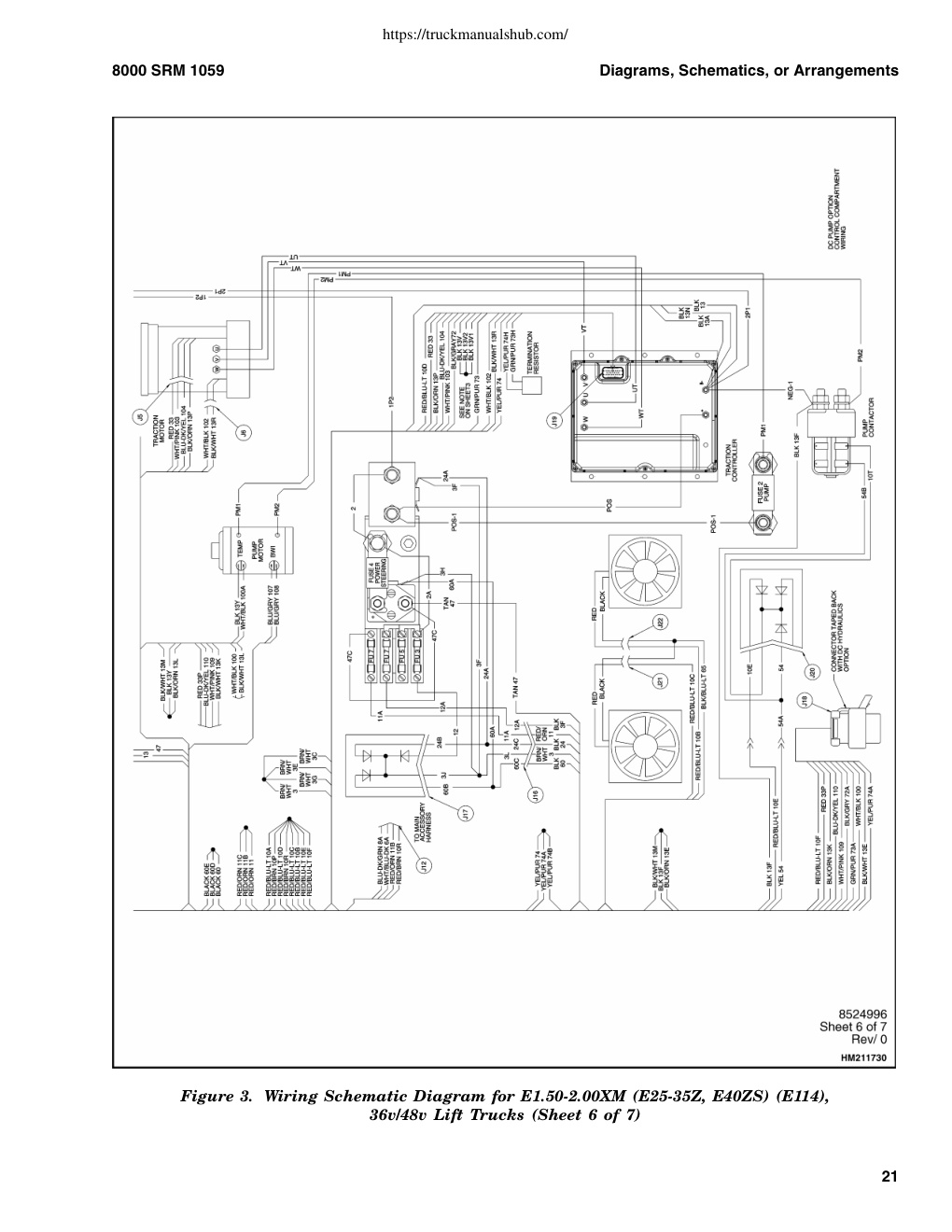

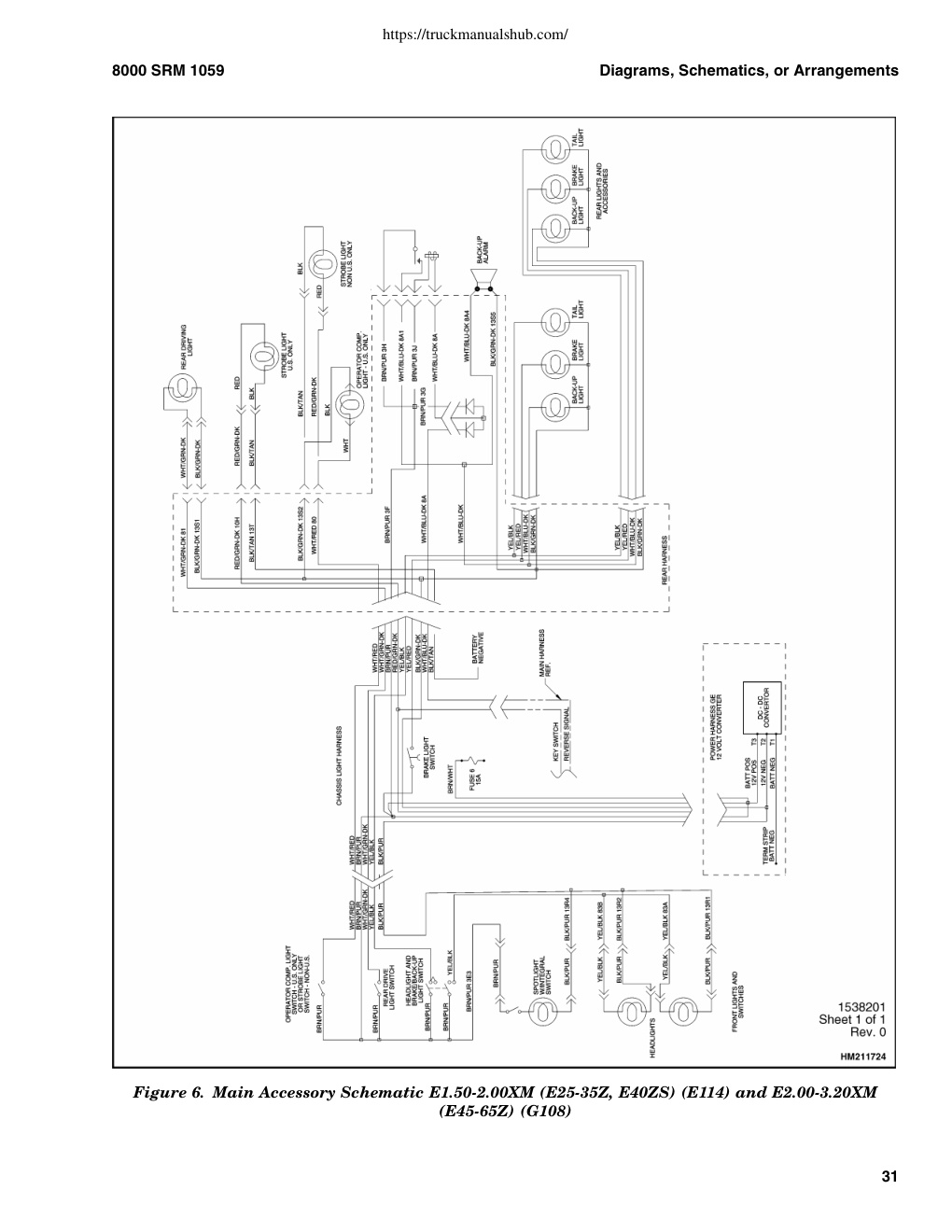

https://truckmanualshub.com/ ELECTRICAL DIAGRAMS AC MOTOR CONTROL SYSTEM J2.00-3.20XM (J40-60Z) [A416]; V30ZD [D210]; E1.50-2.00XM (E25-35Z, E40ZS) [E114]; E2.00-3.20XM (E45-65Z) [G108] PART NO. 1534738 8000 SRM 1059 https://truckmanualshub.com/ SAFETY PRECAUTIONS MAINTENANCE AND REPAIR • When lifting parts or assemblies, make sure all slings, chains, or cables are correctly fastened, and that the load being lifted is balanced. Make sure the crane, cables, and chains have the capacity to support the weight of the load. • Do not lift heavy parts by hand, use a lifting mechanism. • Wear safety glasses. • DISCONNECT THE BATTERY CONNECTOR before doing any maintenance or repair on electric lift trucks. • Disconnect the battery ground cable on internal combustion lift trucks. • Always use correct blocks to prevent the unit from rolling or falling. See HOW TO PUT THE LIFT TRUCK ON BLOCKS in the Operating Manual or the Periodic Mainte- nance section. • Keep the unit clean and the working area clean and orderly. • Use the correct tools for the job. • Keep the tools clean and in good condition. • Always use HYSTER APPROVED parts when making repairs. Replacement parts must meet or exceed the…
