TROUBLE SHOOTING...

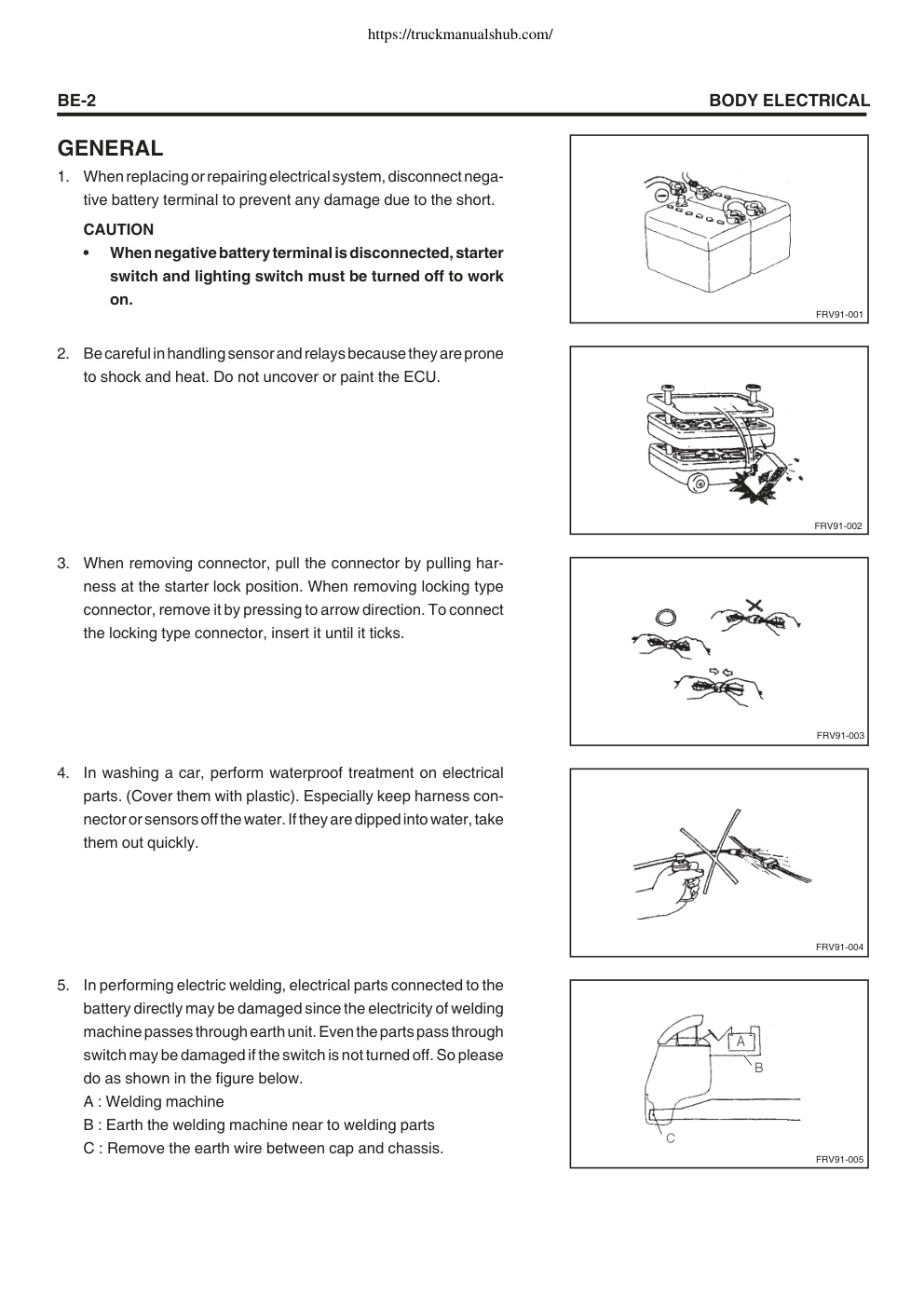

Tai liéu ky thuat miée phi GENERAL.........eecsessesssseeeeesensesseeseseeseeseeaesseneeneeseeseusesenenesensess BE - 2 SPECIFICATION........cscssssssessssssesesseseeseeseusenseseeseuseesesaneaesensess BE - 7 INSPECTION AND ADJUSTMENT ne BE - 22 BE-2 BODY ELECTRICAL 1. When replacing or repairing electrical system, disconnect nega- tive battery terminal to prevent any damage due to the short. • When negative battery terminal is disconnected, starter switch and lighting switch must be turned off to work 2. Be careful in handling sensor and relays because they are prone to shock and heat. Do not uncover or paint the ECU. 3. When removing connector, pull the connector by pulling har- ness at the starter lock position. When removing locking type connector, remove it by pressing to arrow direction. To connect the locking type connector, insert it until it ticks. 4. In washing a car, perform

https://truckmanualshub.com/ BODY ELECTRICAL GENERAL .............................................................................. BE - 2 SPECIFICATION .................................................................... BE - 7 TROUBLE SHOOTING .......................................................... BE - 10 INSPECTION AND ADJUSTMENT........................................ BE - 22 https://truckmanualshub.com/ BE-2 BODY ELECTRICAL GENERAL 1. When replacing or repairing electrical system, disconnect nega- tive battery terminal to prevent any damage due to the short. CAUTION • When negative battery terminal is disconnected, starter switch and lighting switch must be turned off to work on. FRV91-001 2. Be careful in handling sensor and relays because they are prone to shock and heat. Do not uncover or paint the ECU. FRV91-002 3. When removing connector, pull the connector by pulling har- ness at the starter lock position. When removing locking type connector, remove it by pressing to arrow direction. To connect the locking type connector, insert it until it ticks. FRV91-003 4. In washing a car, perform waterproof treatment on electrical parts. (Cover them with plastic). Especially…
