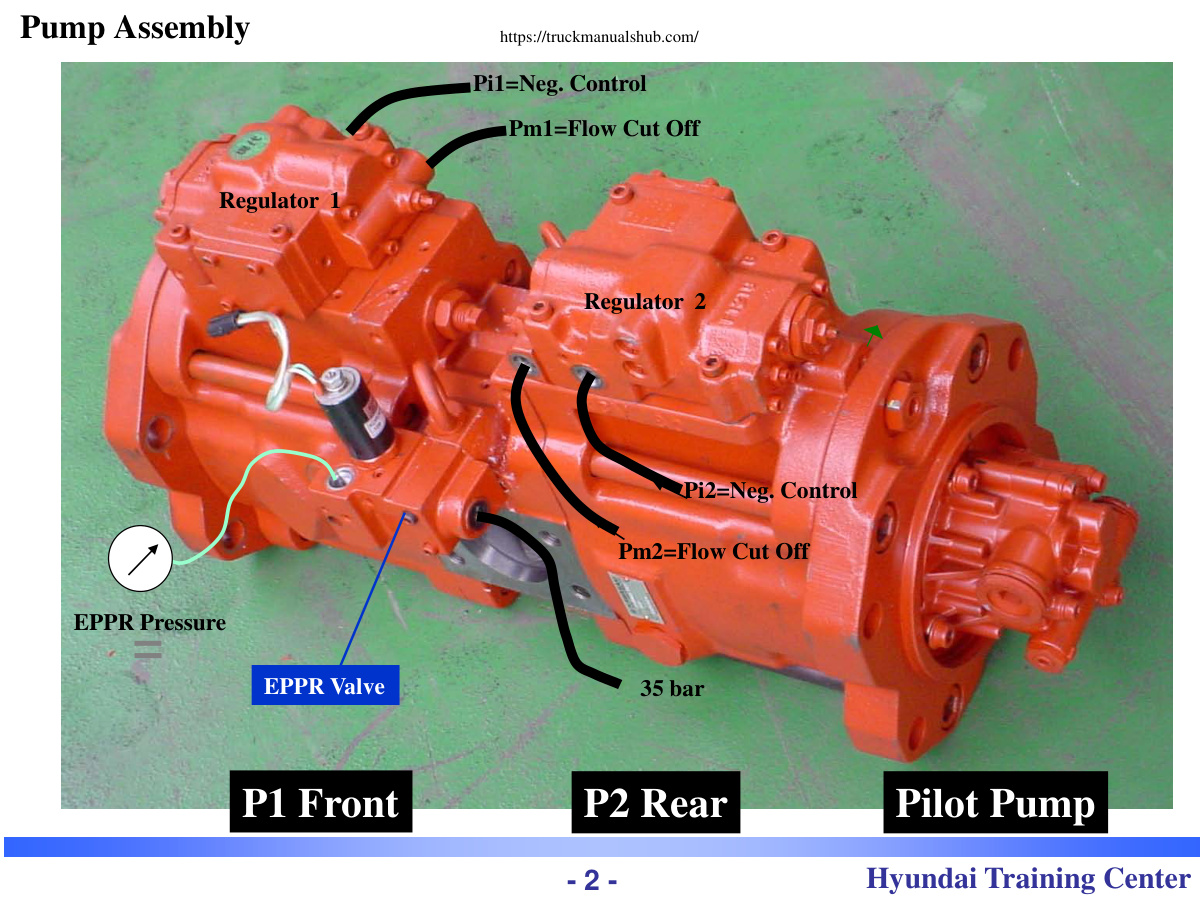

Hydraulic System -1- Hyundai Training Center Pump Assembly Pi1=Neg. Control Pm1=Flow Cut Off Pi2=Neg. Control Pm2=Flow Cut Off EPPR Valve 35 bar P1 Front P2 Rear Pilot Pump - 2 - Hyundai Training Center

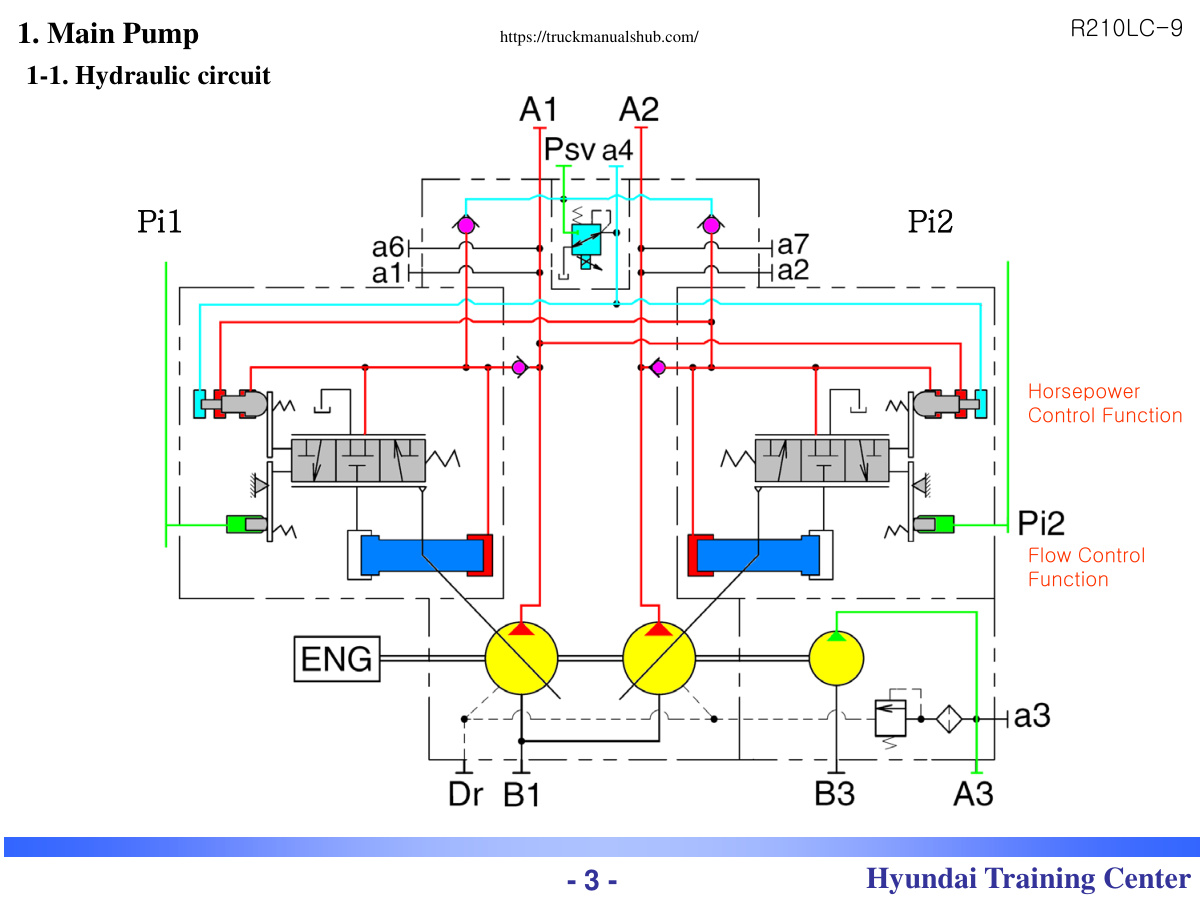

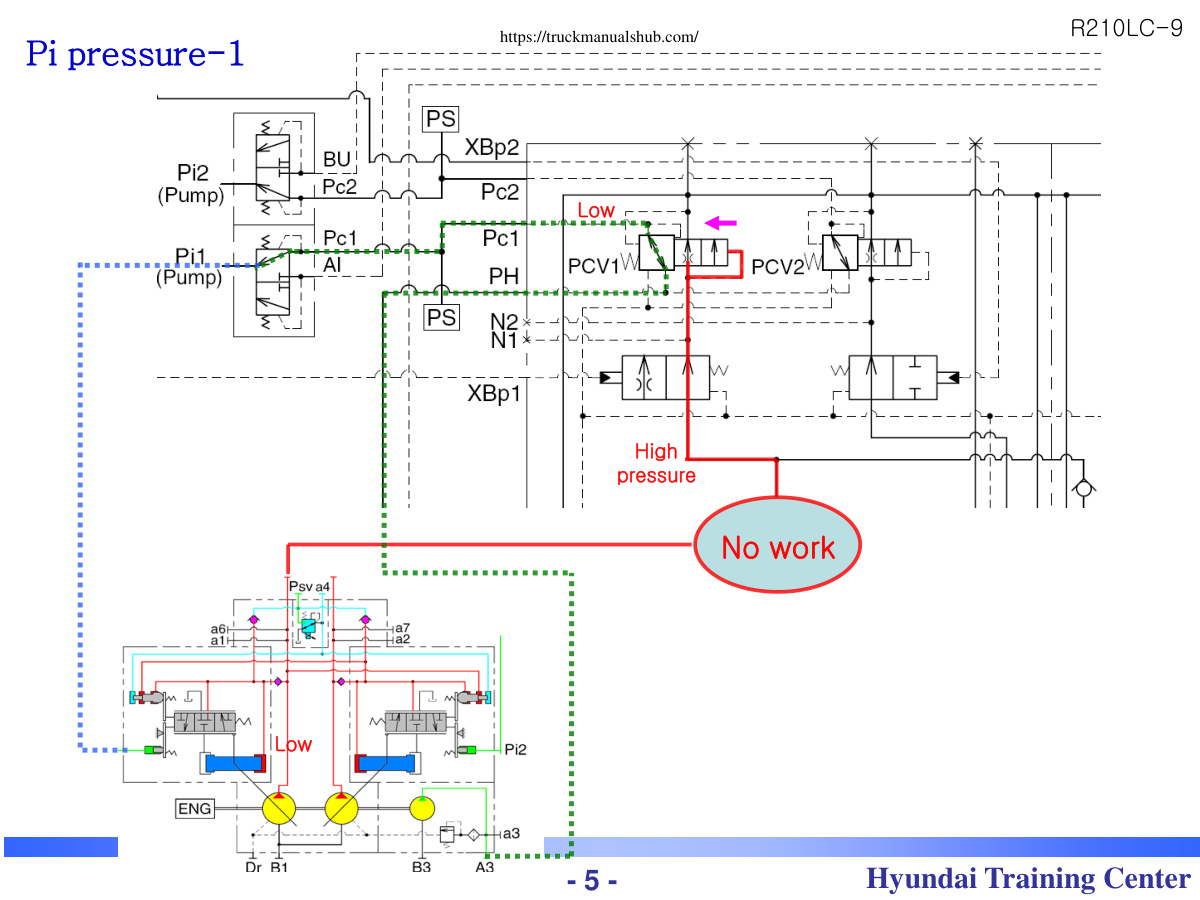

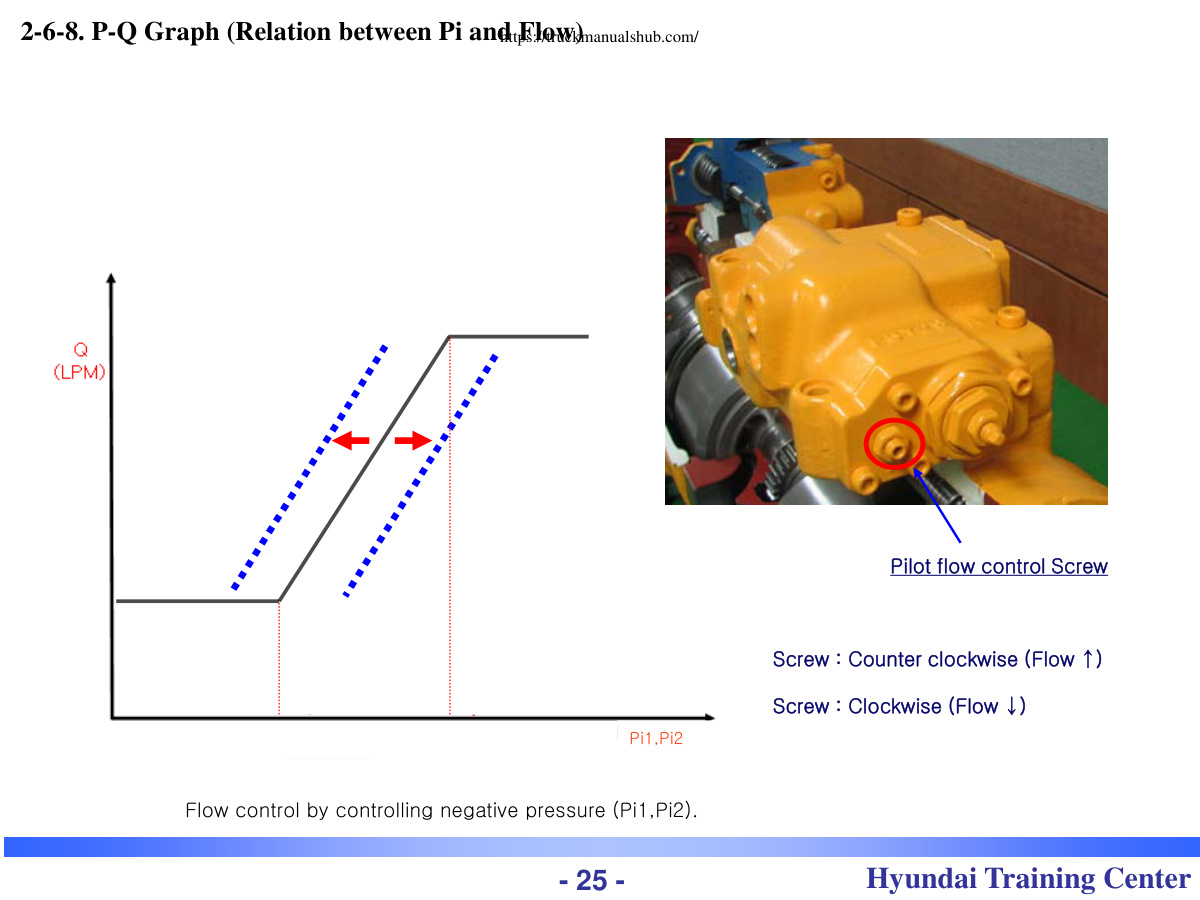

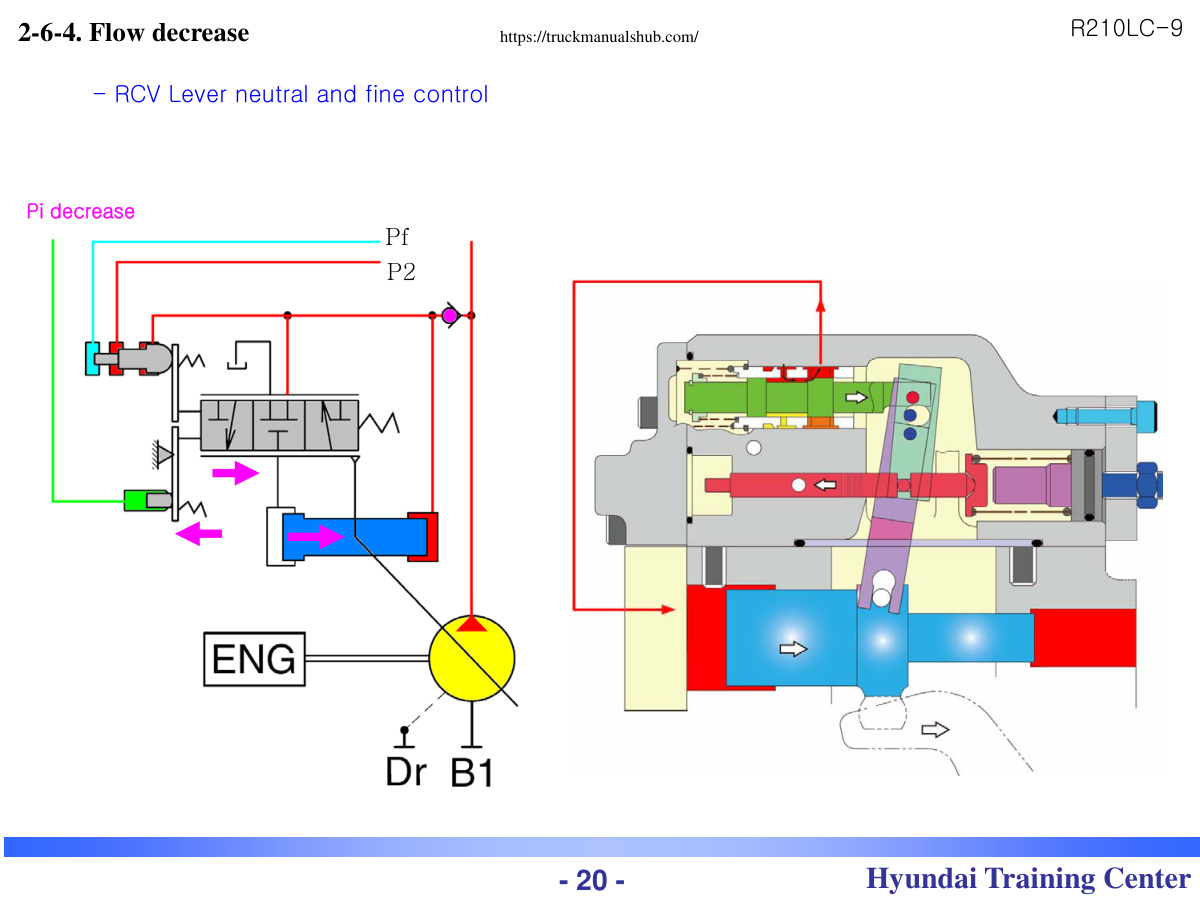

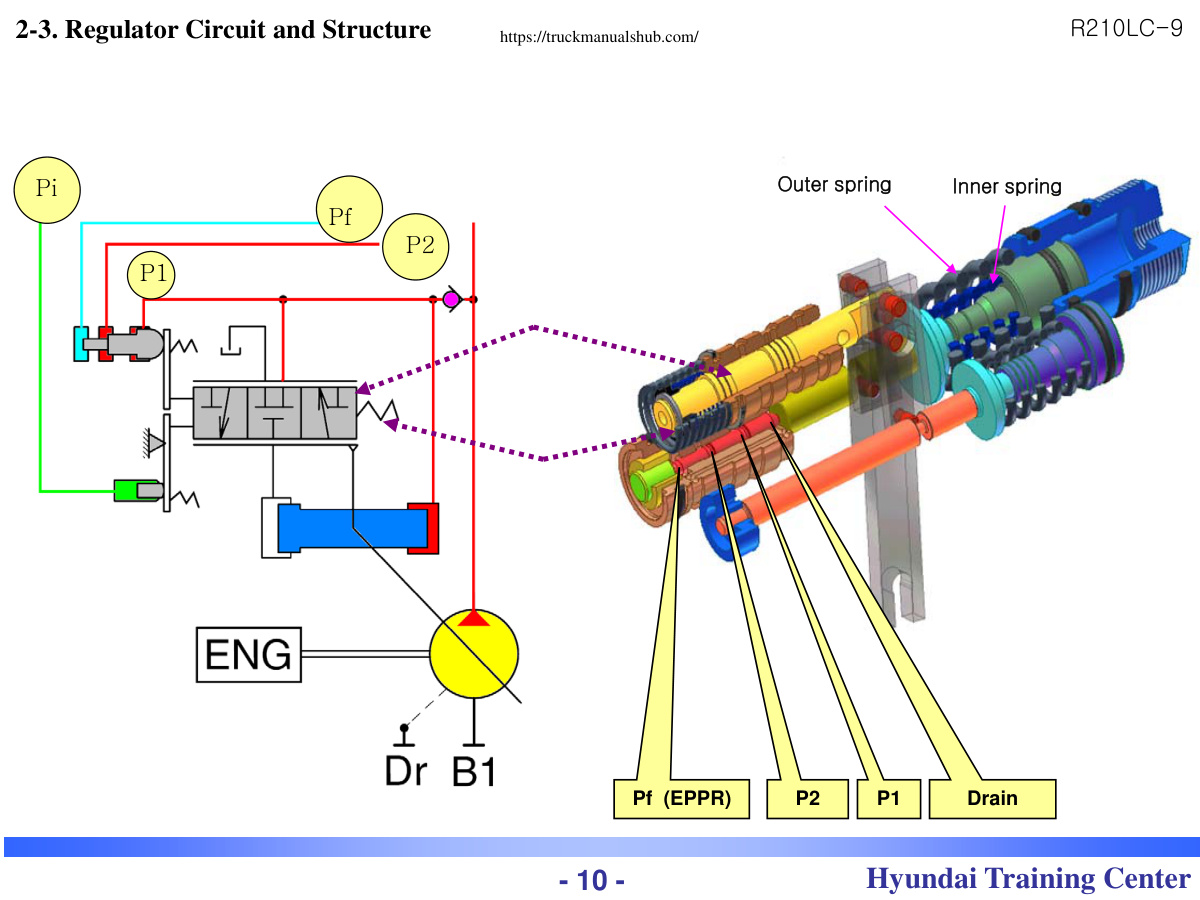

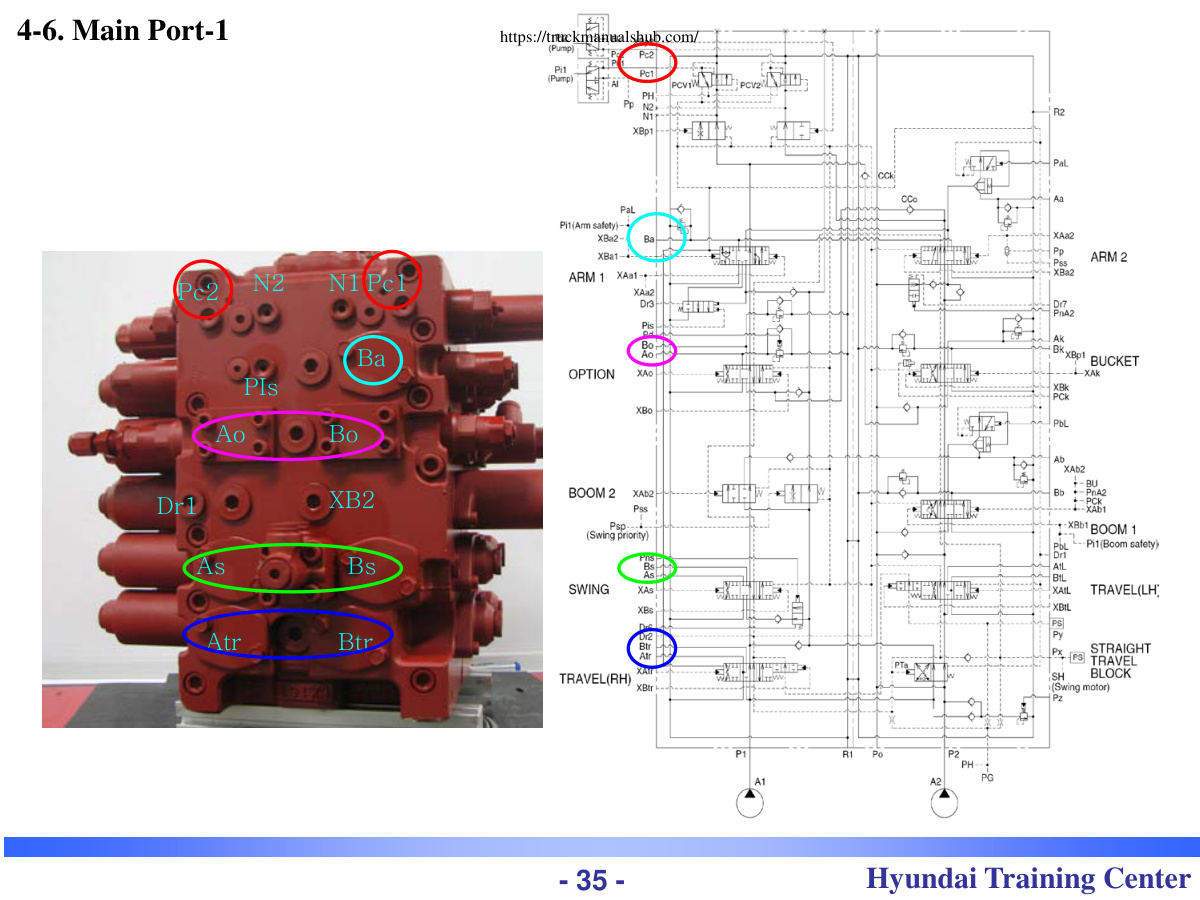

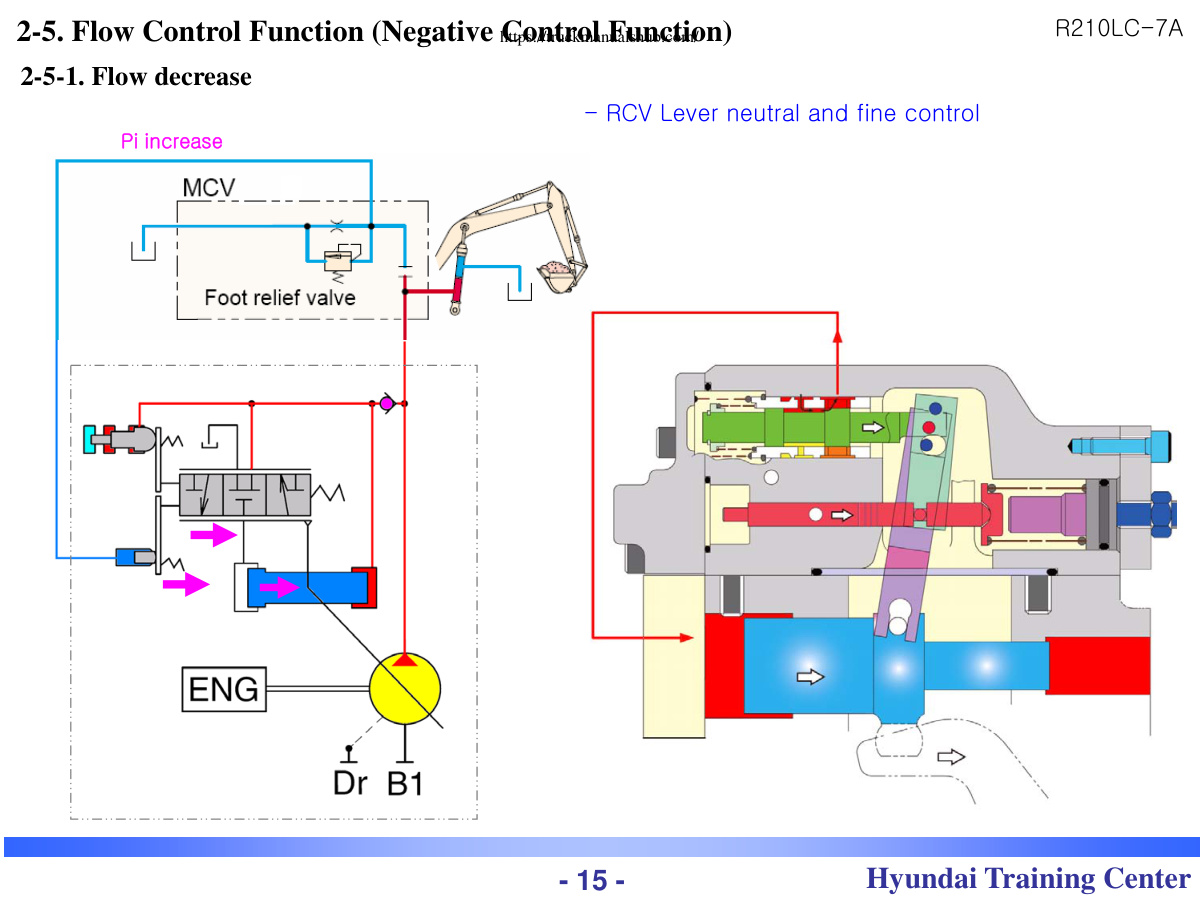

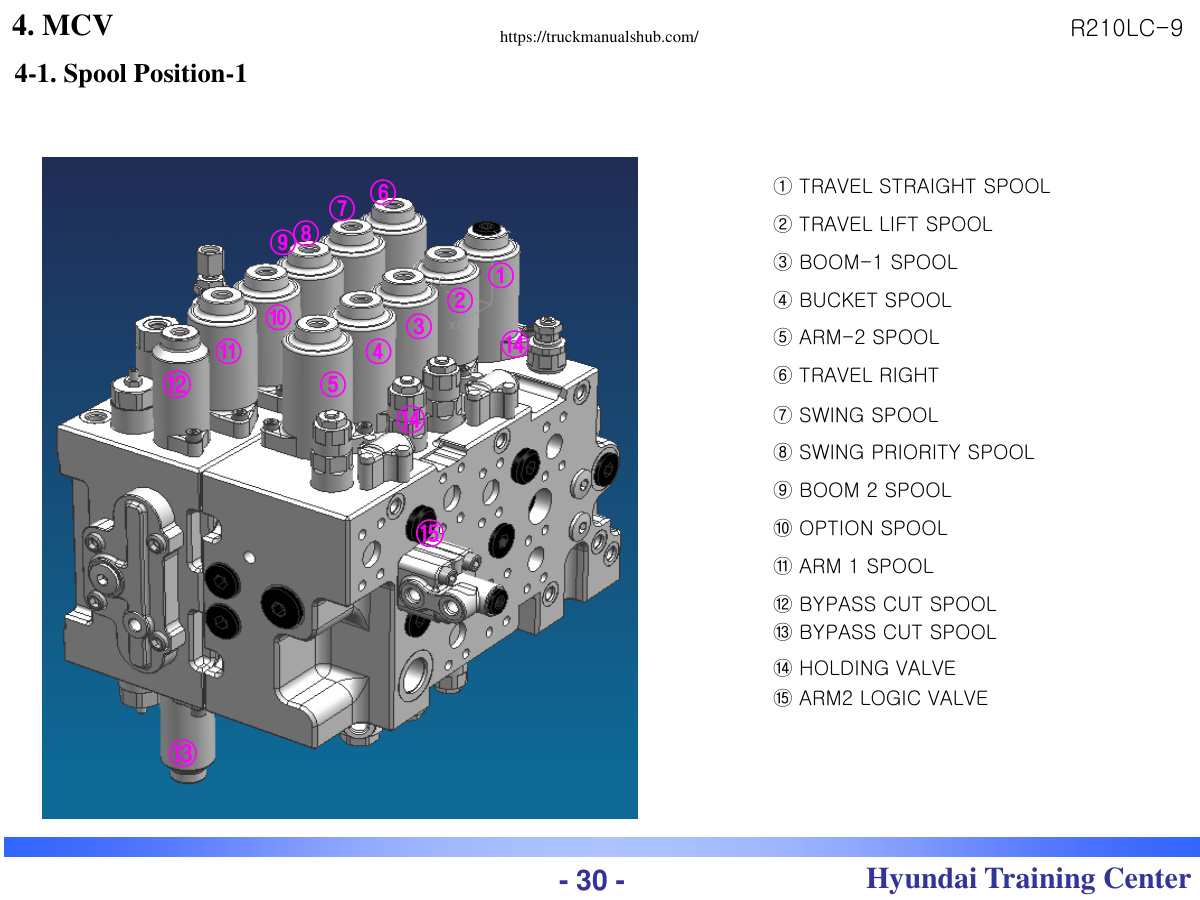

https://truckmanualshub.com/ Hydraulic System R210LC-9 - 1 - Hyundai Training Center Pump Assembly https://truckmanualshub.com/ Pi1=Neg. Control Pm1=Flow Cut Off Regulator 1 Regulator 2 Pi2=Neg. Control Pm2=Flow Cut Off EPPR Pressure EPPR Valve 35 bar P1 Front P2 Rear Pilot Pump - 2 - Hyundai Training Center R210LC-9 https://truckmanualshub.com/1. Main Pump 1-1. Hydraulic circuit Pi1 Pi2 Horsepower Control Function Flow Control Function - 3 - Hyundai Training Center R210LC-9 https://truckmanualshub.com/ Pi1 P1 P2 Pi2 1)P1,P2 : Main Pump 2)Pi1,Pi2 : Positive control 3)Psv : EPPR V/V ▶ ◀ P1 P2 - 4 - Hyundai Training Center R210LC-9 https://truckmanualshub.com/ Pi pressure-1 Low High pressure No work Low - 5 - Hyundai Training Center R210LC-9 https://truckmanualshub.com/ Pi pressure-2 High Low pressure Work High - 6 - Hyundai Training Center 1-2. Check Valve https://truckmanualshub.com/ R210LC-9 Pi1 Pi2 - 7 - Hyundai Training Center R210LC-92. Pump Regulator https://truckmanualshub.com/ 2-1. Function-1 1) Horsepower control function (negative system) Power Shift Control Pump self pressure and the other Pump Pressure 2) Flow Control Function (Posi-Nega Flow Control) (Pi1,Pi2) Control…
