Service Guide

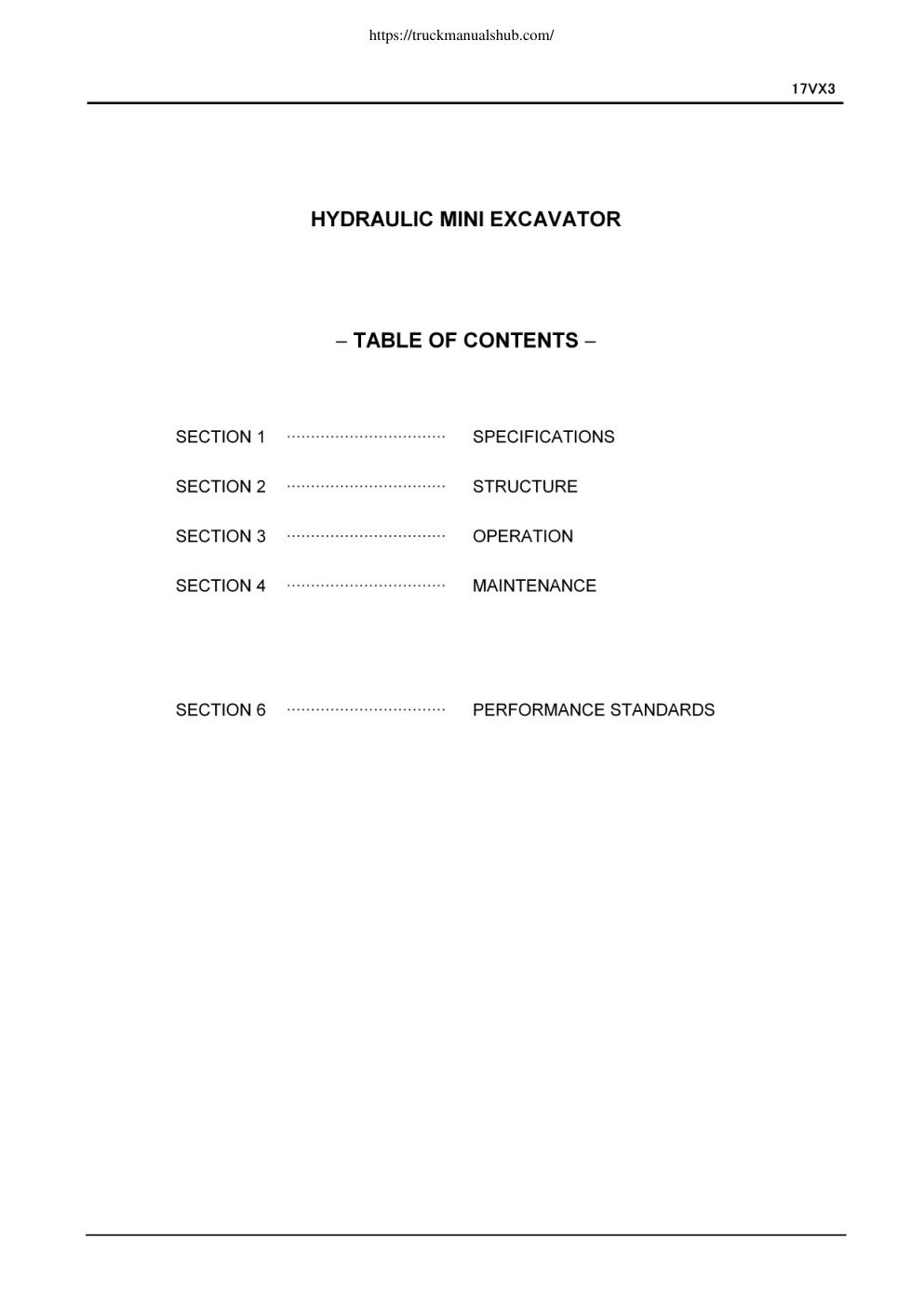

HYDRAULIC MINI EXCAVATOR - TABLE OF CONTENTS- SECTION 1 SPECIFICATIONS SECTION 2 STRUCTURE SECTION 3 OPERATION SECTION 4 MAINTENANCE SECTION 6 PERFORMANCE STANDARDS

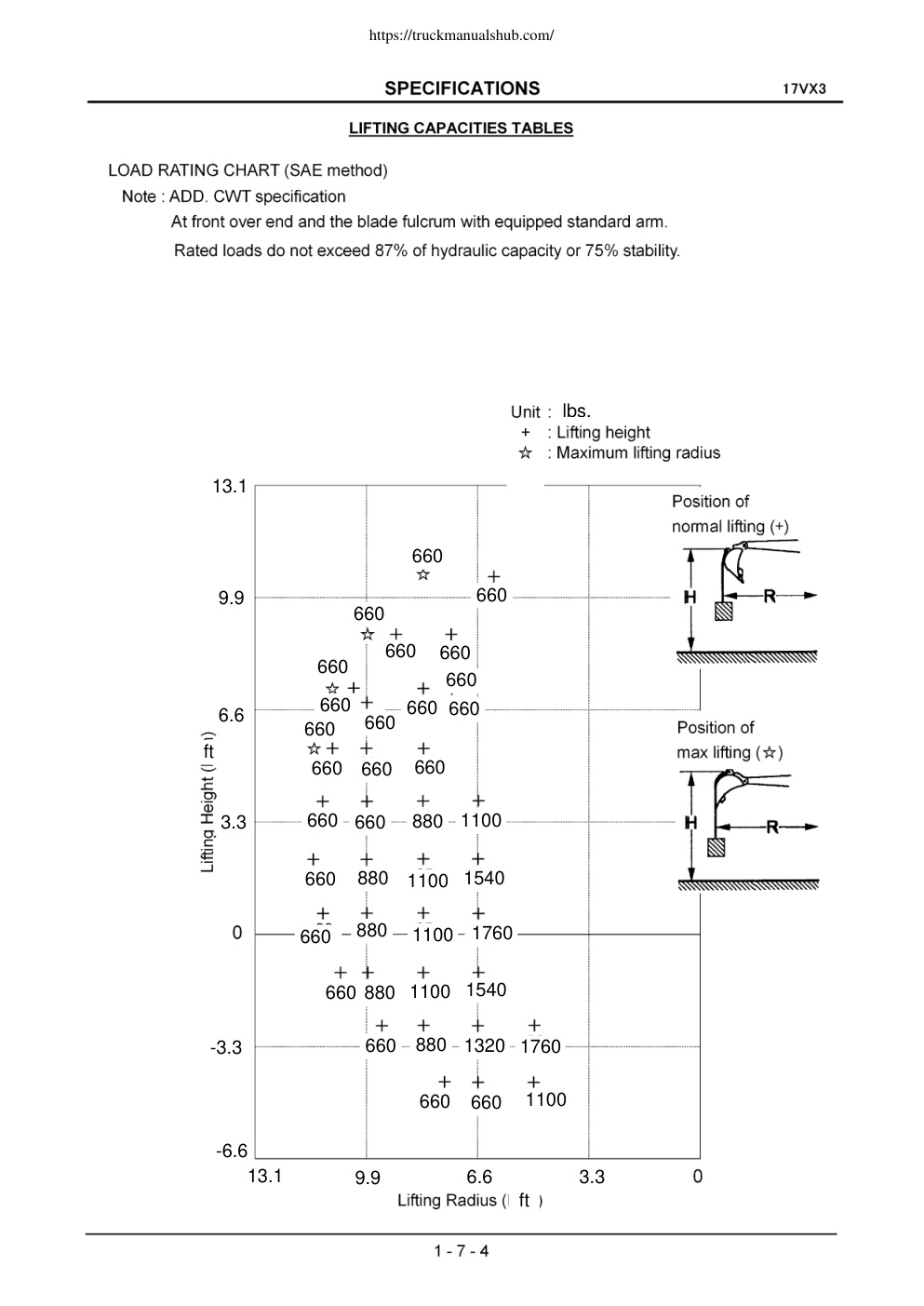

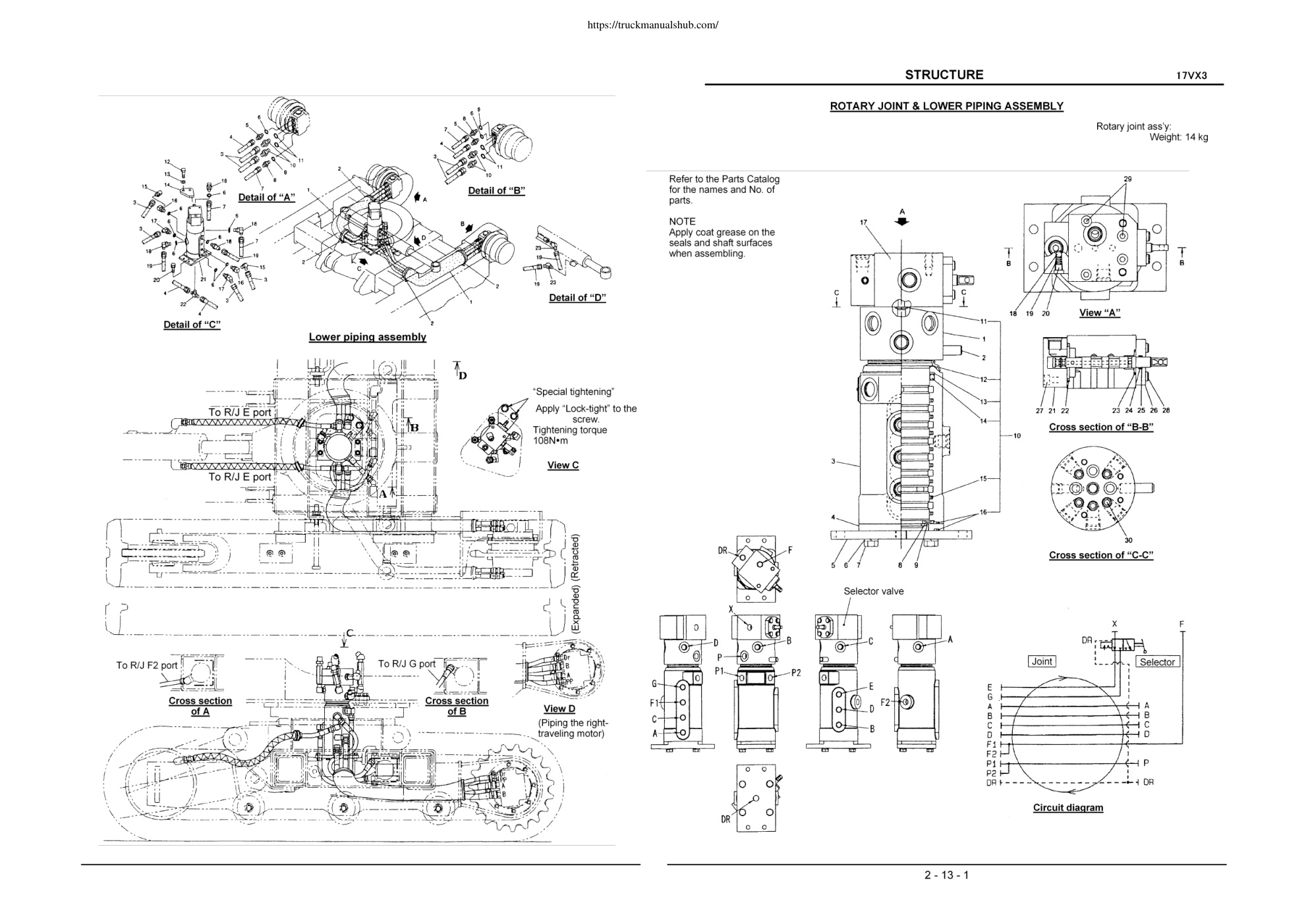

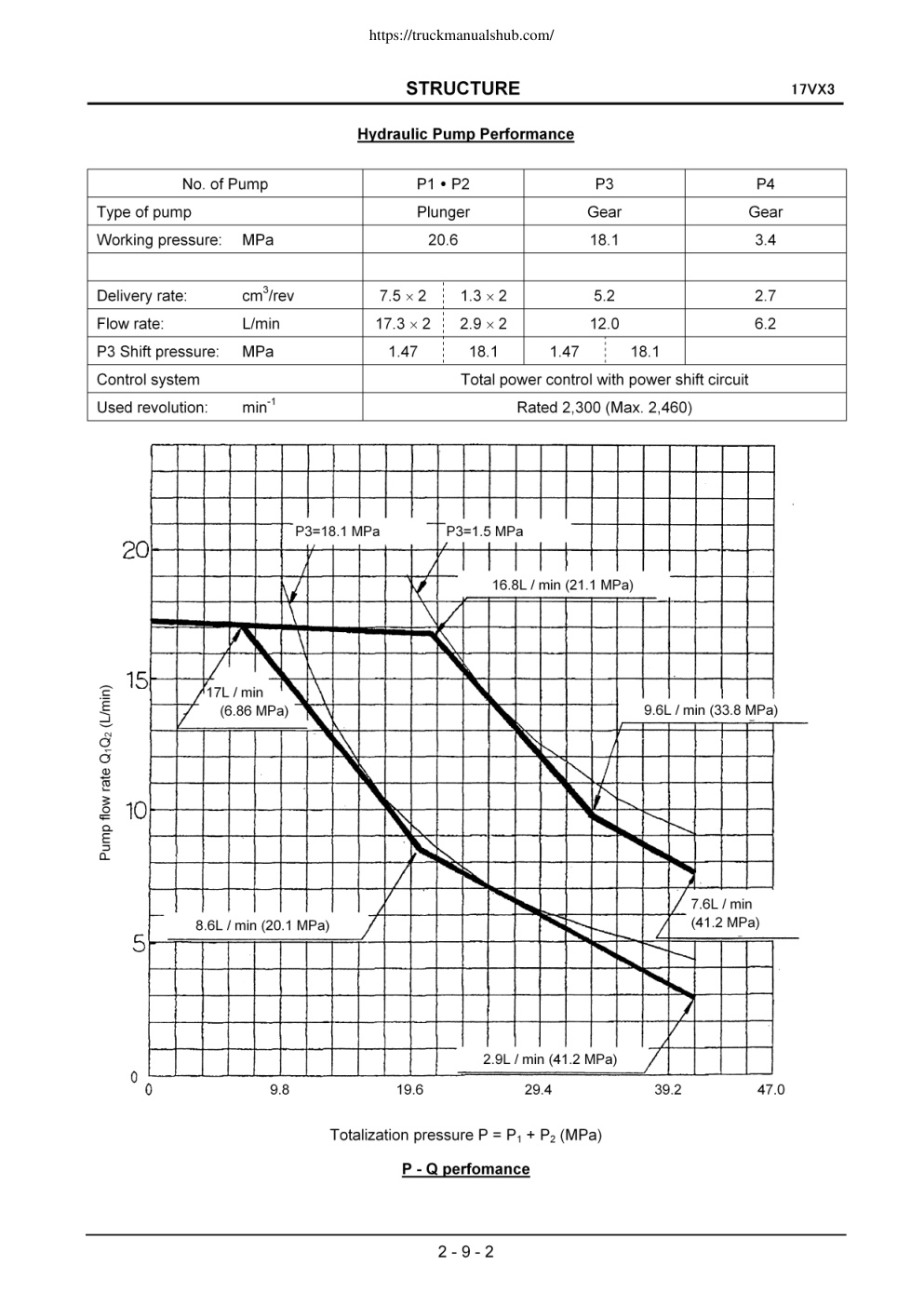

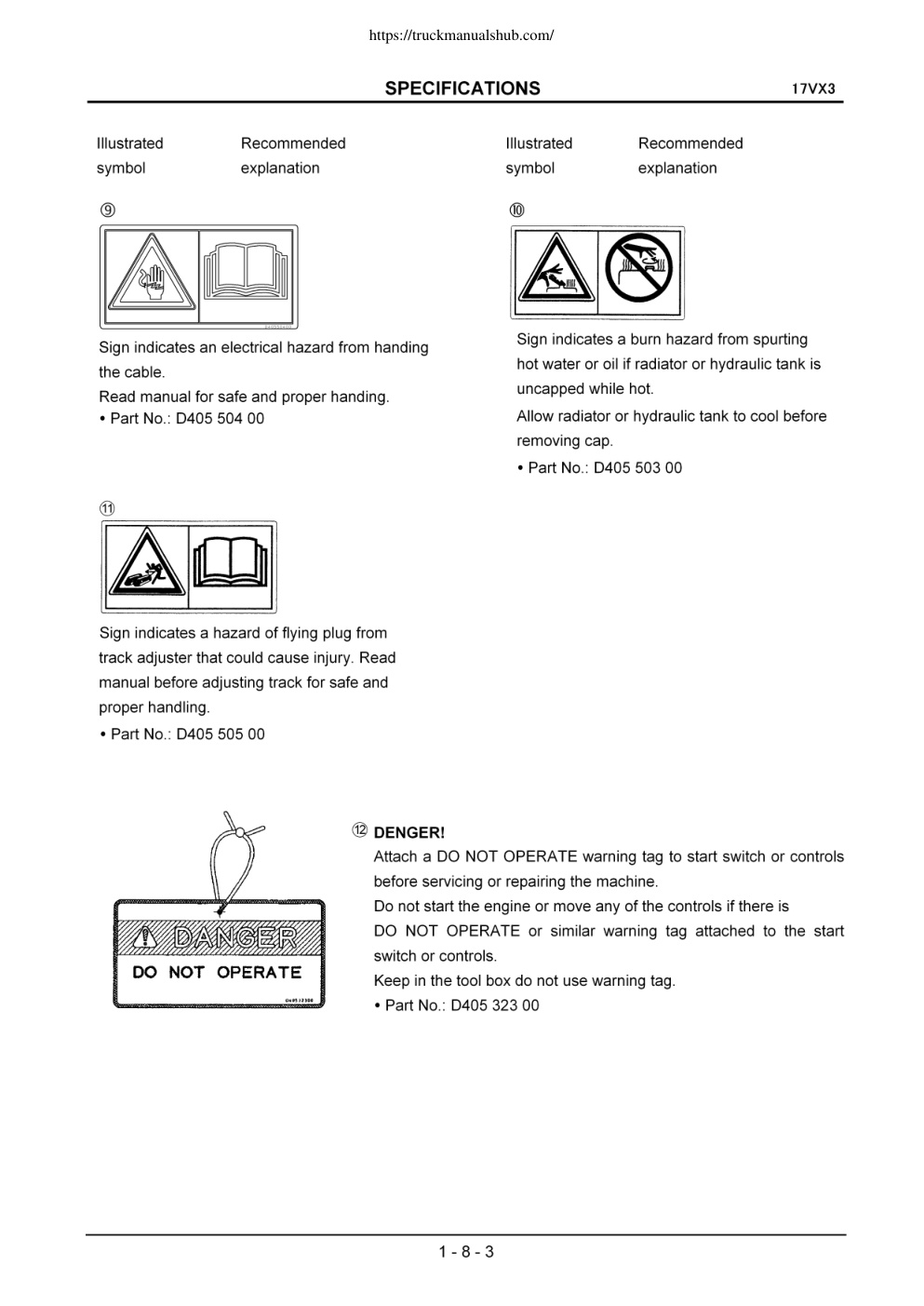

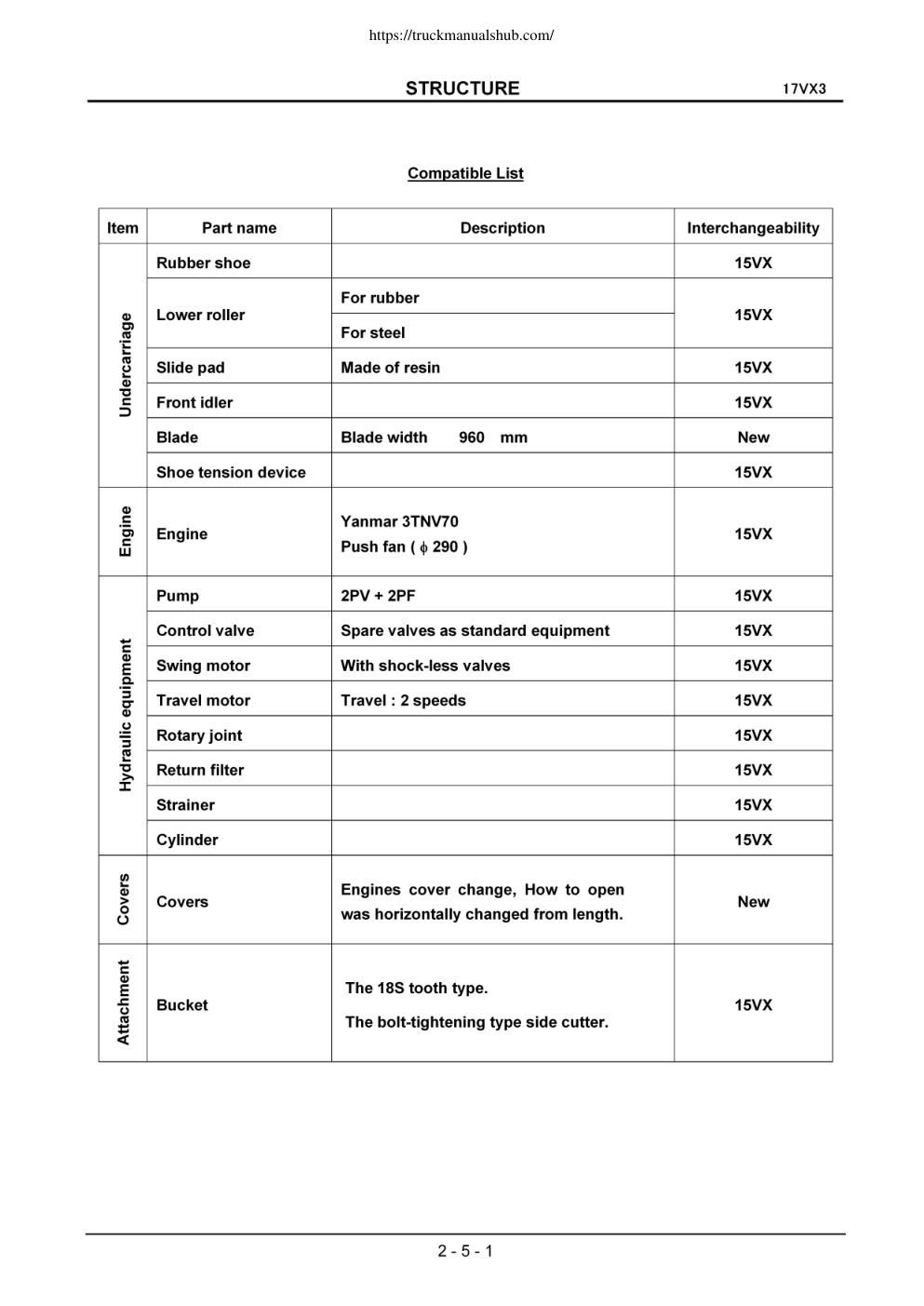

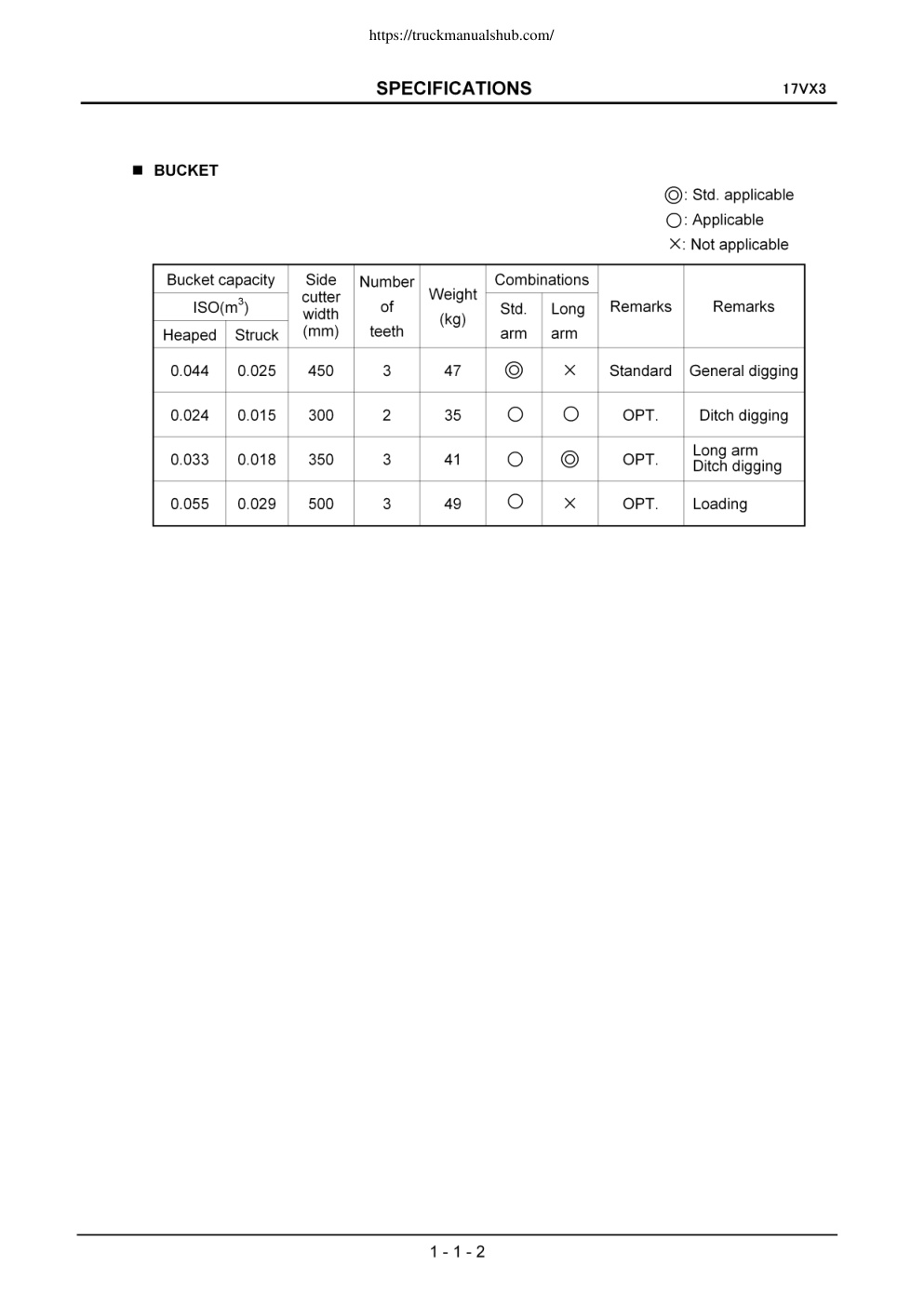

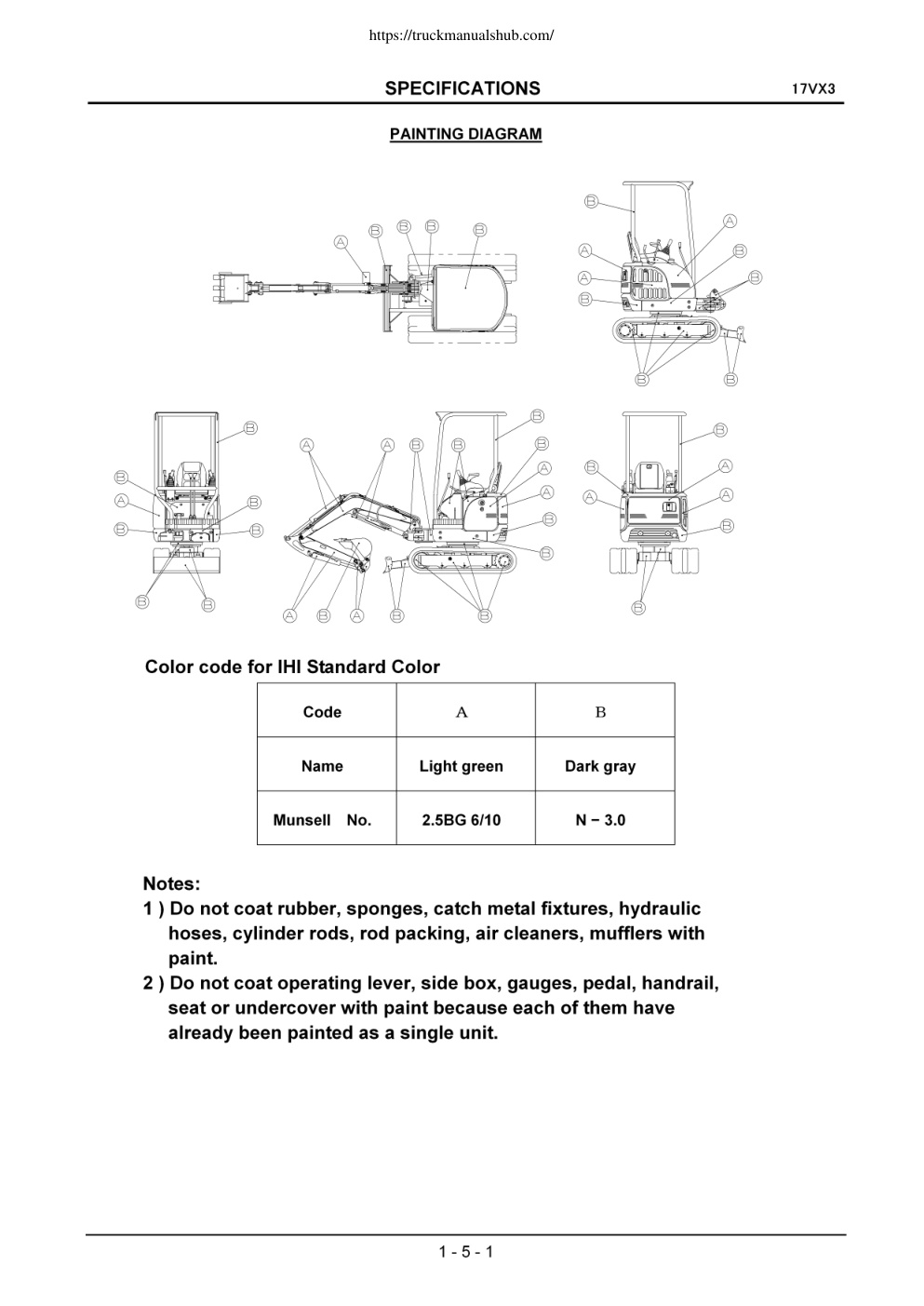

https://truckmanualshub.com/ Service Guide 17VX3 SERIAL NUMBERS WR004001- up PUB. No.1 1204 https://truckmanualshub.com/ 17VX3 HYDRAULIC MINI EXCAVATOR - TABLE OF CONTENTS- SECTION 1 SPECIFICATIONS SECTION 2 STRUCTURE SECTION 3 OPERATION SECTION 4 MAINTENANCE SECTION 6 PERFORMANCE STANDARDS https://truckmanualshub.com/ 17VX3 SECTION 1 SPECIFICATIONS TABLE OF CONTENTS Subject Page General Specifications . 1 - 1 - 1 Overall Dimensions . 1 - 2 - 1 Working Ranges . 1 - 3 - 1 Weight Breakdown . 1 - 4 - 1 Painting Diagram . 1 - 5 - 1 Engine Main Date and Specifications . 1 - 6 - 1 Lifting Capacities Table . 1 - 7 - 1 Warning Signs and Labels . 1 - 8 - 1 https://truckmanualshub.com/ SPECIFICATIONS 17VX3 GENERAL SPECIFICATIONS • BASE MACHINE PERFORMANCE Swing speed min-1 9.5 Travel speed km / h 2.1 / 4.0 Gradability 0/0 (deg.) 58 (30) • ENGINE Engine model - YANMAR 3TNV70 4cycle, water cooled, Engine type over-head, valve, indirect injection No. of cyl.- bore x stroke mm 3 -70 x 74 Total piston displacement L 0.854 10.5/2300 Rated output kW / min-1 [DIN6271, 10.4 / 2300] Max. torque Nem / min-1 51.8/1600 • WEIGHT with ADD STD Weight Rubber shoe 1220 1320 Machine mass kg Steel shoe 1280…
