25V4 Parts Catalog

SERIAL No. WQ010001 - WQ029999

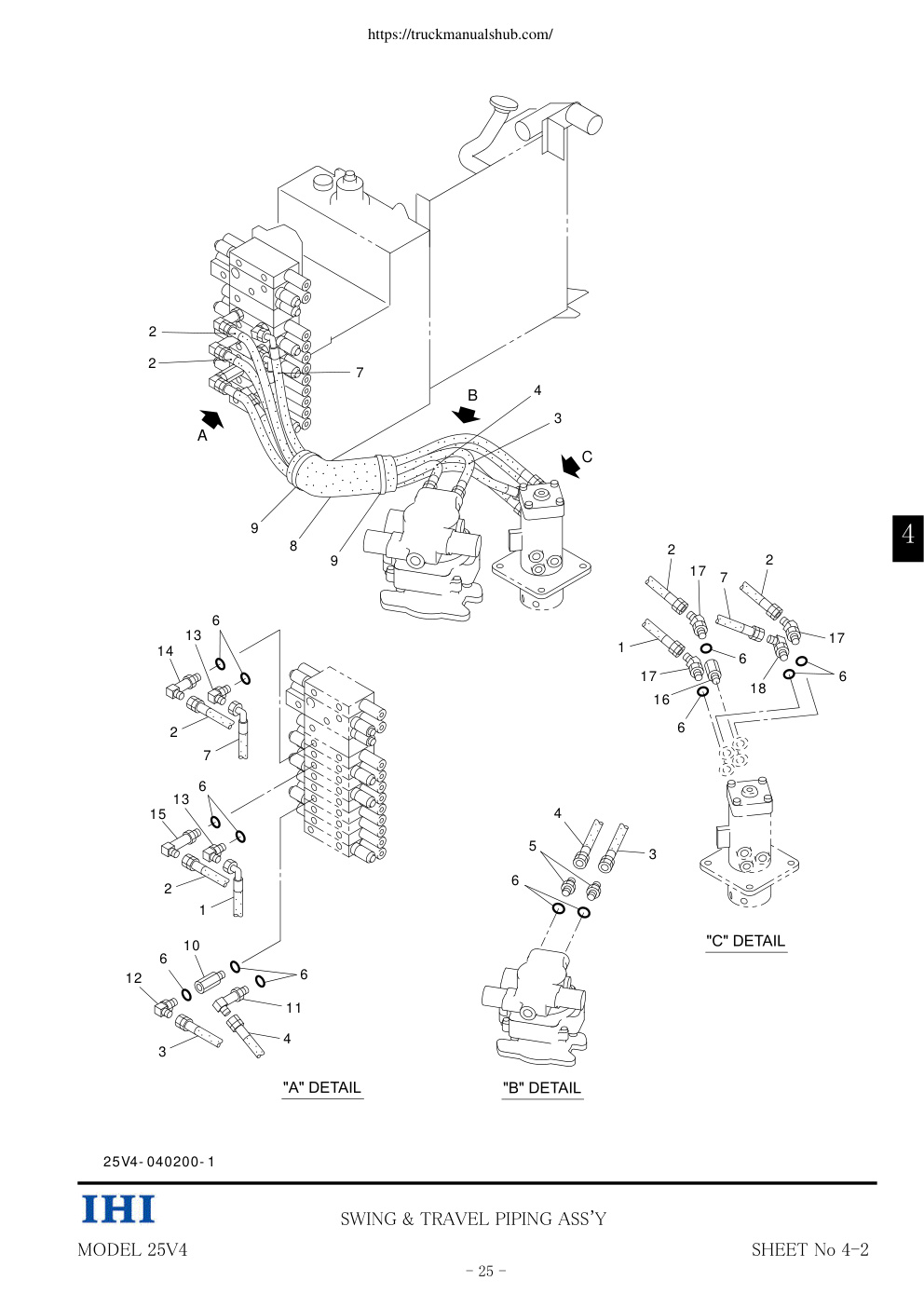

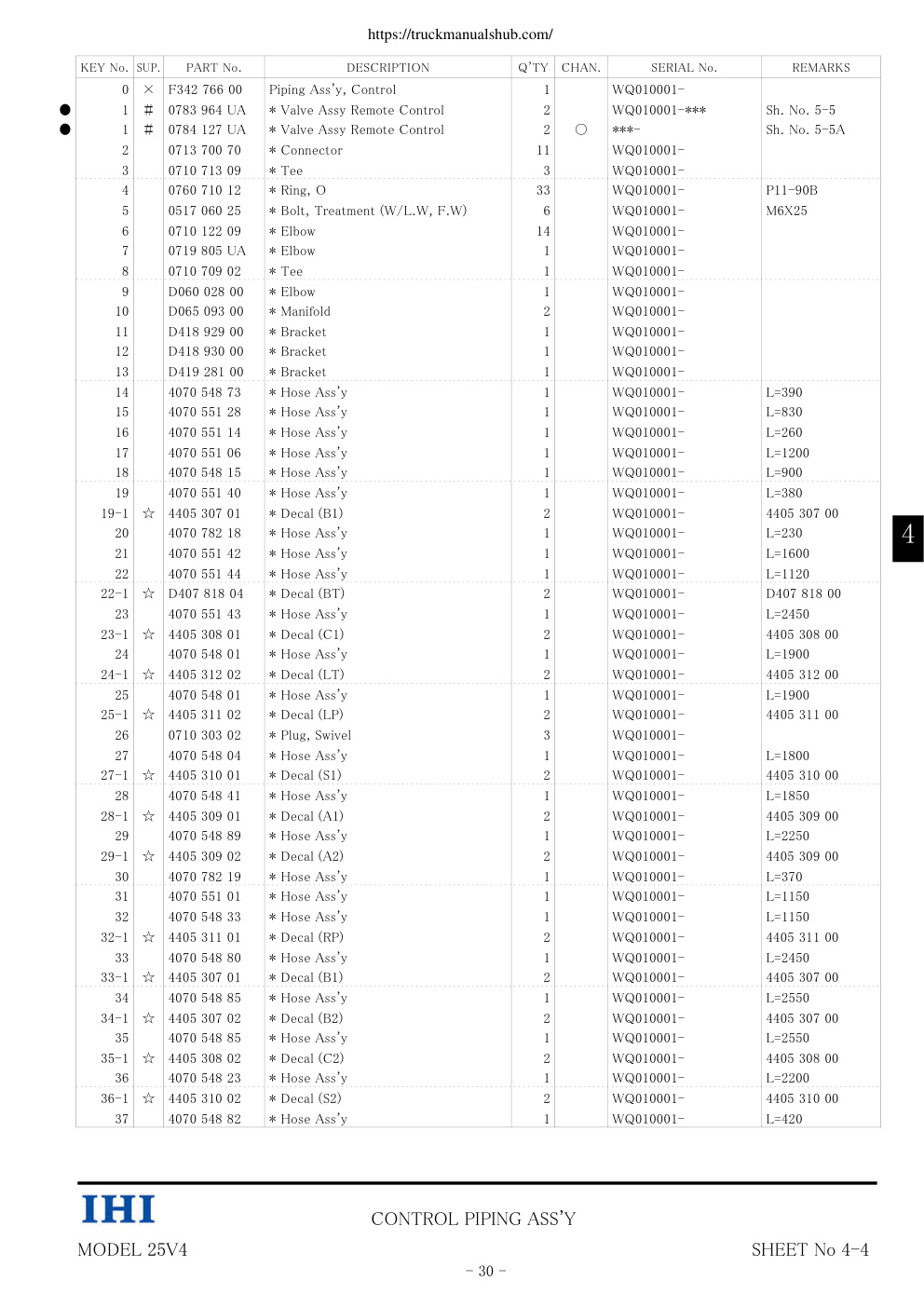

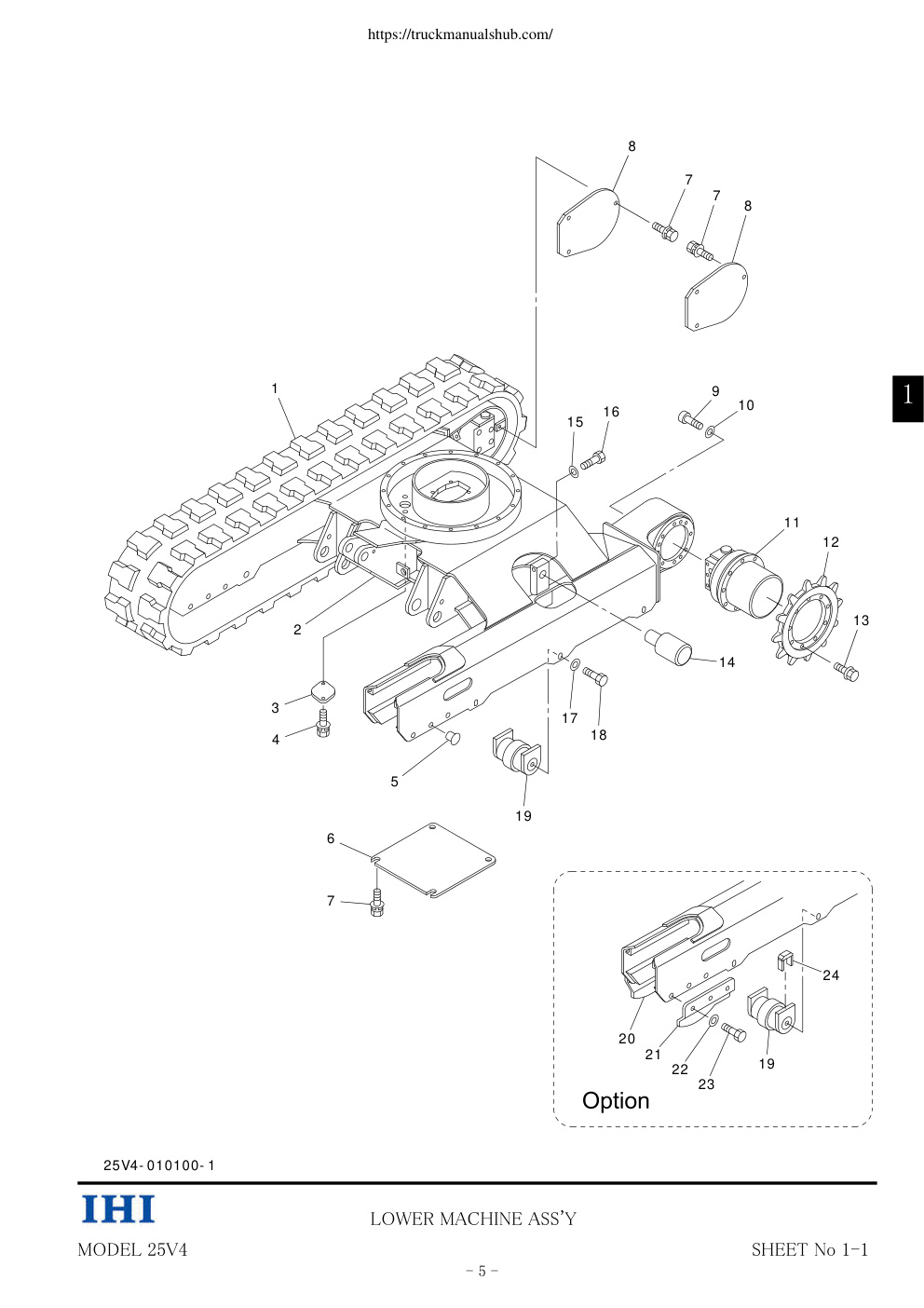

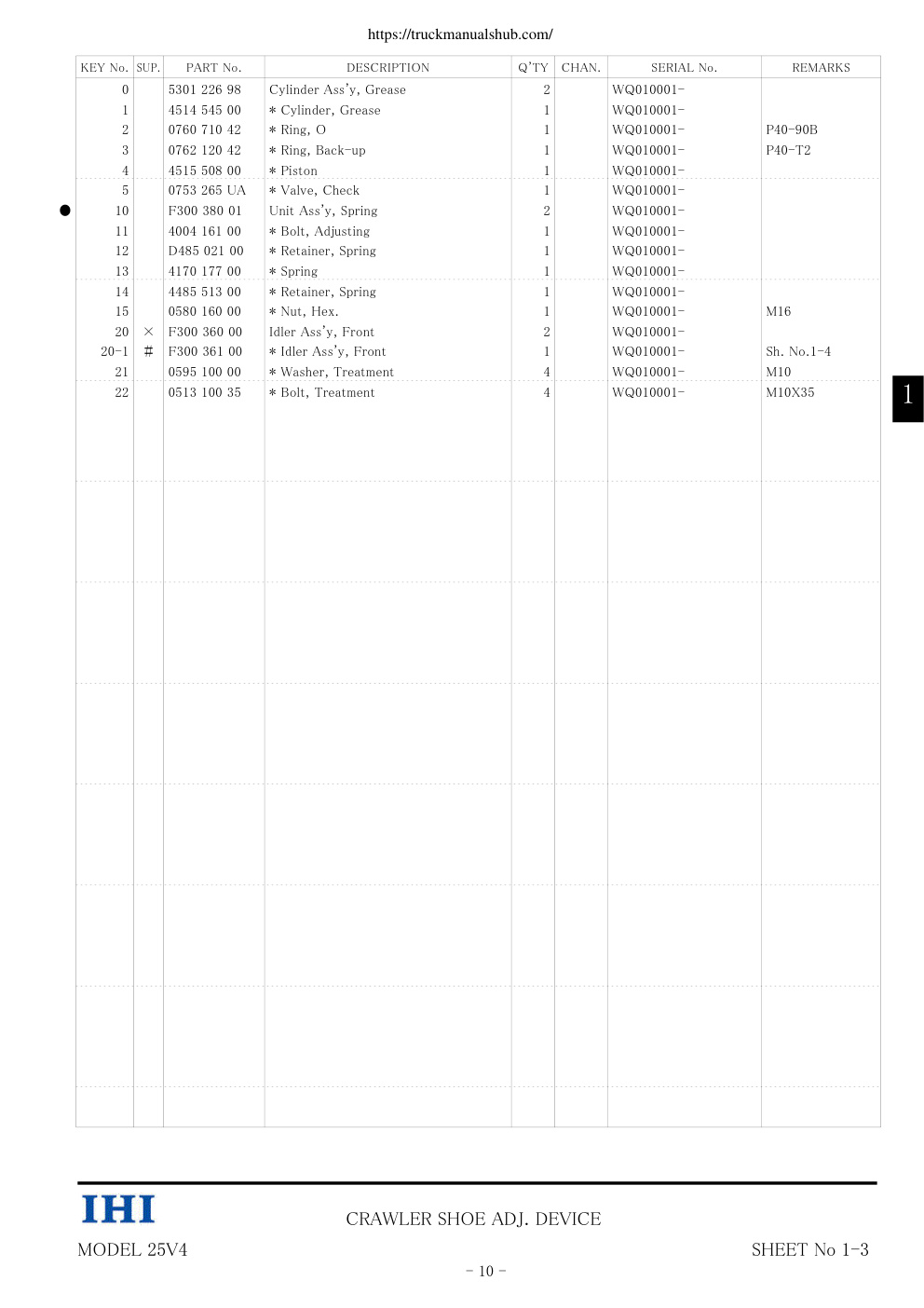

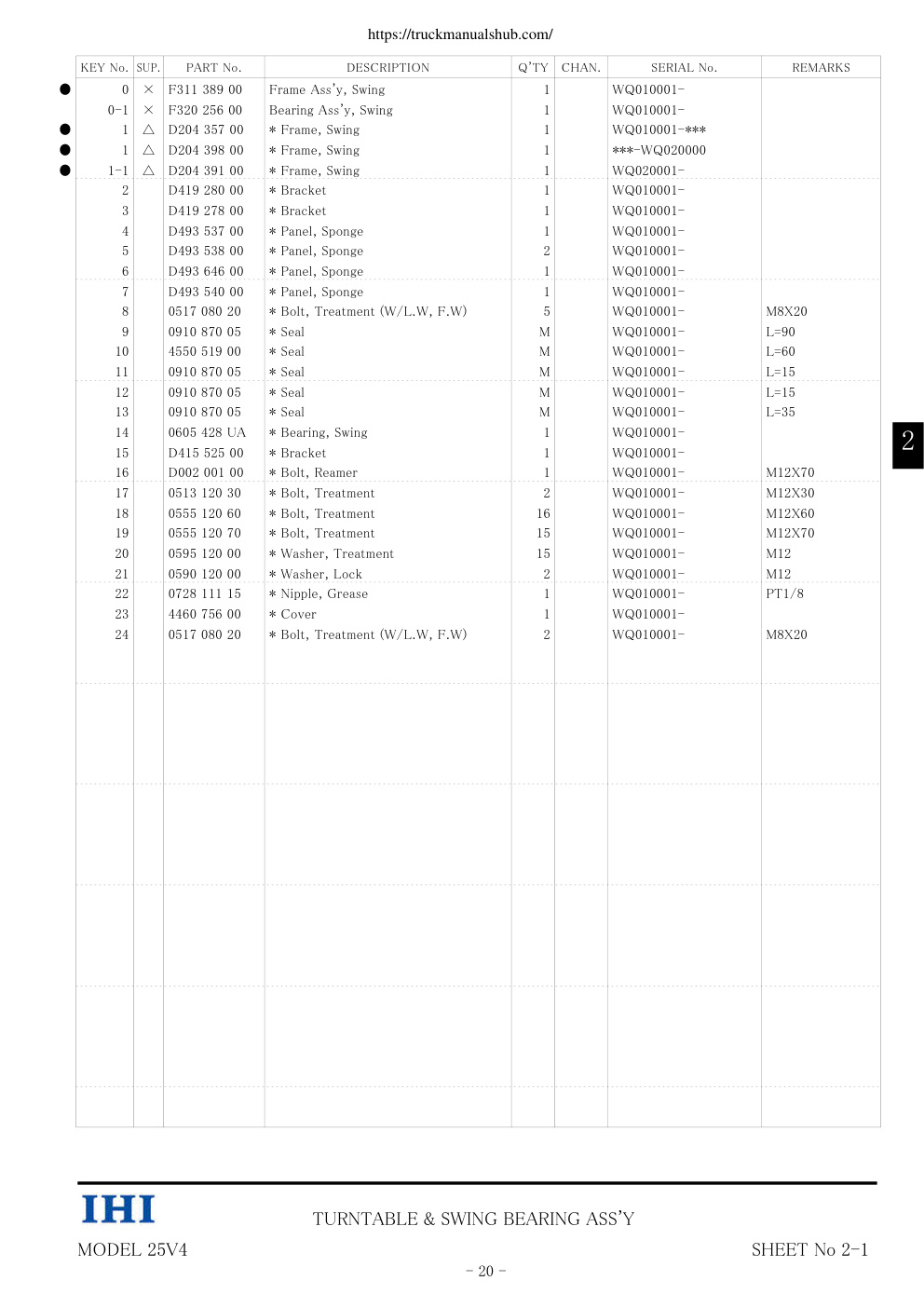

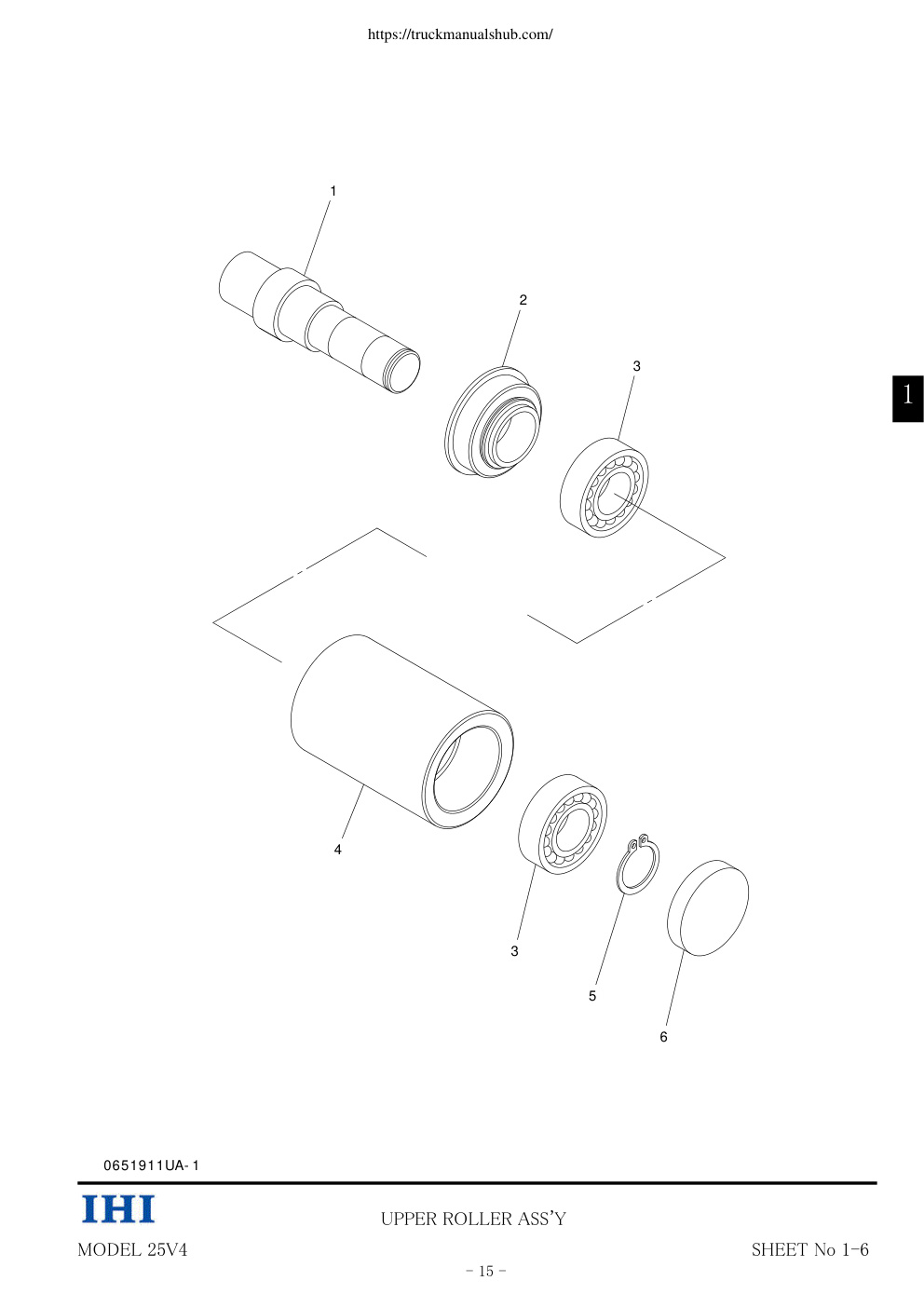

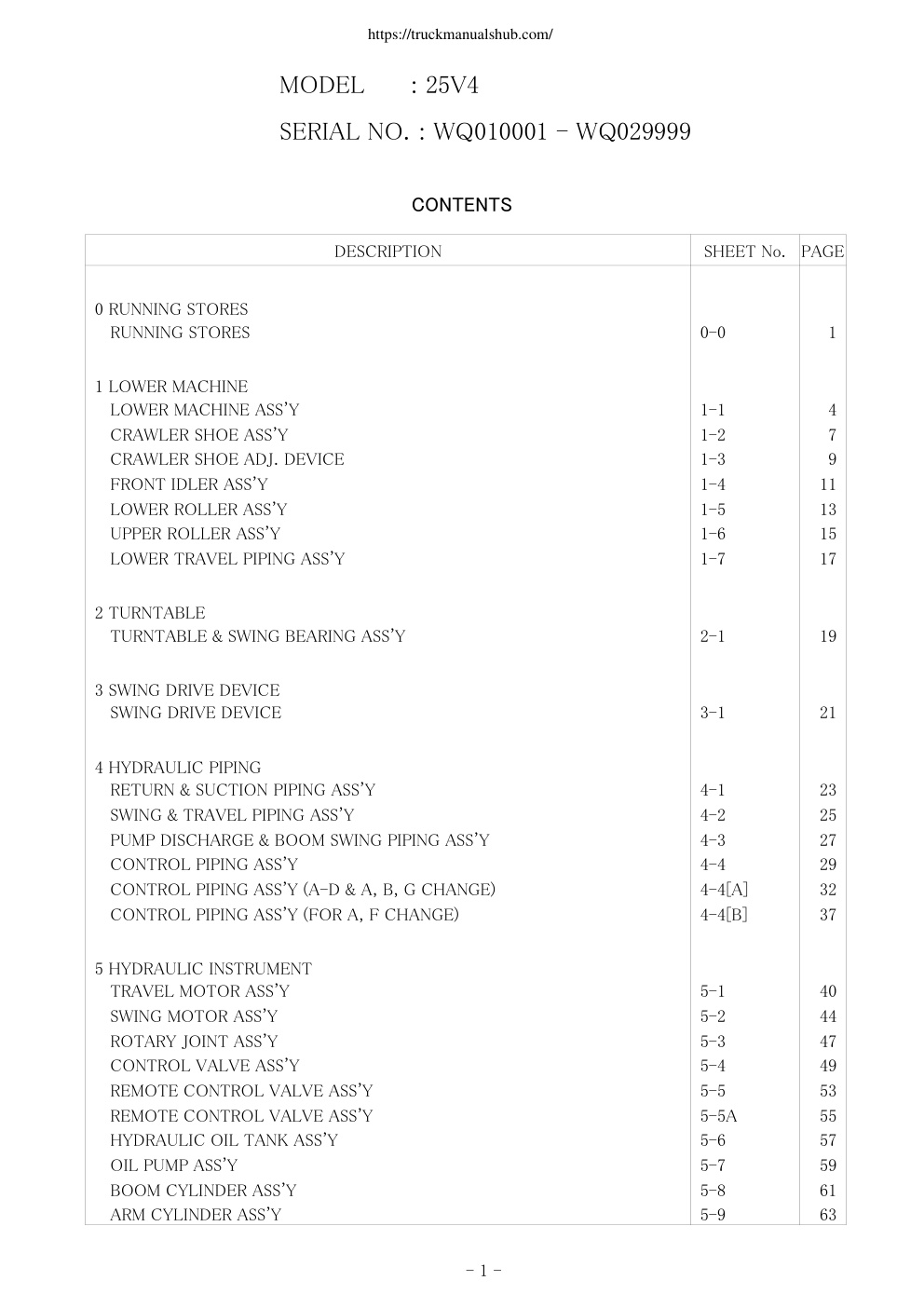

https://truckmanualshub.com/ PARTS CATALOG 25V4 SERIAL No. WQ010001 - WQ029999 https://truckmanualshub.com/ [Memo] https://truckmanualshub.com/ MODEL : 25V4 SERIAL NO. : WQ010001 - WQ029999 CONTENTS DESCRIPTION SHEET No. PAGE 0 RUNNING STORES RUNNING STORES 0-0 1 1 LOWER MACHINE LOWER MACHINE ASS'Y 1-1 4 CRAWLER SHOE ASS'Y 1-2 7 CRAWLER SHOE ADJ. DEVICE 1-3 9 FRONT IDLER ASS'Y 1-4 11 LOWER ROLLER ASS'Y 1-5 13 UPPER ROLLER ASS'Y 1-6 15 LOWER TRAVEL PIPING ASS'Y 1-7 17 2 TURNTABLE TURNTABLE & SWING BEARING ASS'Y 2-1 19 3 SWING DRIVE DEVICE SWING DRIVE DEVICE 3-1 21 4 HYDRAULIC PIPING RETURN & SUCTION PIPING ASS'Y 4-1 23 SWING & TRAVEL PIPING ASS'Y 4-2 25 PUMP DISCHARGE & BOOM SWING PIPING ASS'Y 4-3 27 CONTROL PIPING ASS'Y 4-4 29 CONTROL PIPING ASS'Y (A-D & A, B, G CHANGE) 4-4[A] 32 CONTROL PIPING ASS'Y (FOR A, F CHANGE) 4-4[B] 37 5 HYDRAULIC INSTRUMENT TRAVEL MOTOR ASS'Y 5-1 40 SWING MOTOR ASS'Y 5-2 44 ROTARY JOINT ASS'Y 5-3 47 CONTROL VALVE ASS'Y 5-4 49 REMOTE CONTROL VALVE ASS'Y 5-5 53 REMOTE CONTROL VALVE ASS'Y 5-5A 55 HYDRAULIC OIL TANK ASS'Y 5-6 57 OIL PUMP ASS'Y 5-7 59 BOOM CYLINDER ASS'Y 5-8 61 ARM CYLINDER ASS'Y 5-9 63 - 1 - https://truckmanualshub.com/ MODEL : 25V4 SERIAL…
