VX series 3-8

30VX | 35VX | 40VXL 50VX | 55VX | 65VX | 80VX

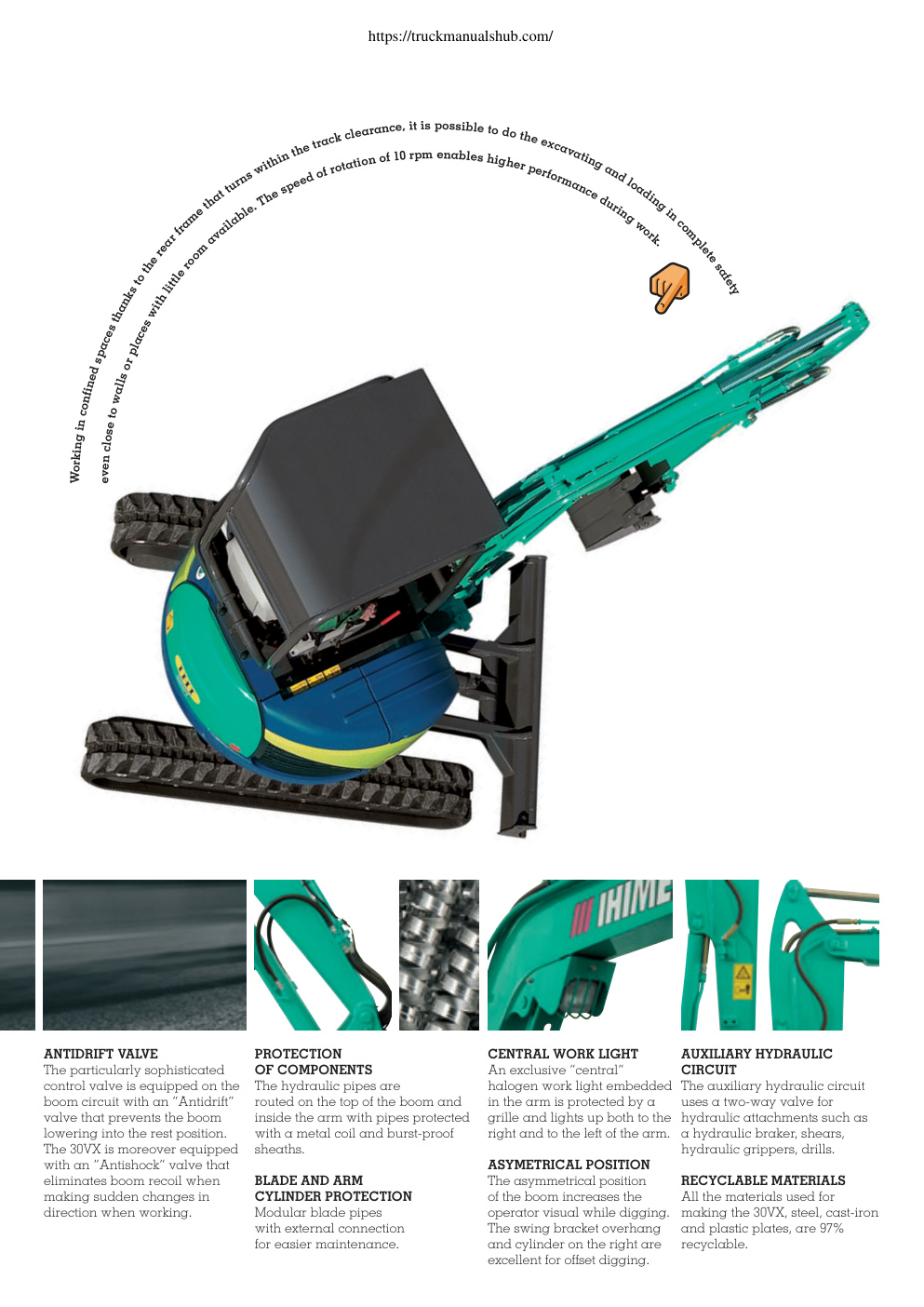

https://truckmanualshub.com/ products range GB 3 | 8 Ton. Models inside 30VX | 35VX | 40VXL 50VX | 55VX | 65VX | 80VX www.ihimer.com https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ 30VX | 35VX Working in confined spaces Thanks to the rear frame that turns within the track clearance, it is possible to do the digging and loading in complete safety even close to walls or places with little room available. The speed of rotation of 10 rpm enables higher performance during work. COMPACT DIMENSION ENGINE HYDRAULIC SYSTEM REMOVABLE Front turning radius: • 30VX: Stage IIIA Yanmar 3TNV84 Thanks to careful sizing of COUNTERWEIGHT 2200 mm on the 30VX and 2180 mm 24.2 HP engine. the hydraulic system, The 30VX is supplied std. with a on the 35VX. Rear turning radius: • 35VX: Stage IIIA Yanmar 3TNV88 27.6 breakout force on the bucket removable counterweight (200 775 mm on the 30VX and 845 mm on HP engine. tooth reaches 26.5 kN (2700 kg) that extends comes out from the 35VX. Width of the 30VX reduced The Yanmar engine and the kgf) on both models. the maximum width by 80 mm. to 1550 mm, an ideal machine for high-efficiency hydraulic circuit ensure 30VX quick…
