PARTS CATALOG

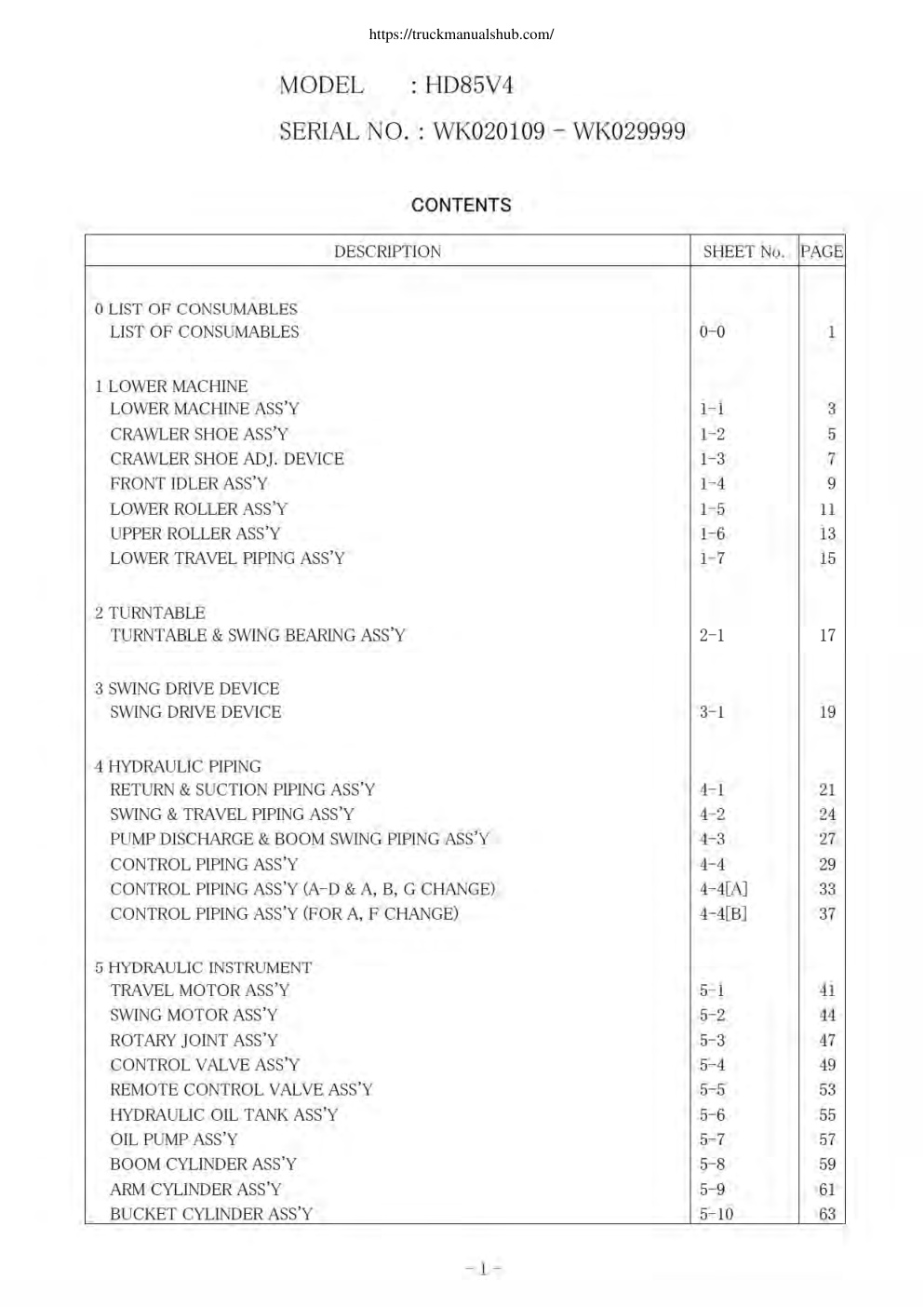

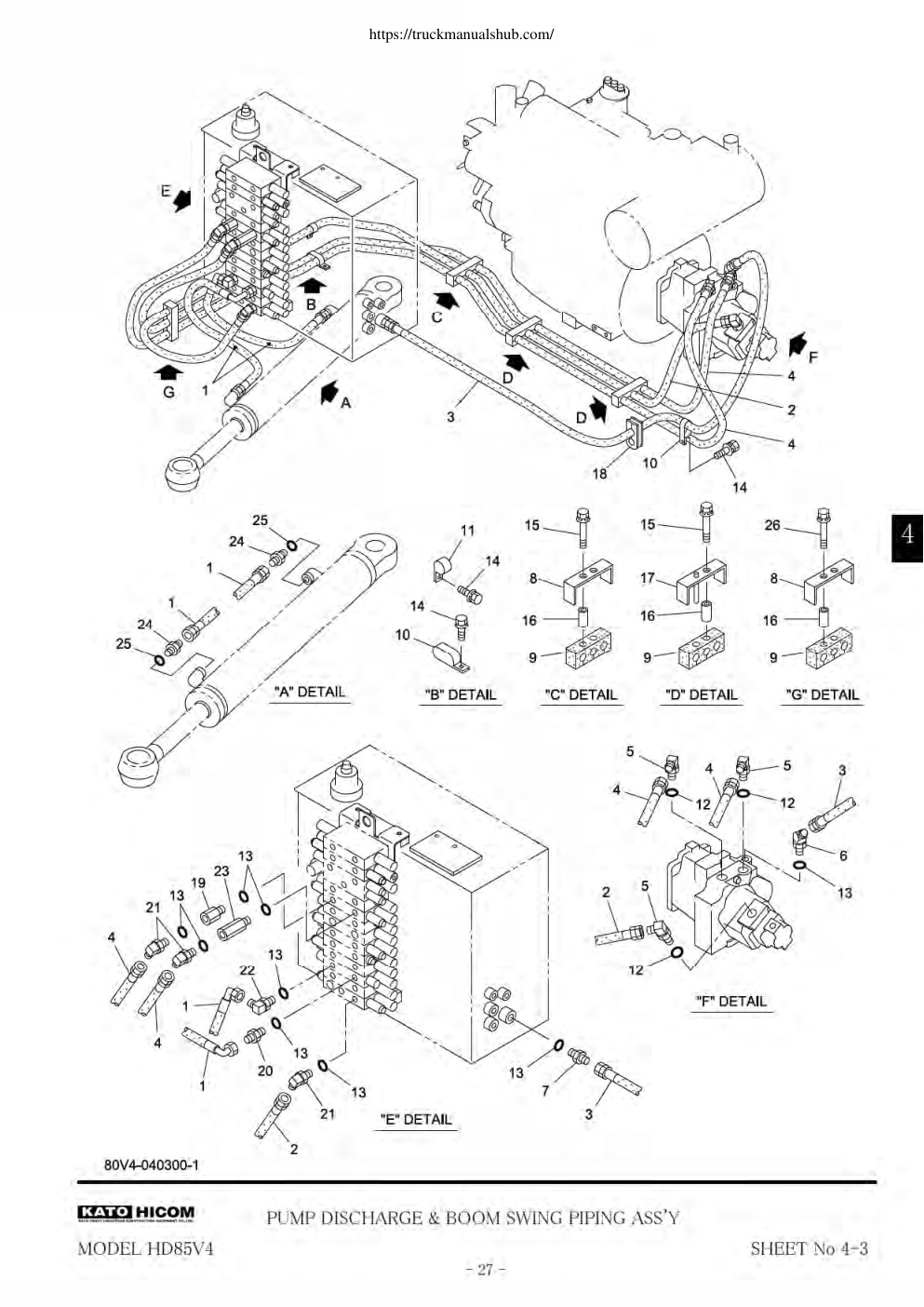

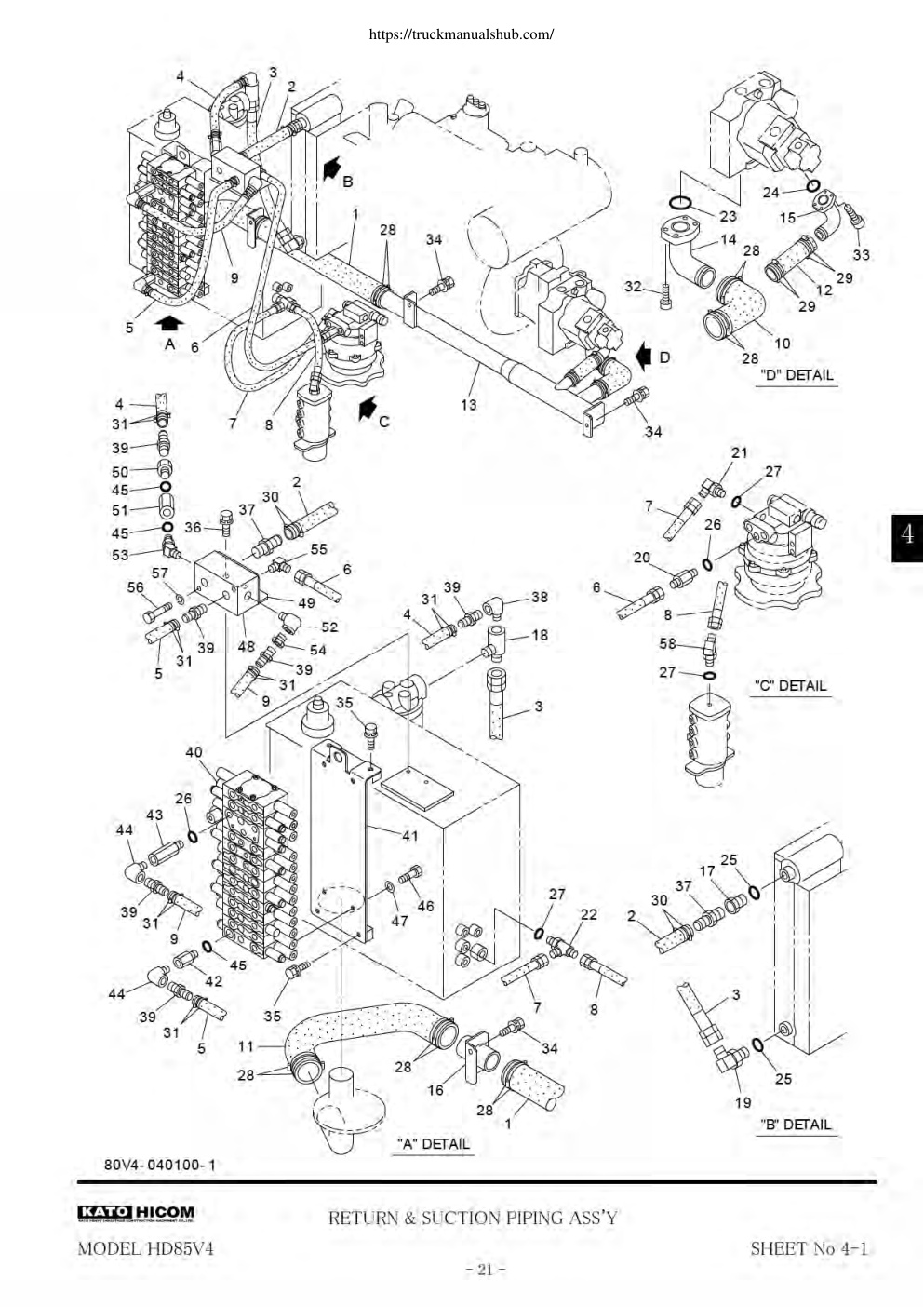

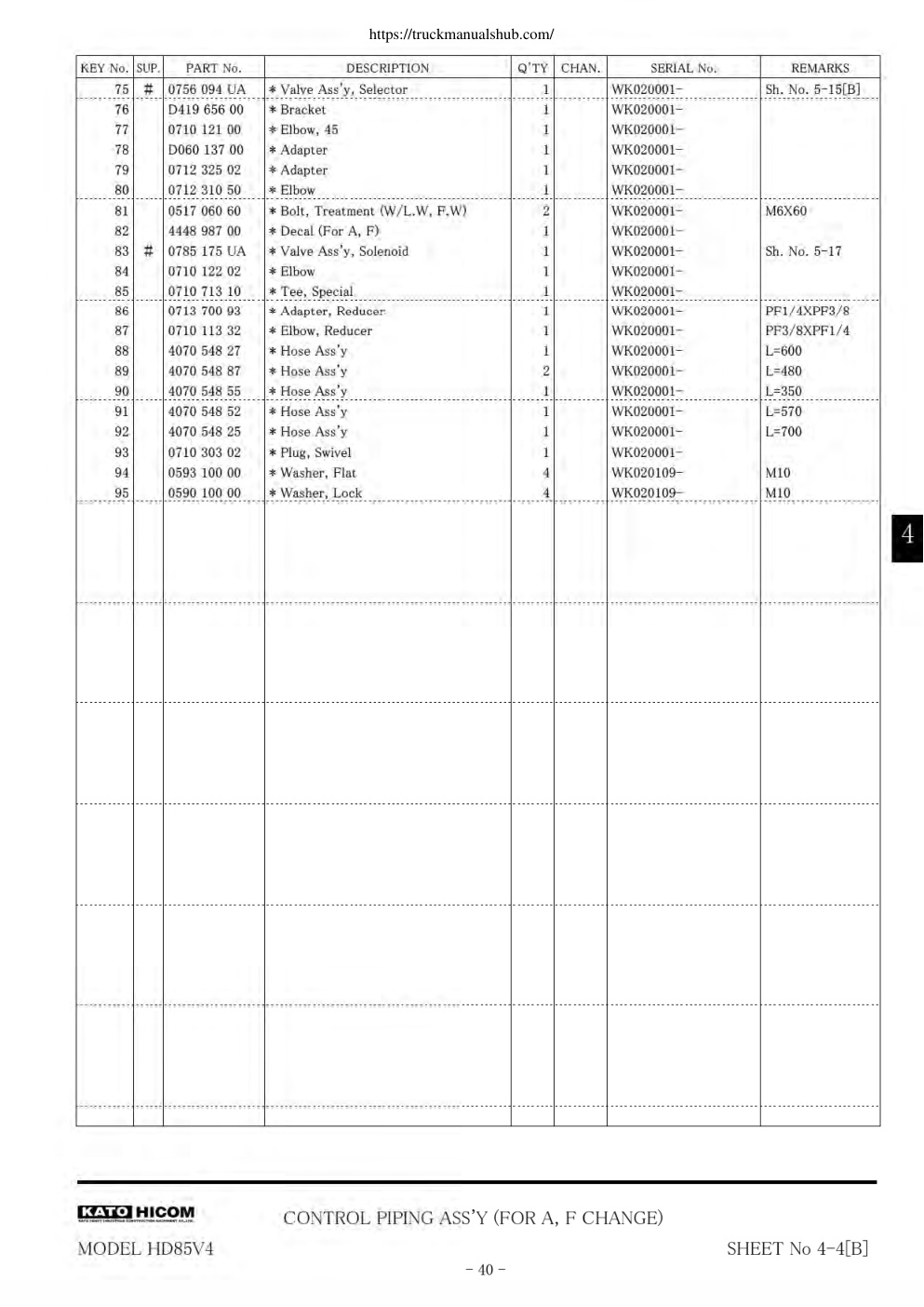

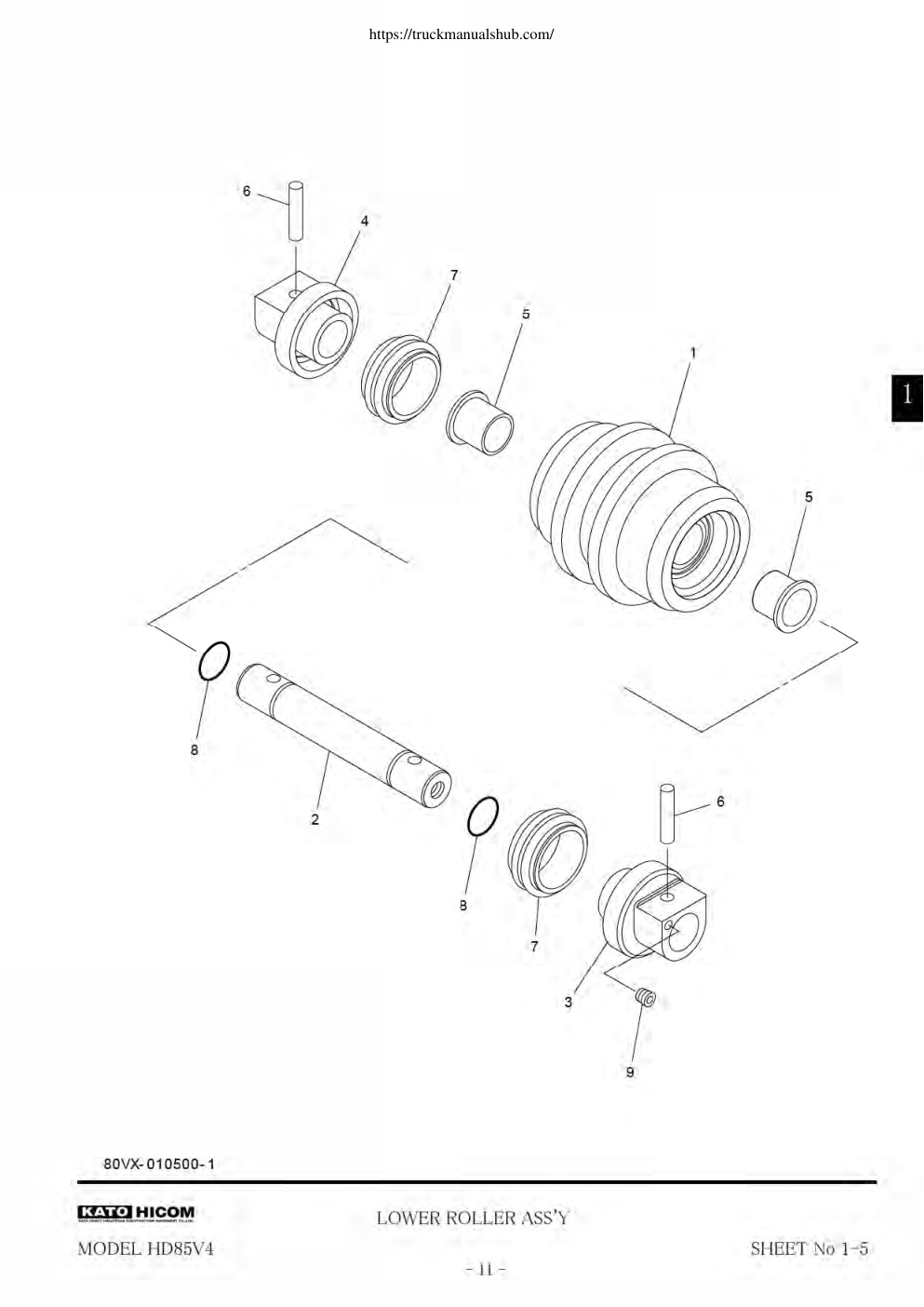

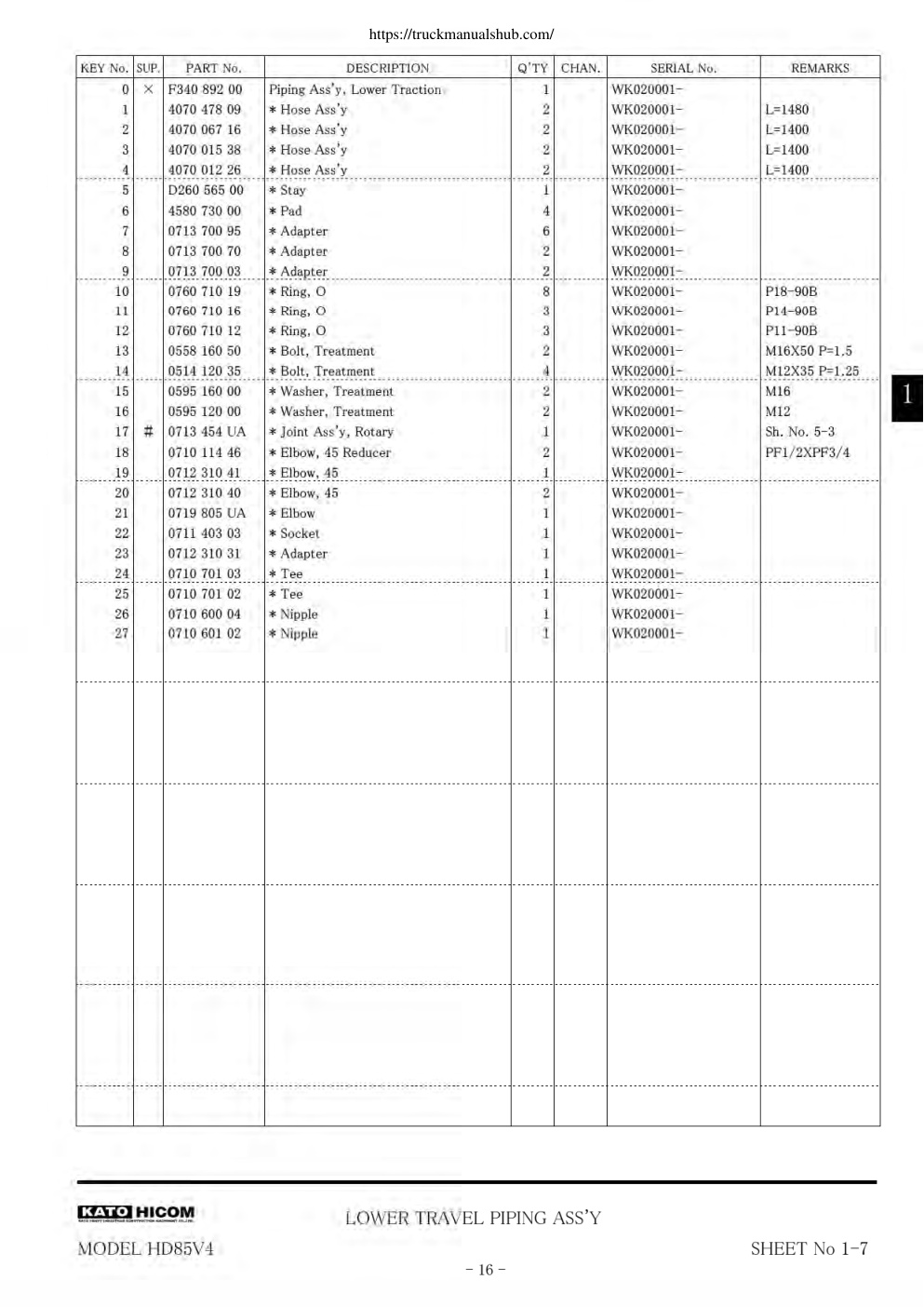

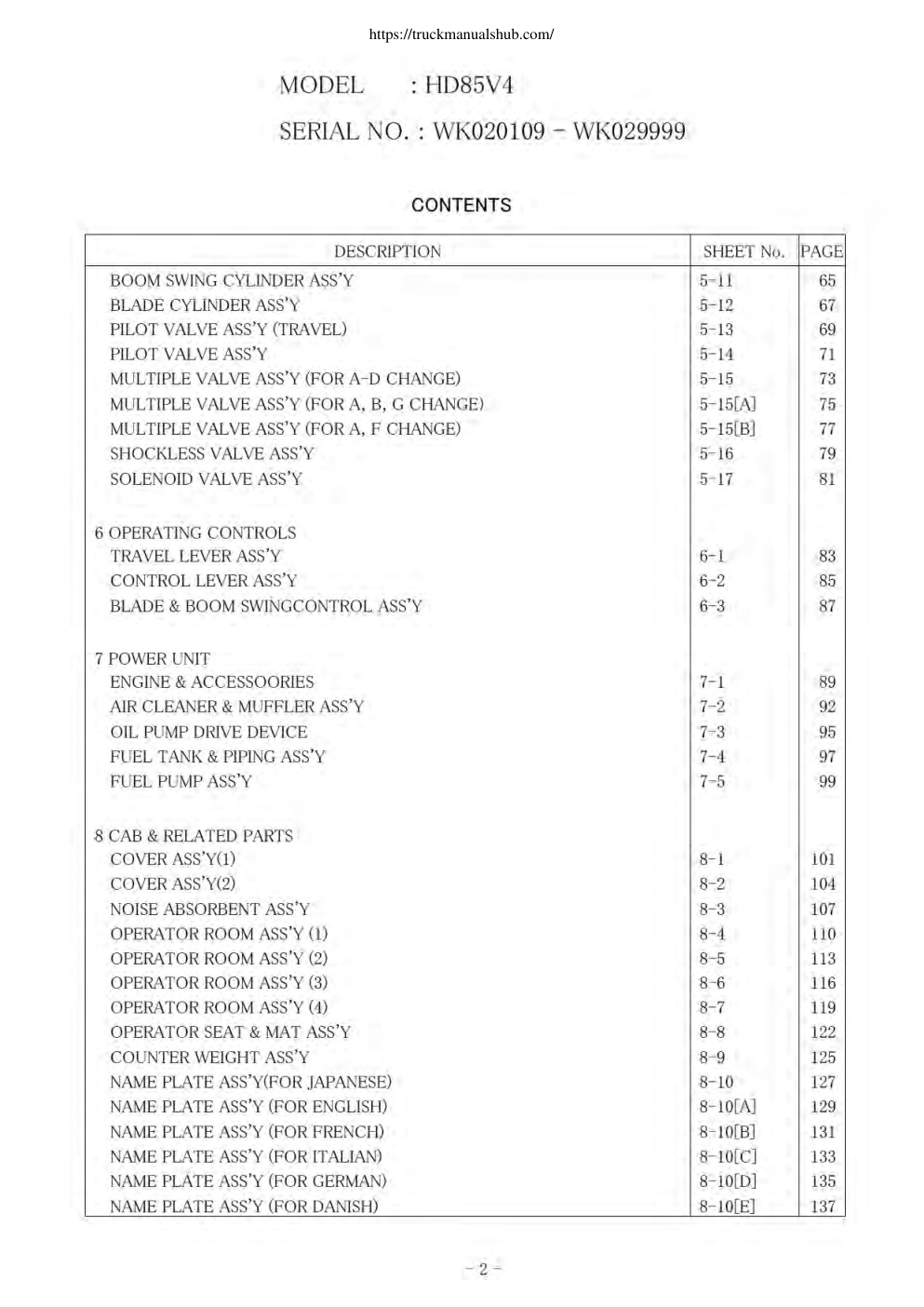

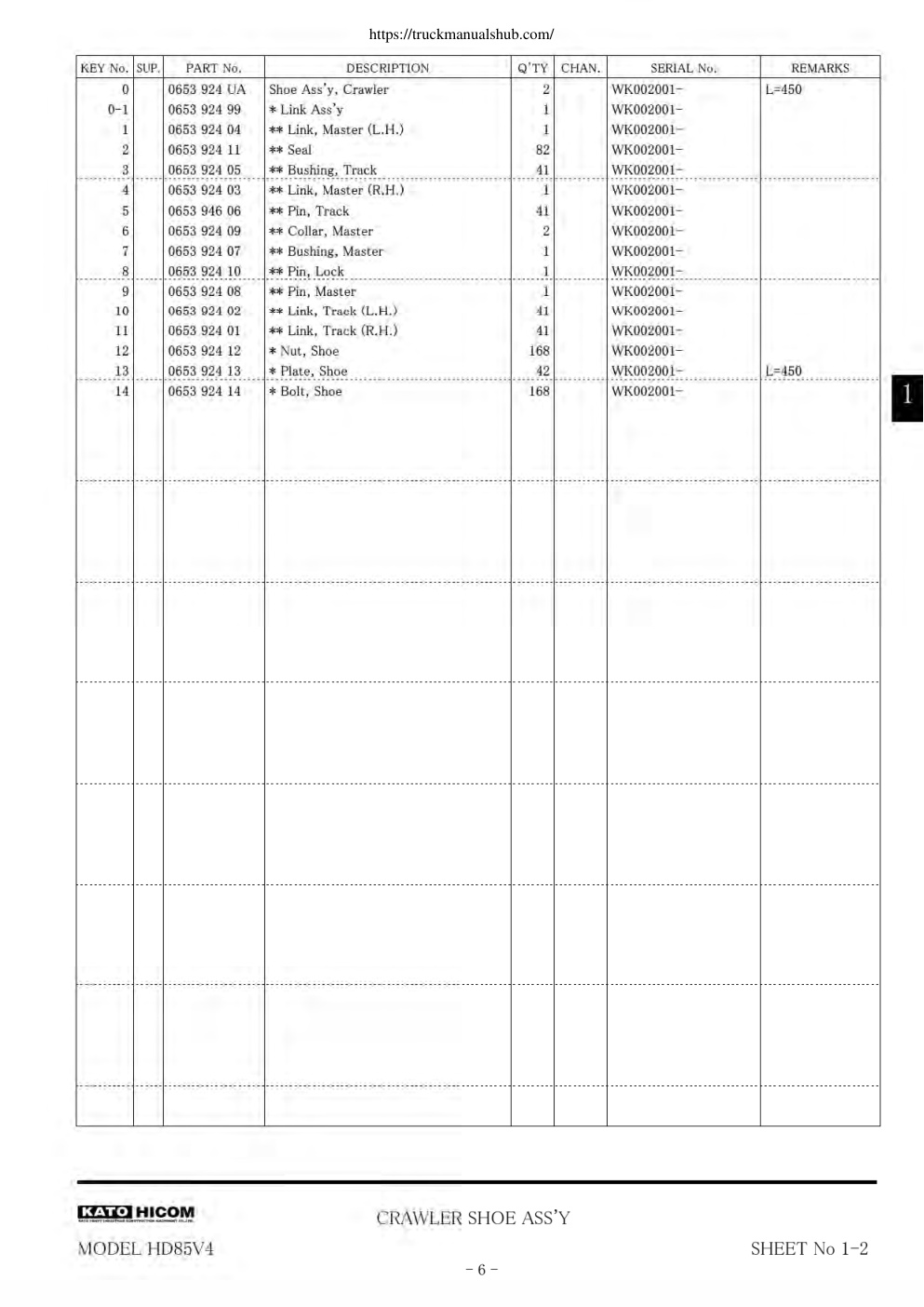

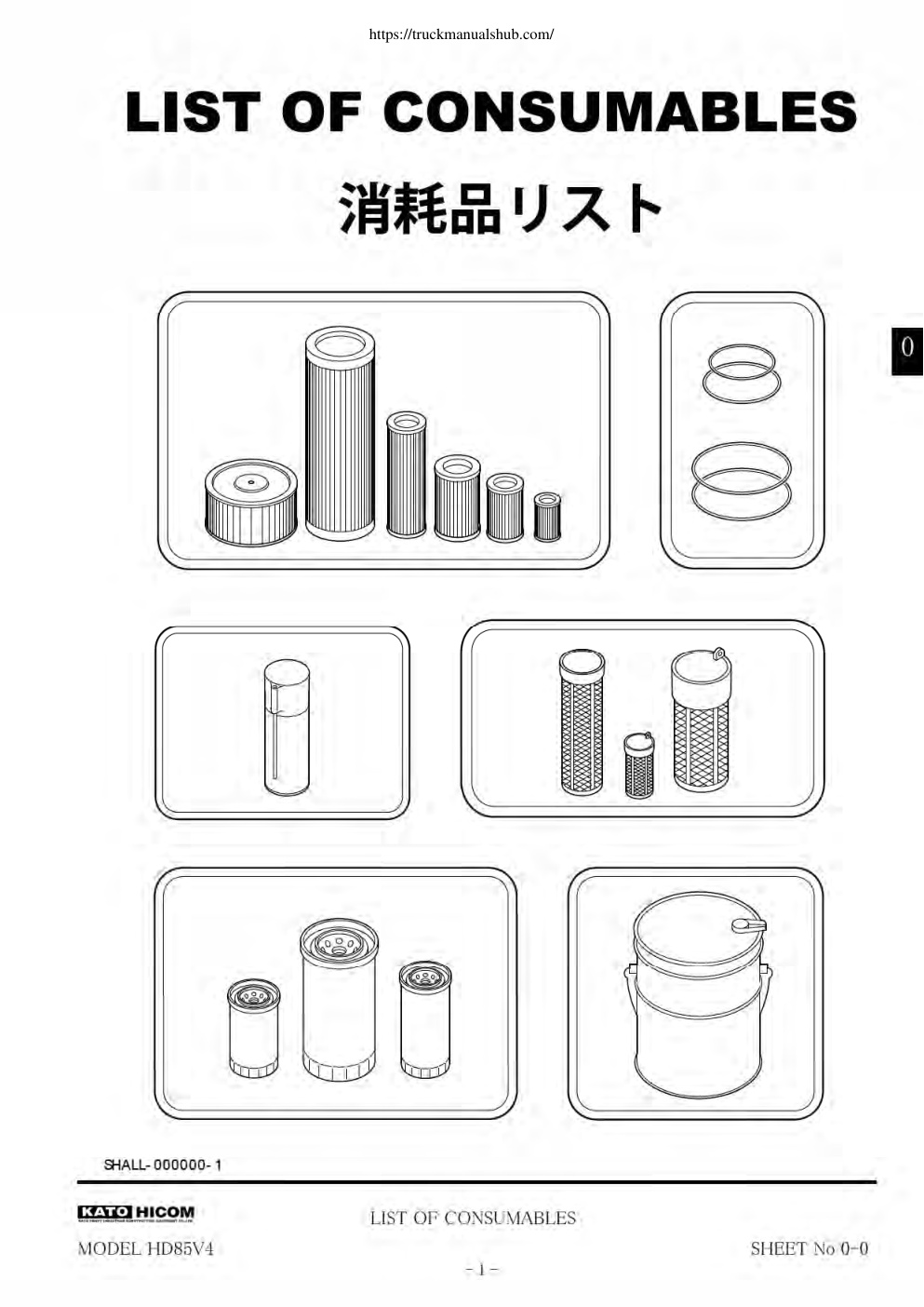

SERIAL No. WK020109 - WK029999 SERIAL NO.: WK020109 - WK029999 DESCRIPTION SHEET No. |PAGE 0 LIST OF CONSUMABLES LIST OF CONSUMABLES 0-0 1 1 LOWER MACHINE LOWER MACHINE ASS’Y 1-1 3 CRAWLER SHOE ASS’Y 1-2 5 CRAWLER SHOE ADJ. DEVICE 1-3 7 FRONT IDLER ASS'Y 1-4 9 LOWER ROLLER ASS'Y 1-5 11 UPPER ROLLER ASS’Y 1-6 13 LOWER TRAVEL PIPING ASS'Y 1-7 15 TURNTABLE & SWING BEARING ASS’Y 2-1 17 3 SWING DRIVE DEVICE SWING DRIVE DEVICE 3-1 19 4 HYDRAULIC PIPING RETURN & SUCTION PIPING ASS'Y 4-1 21 SWING & TRAVEL PIPING ASS’Y 4-2 24 PUMP DISCHARGE & BOOM SWING PIPING ASS’Y 4-3 27 CONTROL PIPING ASS’Y 4-4 29 CONTROL PIPING ASS'Y (A-D & A, B, G CHANGE) 4-4[A] 33 CONTROL PIPING ASS'Y (FOR A, F CHANGE) 4-A[B] 37 5 HYDRAULIC INSTRUMENT TRAVEL MOTOR ASS’Y 5-1 di SWING MOTOR ASS’Y 5-2 44 ROTARY JOINT ASS’Y 5-3 47 CONTROL VALVE ASS'Y 5-4 49 REMOTE CONTROL VALVE ASS’Y 5-5 53 HYDRAULIC OIL TANK ASS'Y 5-6 55 OIL
