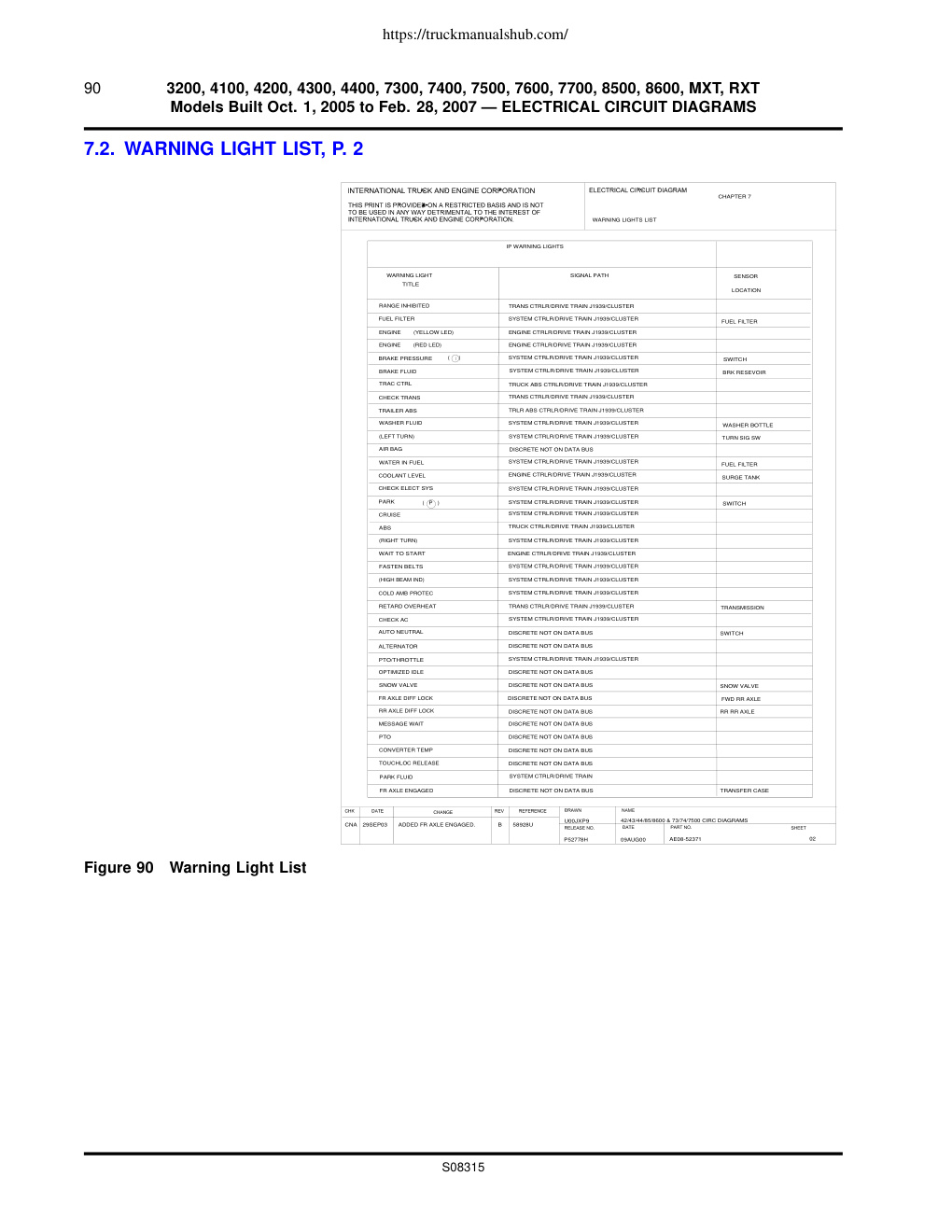

3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT 89 Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS 7. GAUGES WITH AND WITHOUT INTEGRAL WARNING LIGHT (CHAPTER 7.1. IP/GAUGE LIST, P. 1 Figure 89 IP/Gauge List 90 3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS 7.2. WARNING LIGHT LIST, P. 2 WARNING LIGHTS LIST IP WARNING LIGHTS WARNING LIGHT SIGNAL PATH SENSOR RANGE INHIBITED TRANS CTRLR/DRIVE TRAIN J1939/CLUSTER FUEL FILTER SYSTEM CTRLR/DRIVE TRAIN J1939/CLUSTER FUEL FILTER ENGINE (YELLOW LED) ENGINE CTRLR/DRIVE TRAIN J1939/CLUSTER ENGINE (RED LED) ENGINE CTRLR/DRIVE TRAIN J1939/CLUSTER BRAKE PRESSURE () SYSTEM CTRLR/DRIVE TRAIN J1939/CLUSTER SWITCH BRAKE FLUID SYSTEM CTRLR/DRIVE TRAIN J1939/CLUSTER BRK RESEVOIR TRAC CTRL TRUCK

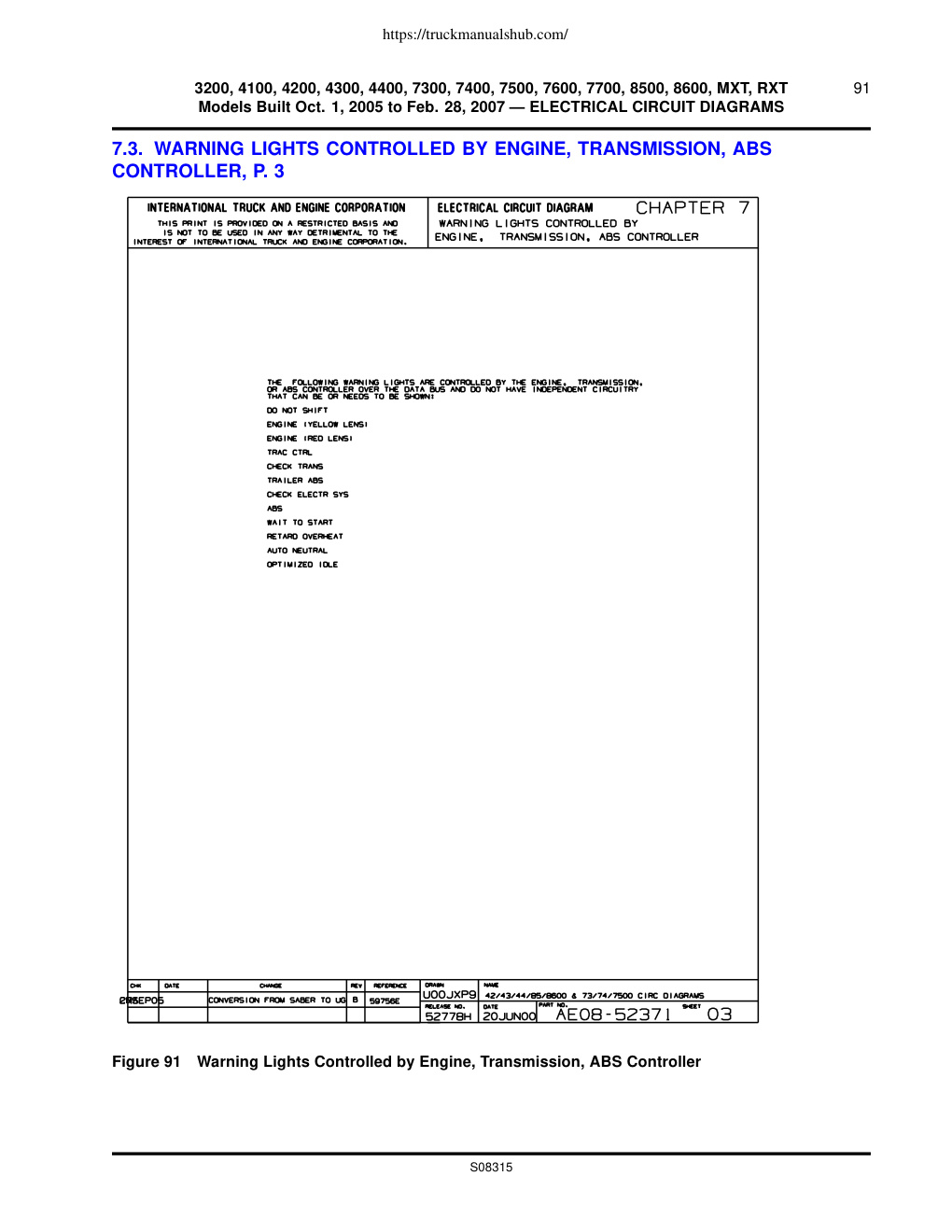

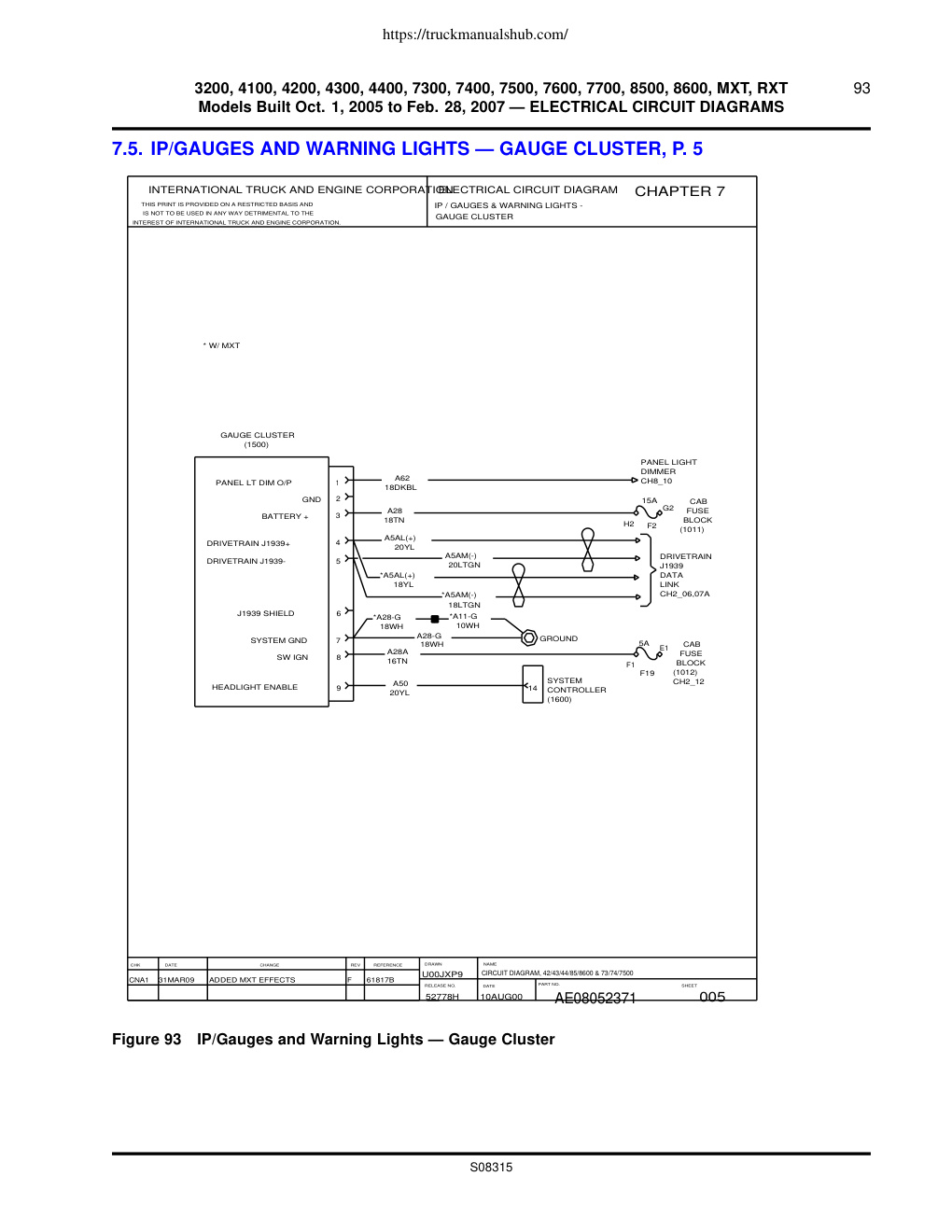

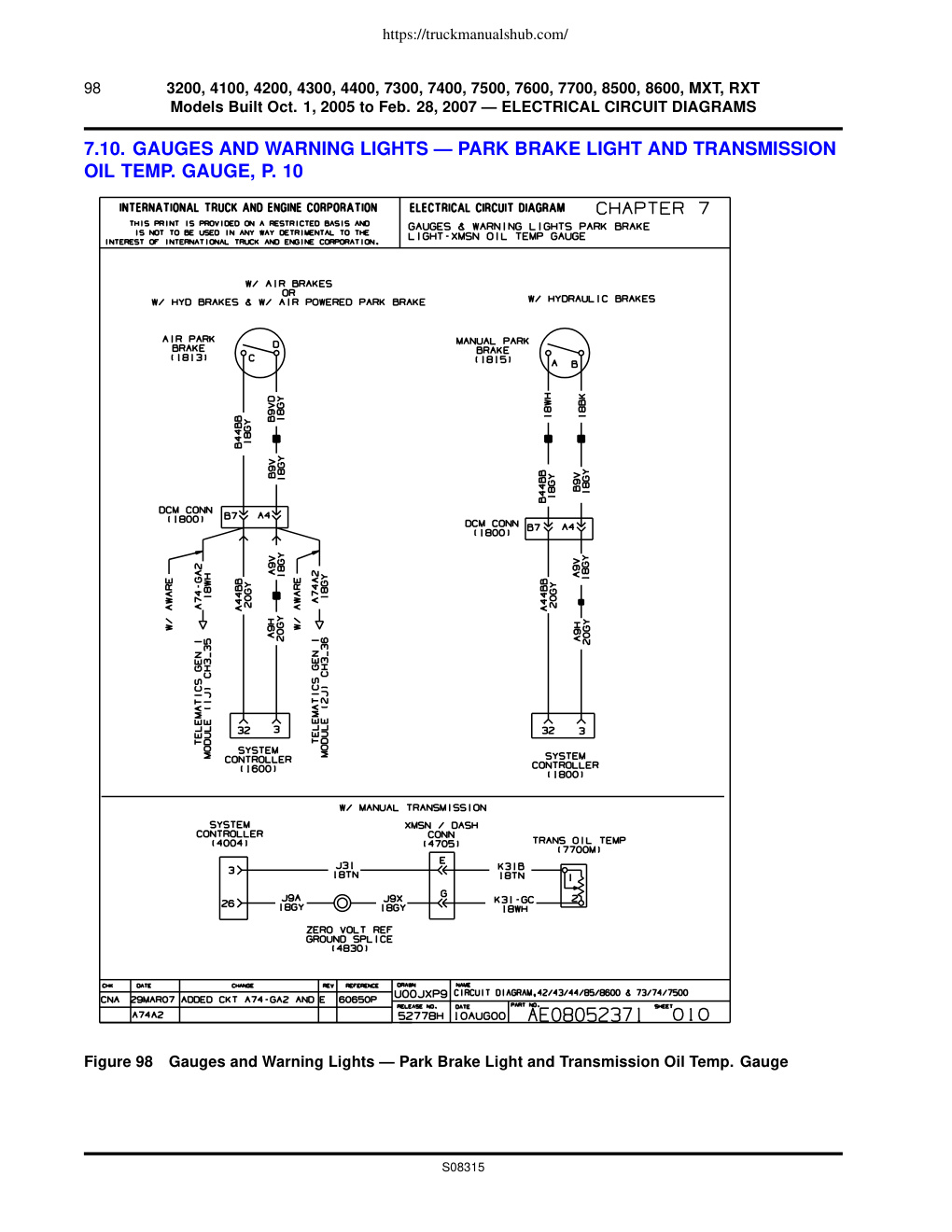

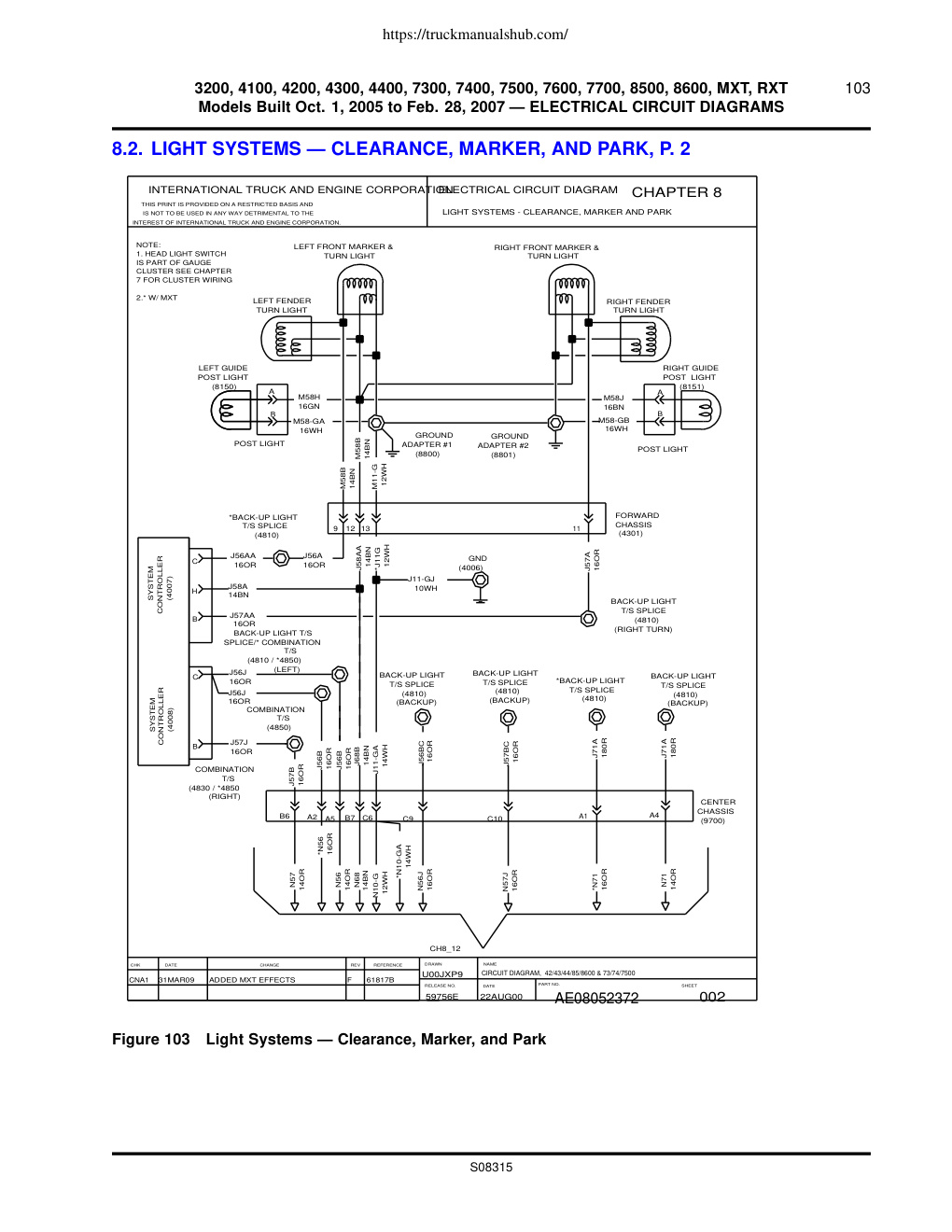

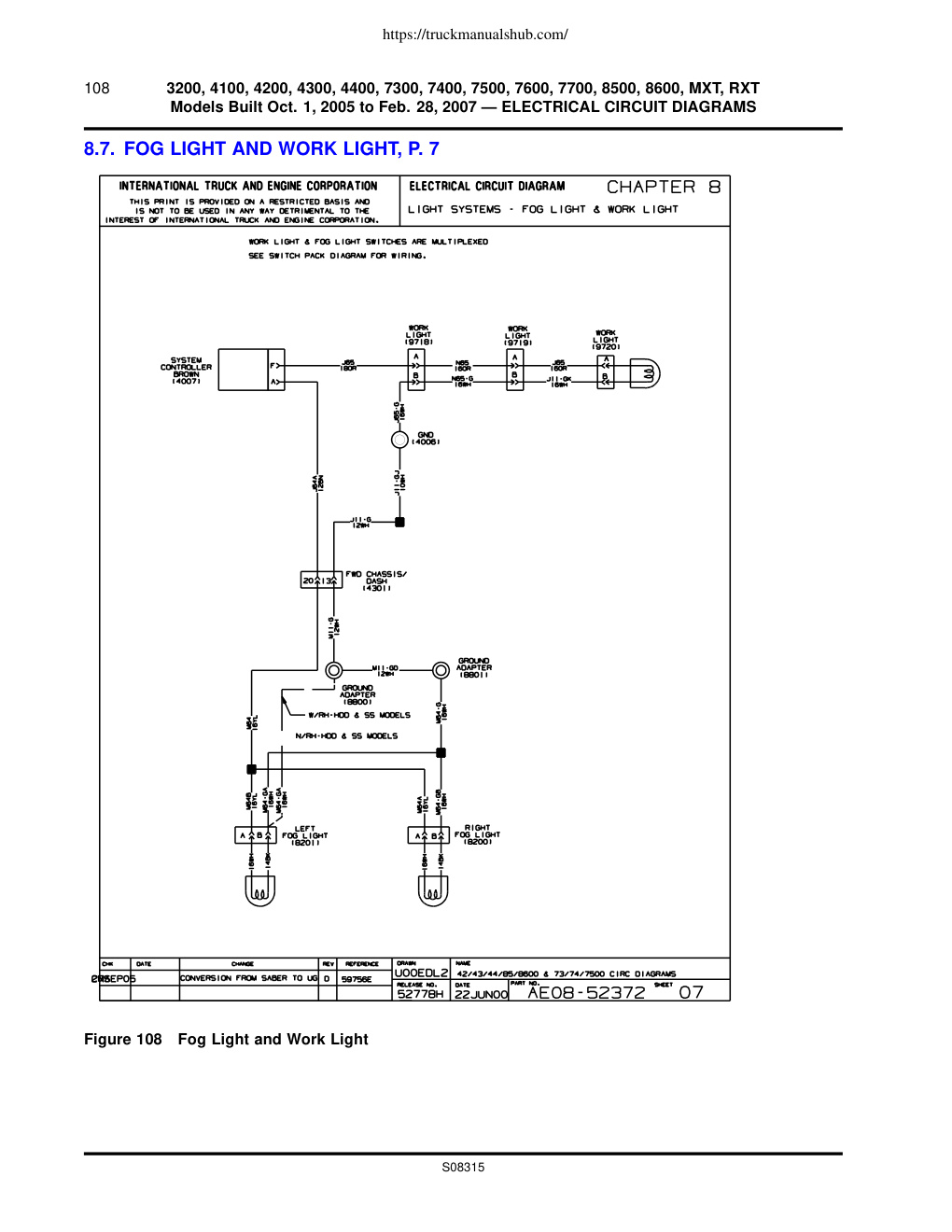

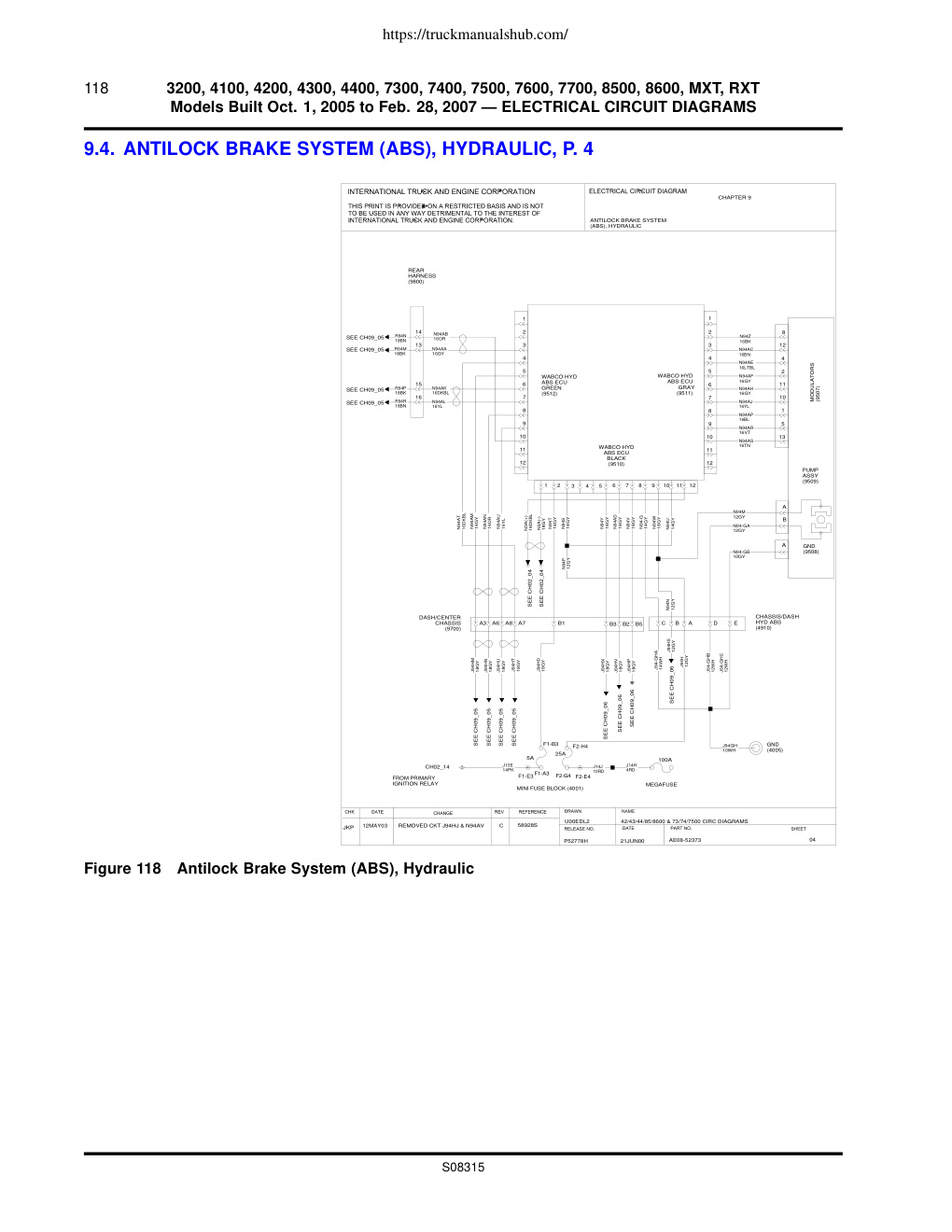

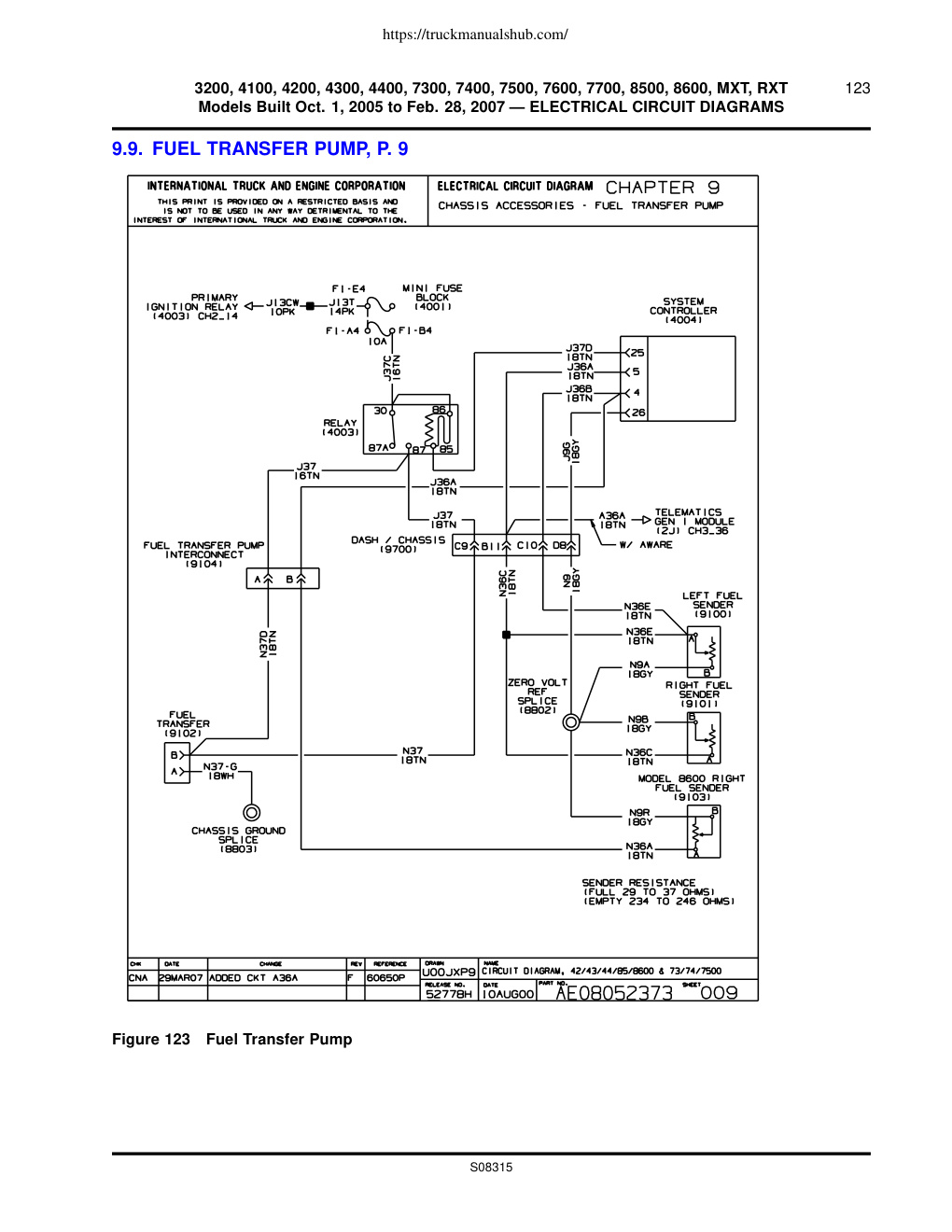

https://truckmanualshub.com/ 3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT 89 Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS 7. GAUGES WITH AND WITHOUT INTEGRAL WARNING LIGHT (CHAPTER 7) 7.1. IP/GAUGE LIST, P. 1 Figure 89 IP/Gauge List S08315 https://truckmanualshub.com/ 90 3200, 4100, 4200, 4300, 4400, 7300, 7400, 7500, 7600, 7700, 8500, 8600, MXT, RXT Models Built Oct. 1, 2005 to Feb. 28, 2007 — ELECTRICAL CIRCUIT DIAGRAMS 7.2. WARNING LIGHT LIST, P. 2 CHAPTER 7 WARNING LIGHTS LIST IP WARNING LIGHTS WARNING LIGHT SIGNAL PATH SENSOR TITLE LOCATION RANGE INHIBITED TRANS CTRLR/DRIVE TRAIN J1939/CLUSTER FUEL FILTER SYSTEM CTRLR/DRIVE TRAIN J1939/CLUSTER FUEL FILTER ENGINE (YELLOW LED) ENGINE CTRLR/DRIVE TRAIN J1939/CLUSTER ENGINE (RED LED) ENGINE CTRLR/DRIVE TRAIN J1939/CLUSTER BRAKE PRESSURE ( ) SYSTEM CTRLR/DRIVE TRAIN J1939/CLUSTER SWITCH BRAKE FLUID SYSTEM CTRLR/DRIVE TRAIN J1939/CLUSTER BRK RESEVOIR TRAC CTRL TRUCK ABS CTRLR/DRIVE TRAIN J1939/CLUSTER CHECK TRANS TRANS CTRLR/DRIVE TRAIN J1939/CLUSTER TRAILER ABS TRLR ABS CTRLR/DRIVE TRAIN J1939/CLUSTER WASHER FLUID SYSTEM CTRLR/DRIVE TRAIN J1939/CLUSTER WASHER BOTTLE…
