Parts Catalogue

RIDING MOWER SF235F SF224F-BGRE42,BGZRE42,GWZRE42 SF235F-BGRE42,BGZRE42,GWZRE42 1 832-097-1 00-00 Printed in Japan October,2017 Directions for use of Parts Catalogue 1. Applicable model of machines All component and option parts used for SFH224F/SF235F riding mower are listed in this parts catalogue. B･･････ BLOWER CASE G･･････ WITH EXTRA SPECIFICATIONS FOR LOCAL HOMOLOGATION Z･･････ WITH SEAT W･･････ WITH WEIGHT 2･･････ TURF TIRE 2. Details of the Structure Table of Model

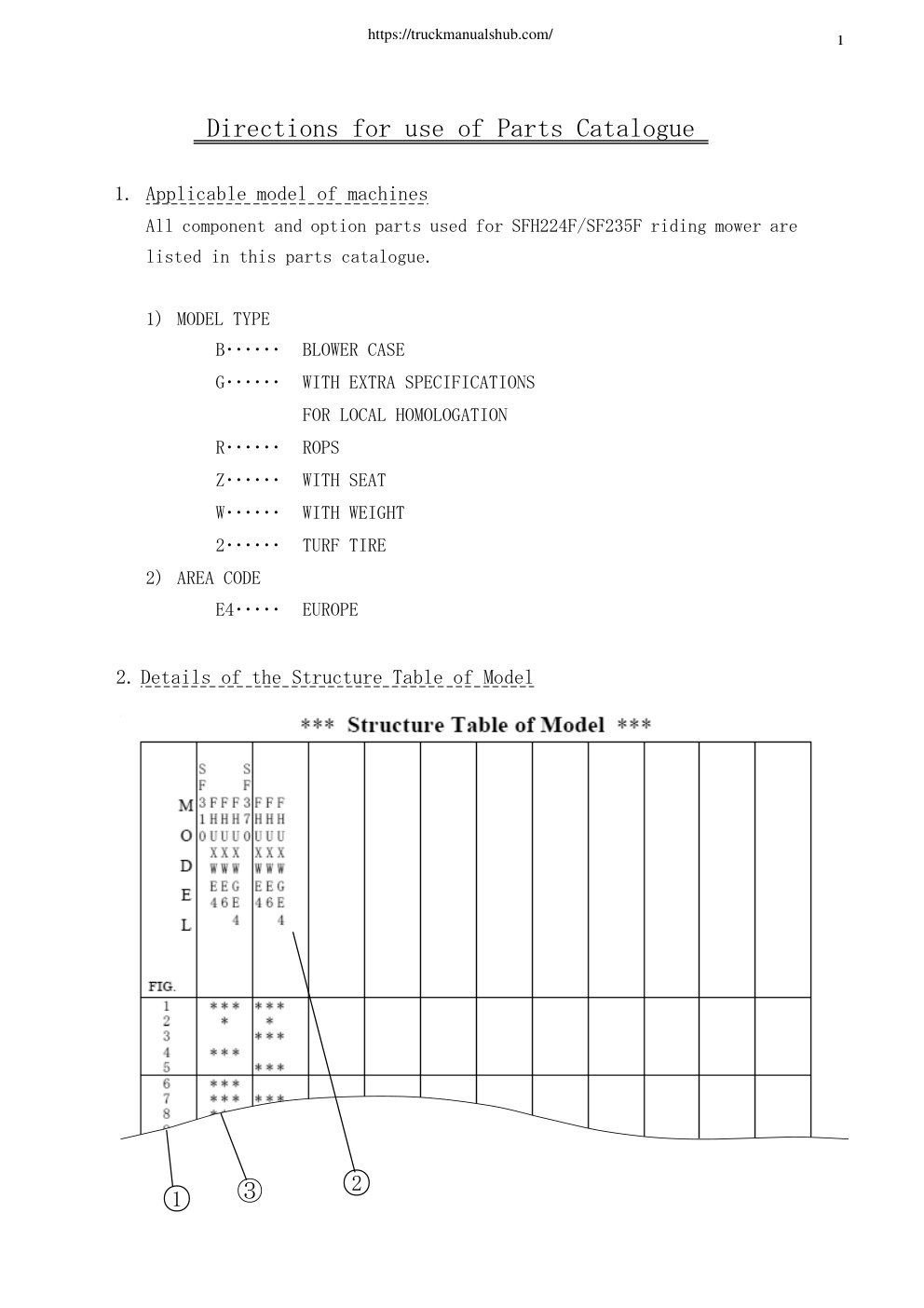

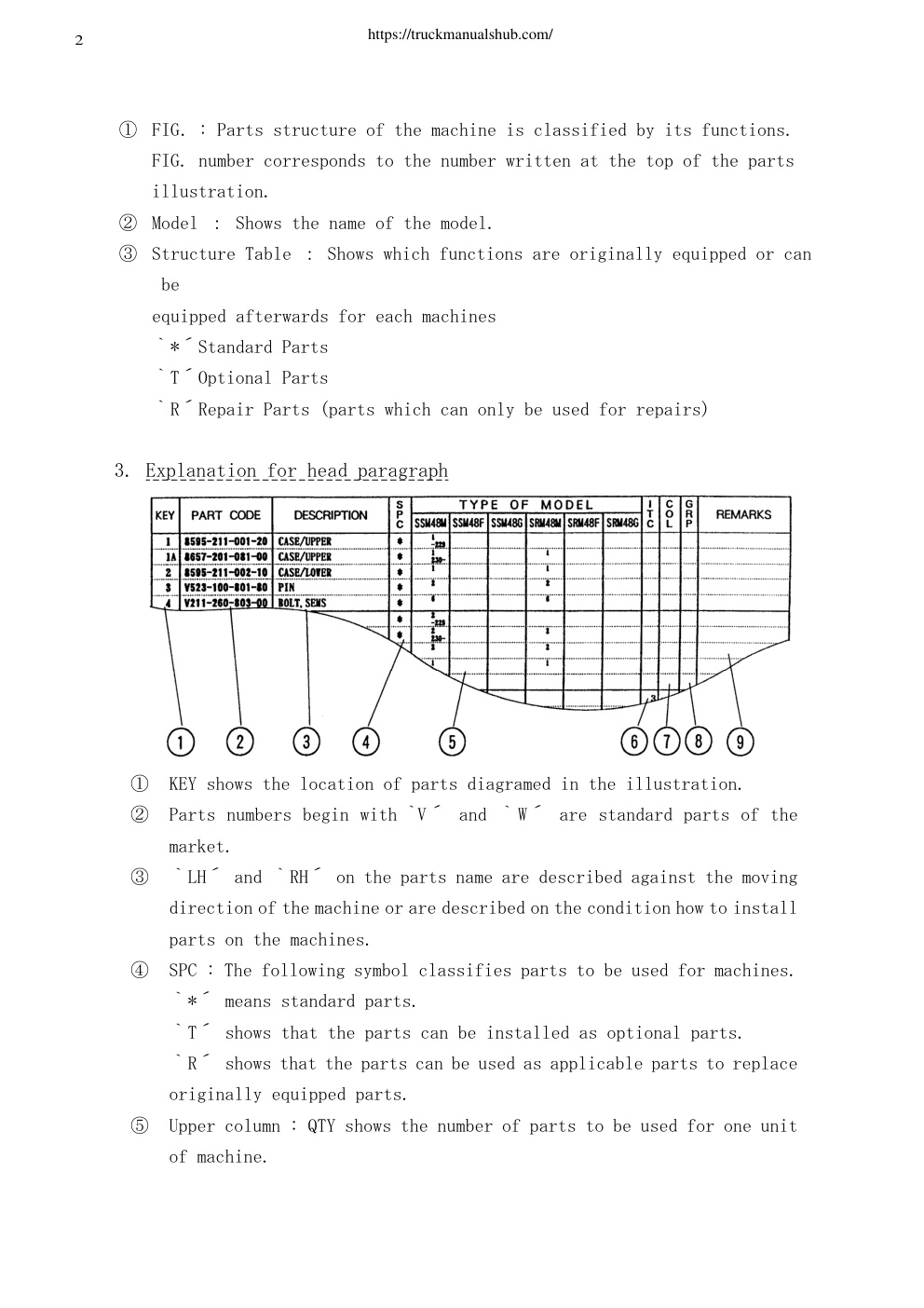

https://truckmanualshub.com/ https://truckmanualshub.com/ 1 Directions for use of Parts Catalogue 1. Applicable model of machines All component and option parts used for SFH224F/SF235F riding mower are listed in this parts catalogue. 1) MODEL TYPE B･･････ BLOWER CASE G･･････ WITH EXTRA SPECIFICATIONS FOR LOCAL HOMOLOGATION R･･････ ROPS Z･･････ WITH SEAT W･･････ WITH WEIGHT 2･･････ TURF TIRE 2) AREA CODE E4･････ EUROPE 2. Details of the Structure Table of Model 2 ○ ③ 1 ○ 2 https://truckmanualshub.com/ ① FIG．: Parts structure of the machine is classified by its functions. FIG. number corresponds to the number written at the top of the parts illustration. ② Model ： Shows the name of the model. ③ Structure Table ： Shows which functions are originally equipped or can be equipped afterwards for each machines ｀*´Standard Parts ｀T´Optional Parts ｀R´Repair Parts (parts which can only be used for repairs) 3. Explanation for head paragraph ① KEY shows the location of parts diagramed in the illustration. ② Parts numbers begin with `V´ and ｀W´ are standard parts of the market. ③ ｀LH´ and ｀RH´ on the parts name are described against the moving direction of the machine or are described on the…
