Aerial work platforms, stock pickers, trailers and telehandlers Sales Manual 2018

JLG; Aerial work platforms, stock pickers, trailers, telehandlers

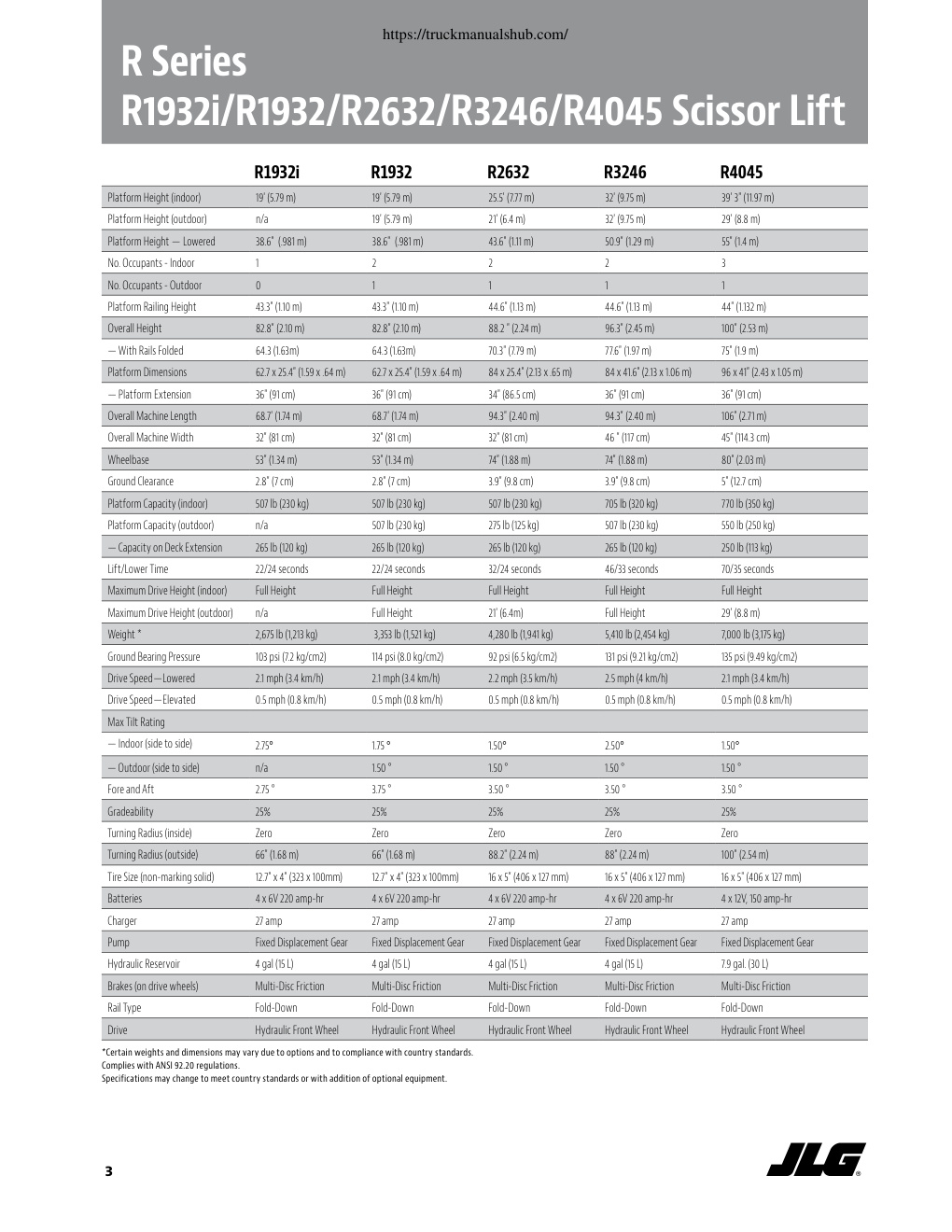

https://truckmanualshub.com/ Mobile Elevating Work Platforms, Stock Pickers & Trailers https://truckmanualshub.com/ R Series R1932i/R1932/R2632/R3246/R4045 Scissor Lift R1932i R1932 R2632 R3246 R4045 Platform Height (indoor) 19' (5.79 m) 19' (5.79 m) 25.5' (7.77 m) 32' (9.75 m) 39' 3" (11.97 m) Platform Height (outdoor) n/a 19' (5.79 m) 21' (6.4 m) 32' (9.75 m) 29' (8.8 m) Platform Height — Lowered 38.6" (.981 m) 38.6" (.981 m) 43.6" (1.11 m) 50.9" (1.29 m) 55" (1.4 m) No. Occupants - Indoor 1 2 2 2 3 No. Occupants - Outdoor 0 1 1 1 1 Platform Railing Height 43.3" (1.10 m) 43.3" (1.10 m) 44.6" (1.13 m) 44.6" (1.13 m) 44" (1.132 m) Overall Height 82.8" (2.10 m) 82.8" (2.10 m) 88.2 " (2.24 m) 96.3" (2.45 m) 100" (2.53 m) — With Rails Folded 64.3 (1.63m) 64.3 (1.63m) 70.3" (7.79 m) 77.6" (1.97 m) 75" (1.9 m) Platform Dimensions 62.7 x 25.4" (1.59 x .64 m) 62.7 x 25.4" (1.59 x .64 m) 84 x 25.4" (2.13 x .65 m) 84 x 41.6" (2.13 x 1.06 m) 96 x 41" (2.43 x 1.05 m) — Platform Extension 36" (91 cm) 36" (91 cm) 34" (86.5 cm) 36" (91 cm) 36" (91 cm) Overall Machine Length 68.7' (1.74 m) 68.7' (1.74 m) 94.3" (2.40 m) 94.3" (2.40 m) 106" (2.71 m) Overall Machine Width 32" (81 cm) 32" (81 cm)…
