Parts manual

A Textron Company Product codes: AR30001 (D1105-T-E3B) - 68” Width of Cut Product codes: AR30002 (D1105-T-E3B) - 72” Width of Cut Product codes: AR30003 (D1105-T-E3B) - 68” Width of Cut Product codes: AR30004 (D1105-E4B) - 68” Width of Cut WARNING: If incorrectly used this machine can cause severe injury. Those who use and maintain this machine must be trained in its proper use, warned of its dangers and must read the entire manual before attempting to set up, operate, adjust or service the RJL 100 September 2017 24727G-GB(rev.9) © 2017, Ransomes Jacobsen Limited. All Rights Reserved

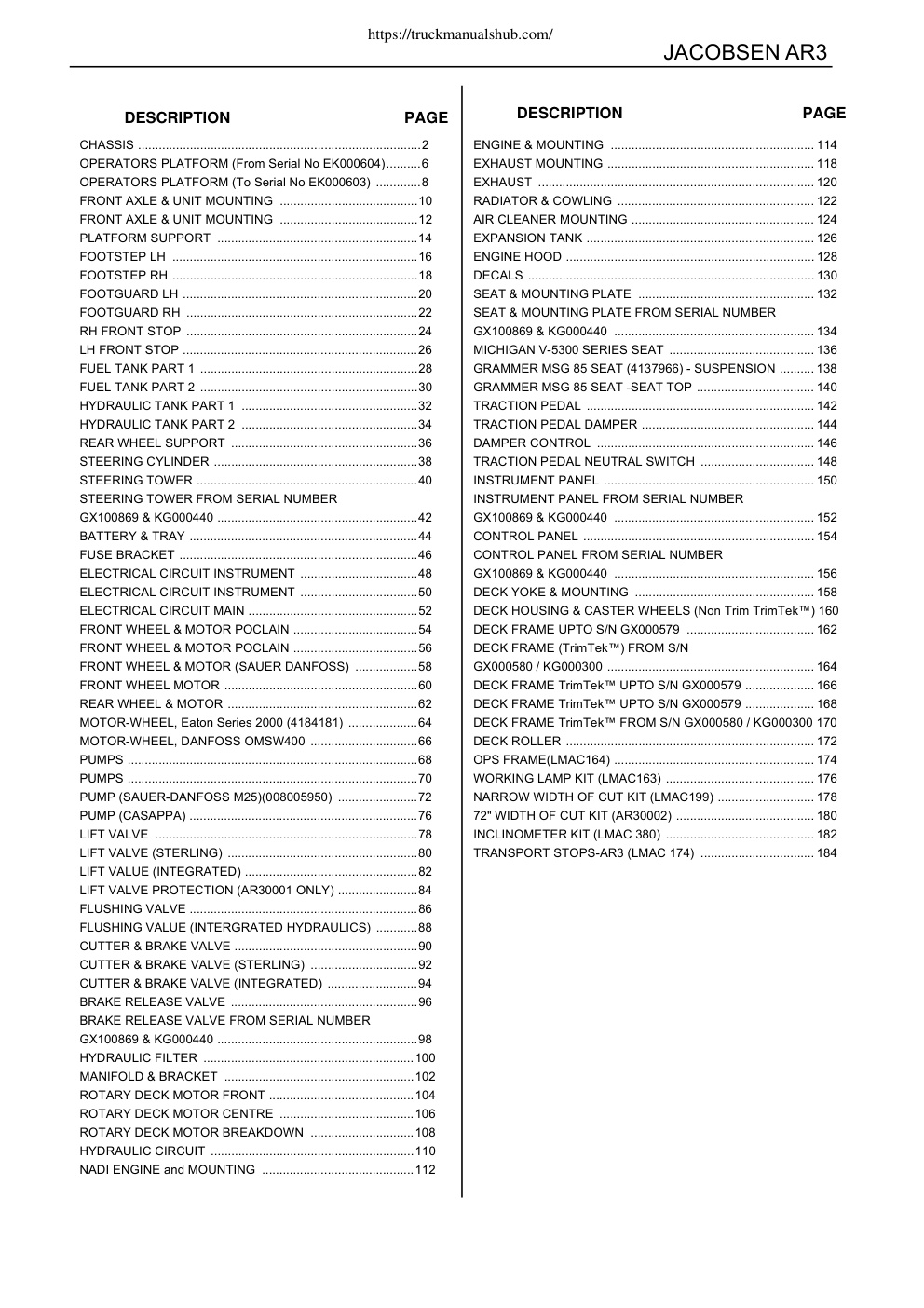

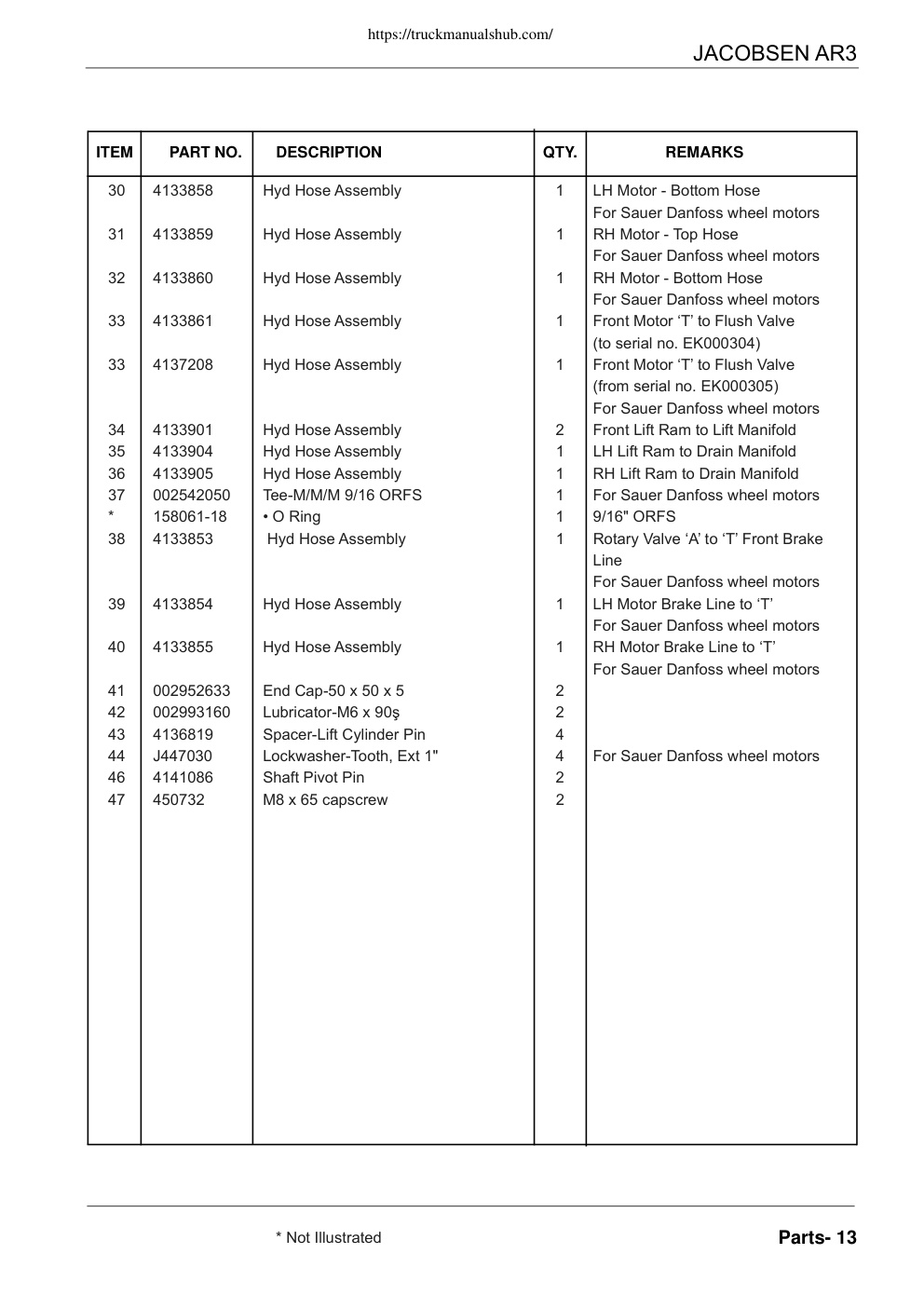

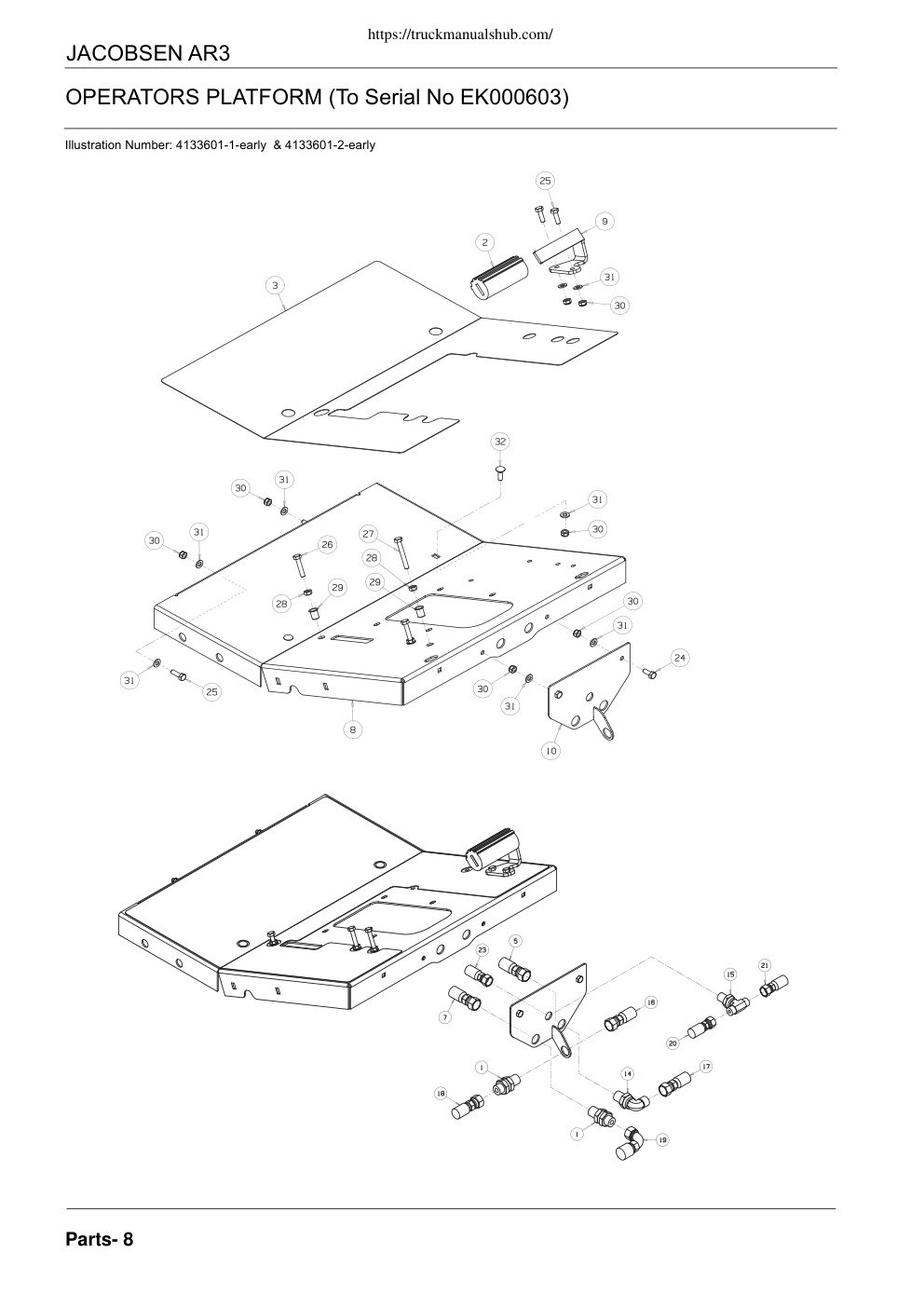

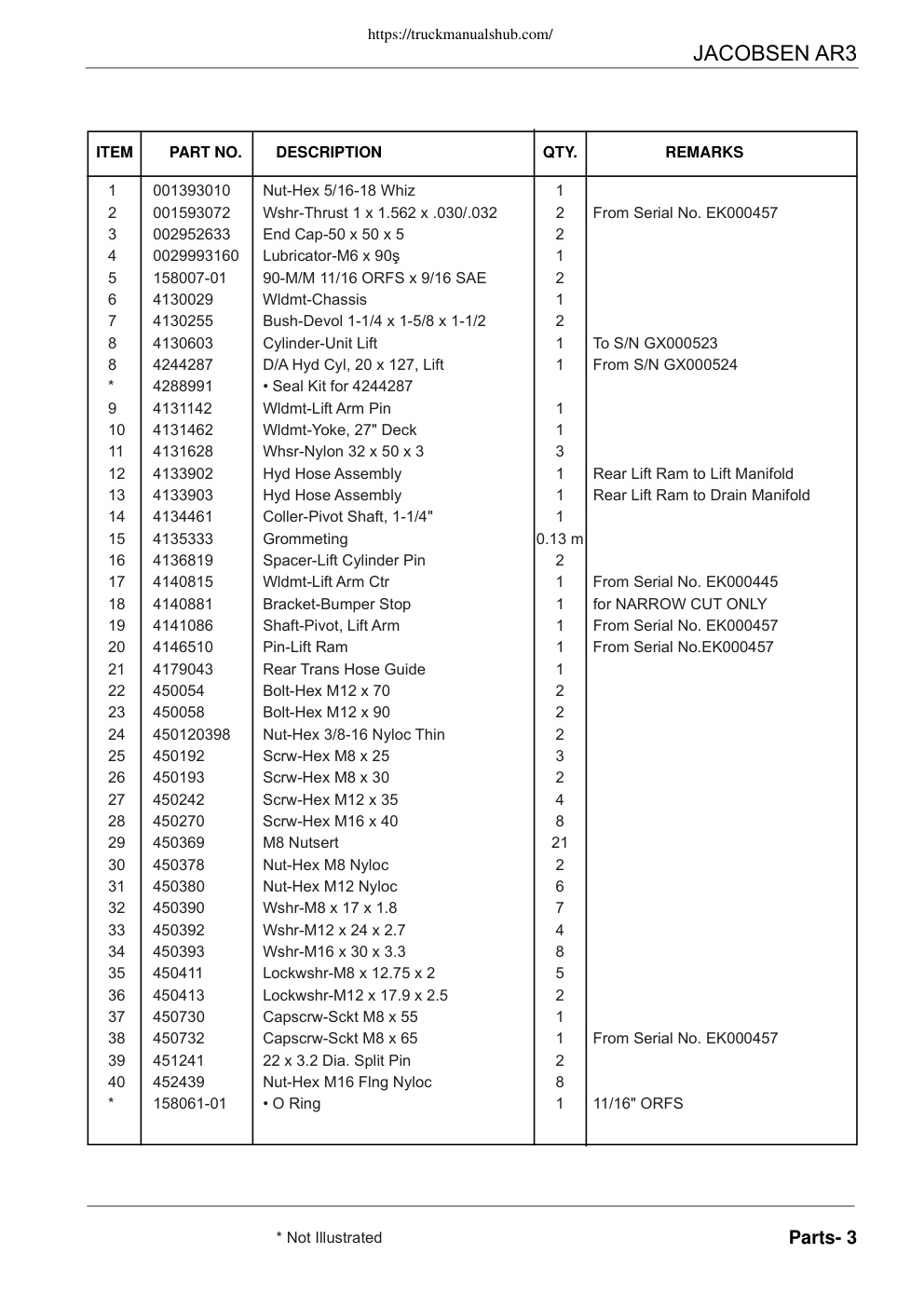

https://truckmanualshub.com/ A Textron Company Parts manual Jacobsen AR3 Series:EK Product codes: AR30001 (D1105-T-E3B) - 68” Width of Cut Series: FZ Product codes: AR30002 (D1105-T-E3B) - 72” Width of Cut Series:GX Product codes: AR30003 (D1105-T-E3B) - 68” Width of Cut Series:KG Product codes: AR30004 (D1105-E4B) - 68” Width of Cut WARNING WARNING: If incorrectly used this machine can cause severe injury. Those who use and maintain this machine must be trained in its proper use, warned of its dangers and must read the entire manual before attempting to set up, operate, adjust or service the machine. RJL 100 September 2017 24727G-GB(rev.9) https://truckmanualshub.com/ © 2017, Ransomes Jacobsen Limited. All Rights Reserved https://truckmanualshub.com/ JACOBSEN AR3 DESCRIPTION PAGE DESCRIPTION PAGE CHASSIS ..................................................................................2 ENGINE & MOUNTING ........................................................... 114 OPERATORS PLATFORM (From Serial No EK000604)..........6 EXHAUST MOUNTING ............................................................ 118 OPERATORS PLATFORM (To Serial No EK000603) .............8 EXHAUST…
