HYDRAULIC CRAWLER CRANE

Model: CKE1350-1F Max. Lifting Capacity: 135 t x 4.5 m Max. Crane Boom Length: 76.2 m Max. Long Boom Length: 82.3 m Max. Fixed Jib Combination: 61.0 m + 30.5 m Max. Luffing Jib Combination: 47.9 + 32.0 m, 44.8 + 53.3 m Crane Boom Long Boom Max. Lifting Capacity: Max. Lifting Capacity: 135 metric ton x 4.5 m 44.3 metric ton x 10.6 m Max. Boom Length: Max. Boom Length: Max. Lifting Capacity: 80 metric ton x 8.0 m Max. Boom Length

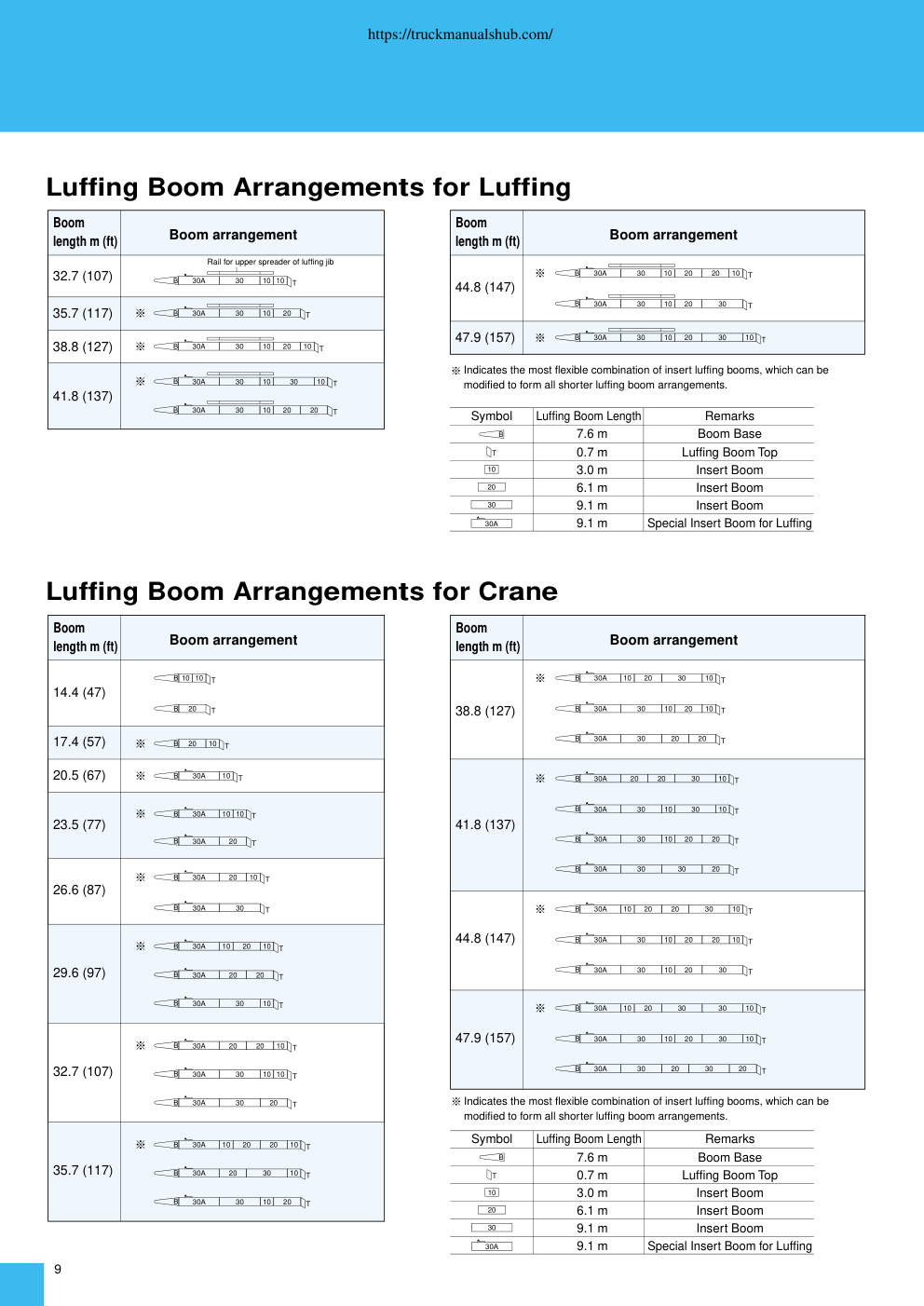

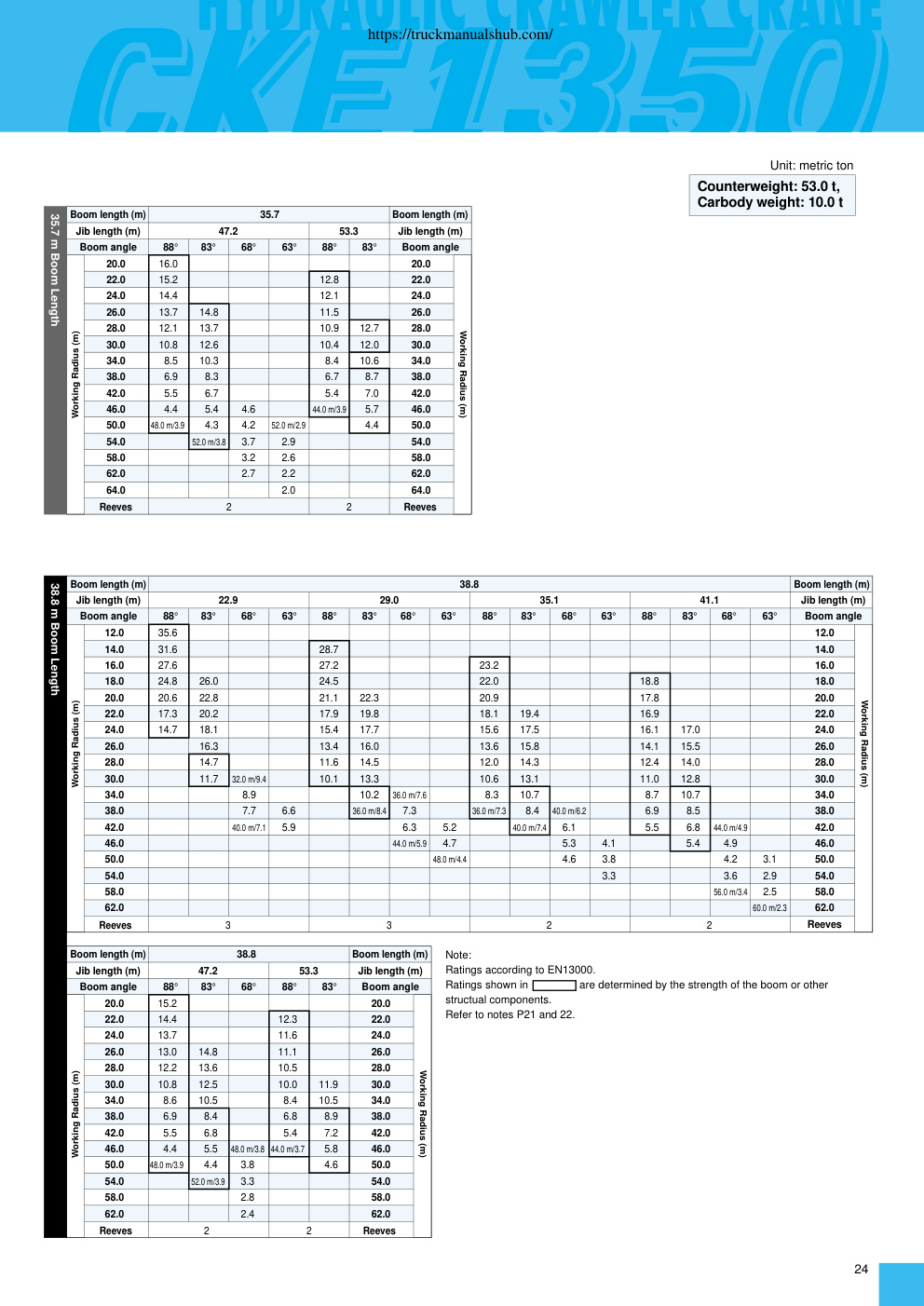

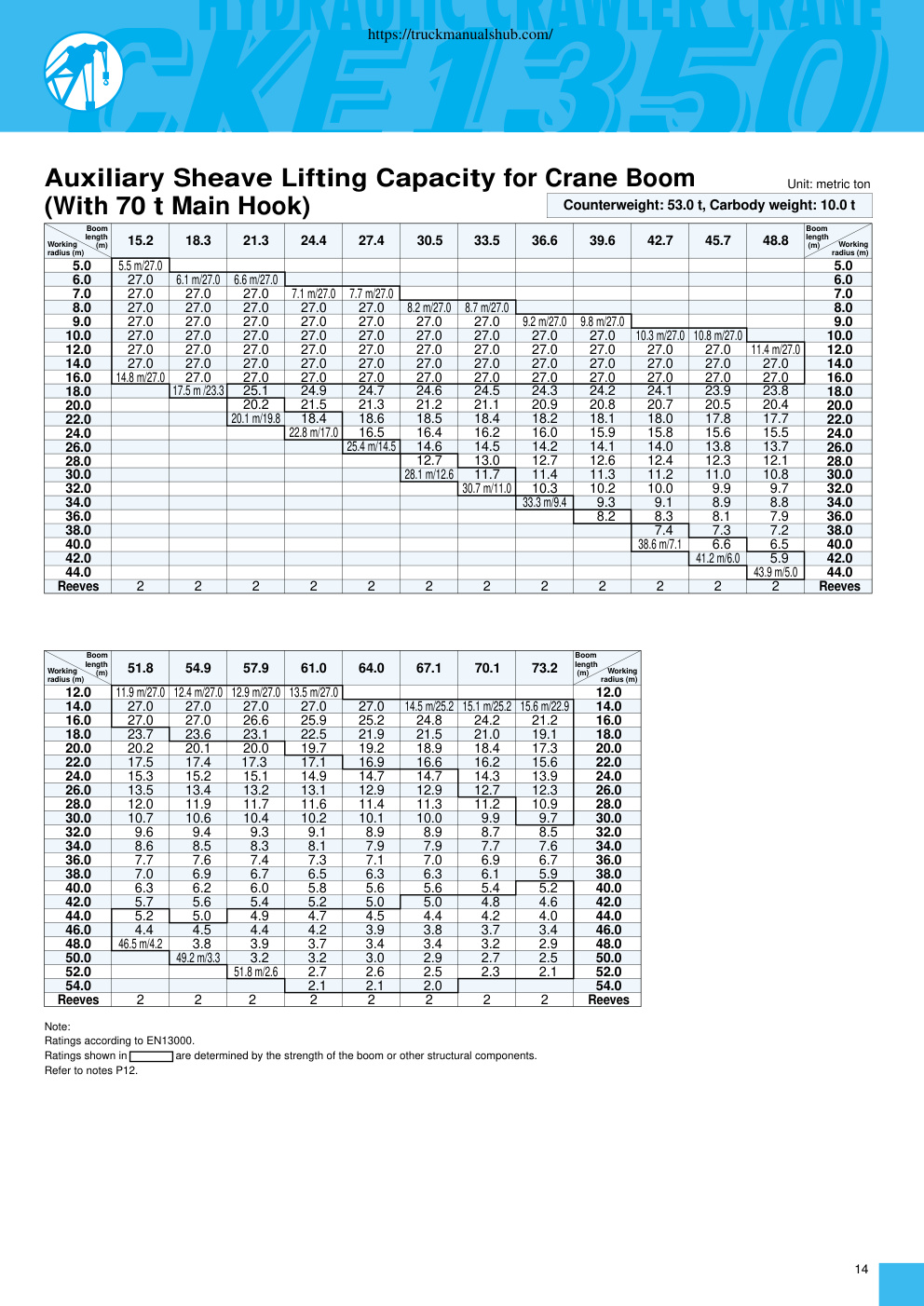

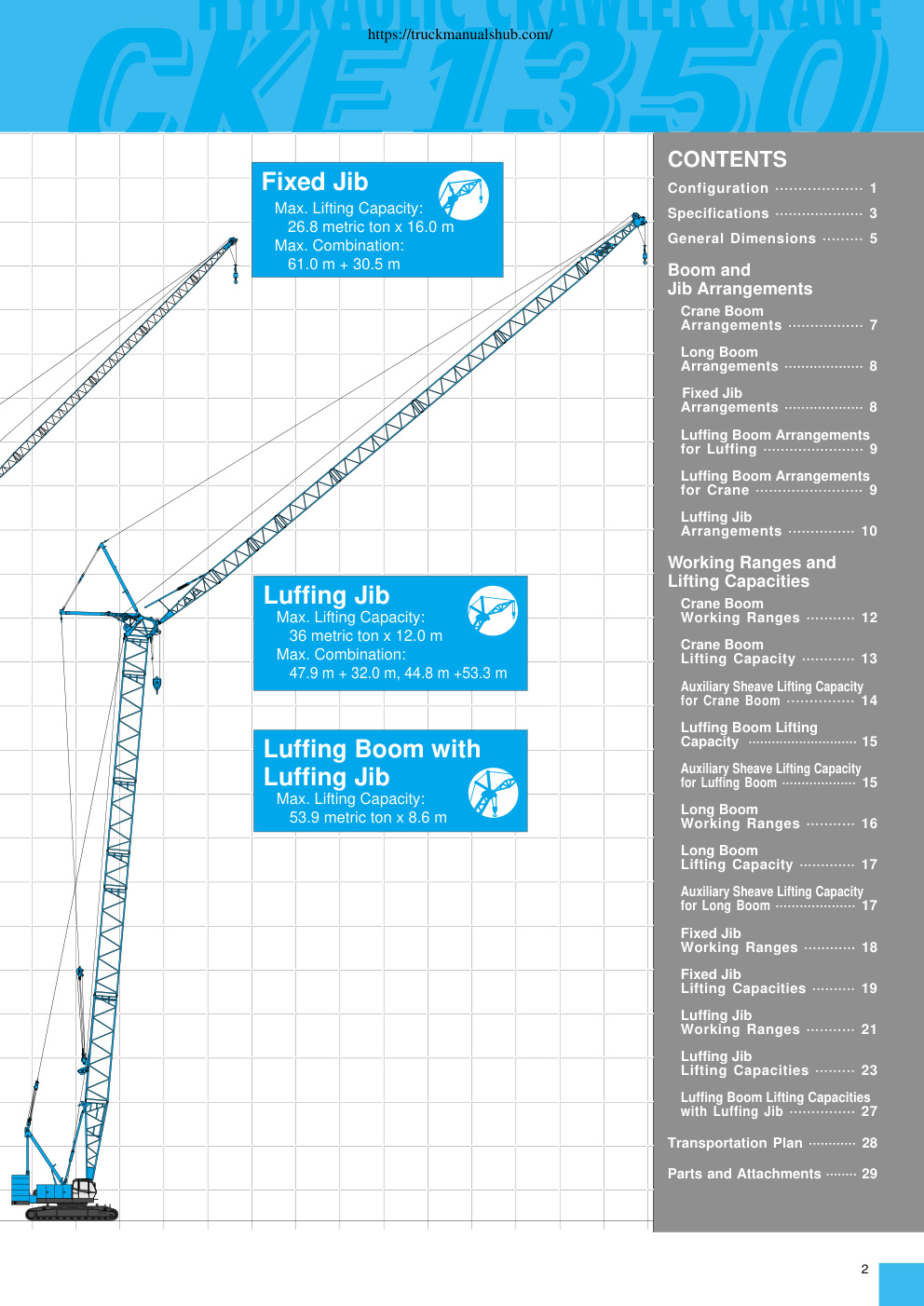

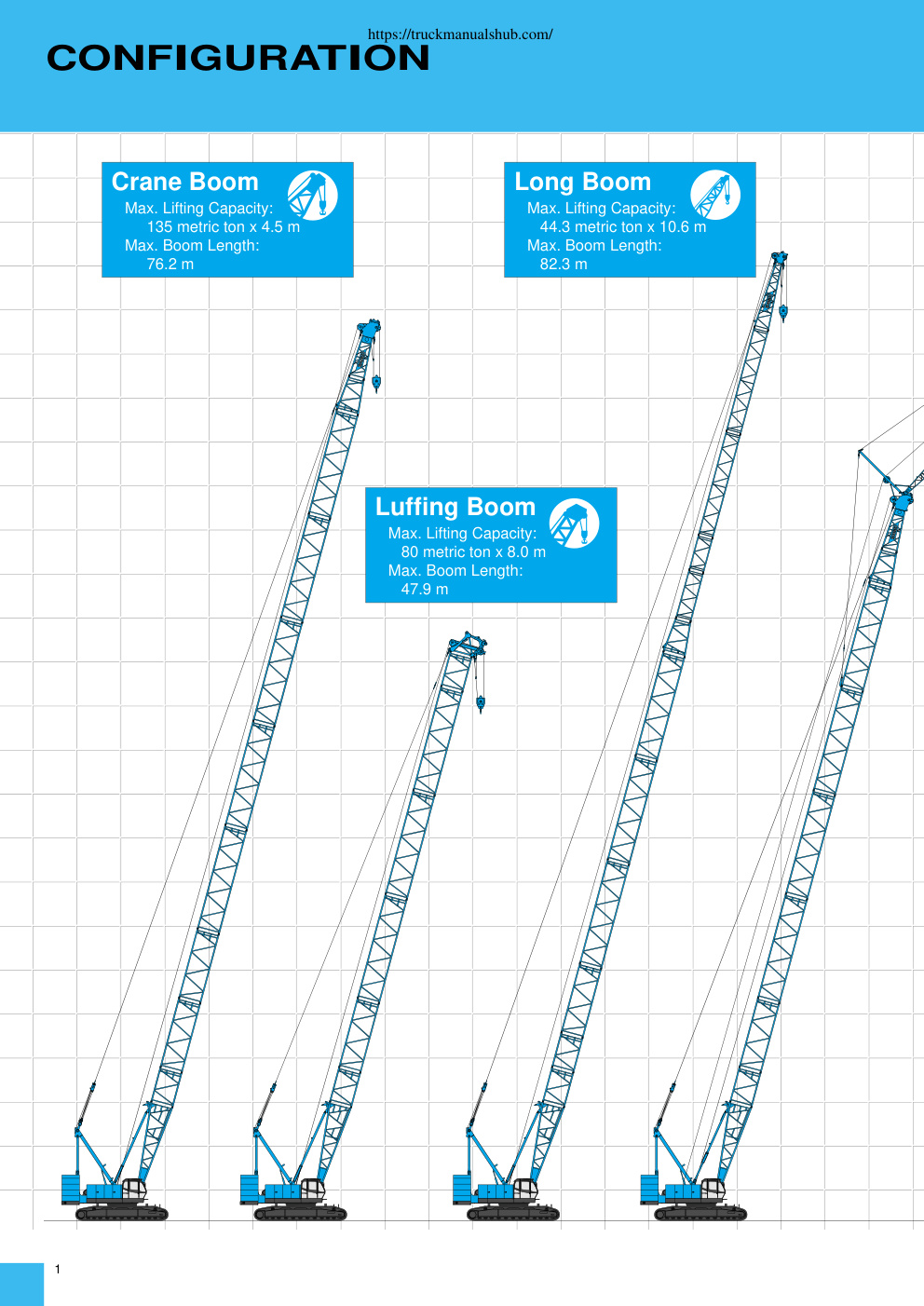

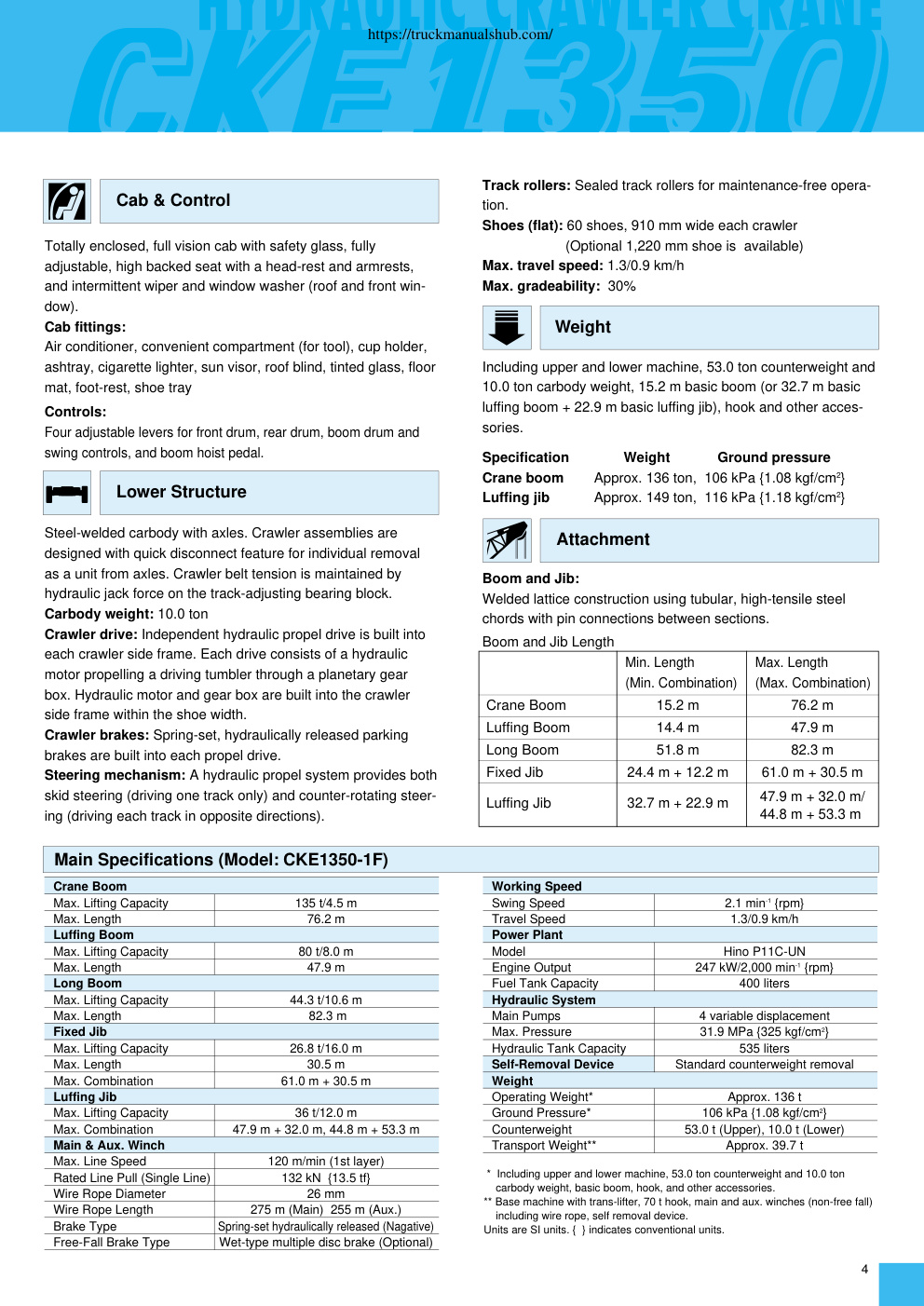

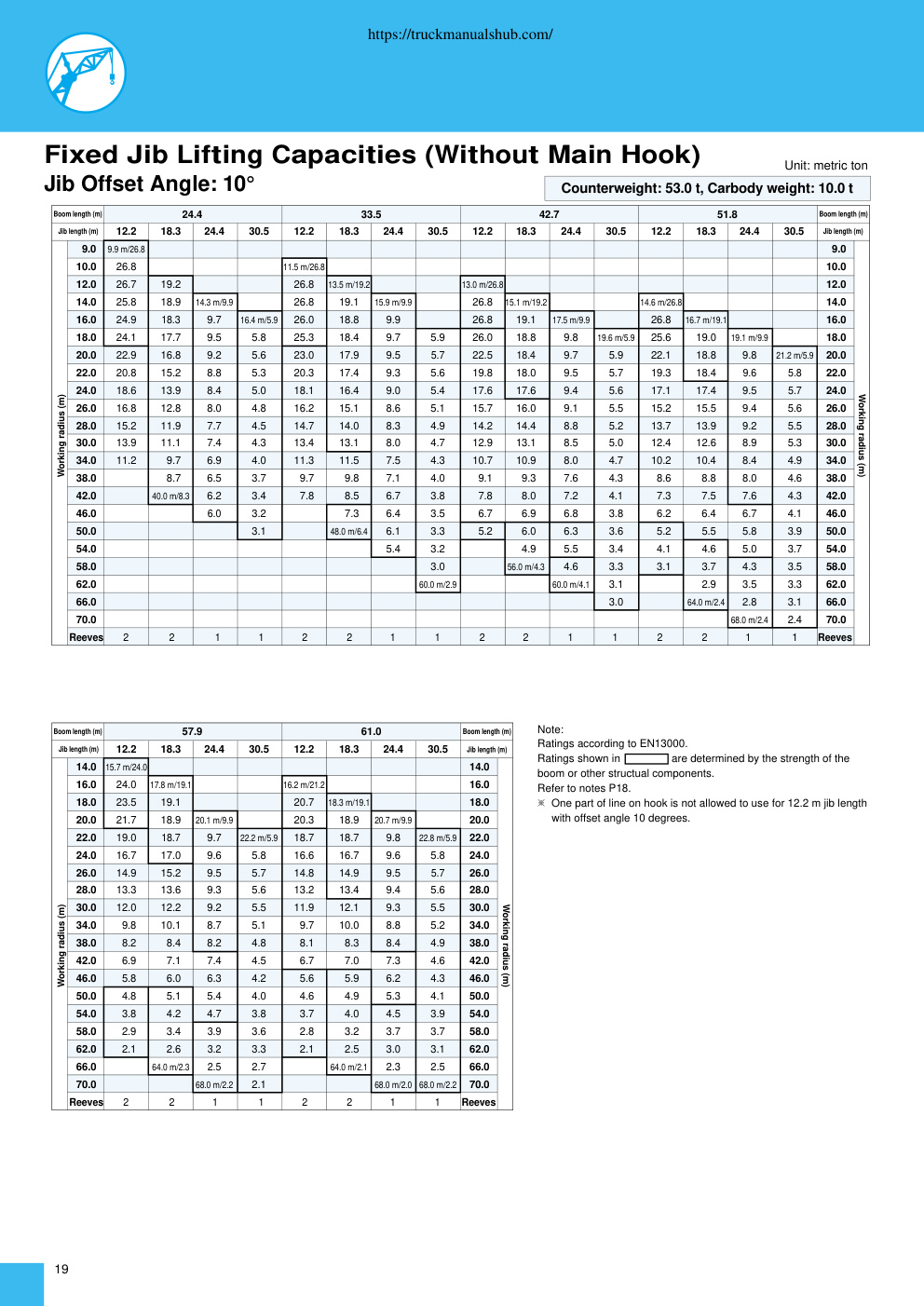

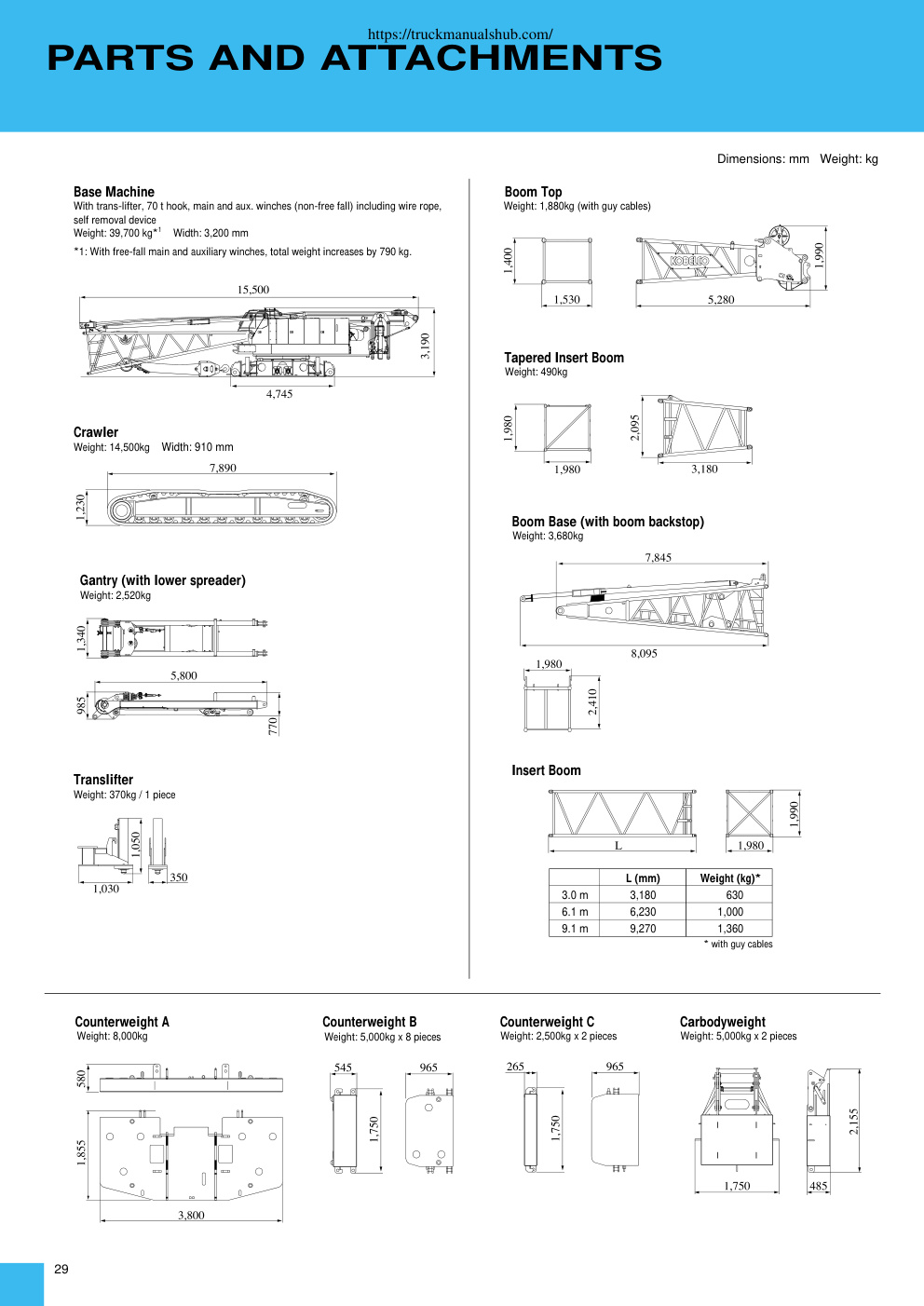

https://truckmanualshub.com/ HYDRAULIC CRAWLER CRANE Model: CKE1350-1F Max. Lifting Capacity: 135 t x 4.5 m Max. Crane Boom Length: 76.2 m Max. Long Boom Length: 82.3 m Max. Fixed Jib Combination: 61.0 m + 30.5 m Max. Luffing Jib Combination: 47.9 + 32.0 m, 44.8 + 53.3 m https://truckmanualshub.com/ CONFIGURATION Crane Boom Long Boom Max. Lifting Capacity: Max. Lifting Capacity: 135 metric ton x 4.5 m 44.3 metric ton x 10.6 m Max. Boom Length: Max. Boom Length: 76.2 m 82.3 m Luffing Boom Max. Lifting Capacity: 80 metric ton x 8.0 m Max. Boom Length: 47.9 m 1 https://truckmanualshub.com/ CONTENTS Fixed Jib Configuration ··················· 1 Max. Lifting Capacity: Specifications ···················· 3 26.8 metric ton x 16.0 m General Dimensions ········· 5 Max. Combination: 61.0 m + 30.5 m Boom and Jib Arrangements Crane Boom Arrangements ················· 7 Long Boom Arrangements ··················· 8 Fixed Jib Arrangements ··················· 8 Luffing Boom Arrangements for Luffing ······················· 9 Luffing Boom Arrangements for Crane ························ 9 Luffing Jib Arrangements ··············· 10 Working Ranges and Lifting Capacities Luffing Jib Crane Boom Max.…
