SHORT RADIUS EXCAVATORS

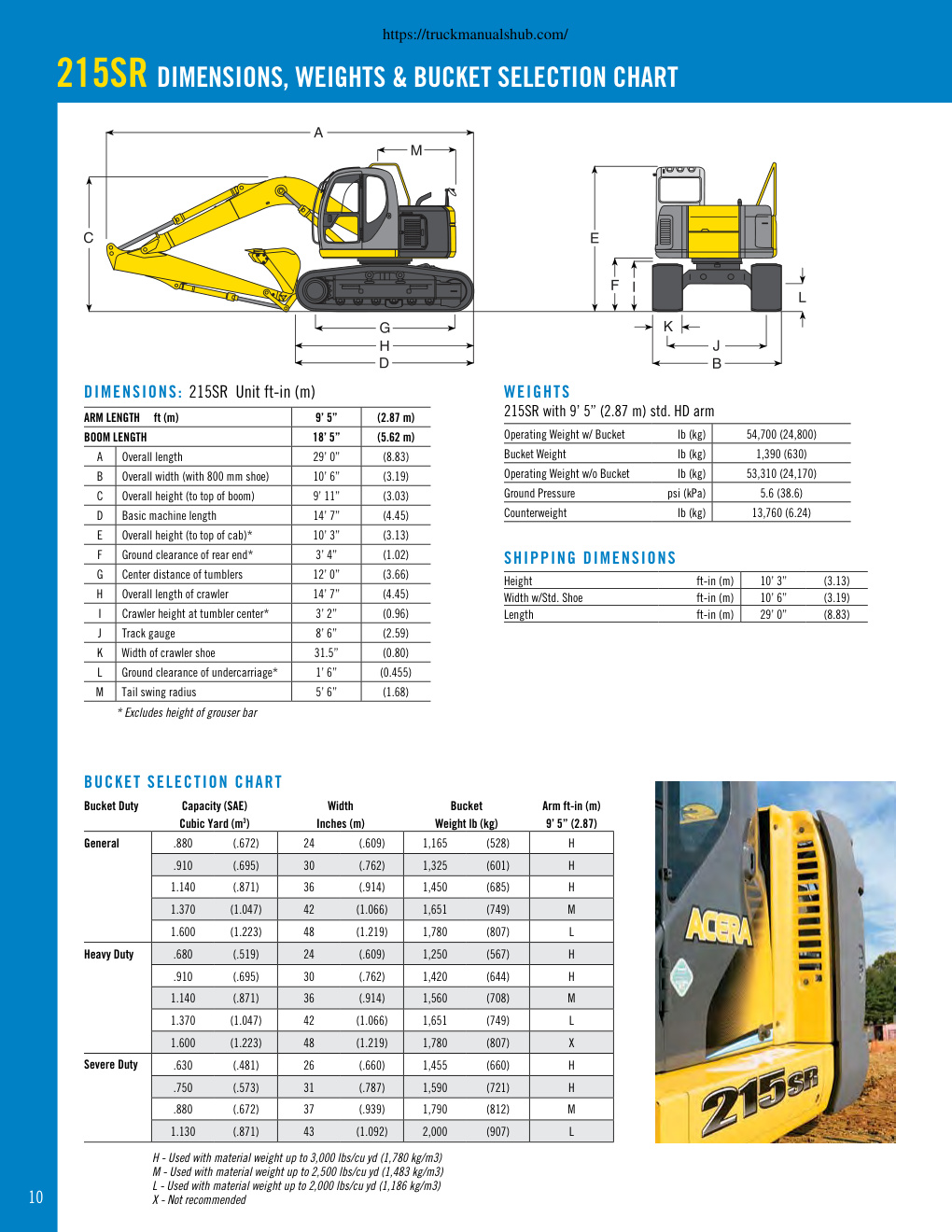

Operating Weight Net Horsepower (SAE) Max Digging Depth Bucket Capacity Bucket Breakout Force (SAE) 215SR 54,700 lbs (24,800 kg) 153 @ 2,000 rpm 21’7” (6.59 m) 0.63-1.60 cu yd (0.48-1.22m3) 27,450 lbf (122 kN) 235SR 58,870 lbs (26,700 kg) (114 kW @ 2,000 rpm) 21’8” (6.65 m) 0.63-1.80 cu yd (0.48-1.38m3) 31,700 lbf (141 kN) 215SR ACERA / 235SR ACERA KOBELCO BREAKS THE COMFORT BARRIER! The new Kobelco 215SR ACERA & 235SR ACERA excavators use superior design technology to deliver the highest level of operator comfort, major increases in performance and incredibly low overall system noise. The new INDR® (Integrated Noise and Dust Reduction) system makes the 215SR ACERA and 235SR ACERA models the ultimate choice for urban construction sites where tight areas require high performance, low noise and low engine emissions. Proven HINO Engine Performance The 215SR ACER

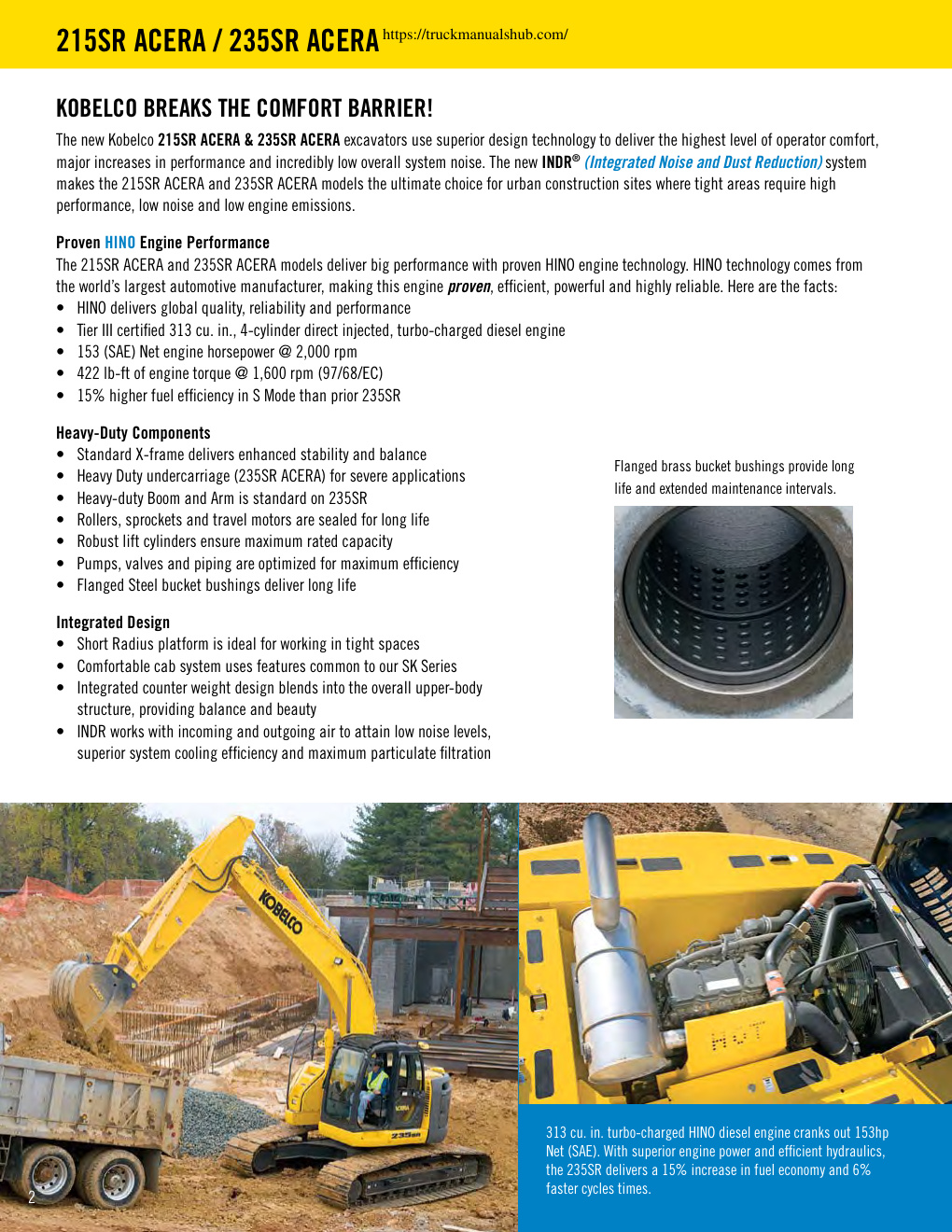

https://truckmanualshub.com/ ® 215SR ACERA ® 235SR ACERA SHORT RADIUS EXCAVATORS Operating Weight Net Horsepower (SAE) Max Digging Depth Bucket Capacity Bucket Breakout Force (SAE) 215SR 54,700 lbs (24,800 kg) 153 @ 2,000 rpm 21’7” (6.59 m) 0.63-1.60 cu yd (0.48-1.22m3) 27,450 lbf (122 kN) 235SR 58,870 lbs (26,700 kg) (114 kW @ 2,000 rpm) 21’8” (6.65 m) 0.63-1.80 cu yd (0.48-1.38m3) 31,700 lbf (141 kN) 215SR ACERA / 235SR ACERA https://truckmanualshub.com/ KOBELCO BREAKS THE COMFORT BARRIER! The new Kobelco 215SR ACERA & 235SR ACERA excavators use superior design technology to deliver the highest level of operator comfort, major increases in performance and incredibly low overall system noise. The new INDR® (Integrated Noise and Dust Reduction) system makes the 215SR ACERA and 235SR ACERA models the ultimate choice for urban construction sites where tight areas require high performance, low noise and low engine emissions. Proven HINO Engine Performance The 215SR ACERA and 235SR ACERA models deliver big performance with proven HINO engine technology. HINO technology comes from the world’s largest automotive manufacturer, making this engine proven, efficient, powerful and highly…
