SERVICEMAN HANDBOOK

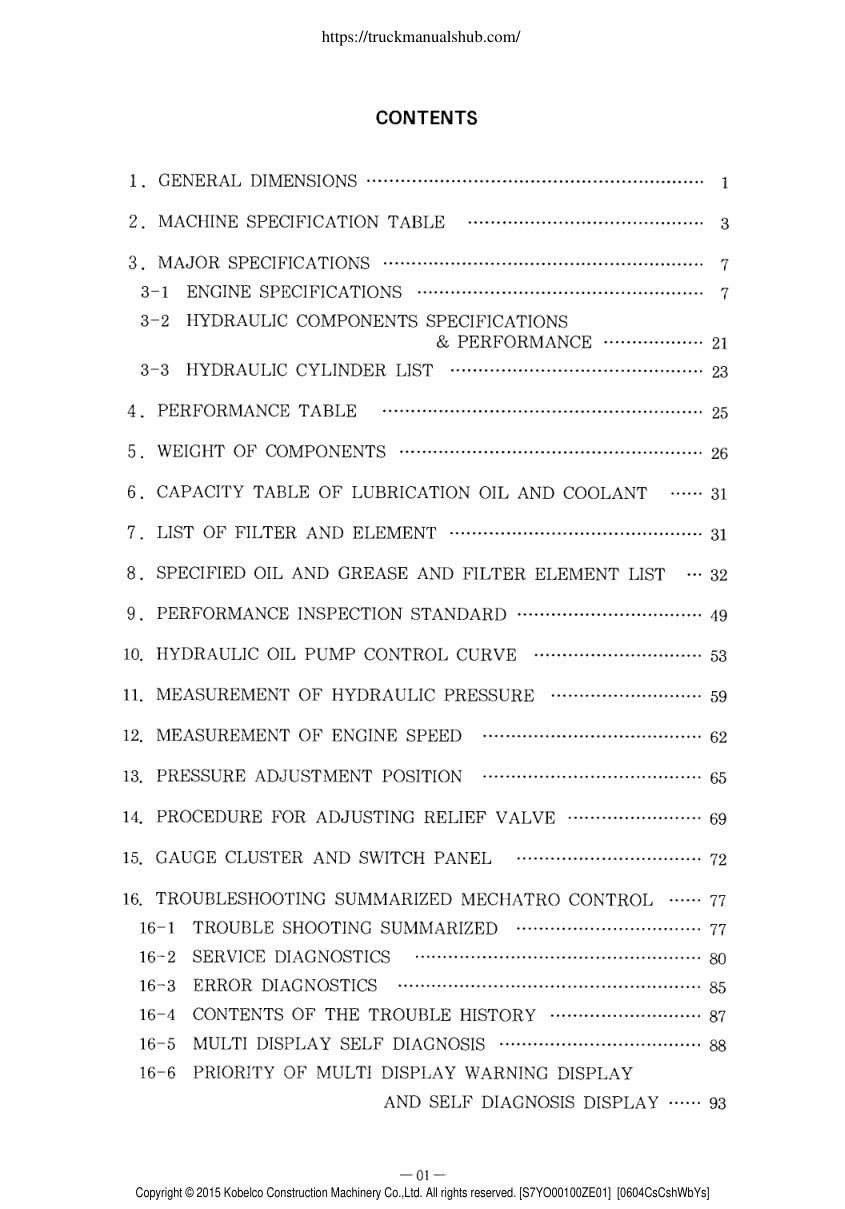

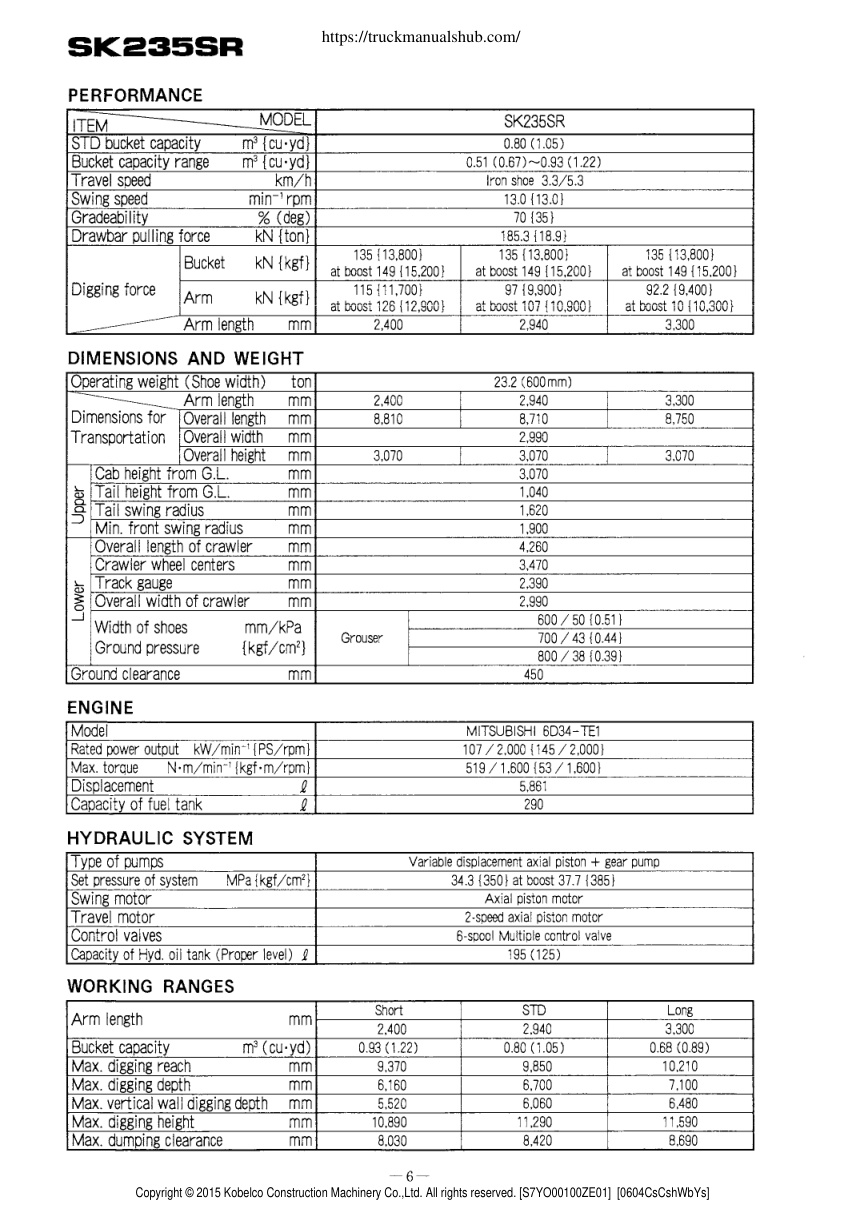

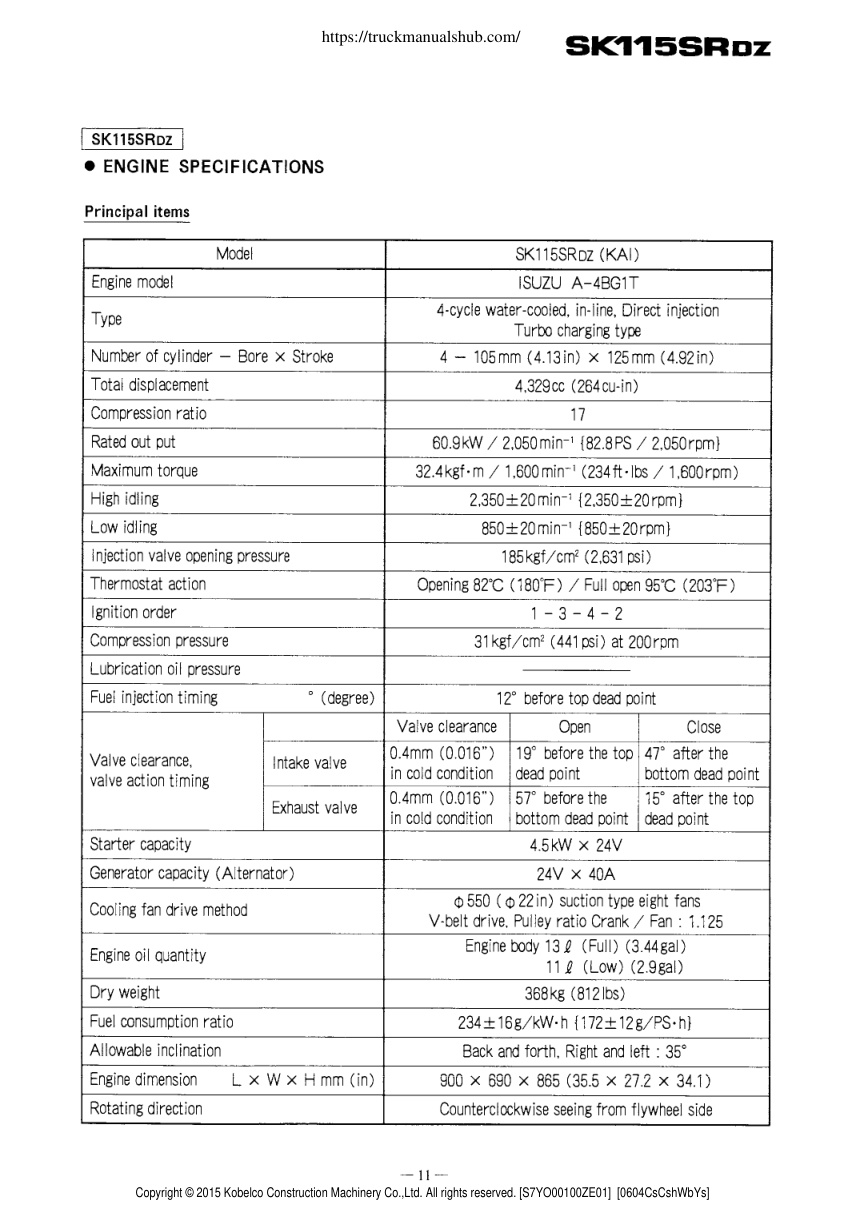

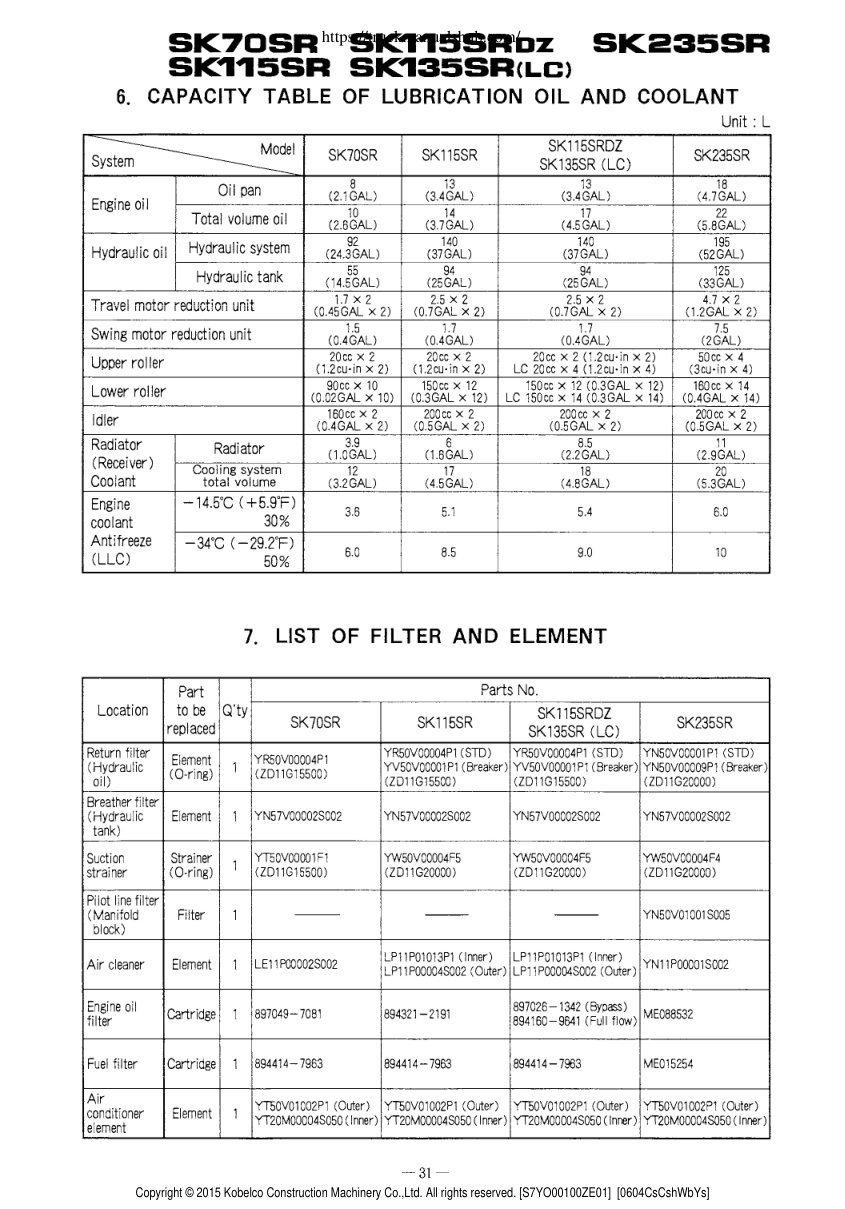

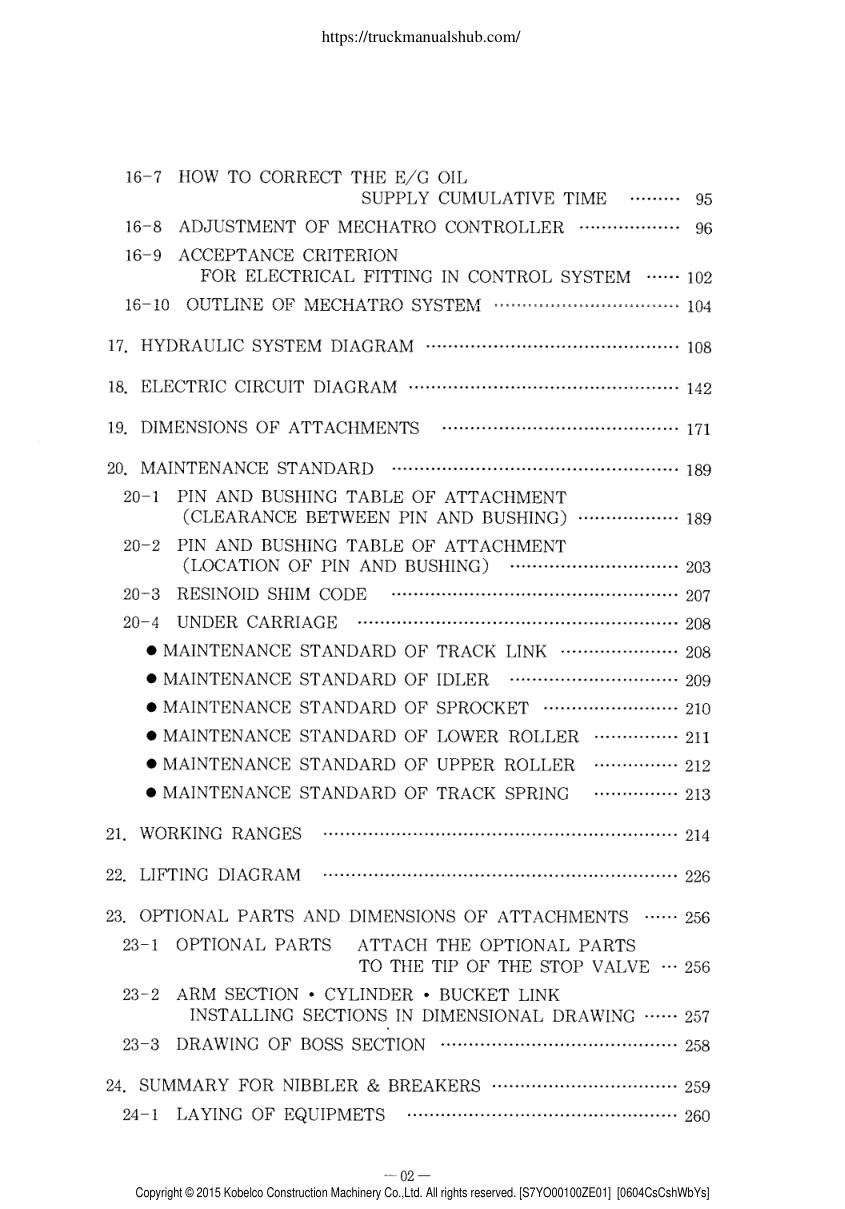

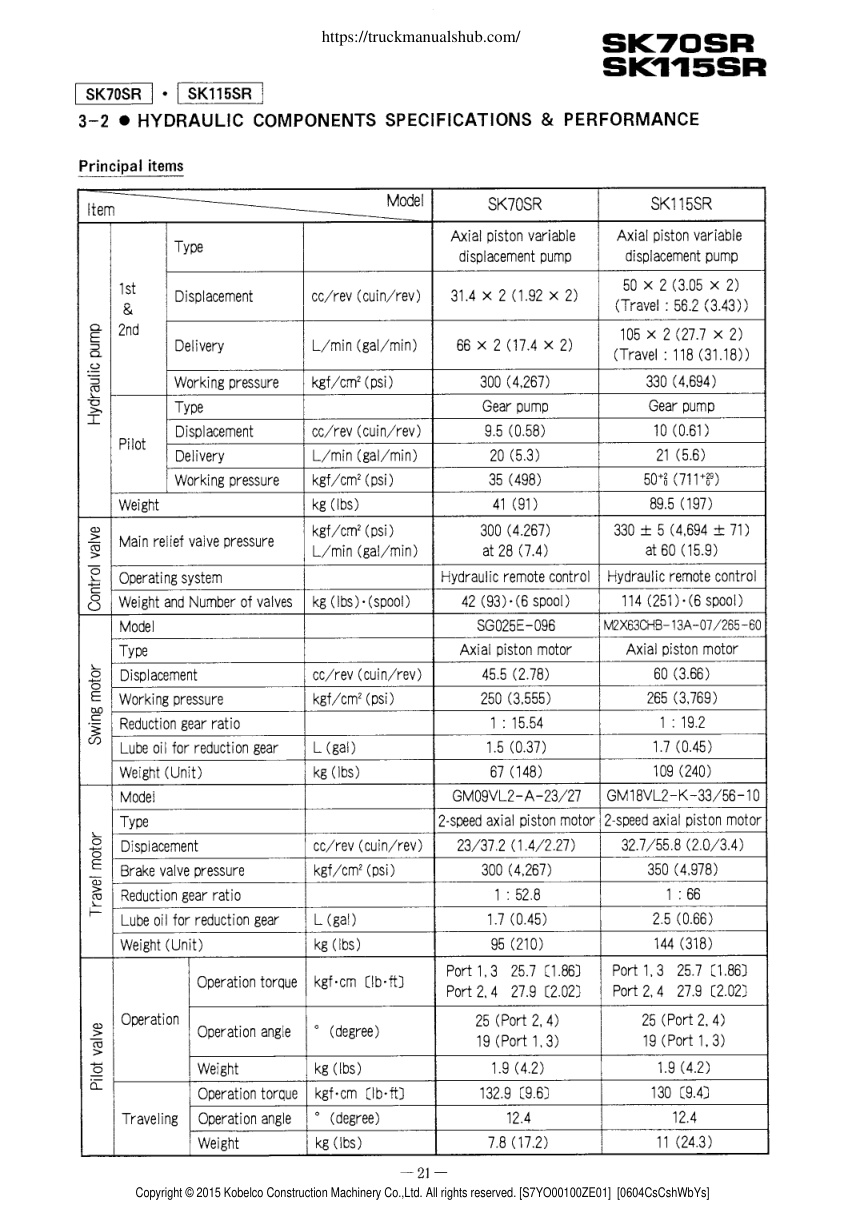

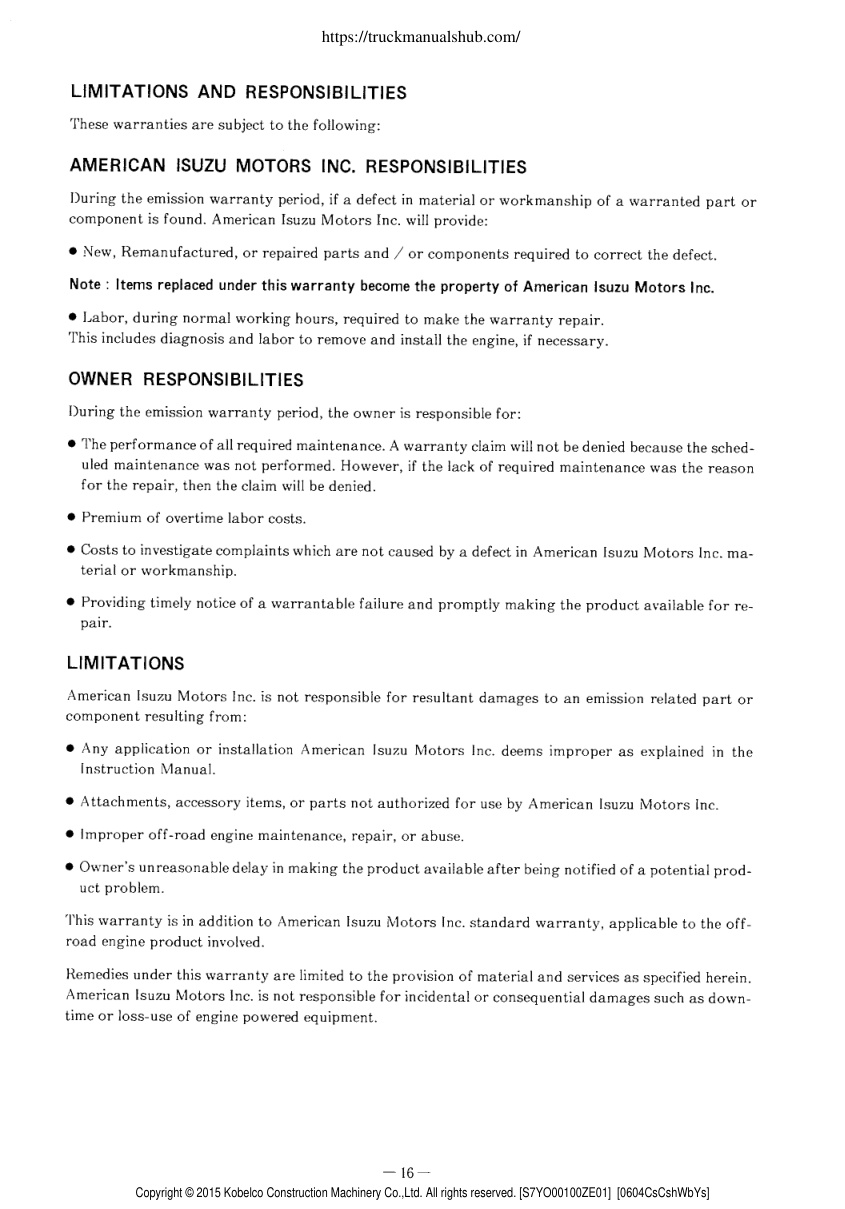

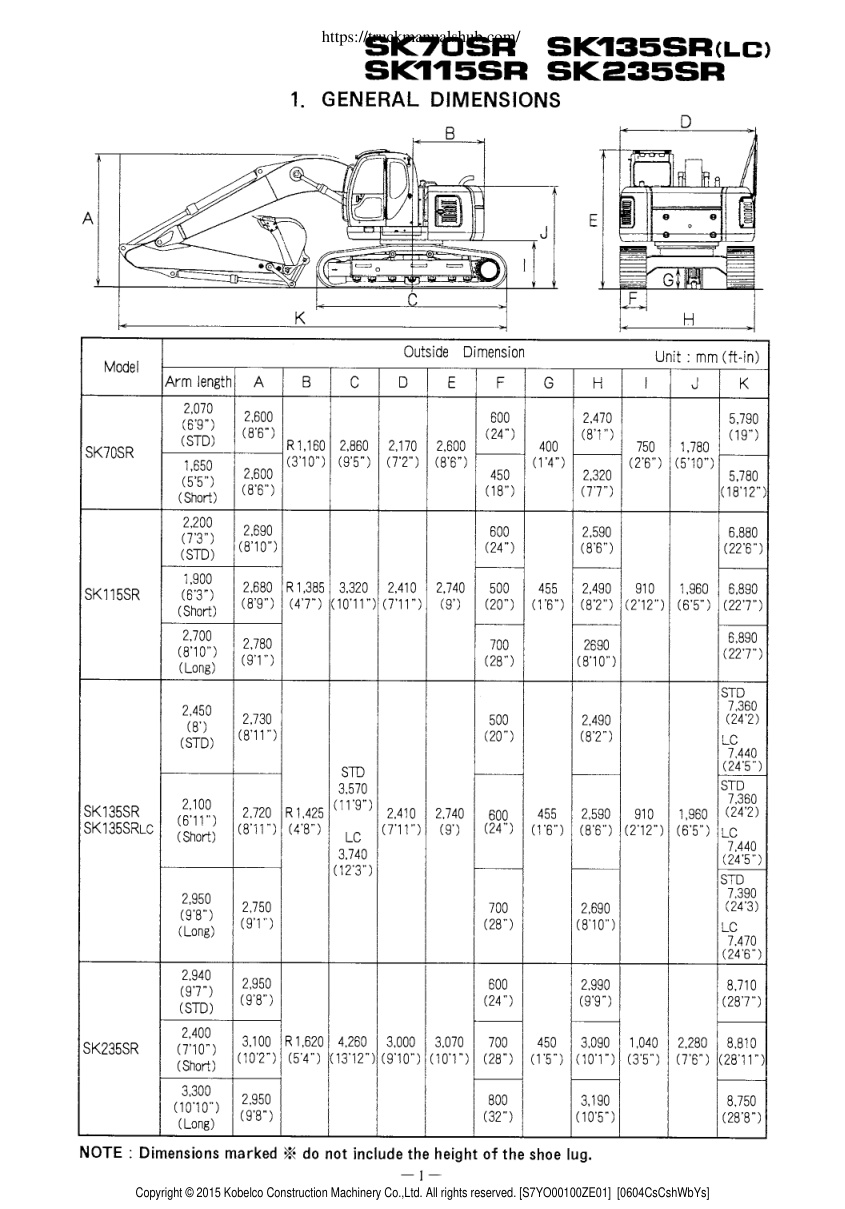

KOBELCO | Hydraulic Excavator SK'70SR YTOO1 01 SK115SR yvo0101~ SK135SR yyoo101~ SKA15SRDZ(KAI) "o010:- SKI135SRLC YHOO101~ SK135SRLC (KA) ‘00101~ SK 235SR YF00101~ KOBELCO CONSTRUCTION MACHINERY CO., LTD. Printed in Japan 1999.06 (K-E®) 1. GENERAL DIMENSIONS semer 1 2. MACHINE SPECIFICATION TABLE see 3 3. MAJOR SPECIFICATIONS 7 3-1 ENGINE SPECIFICATIONS 7 3-2 HYDRAULIC COMPONENTS SPECIFICATIONS & PERFORMANCE + 21 3-3 HYDRAULIC CYLINDER LIST + 23 4. PERFORMANCE TABLE seen 95 5. WEIGHT OF COMPONENTS ++. 26 6. CAPACITY TABLE OF LUBRICATION OIL AND COOLANT «+ 31 7. LIST OF FILTER AND ELEMENT ses 81 8. SPECIFIED OIL AND GREASE AND FILTER ELEMENT LIST + 32 9. PERFORMANCE INSPECTION STANDARD + 49 10, HYDRAULIC OIL PUMP CONTROL CURVE ++. 53 11, MEASUREMENT OF HYDRAULIC PRESSURE 12, MEASUREMENT OF ENGINE SPEED ++ 62 13, PRESSURE ADJUSTMENT POSITION 14, PROCEDURE FOR ADJUSTING RELIEF VALVE +. 69
