SERVICE MANUAL SM128

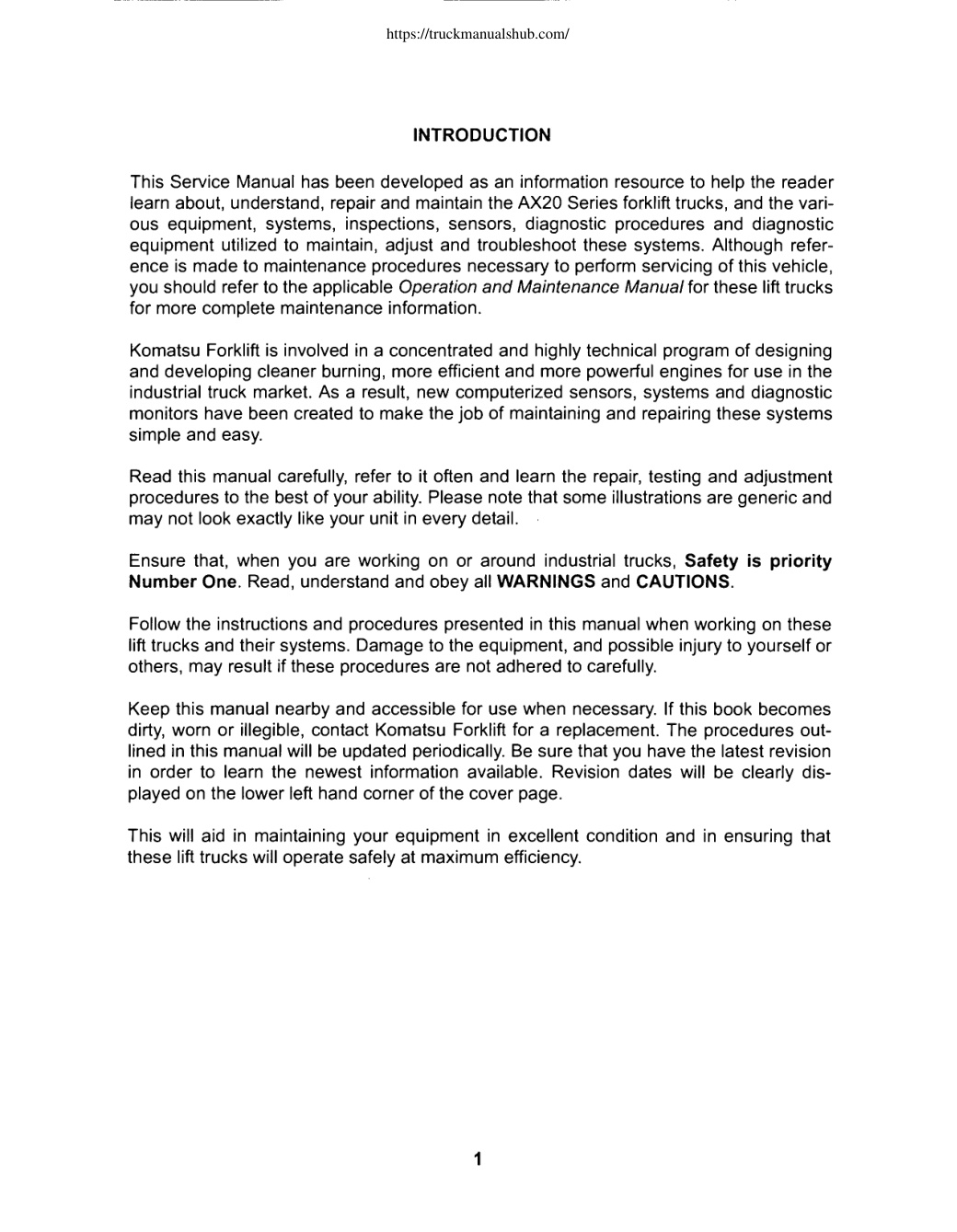

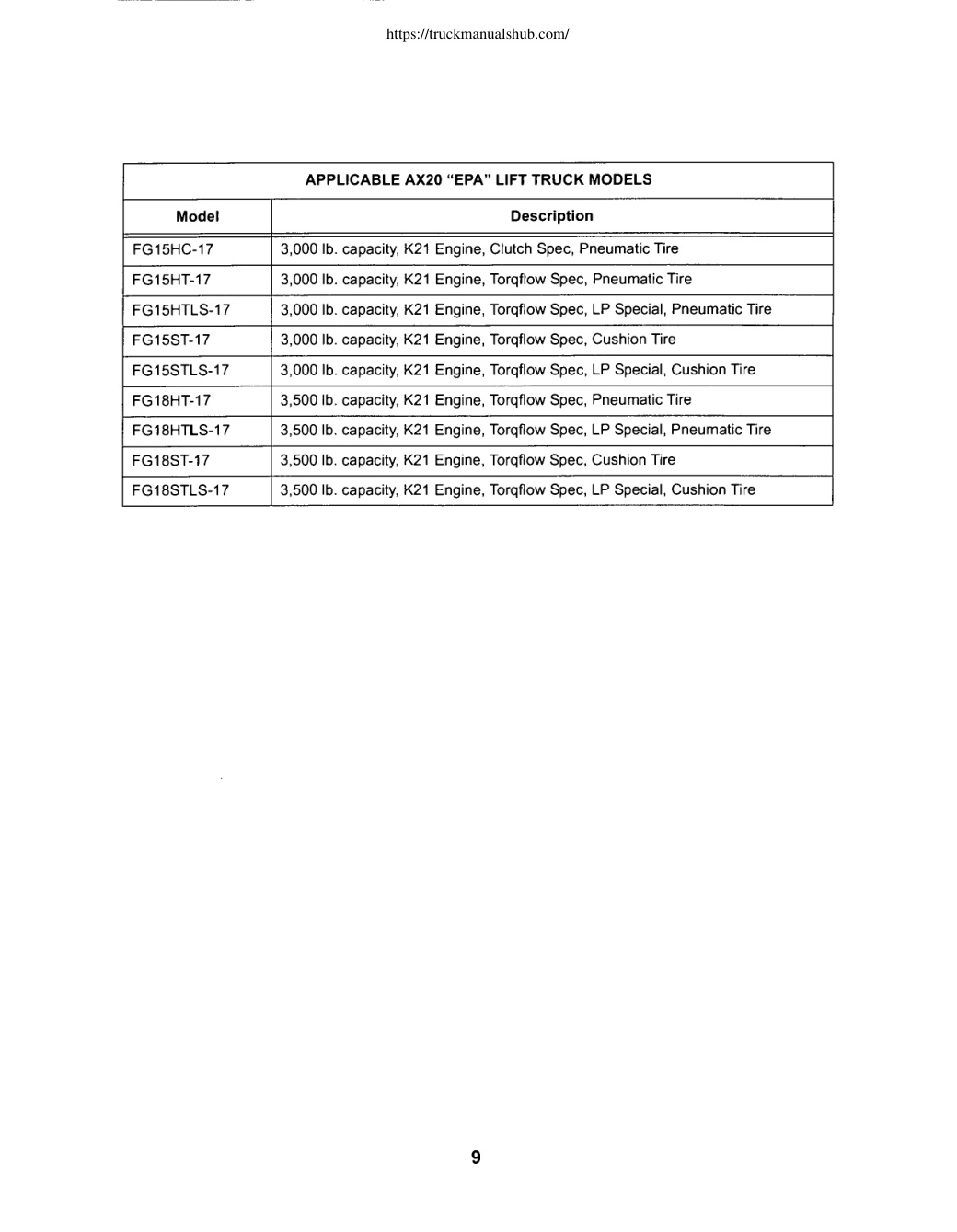

AX20 SERIES FORKLIFT TRUCKS Federal Environmental Protection Agency (EPA) Emission Control Compliant AX20: FG15/18(S)(H)-17 S/N 670001A~ Read and observe all warnings on this unit before operating it. DO NOT operate this equipment unless all factory installed guards and shields are properly secured in place. Komatsu Forklift USA, Inc. ISSUED: NOVEMBER 2004 This Service Manual has been developed as an information resource to help the reader learn about, understand, repair and maintain the AX20 Series forklift trucks, and the vari- ous equipment, systems, inspections, sensors, diagnostic procedures and diagnostic equipment utilized to maintain, adjust and troubleshoot these systems. Although refer- ence is made to maintenance procedures necessary to perform servicing of this vehicle, you should refer to the applicable Operation and Maintenance Manual for these lift trucks for more complete
