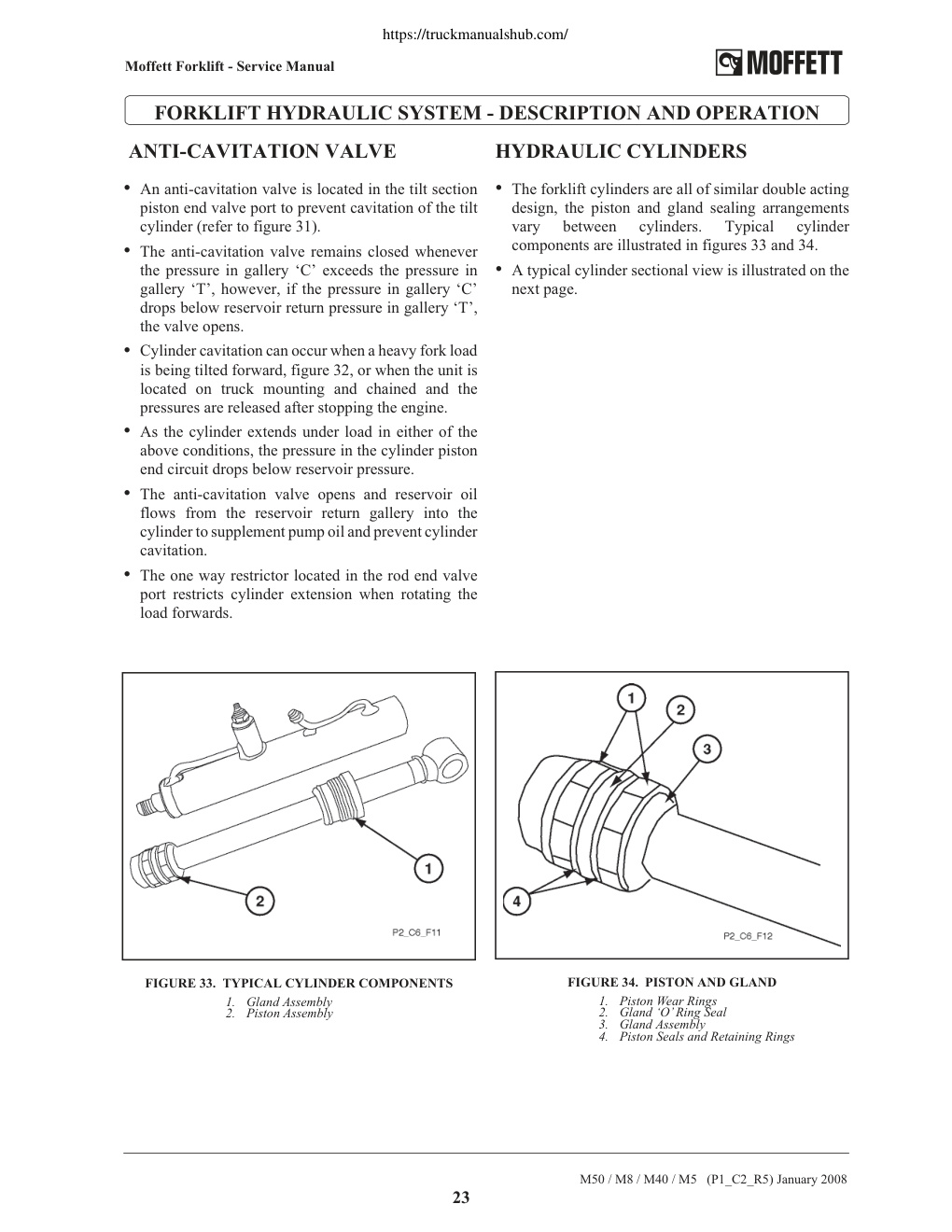

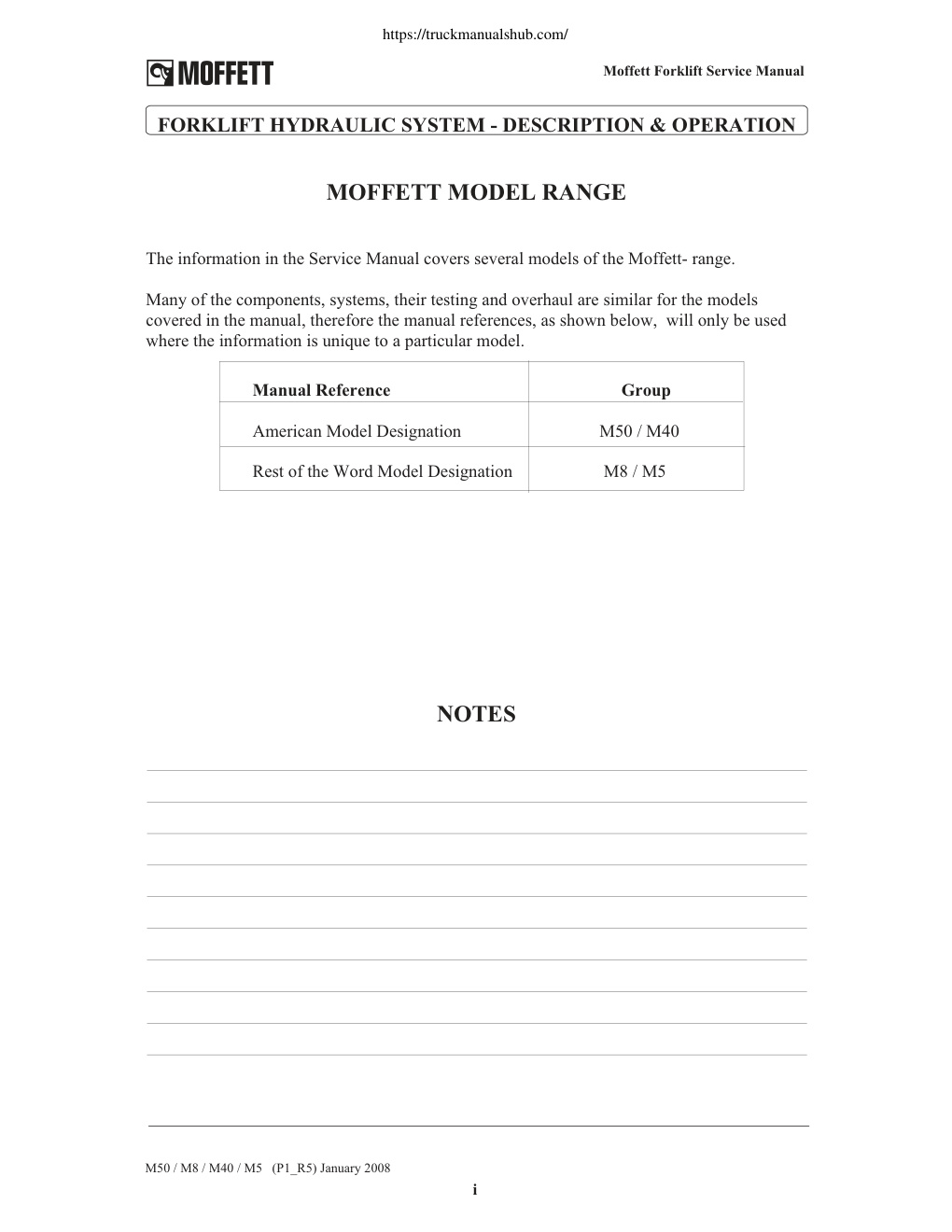

FORKLIFT HYDRAULIC SYSTEM Description and Operation Component Locations & Circuit Layouts 1 Hydraulic Pump 11 Control Valve 14 Valve Section Oil Flows 15 Anti-Cavitation Valve 22 Velocity Fuses 24 Lower and Go Valve Kit 26 M50 / M8 / M40 / M5 (P1_R5) January 2008 Moffett Forklift Service Manual FORKLIFT HYDRAULIC SYSTEM - DESCRIPTION & OPERATION MOFFETT MODEL RANGE The information in the Service Manual covers several models of the Moffett- range. Many of the components, systems, their testing and overhaul are similar for the models covered in the manual, therefore the manual references, as shown below, will only be used where the information is unique to a particular model. Manual Reference Group American Model Designation M50 / M40 Rest of the Word Model Designation M8 / M5 M50 / M8 / M40 / M5 (P1_R5) January 2008

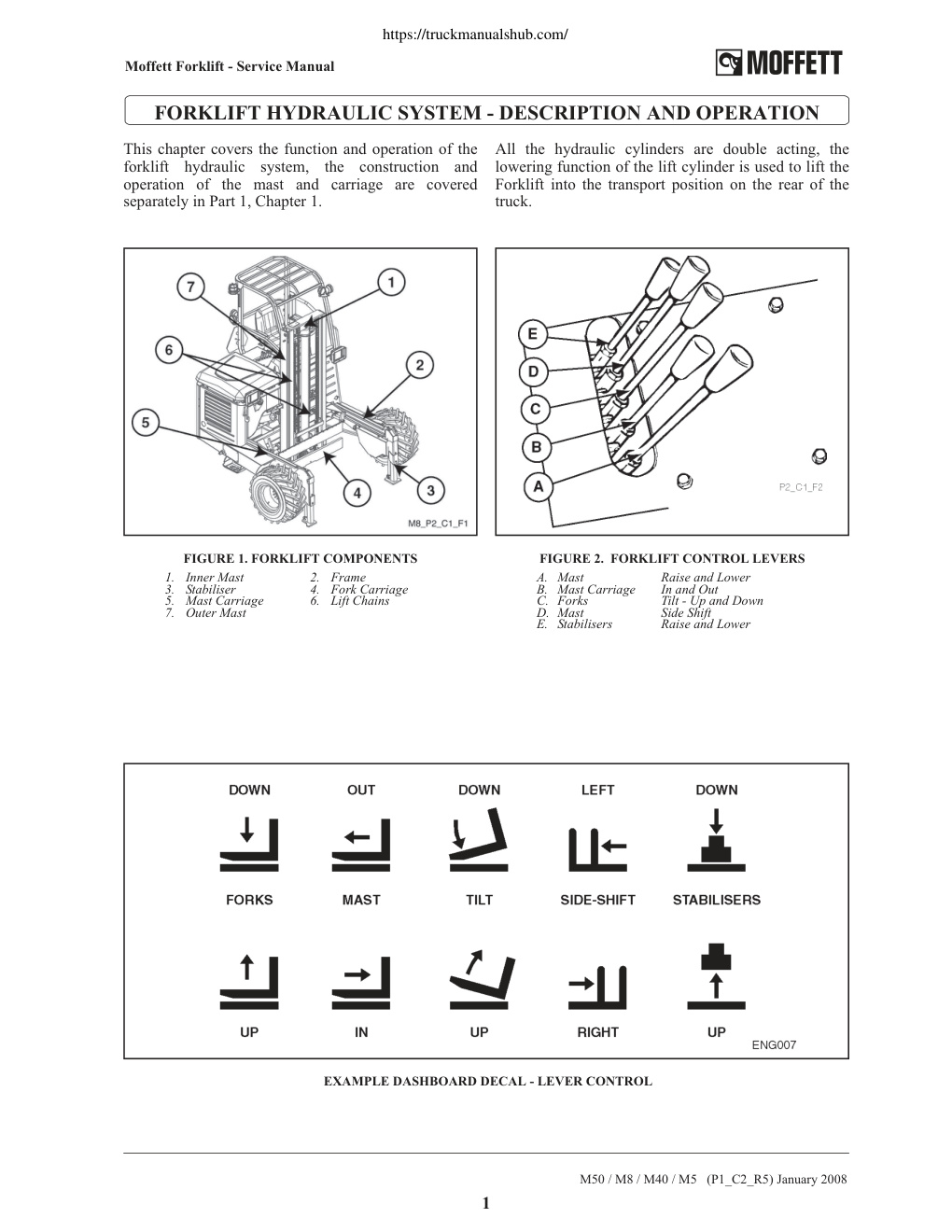

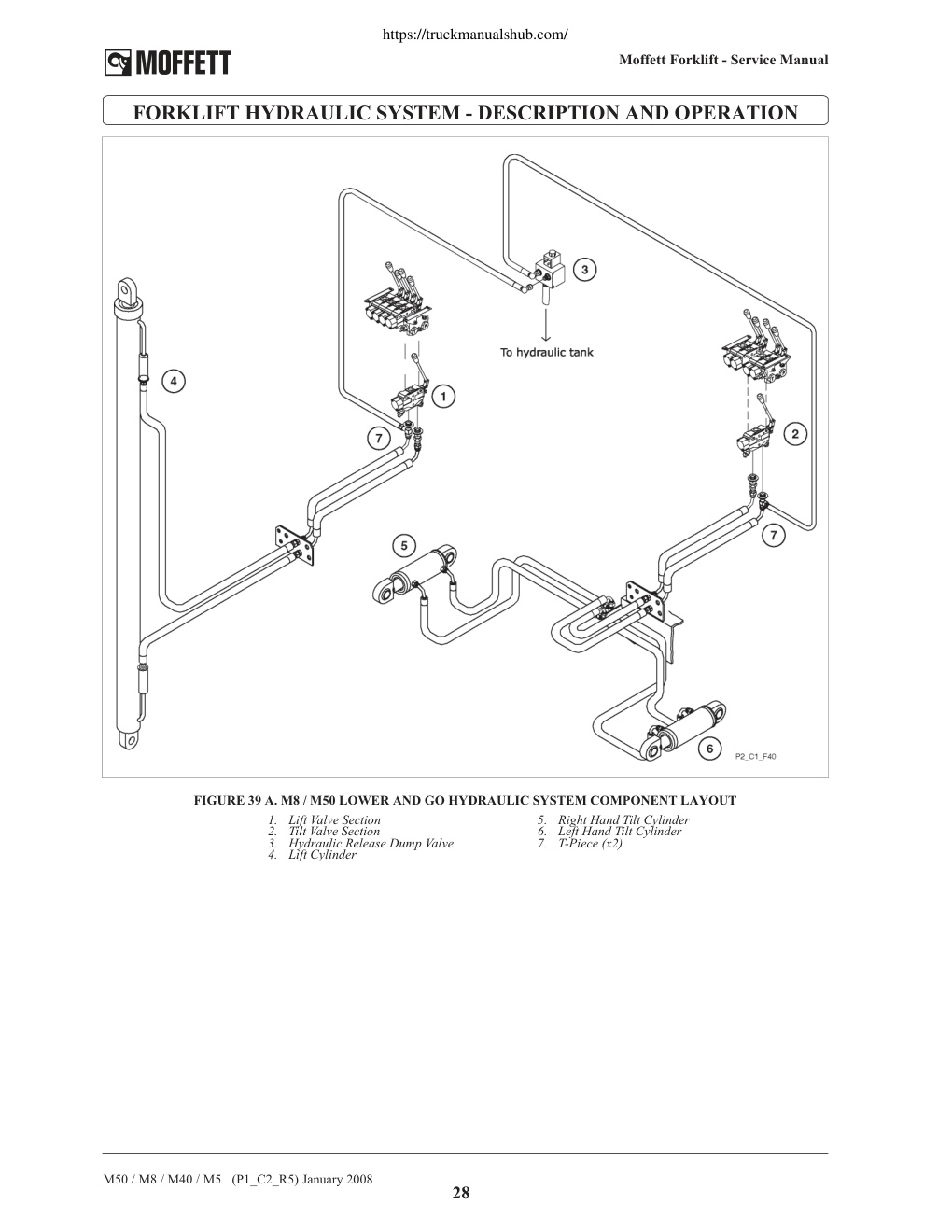

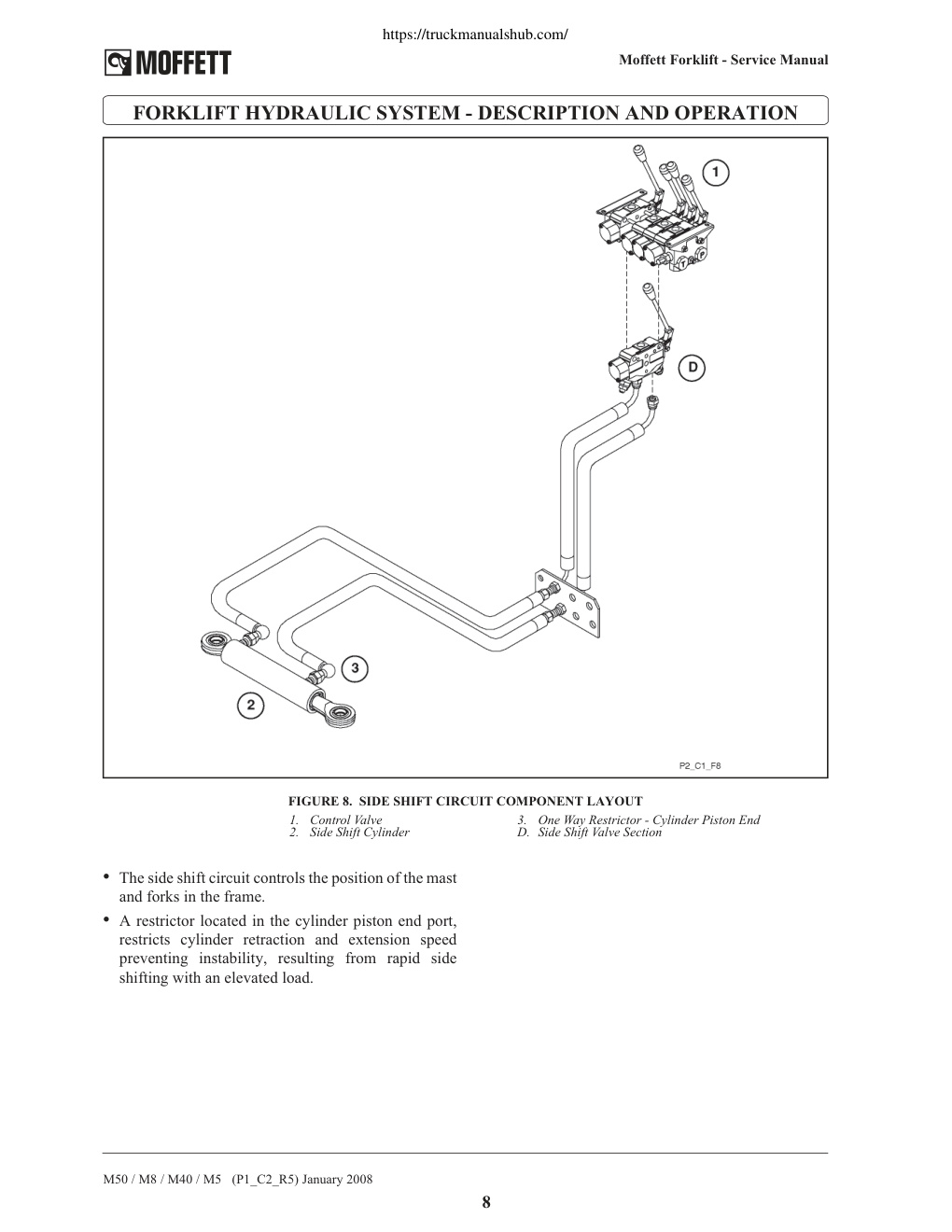

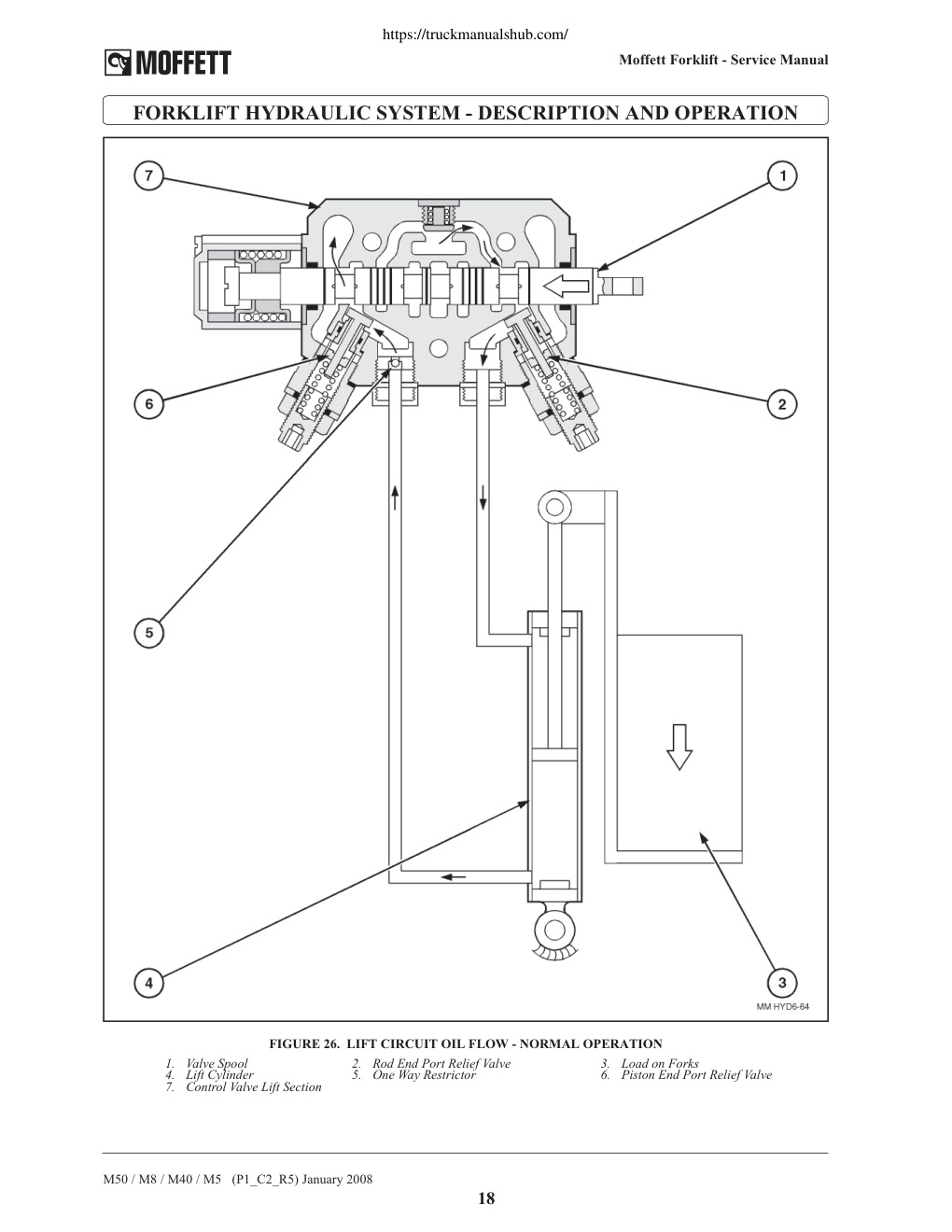

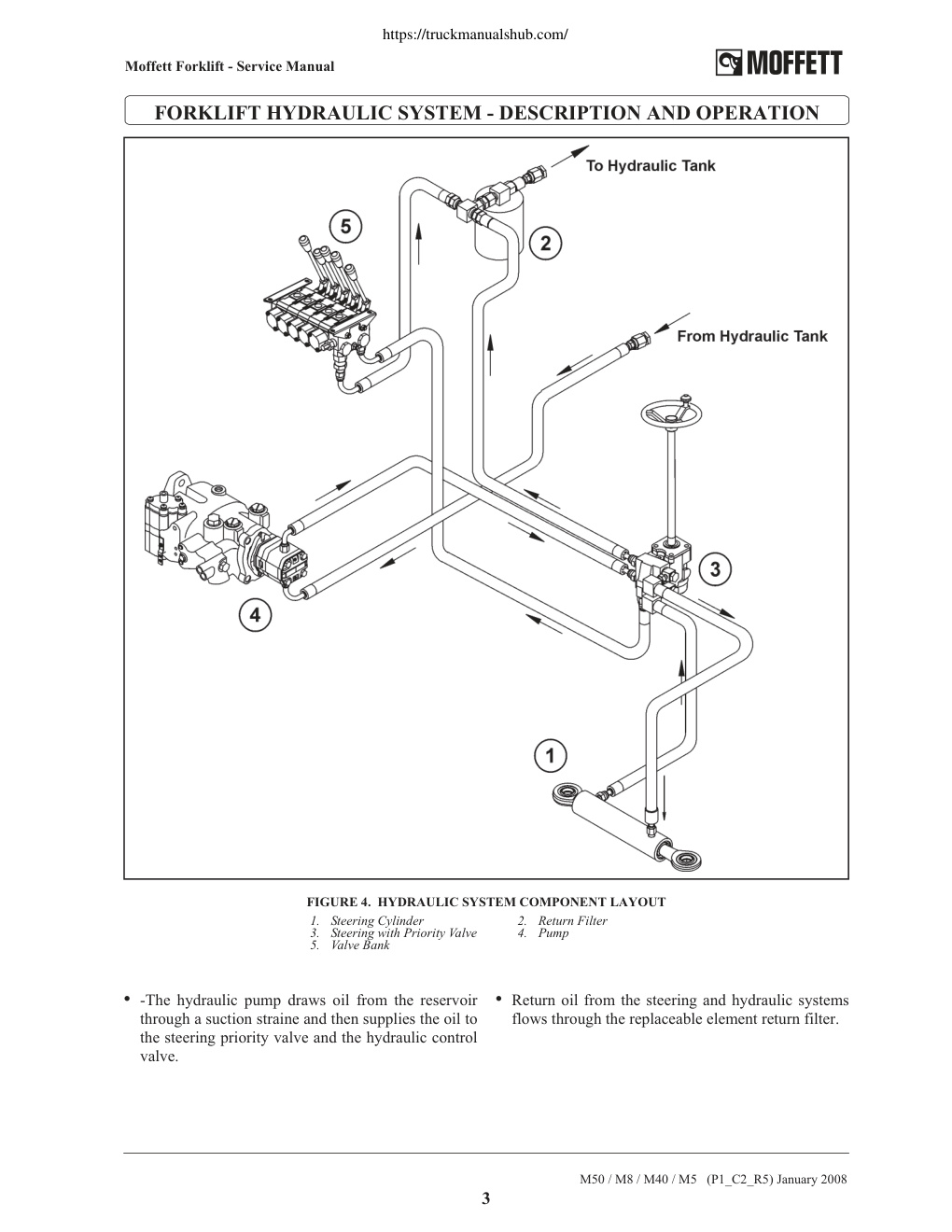

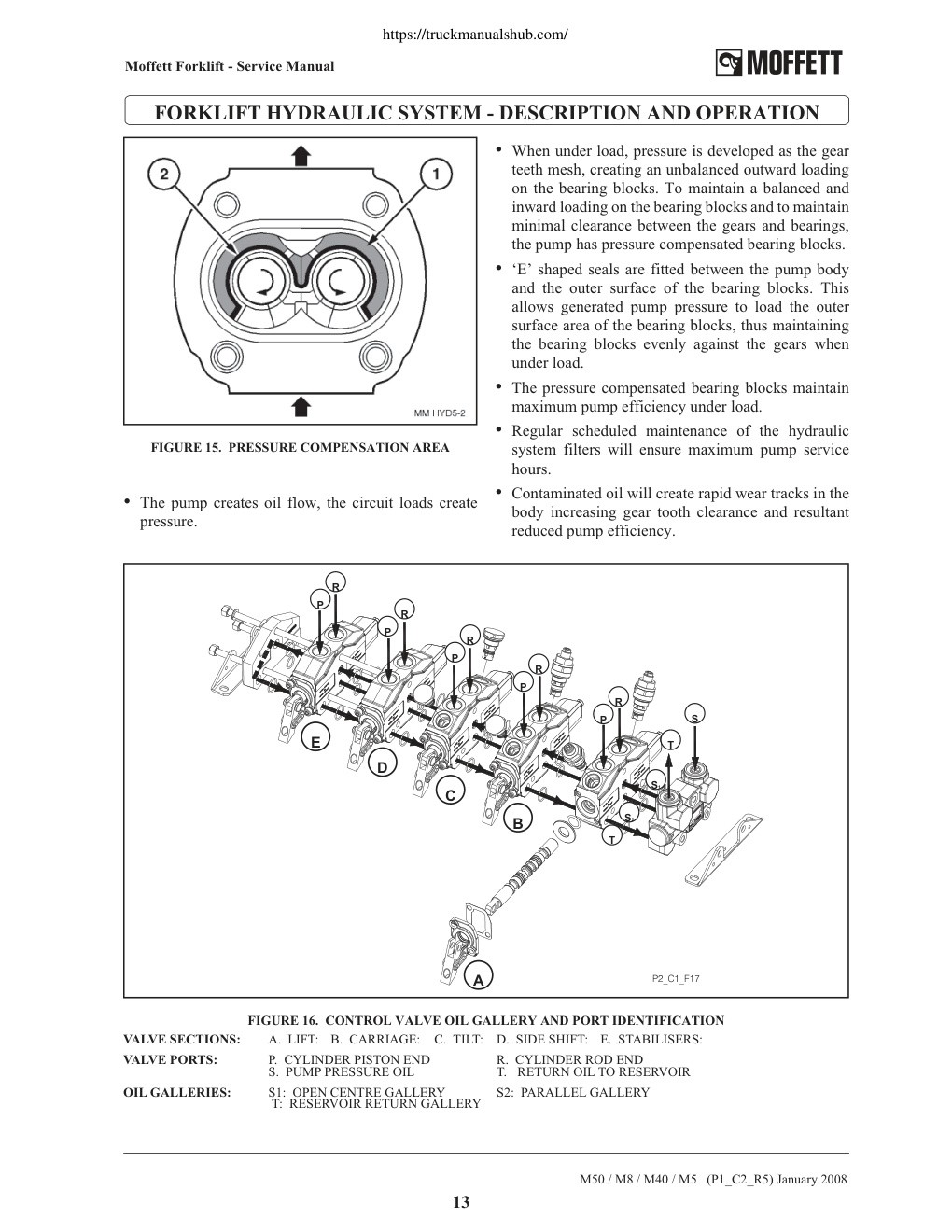

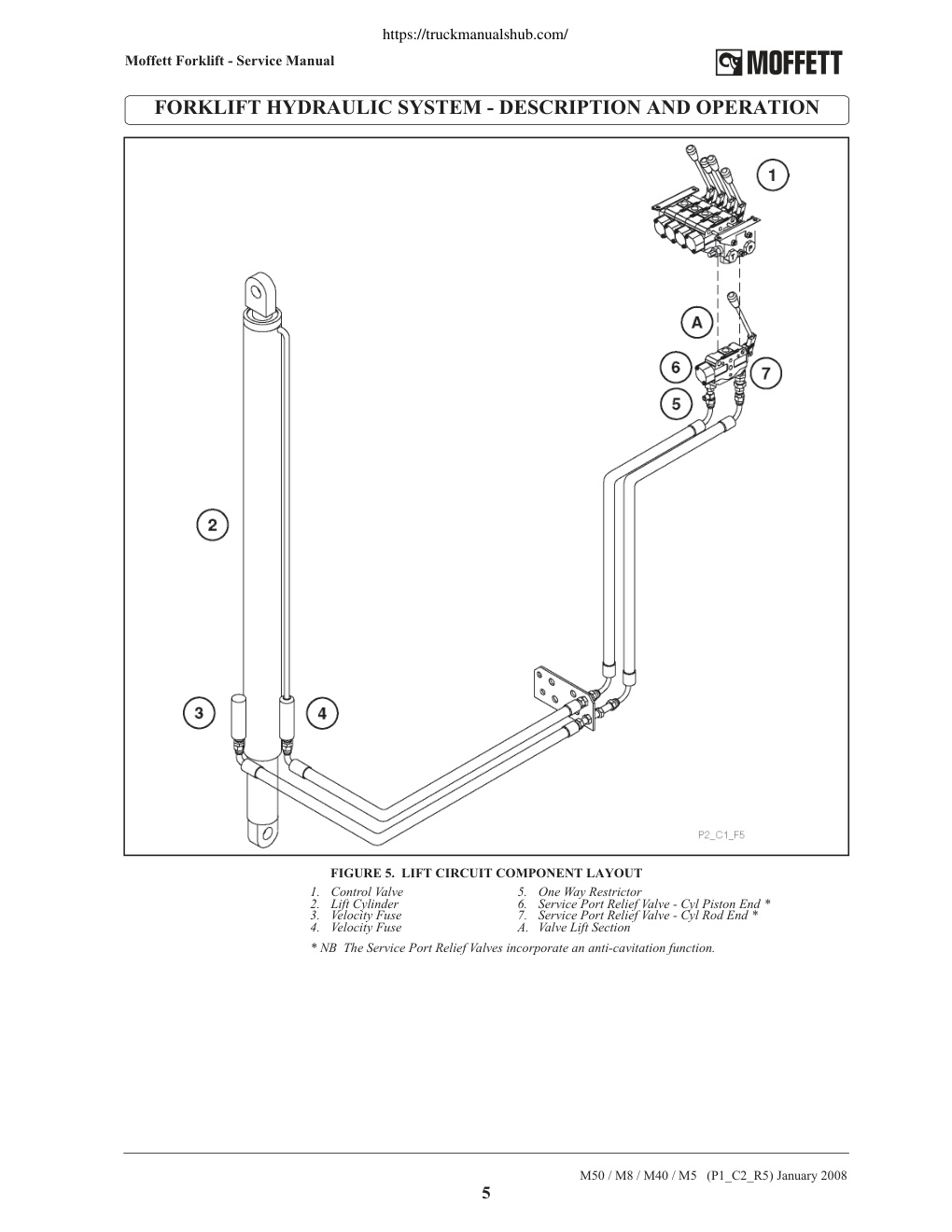

https://truckmanualshub.com/ PART 2 FORKLIFT HYDRAULIC SYSTEM Chapter 1 Description and Operation Component Locations & Circuit Layouts 1 Hydraulic Pump 11 Control Valve 14 Valve Section Oil Flows 15 Anti-Cavitation Valve 22 Velocity Fuses 24 Lower and Go Valve Kit 26 M50 / M8 / M40 / M5 (P1_R5) January 2008 https://truckmanualshub.com/ Moffett Forklift Service Manual FORKLIFT HYDRAULIC SYSTEM - DESCRIPTION & OPERATION MOFFETT MODEL RANGE The information in the Service Manual covers several models of the Moffett- range. Many of the components, systems, their testing and overhaul are similar for the models covered in the manual, therefore the manual references, as shown below, will only be used where the information is unique to a particular model. Manual Reference Group American Model Designation M50 / M40 Rest of the Word Model Designation M8 / M5 NOTES M50 / M8 / M40 / M5 (P1_R5) January 2008 i https://truckmanualshub.com/ Moffett Forklift - Service Manual FORKLIFT HYDRAULIC SYSTEM - DESCRIPTION AND OPERATION This chapter covers the function and operation of the All the hydraulic cylinders are double acting, the forklift hydraulic system, the construction and lowering function…
