FIELD ASSEMBLY

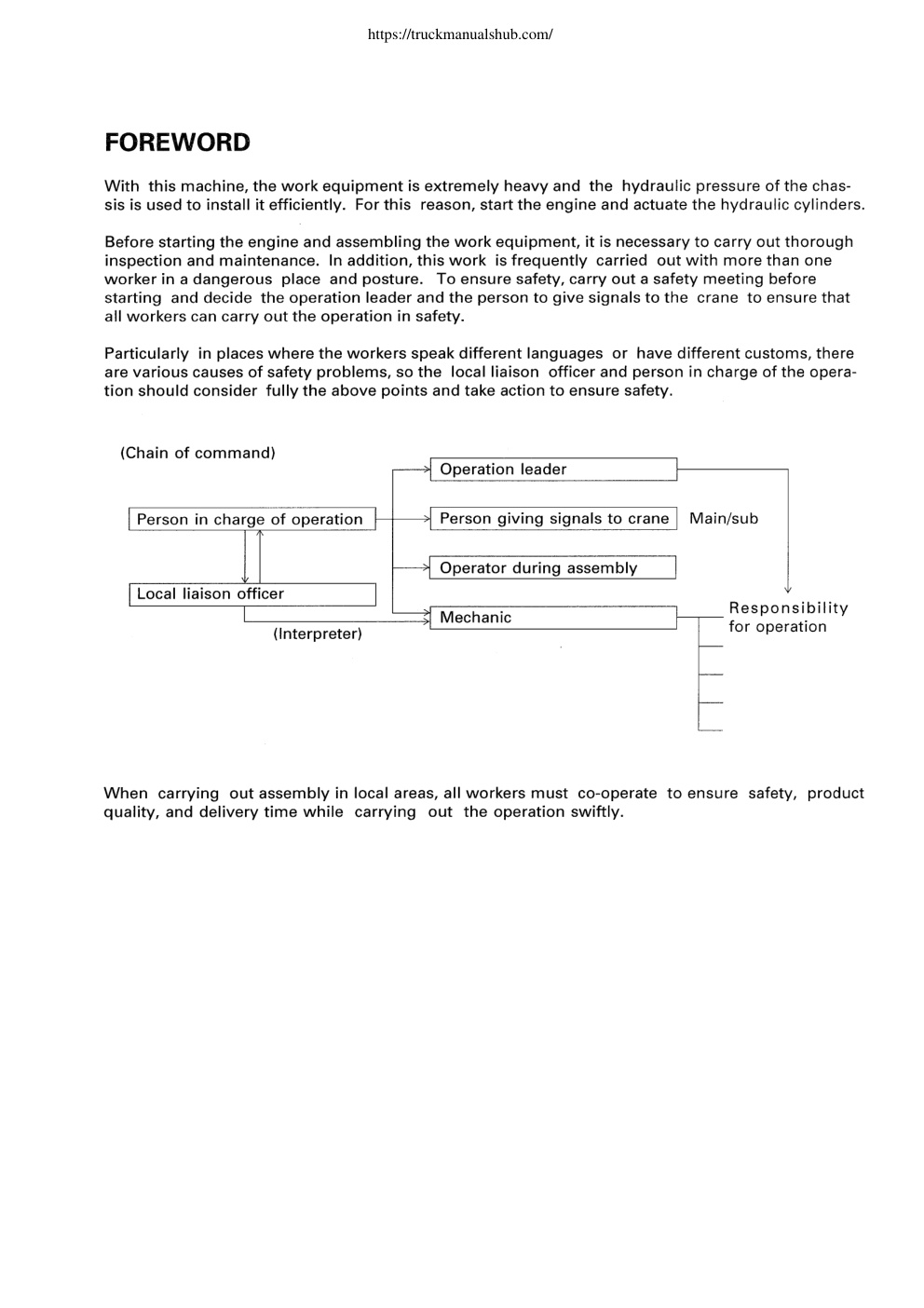

hups: = GEN00048-00 HYDRAULIC EXCAVATOR With this machine, the work equipment is extremely heavy and the hydraulic pressure of the chas- sis is used to install it efficiently. For this reason, start the engine and actuate the hydraulic cylinders. Before starting the engine and assembling the work equipment, it is necessary to carry out thorough inspection and maintenance. In addition, this work is frequently carried out with more than one worker in a dangerous place and posture. To ensure safety, carry out a safety meeting before starting and decide the operation leader and the person to give signals to the crane to ensure that all workers can carry out the operation in safety. Particularly in places where the workers speak different languages or have different customs, there are various causes of safety problems, so the local liaison officer and person in charge of t

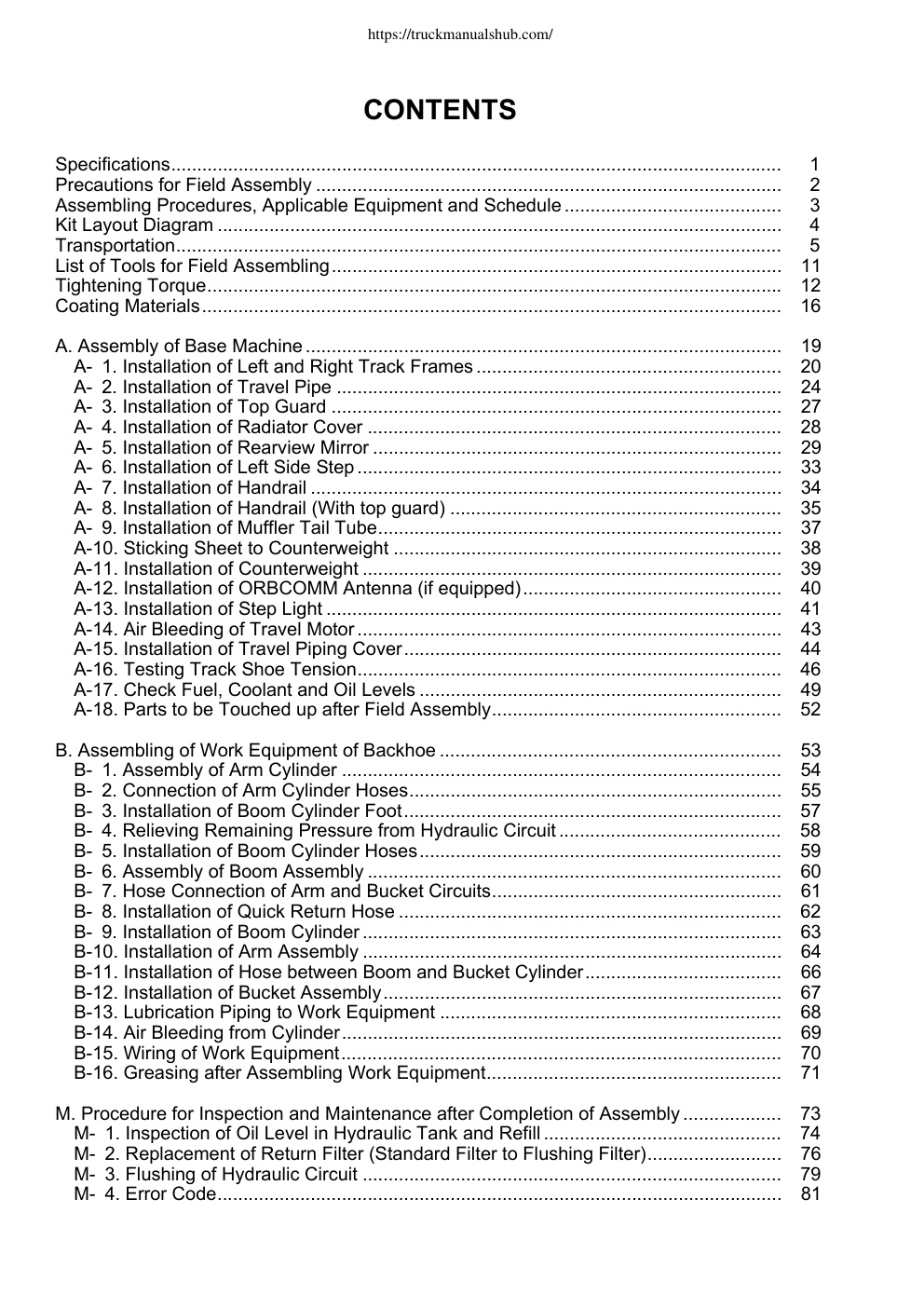

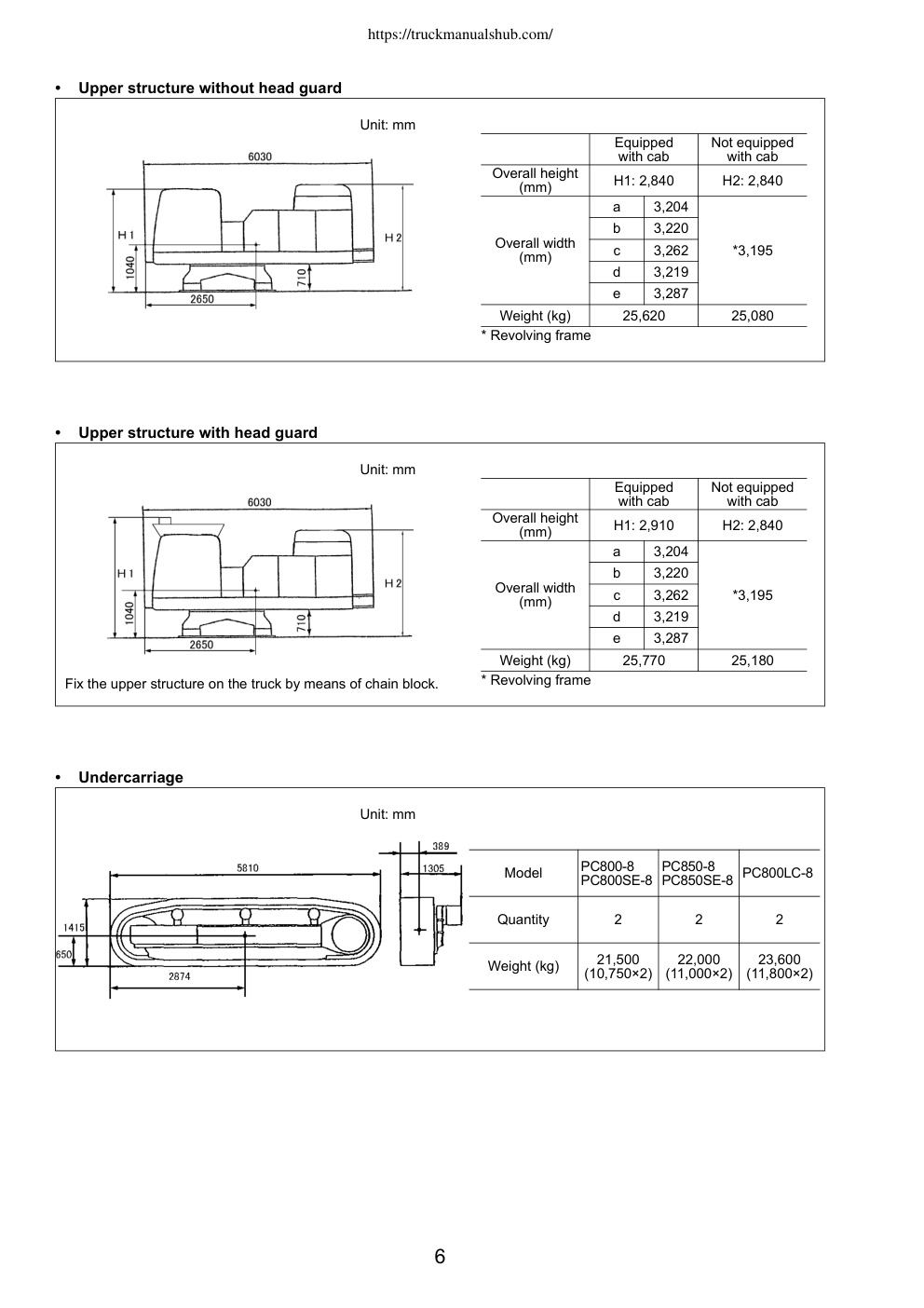

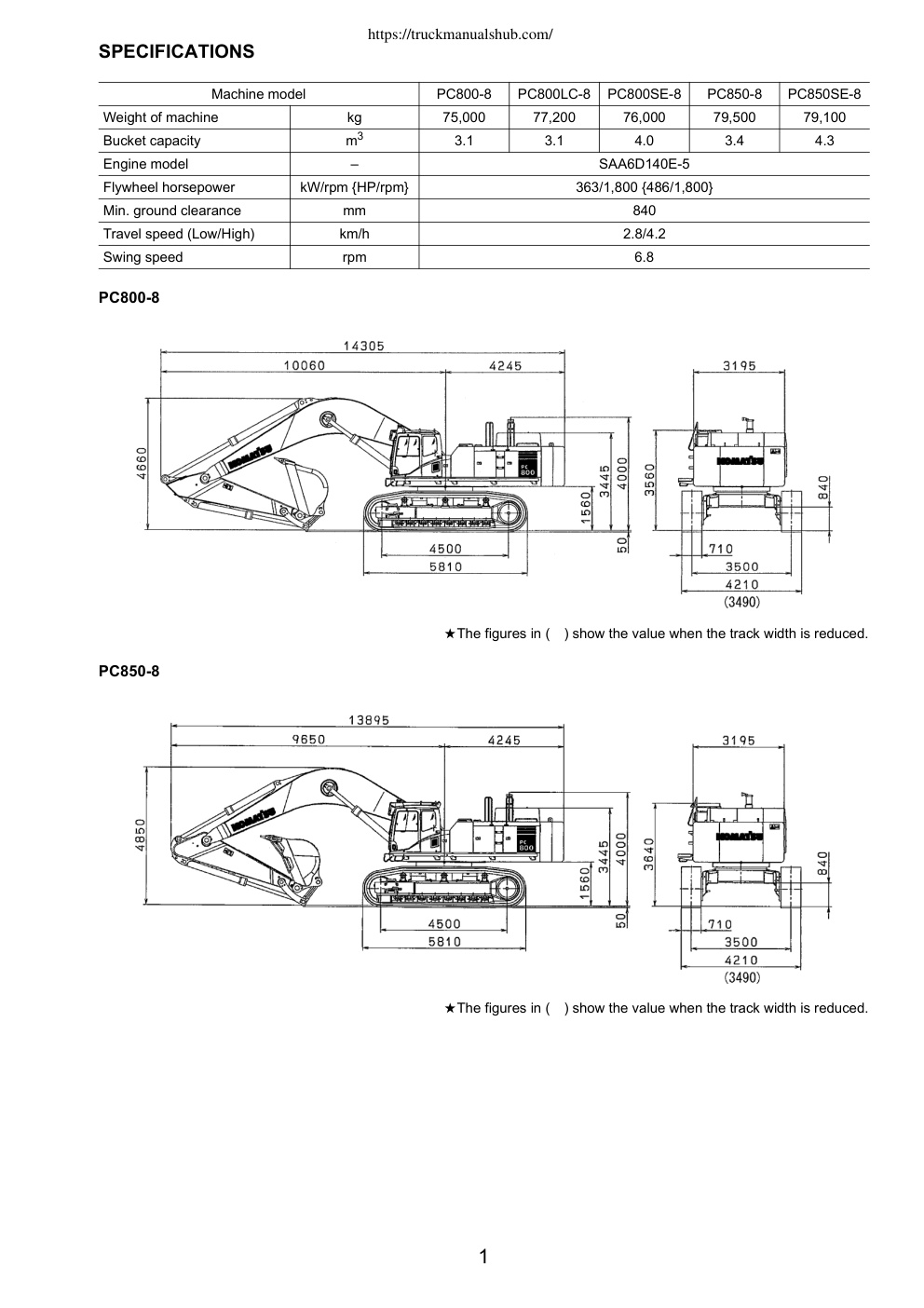

https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ CONTENTS Specifications...................................................................................................................... 1 Precautions for Field Assembly .......................................................................................... 2 Assembling Procedures, Applicable Equipment and Schedule.......................................... 3 Kit Layout Diagram ............................................................................................................. 4 Transportation..................................................................................................................... 5 List of Tools for Field Assembling....................................................................................... 11 Tightening Torque............................................................................................................... 12 Coating Materials................................................................................................................ 16 A. Assembly of Base…
