ARTICULATED DUMP TRUCK

EU Stage IV Engine ENGINE POWER BODY CAPACITY, HEAPED MAX. PAYLOAD 353 kW / 473 HP @ 2.000 rpm 24 m³ 40 ton ENGINE POWER BODY CAPACITY, HEAPED MAX. PAYLOAD 353 kW / 473 HP @ 2.000 rpm 24 ms 40 ton

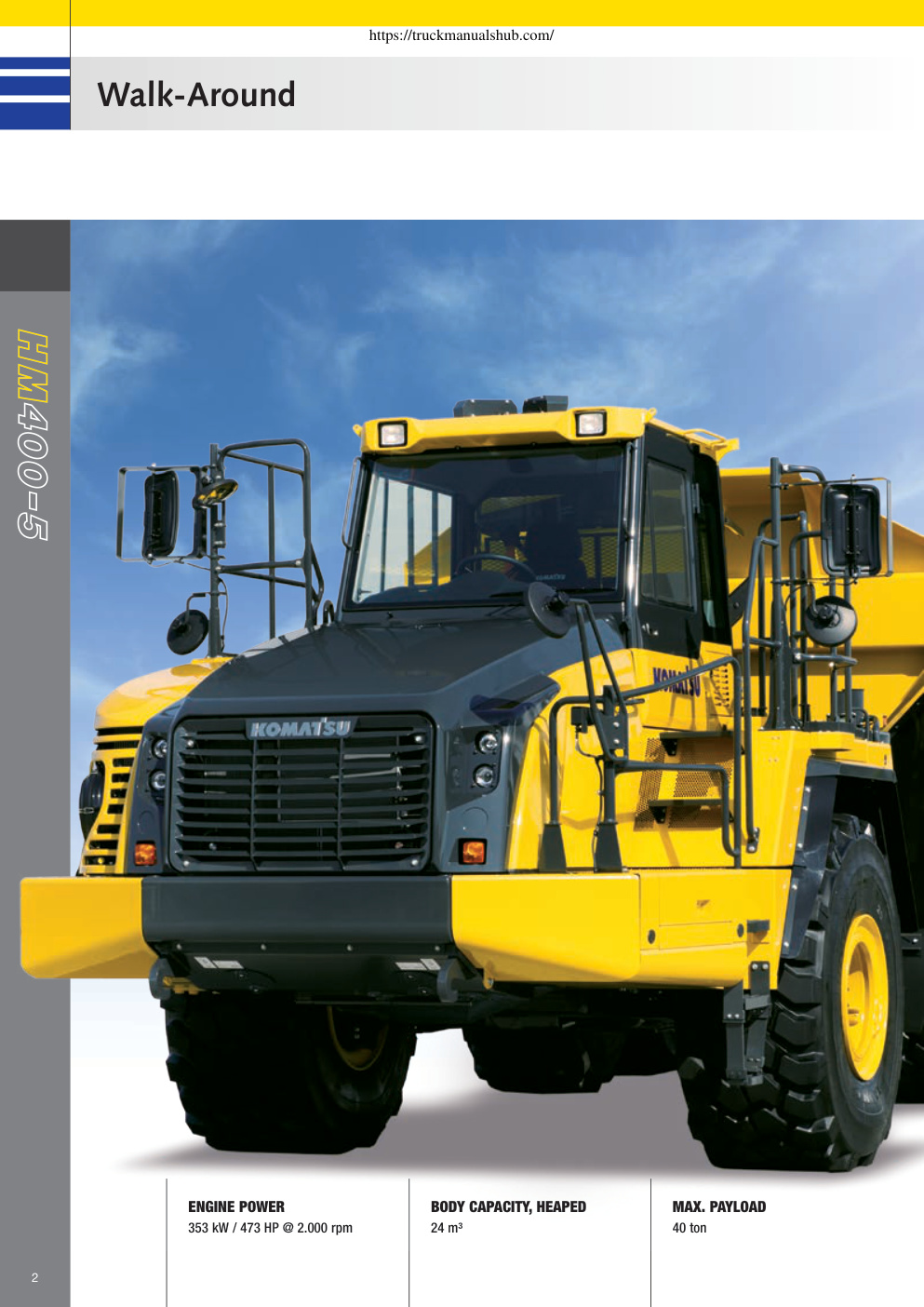

https://truckmanualshub.com/ HM400-5 EU Stage IV Engine ARTICULATED DUMP TRUCK ENGINE POWER BODY CAPACITY, HEAPED MAX. PAYLOAD 353 kW / 473 HP @ 2.000 rpm 24 m³ 40 ton https://truckmanualshub.com/ Walk-Around ENGINE POWER BODY CAPACITY, HEAPED MAX. PAYLOAD 353 kW / 473 HP @ 2.000 rpm 24 m³ 40 ton 2 HM400-5 https://truckmanualshub.com/ PRODUCTIVITY ON DEMAND Powerful and Environmentally Friendly Maximised Efficiency • EU Stage IV engine • Komatsu Traction Control System (KTCS) • Komatsu fuel-saving technology • Selectable working modes • Eco guidance & Eco-gauge • Adjustable idle shutdown • Integrated payload meter (optional) First-Class Comfort • Fully air-suspended operator seat Safety First • Low-noise design • Komatsu SpaceCab™ – Built-in ROPS/FOPS • Hydro-pneumatic suspension • Rear-view camera system • Safe cab access Easy Maintenance • Ground level access to filters • Reversible radiator fan • Power cab tilt KOMTRAX™ • Komatsu Wireless Monitoring System • 3G mobile communications • Integrated communication antenna • Increased operational data and fuel savings Complimentary maintenance program for customers 3 https://truckmanualshub.com/ Powerful and Environmentally Friendly…
