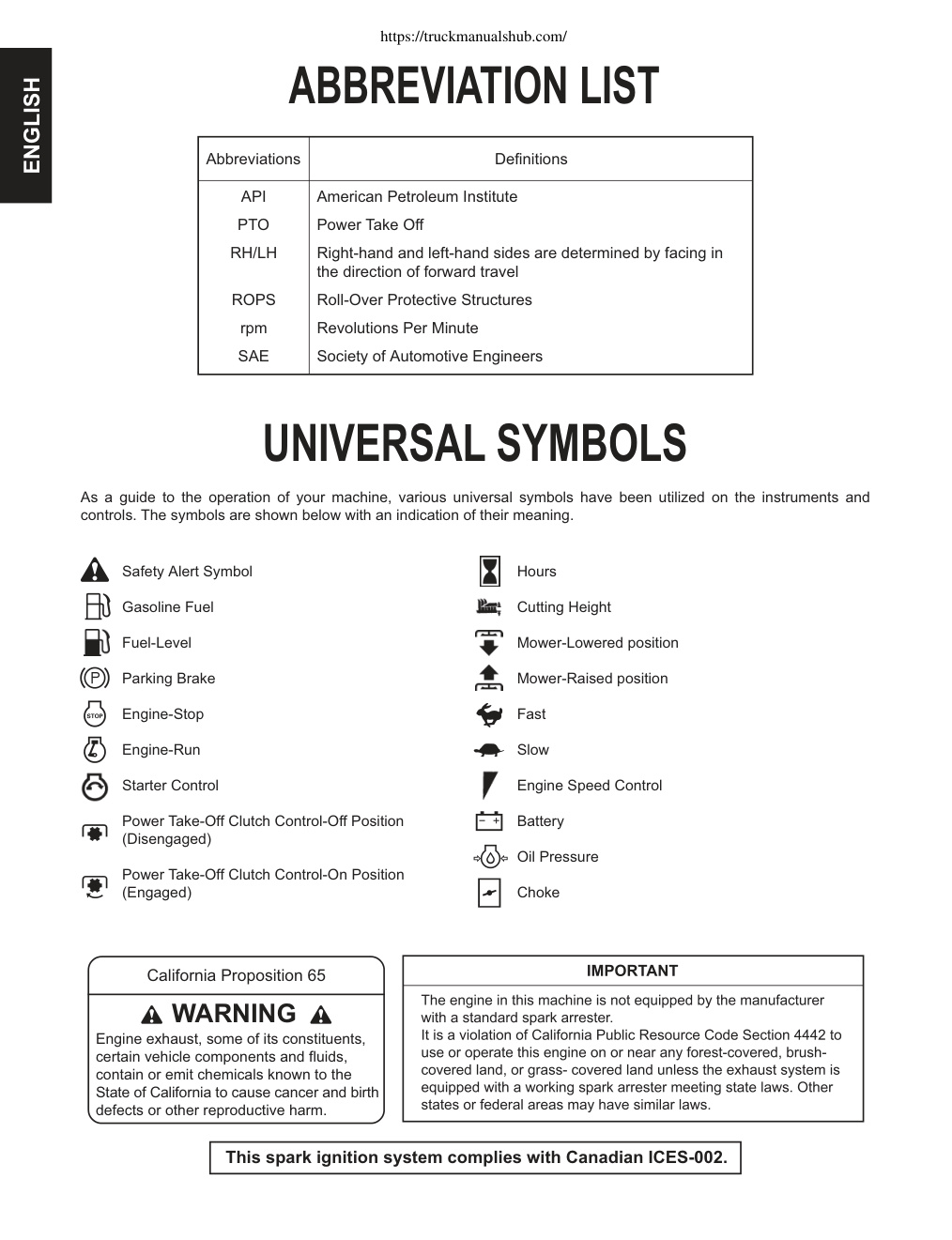

OPERATOR'S MANUAL ZERO TURN MOWER READ AND SAVE THIS MANUAL ABBREVIATION LIST Abbreviations DefinitionsENGLISH API American Petroleum Institute PTO Power Take Off RH/LH Right-hand and left-hand sides are determined by facing in the direction of forward travel ROPS Roll-Over Protective Structures rpm Revolutions Per Minute SAE Society of Automotive Engineers UNIVERSAL SYMBOLS As a guide to the operation of your machine, various universal symbols have been utilized on the instruments and controls. The symbols are shown below with an indication of their meaning. Safety Alert Symbol Hours Gasoline Fuel Cutting Height Fuel-Level Mower-Lowered position Parking Brake Mower-Raised position Engine-Stop Fast Engine-Run Slow Starter Control Engine Speed Control Power Take-Off Clutch Control-Off Position Battery Power Take-Off Clutch Control-On Position (Engaged) Choke California Proposition 65 Engi

https://truckmanualshub.com/ OPERATOR'S MANUAL ENGLISH MODELS ZG222A ZG227A 1BDABDNAP0010 K3272-7121-7 READ AND SAVE THIS MANUAL https://truckmanualshub.com/ ABBREVIATION LIST Abbreviations DefinitionsENGLISH API American Petroleum Institute PTO Power Take Off RH/LH Right-hand and left-hand sides are determined by facing in the direction of forward travel ROPS Roll-Over Protective Structures rpm Revolutions Per Minute SAE Society of Automotive Engineers UNIVERSAL SYMBOLS As a guide to the operation of your machine, various universal symbols have been utilized on the instruments and controls. The symbols are shown below with an indication of their meaning. Safety Alert Symbol Hours Gasoline Fuel Cutting Height Fuel-Level Mower-Lowered position Parking Brake Mower-Raised position Engine-Stop Fast Engine-Run Slow Starter Control Engine Speed Control Power Take-Off Clutch Control-Off Position Battery (Disengaged) Oil Pressure Power Take-Off Clutch Control-On Position (Engaged) Choke California Proposition 65 WARNING Engine exhaust, some of its constituents, certain vehicle components and fluids, contain or emit chemicals known to the State of California to cause cancer and birth…
