LANDOLL CORPORATION 1900 North Street Marysville, Kansas 66508 800-428-5655 ~ F-608-1118 11/2018-Present

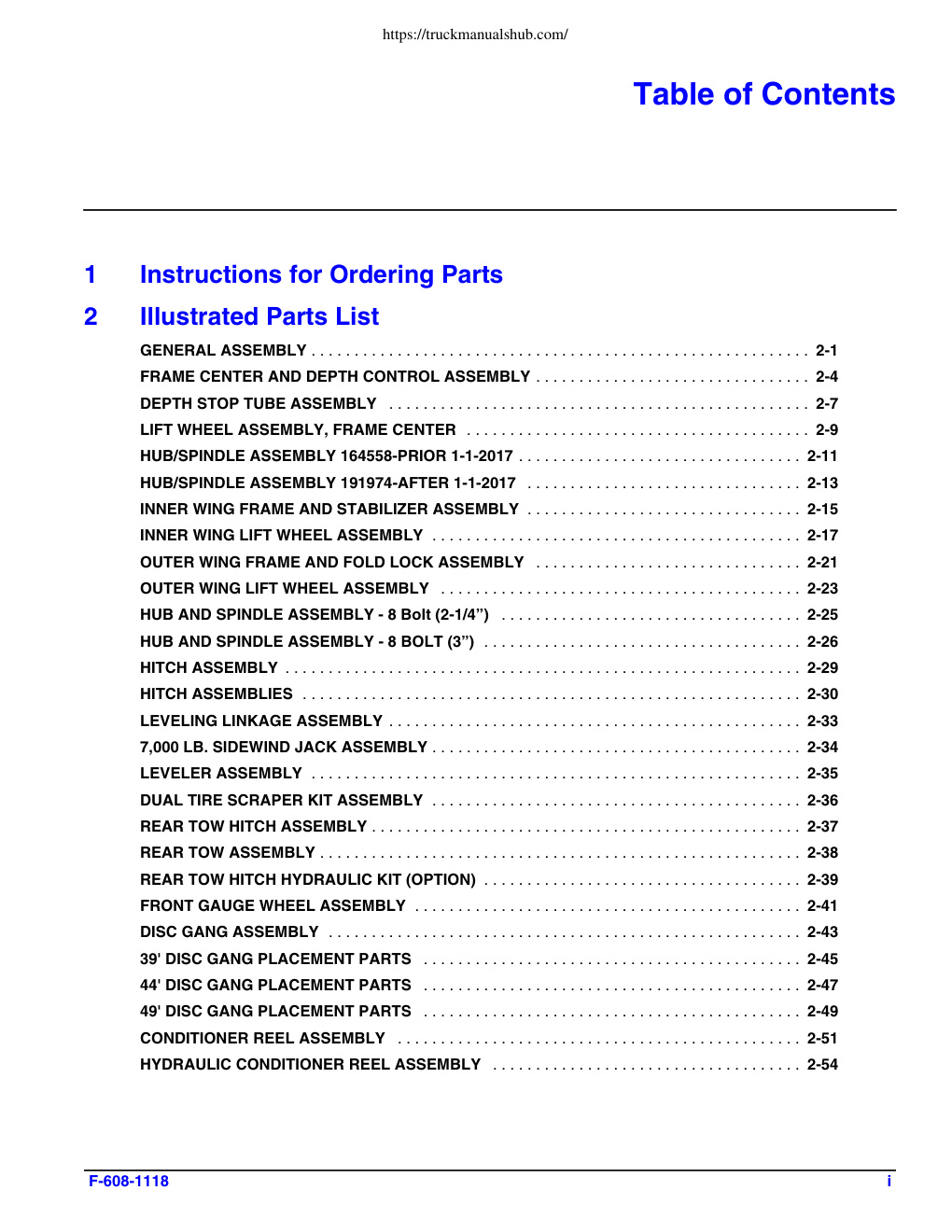

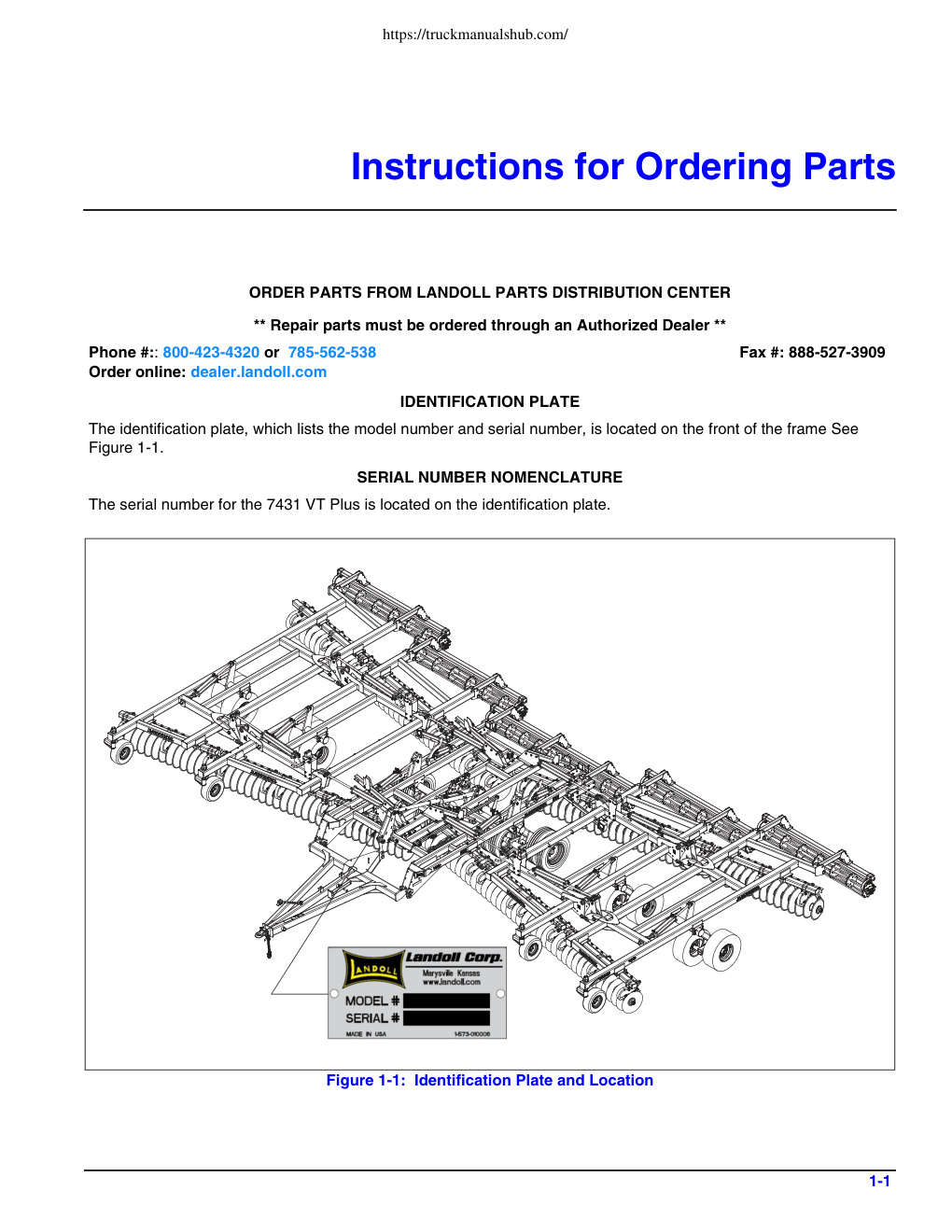

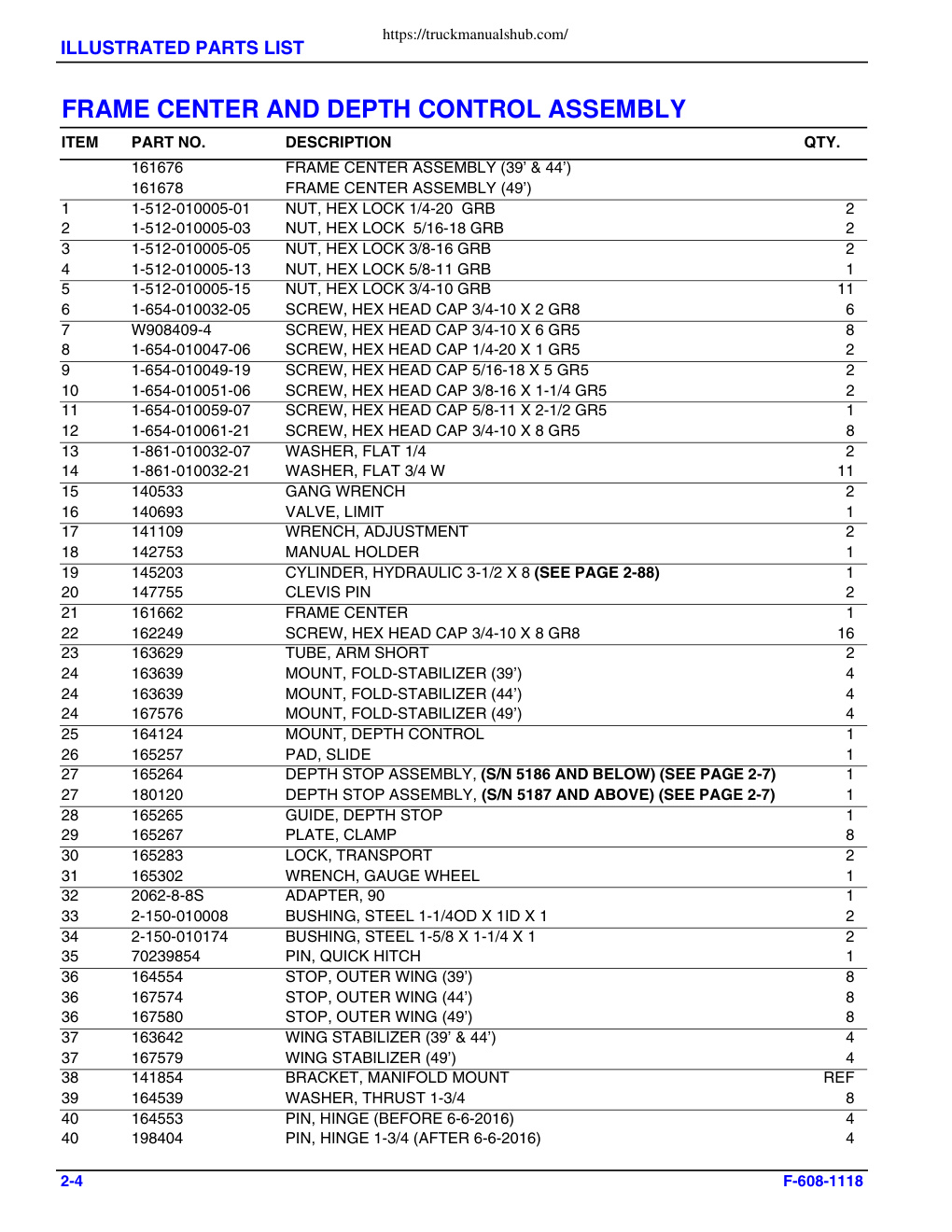

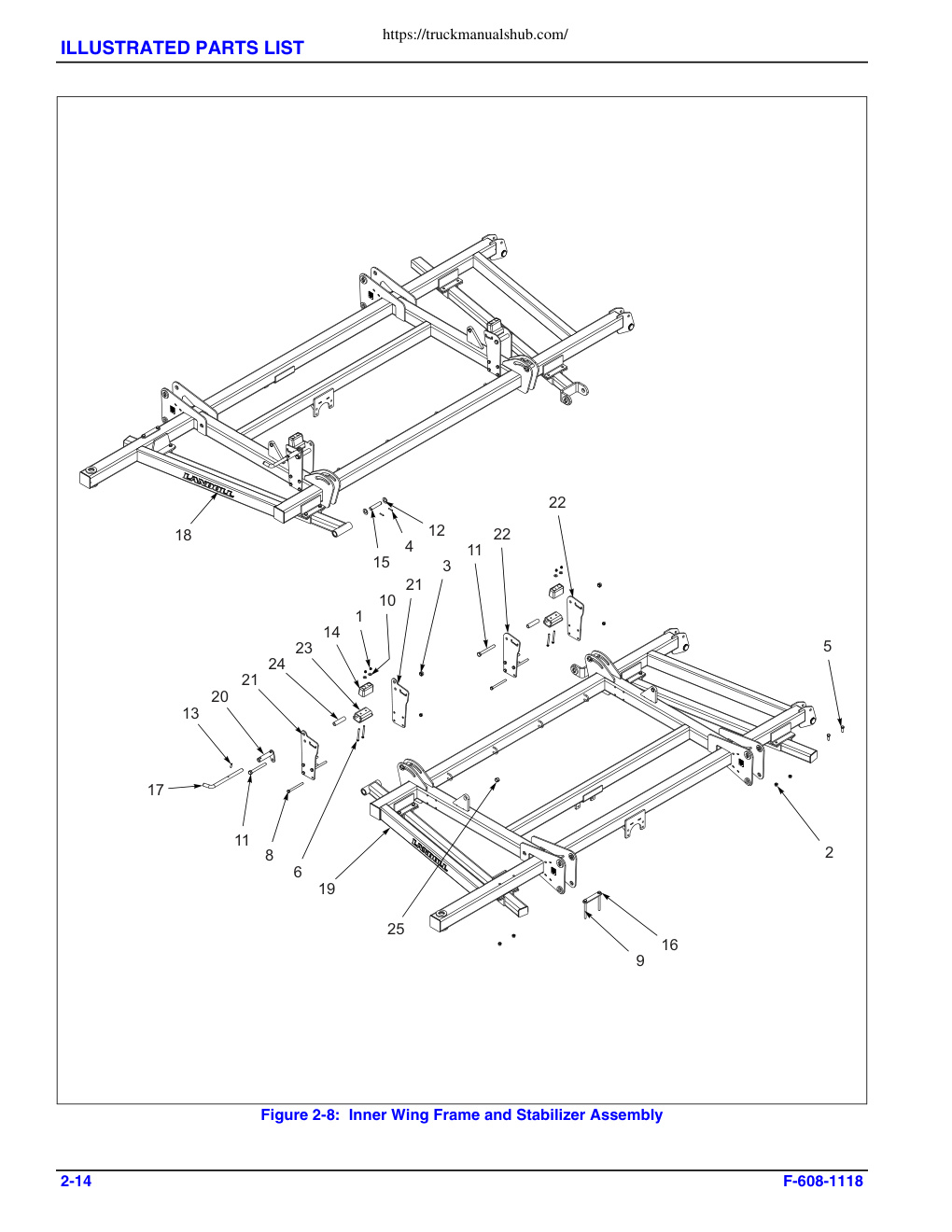

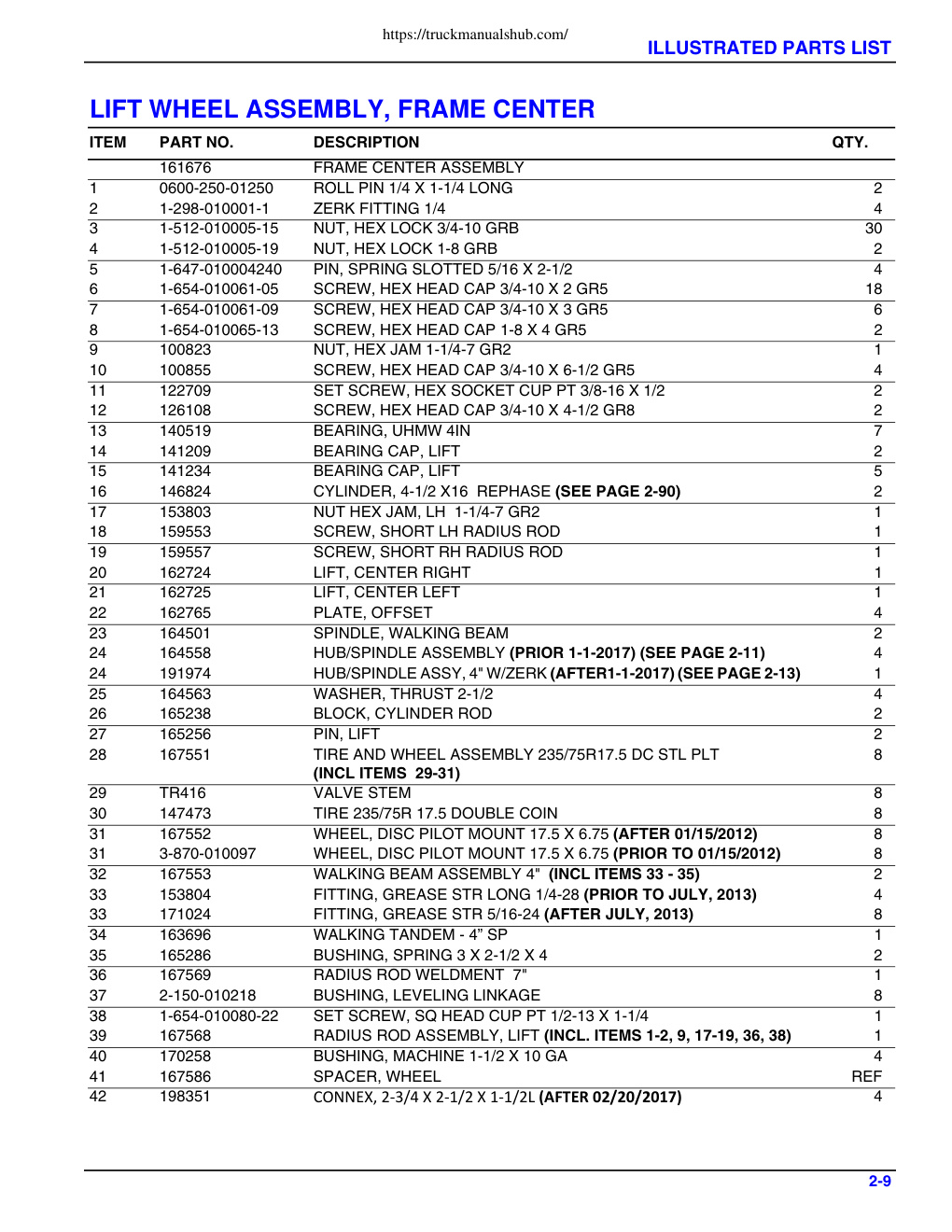

https://truckmanualshub.com/ Model 7450 VT Plus Parts Manual LANDOLL CORPORATION 1900 North Street Marysville, Kansas 66508 (785) 562-5381 800-428-5655 ~ WWW.LANDOLL.COM F-608-1118 11/2018-Present https://truckmanualshub.com/ https://truckmanualshub.com/ Table of Contents 1 Instructions for Ordering Parts 2 Illustrated Parts List GENERAL ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 FRAME CENTER AND DEPTH CONTROL ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4 DEPTH STOP TUBE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 LIFT WHEEL ASSEMBLY, FRAME CENTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9 HUB/SPINDLE ASSEMBLY 164558-PRIOR 1-1-2017 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11 HUB/SPINDLE ASSEMBLY 191974-AFTER 1-1-2017 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 INNER WING FRAME AND STABILIZER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15 INNER WING LIFT WHEEL ASSEMBLY . . . . .…
