Liebherr 90 Ton Mobile Crane Load Chart.pdf

Mobile crane LTM 1090-4.1 Max. lifting capacity: 90t Max. lifting height: 75m Max. working radius: 62m

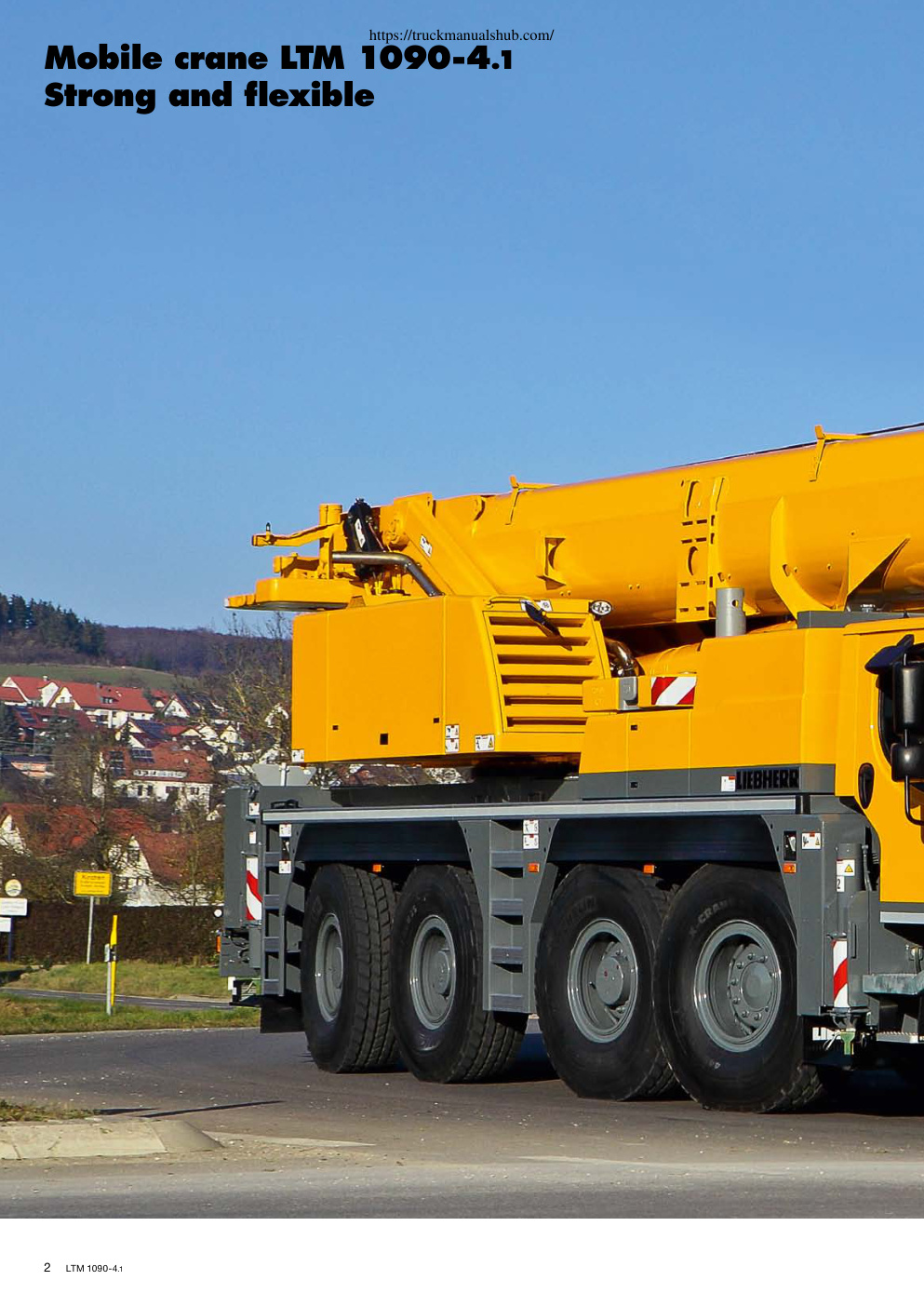

https://truckmanualshub.com/ Mobile crane LTM 1090-4.1 Max. lifting capacity: 90 t Max. lifting height: 75 m Max. working radius: 62 m https://truckmanualshub.com/ Mobile crane LTM 1090-4.1 Strong and flexible 2 LTM 1090-4.1 https://truckmanualshub.com/ A long telescopic boom, high capacities, an extraordinary mobility as well as a comprehensive comfort and safety configuration distinguish the mobile crane LTM 1090-4.1 from Liebherr. The 90-ton crane offers state-of-the-art technology for more convenience for the practical operation. • 50 m long telescopic boom • 19 m long double swing-away jib, optional hydraulically adjustable • 75 m hook height with telescopic boom extension and swing-away jib • Extremely compact dimensions and greatest manoeuvrability in its class • Superstructure engine matched to best possible effect to the crane operation • Active, speed depending rear axle steering • Air operated disk brakes • 48-t overall weight, incl. 6.7-t ballast at 12-t axle load LTM 1090-4.1 3 https://truckmanualshub.com/ Drivetrain • 6-cylinder Liebherr turbo-diesel en- gine, 350 kW/476 hp, max. torque: 2220 Nm • Automated ZF AS-TRONIC gearbox, 12 forward and 2 reverse speeds • ZF…
