Technical date HS 895 HD Hydraulic crawler crane Litronis Basic machine with undercarriage Operating weight Remarks The operating weight includes the basic machine with HD under- 1. The lifting capacities stated are valid for lifting operation only carriage, 2 main winches 350 kN including wire ropes (150 m) (corresponding with crane classification according to F.E.M. and 20 m main boom, consisting of A–frame, boom foot 1.001, crane group A1). (7 m), boom head (7 m) and boom section (6 m), 55.1 t basic counterweight, 1100 mm track pads and 60 t hook block. 2. Crane standing on firm, horizontal ground. 3. The weight of the lifting device (hoisting ropes, hook block, Total weight approx. 172.2 t shackle etc.) must be deducted from the gross lifting capacity to obtain a net lifting value. Ground pressure 4. Additional equipment on boom (e.g. boom walkways, auxiliary jib) must be deducted to g

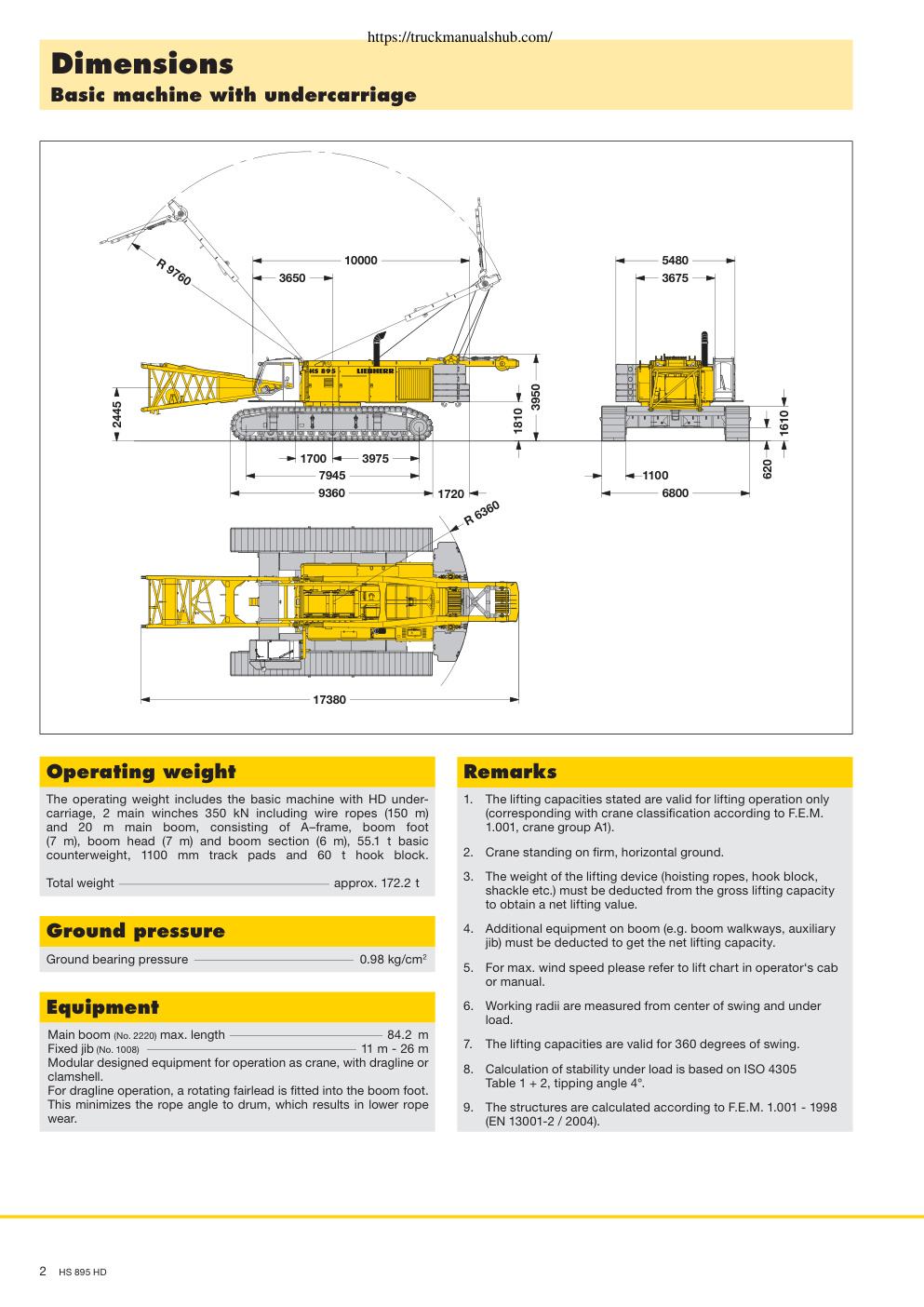

https://truckmanualshub.com/ Technical data HS 895 HD Hydraulic crawler crane https://truckmanualshub.com/ Dimensions Basic machine with undercarriage R 10000 5480 9760 3650 3675 3950 2445 1810 1610 1700 3975 7945 1100 620 9360 1720 6800 6360 R 17380 Operating weight Remarks The operating weight includes the basic machine with HD under- 1. The lifting capacities stated are valid for lifting operation only carriage, 2 main winches 350 kN including wire ropes (150 m) (corresponding with crane classification according to F.E.M. and 20 m main boom, consisting of A–frame, boom foot 1.001, crane group A1). (7 m), boom head (7 m) and boom section (6 m), 55.1 t basic counterweight, 1100 mm track pads and 60 t hook block. 2. Crane standing on firm, horizontal ground. 3. The weight of the lifting device (hoisting ropes, hook block, Total weight approx. 172.2 t shackle etc.) must be deducted from the gross lifting capacity to obtain a net lifting value. Ground pressure 4. Additional equipment on boom (e.g. boom walkways, auxiliary jib) must be deducted to get the net lifting capacity. Ground bearing pressure 0.98 kg/cm2 5. For max. wind speed please refer to lift chart in operator‘s cab or…
