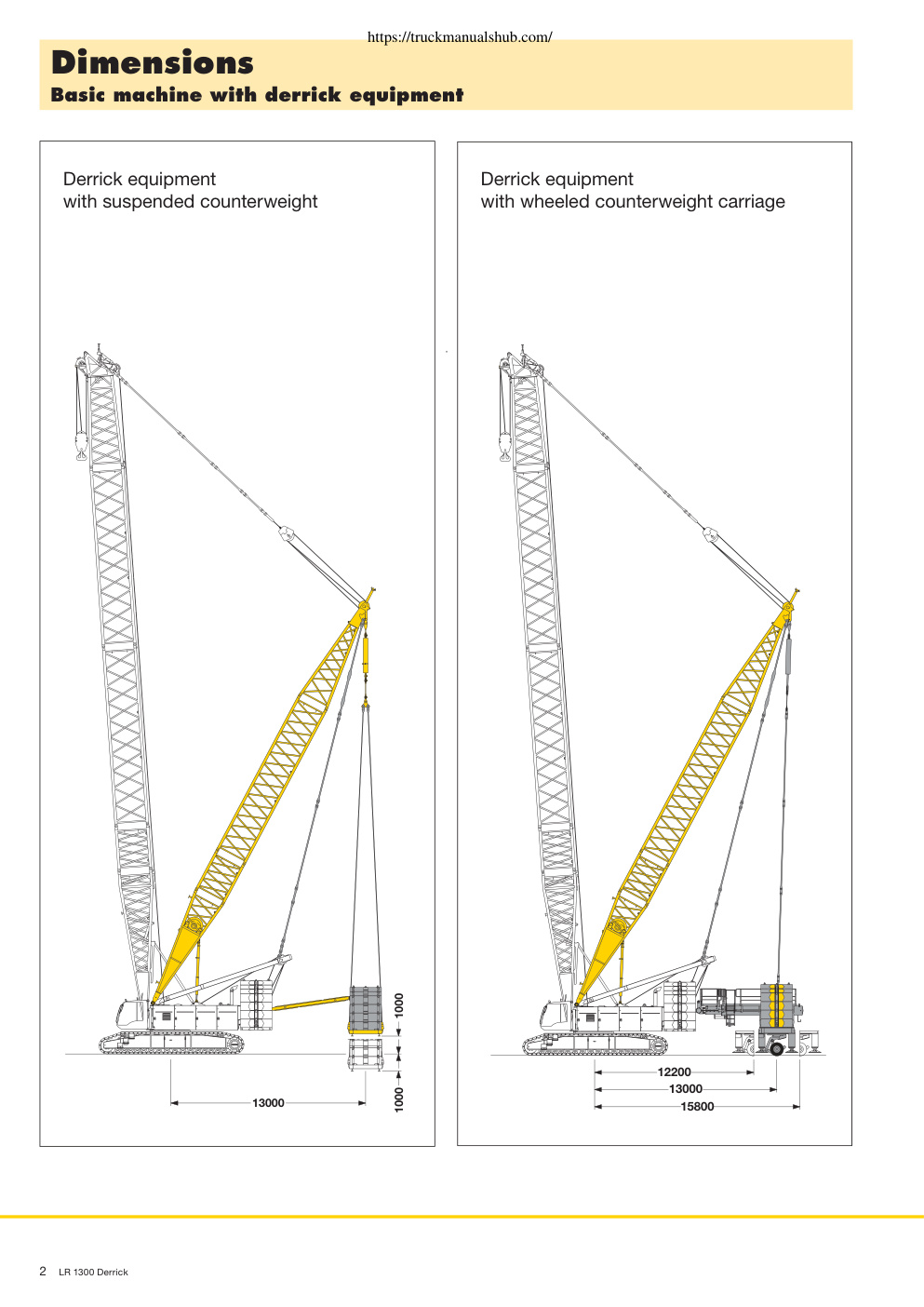

Technical data LR 1300 Hydraulic lift crane Litronic Derrick equipment Basic machine with derrick equipment Derrick equipment Derrick equipment with suspended counterweight with wheeled counterweight carriage 13000 1000 15800 2 LR 1300 Derrick

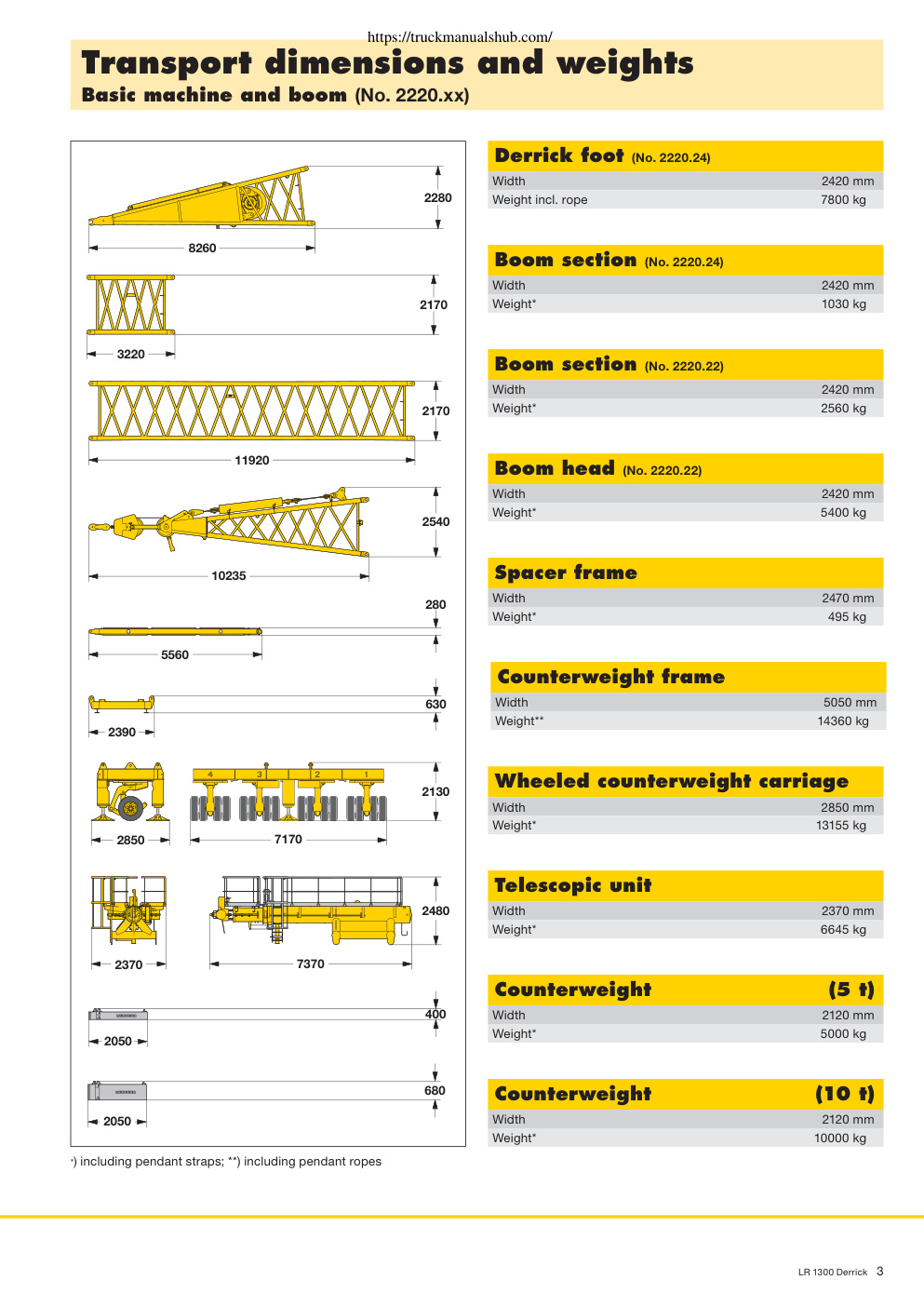

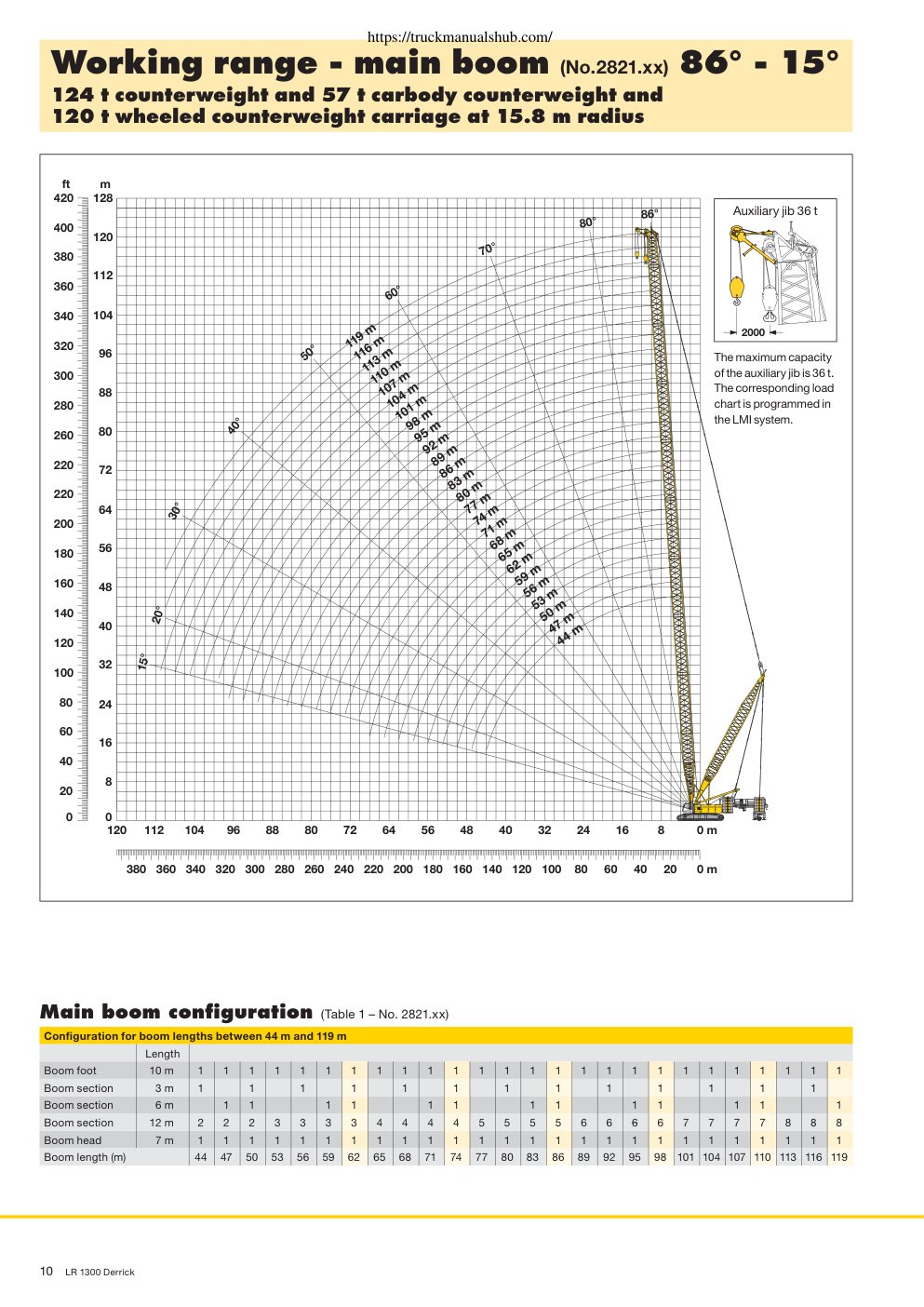

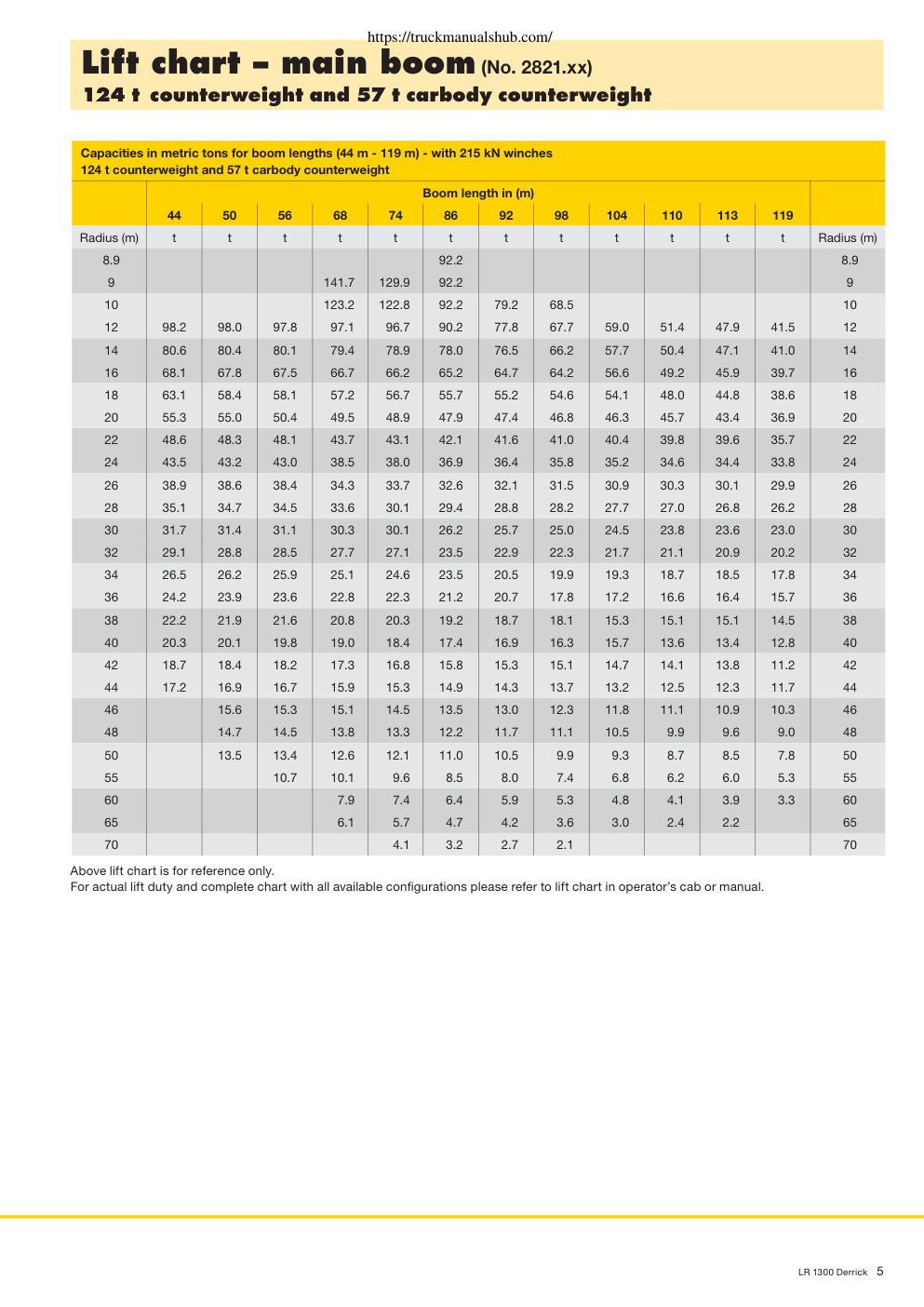

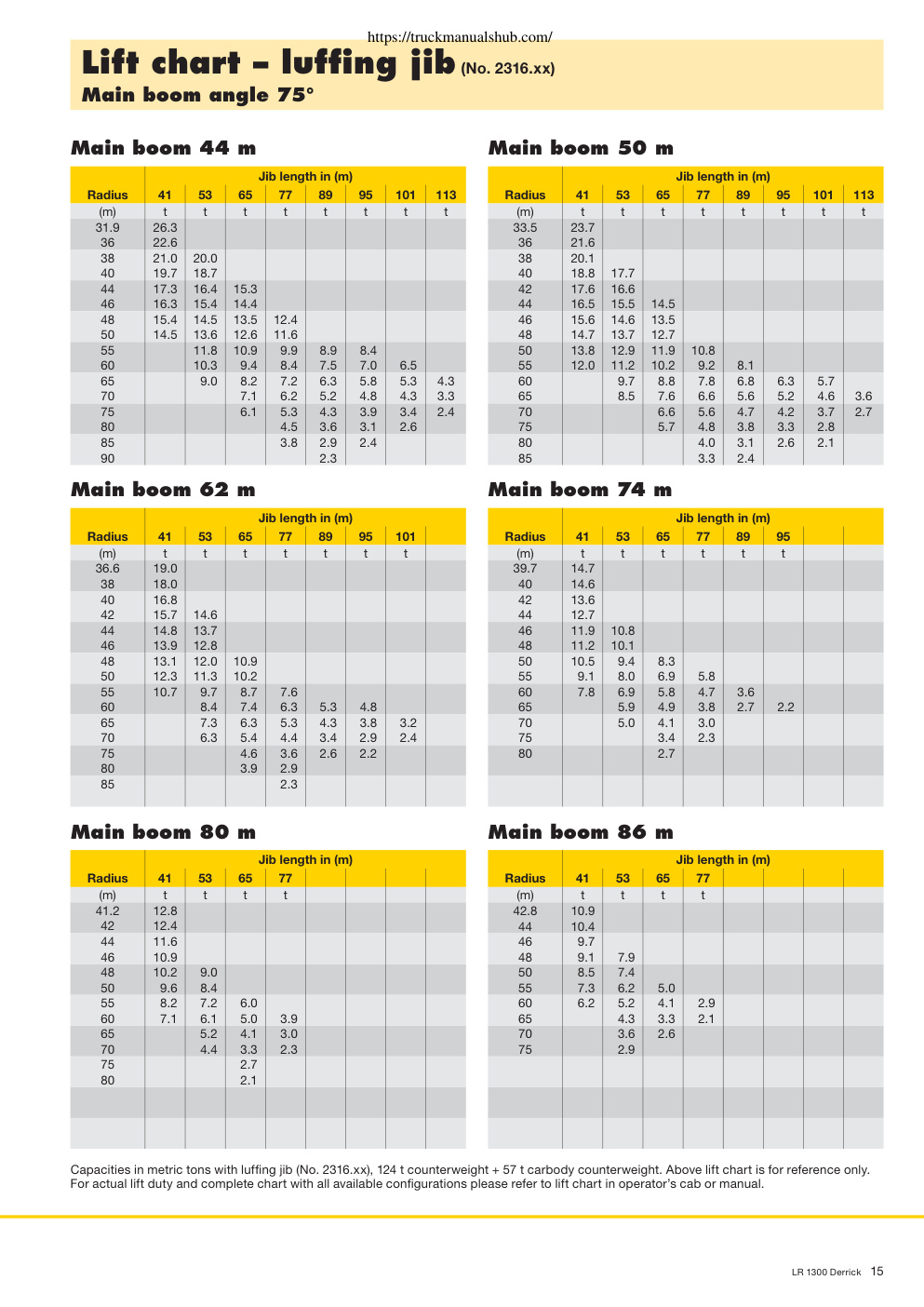

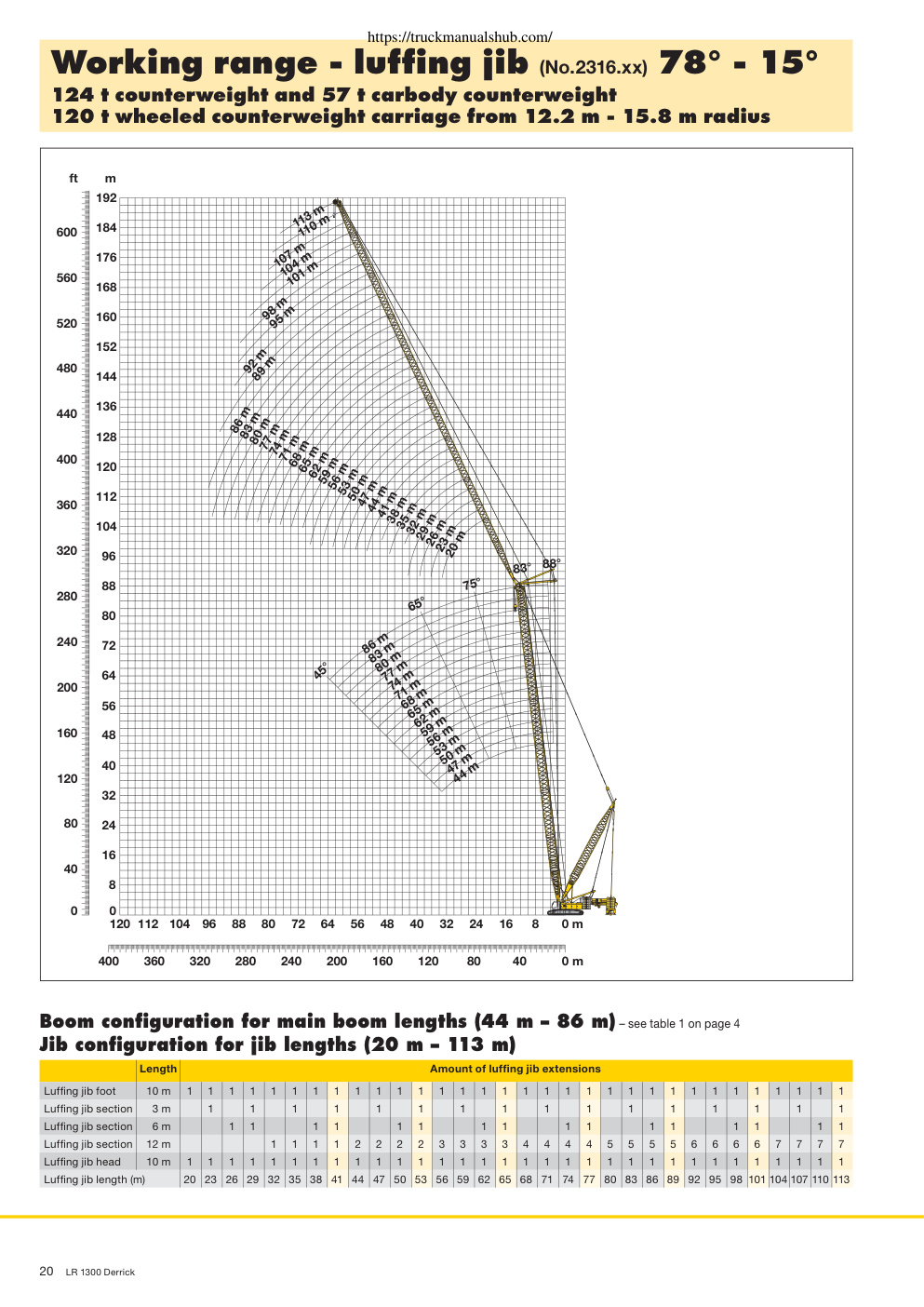

https://truckmanualshub.com/ Technical data LR 1300 Hydraulic lift crane Derrick equipment https://truckmanualshub.com/ Dimensions Basic machine with derrick equipment Derrick equipment Derrick equipment with suspended counterweight with wheeled counterweight carriage 1000 12200 13000 13000 1000 15800 2 LR 1300 Derrick https://truckmanualshub.com/ Transport dimensions and weights Basic machine and boom (No. 2220.xx) Derrick foot (No. 2220.24) Width 2420 mm 2280 Weight incl. rope 7800 kg 8260 Boom section (No. 2220.24) Width 2420 mm 2170 Weight* 1030 kg 3220 Boom section (No. 2220.22) Width 2420 mm 2170 Weight* 2560 kg 11920 Boom head (No. 2220.22) Width 2420 mm Weight* 5400 kg 2540 10235 Spacer frame Width 2470 mm 280 Weight* 495 kg 5560 Counterweight frame 630 Width 5050 mm Weight** 14360 kg 2390 Wheeled counterweight carriage 2130 Width 2850 mm Weight* 13155 kg 2850 7170 Telescopic unit 2480 Width 2370 mm Weight* 6645 kg 2370 7370 Counterweight (5 t) 400 Width 2120 mm Weight* 5000 kg 2050 680 Counterweight (10 t) 2050 Width 2120 mm Weight* 10000 kg *) including pendant straps; **) including pendant ropes LR 1300 Derrick 3 https://truckmanualshub.com/ Working range - main boom…
