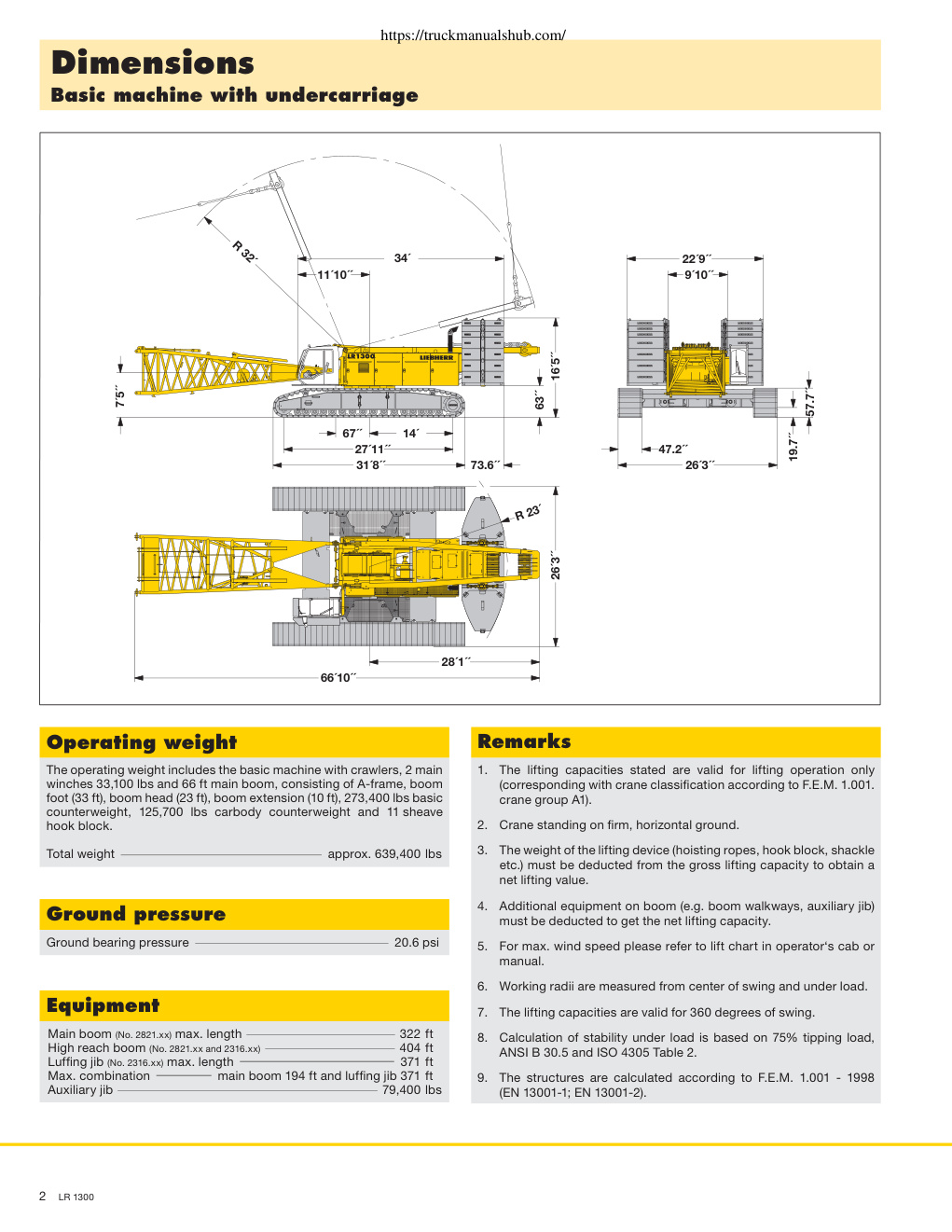

Hydraulic lift crane Litronic Complies with ANSI B 30.5 Basic machine with undercarriage 7´5´´ 63´´ 57.7´´ 27´11´´ 47.2´´ 19.7´´ 31´8´´ 73.6´´ 26´3´´ Operating weight Remarks The operating weight includes the basic machine with crawlers, 2 main 1. The lifting capacities stated are valid for lifting operation only winches 33,100 lbs and 66 ft main boom, consisting of A-frame, boom (corresponding with crane classification according to F.E.M. 1.001. foot (33 ft), boom head (23 ft), boom extension (10 ft), 273,400 lbs basic crane group A1). counterweight, 125,700 lbs carbody counterweight and 11 sheave hook block. 2. Crane standing on firm, horizontal ground. Total weight approx. 639,400 lbs 3. The weight of the lifting device (hoisting ropes, hook block, shackle etc.) must be deducted from the gross lifting capacity to obtain a net lifting value. Ground pressure 4. Additionalmust be deductede

https://truckmanualshub.com/ Technical data LR 1300 Hydraulic lift crane Complies with ANSI B 30.5 https://truckmanualshub.com/ Dimensions Basic machine with undercarriage R 32´ 34´ 22´9´´ 11´10´´ 9´10´´ LR1300 16´5´´ 7´5´´ 63´´ 57.7´´ 67´´ 14´ 27´11´´ 47.2´´ 19.7´´ 31´8´´ 73.6´´ 26´3´´ R23´ 26´3´´ 28´1´´ 66´10´´ Operating weight Remarks The operating weight includes the basic machine with crawlers, 2 main 1. The lifting capacities stated are valid for lifting operation only winches 33,100 lbs and 66 ft main boom, consisting of A-frame, boom (corresponding with crane classification according to F.E.M. 1.001. foot (33 ft), boom head (23 ft), boom extension (10 ft), 273,400 lbs basic crane group A1). counterweight, 125,700 lbs carbody counterweight and 11 sheave hook block. 2. Crane standing on firm, horizontal ground. Total weight approx. 639,400 lbs 3. The weight of the lifting device (hoisting ropes, hook block, shackle etc.) must be deducted from the gross lifting capacity to obtain a net lifting value. Ground pressure 4. Additionalmust be deductedequipmentto geton theboomnet(e.g.liftingboomcapacity.walkways, auxiliary jib) Ground bearing pressure 20.6 psi 5. For max. wind speed…
