Hydraulic lift crane Litronis Basic machine with undercarriage 10350 6930 9750 R6980 Optional:Track pads 1500 mm Operating weight Remarks The operating weight includes the basic machine with crawlers, 1. The lifting capacities stated are valid for lifting operation only 2 main winches 150 kN and 20 m main boom, consisting of A-frame, (corresponding with crane classification according to F.E.M. boom foot (10 m), boom head (7 m), boom extension (3 m), 124 t 1.001. crane group A1). basic counterweight, 57 t carbody counterweight and 300 t hook block. 2. Crane standing on firm, horizontal ground. Total weight approx. 290 t 3. The weight of the lifting device (hoist ropes, hook block, shackle etc.) must be deducted from the gross lifting capacity to obtain a net lifting value. 4. Additional equipment on boom (e.g. boom walkways, auxiliary jib) Ground pressure must be deducted to get the net lif

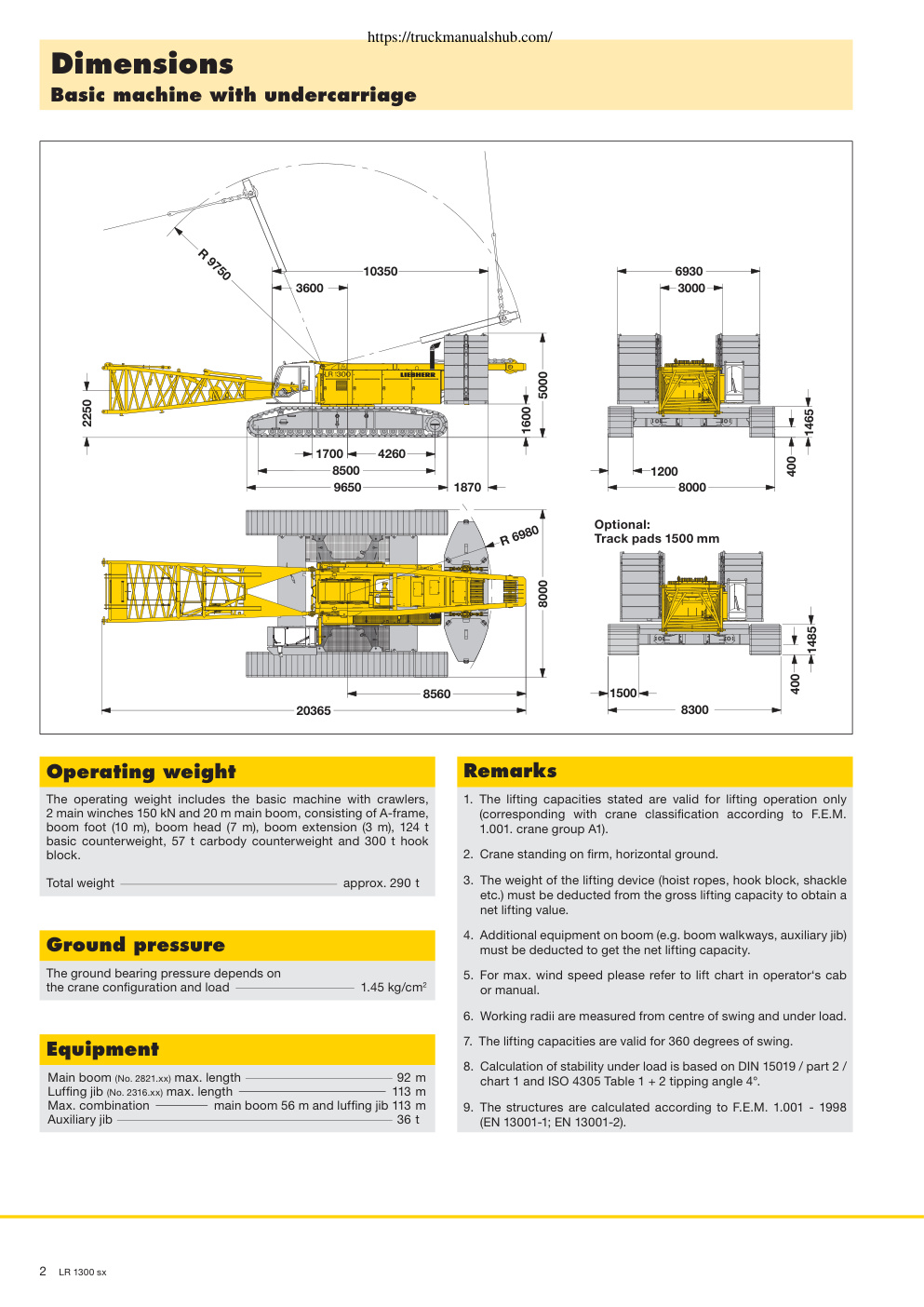

https://truckmanualshub.com/ Technical data LR 1300 SX Hydraulic lift crane LR 1300 https://truckmanualshub.com/ Dimensions Basic machine with undercarriage R 10350 6930 9750 3600 3000 LR 1300 5000 2250 1600 1465 1700 4260 8500 1200 400 9650 1870 8000 R6980 Optional:Track pads 1500 mm 8000 1485 400 8560 1500 20365 8300 Operating weight Remarks The operating weight includes the basic machine with crawlers, 1. The lifting capacities stated are valid for lifting operation only 2 main winches 150 kN and 20 m main boom, consisting of A-frame, (corresponding with crane classification according to F.E.M. boom foot (10 m), boom head (7 m), boom extension (3 m), 124 t 1.001. crane group A1). basic counterweight, 57 t carbody counterweight and 300 t hook block. 2. Crane standing on firm, horizontal ground. Total weight approx. 290 t 3. The weight of the lifting device (hoist ropes, hook block, shackle etc.) must be deducted from the gross lifting capacity to obtain a net lifting value. 4. Additional equipment on boom (e.g. boom walkways, auxiliary jib) Ground pressure must be deducted to get the net lifting capacity. The ground bearing pressure depends on 5. For max. wind speed please refer…
