LR 1006.02.07

Complies with ANSI/ASME B 30.5 Concept and characteristics with additional Rear counterweight 2  LR 1300.1 SX – 1006.02.07

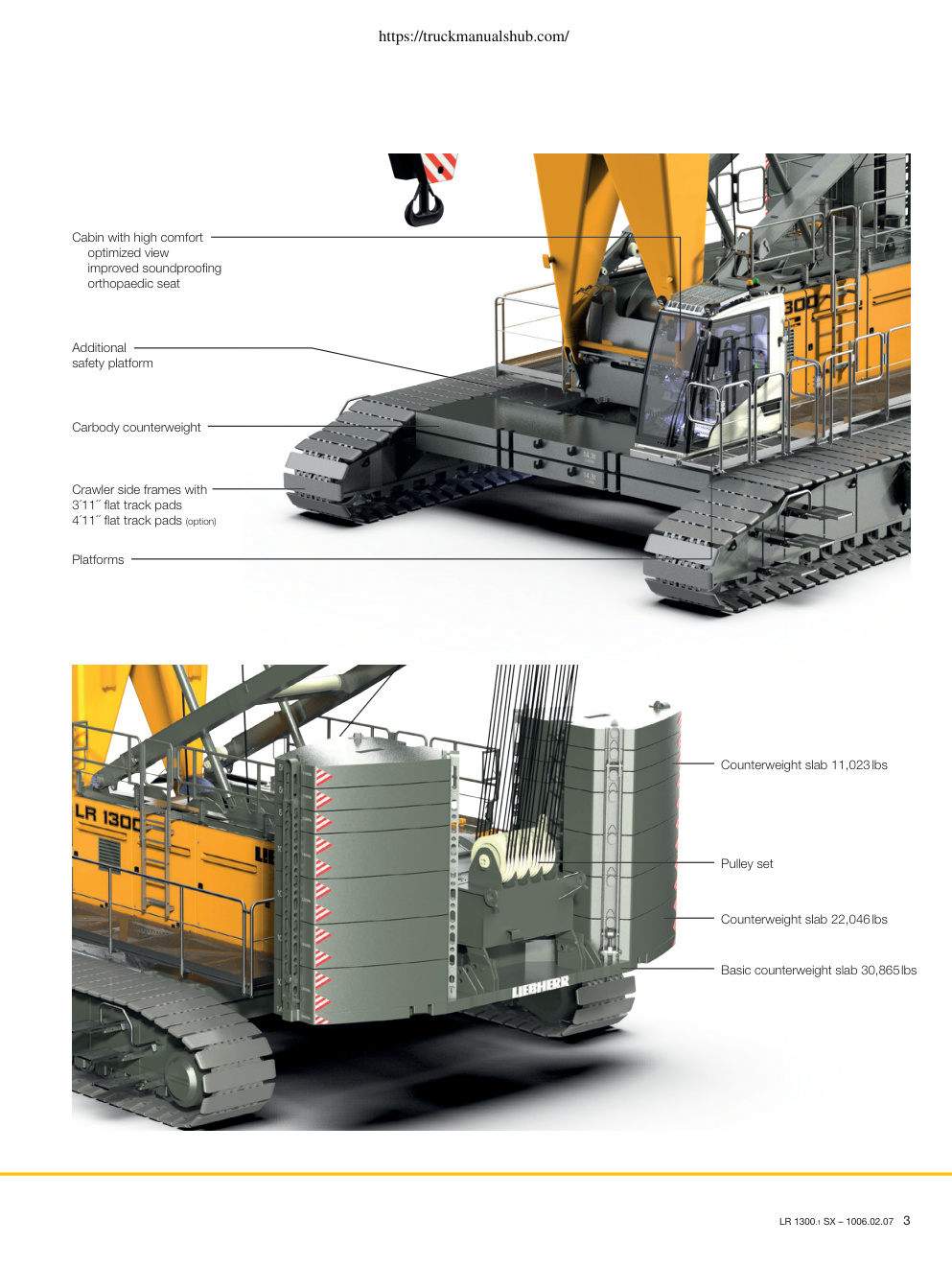

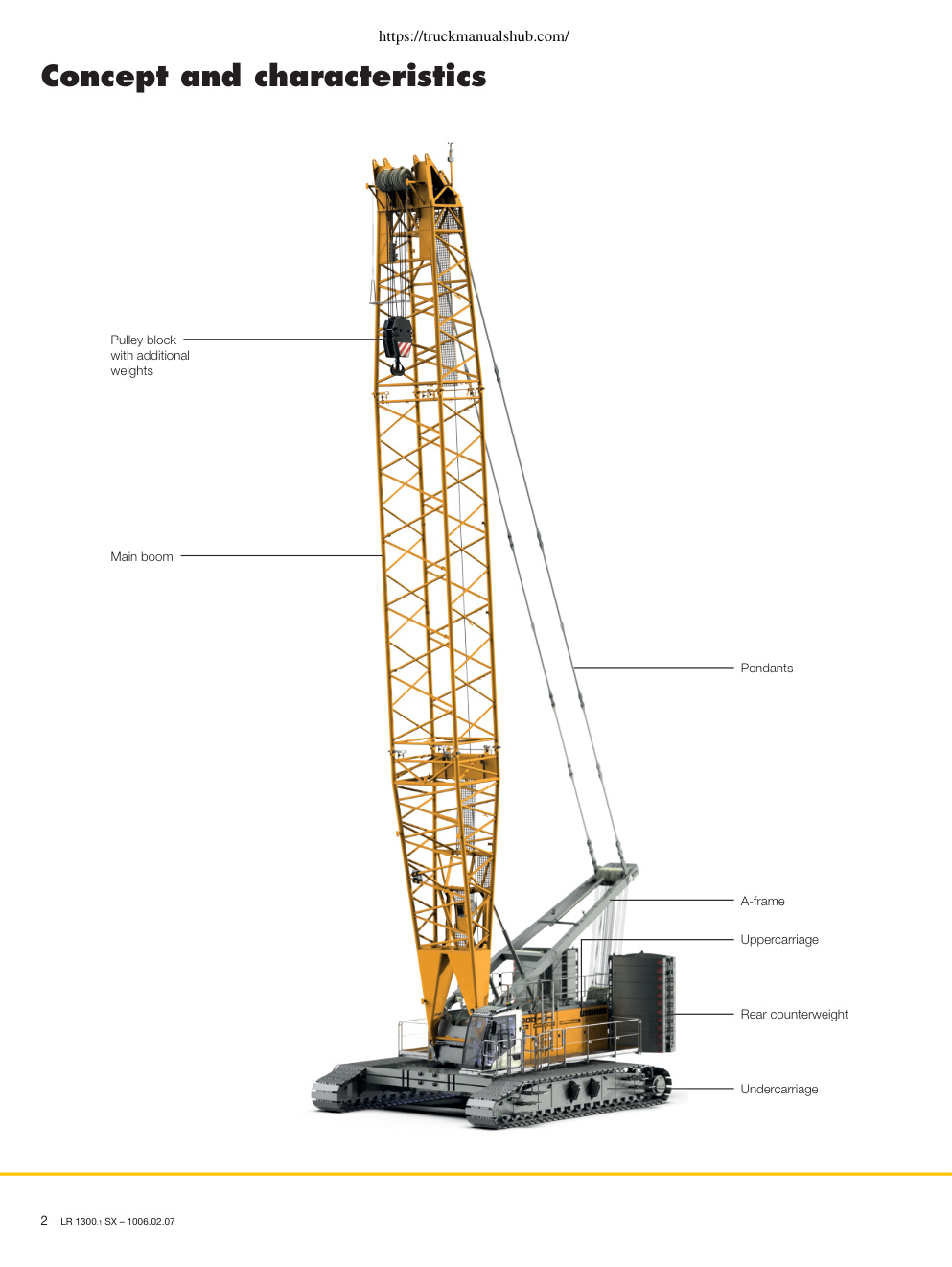

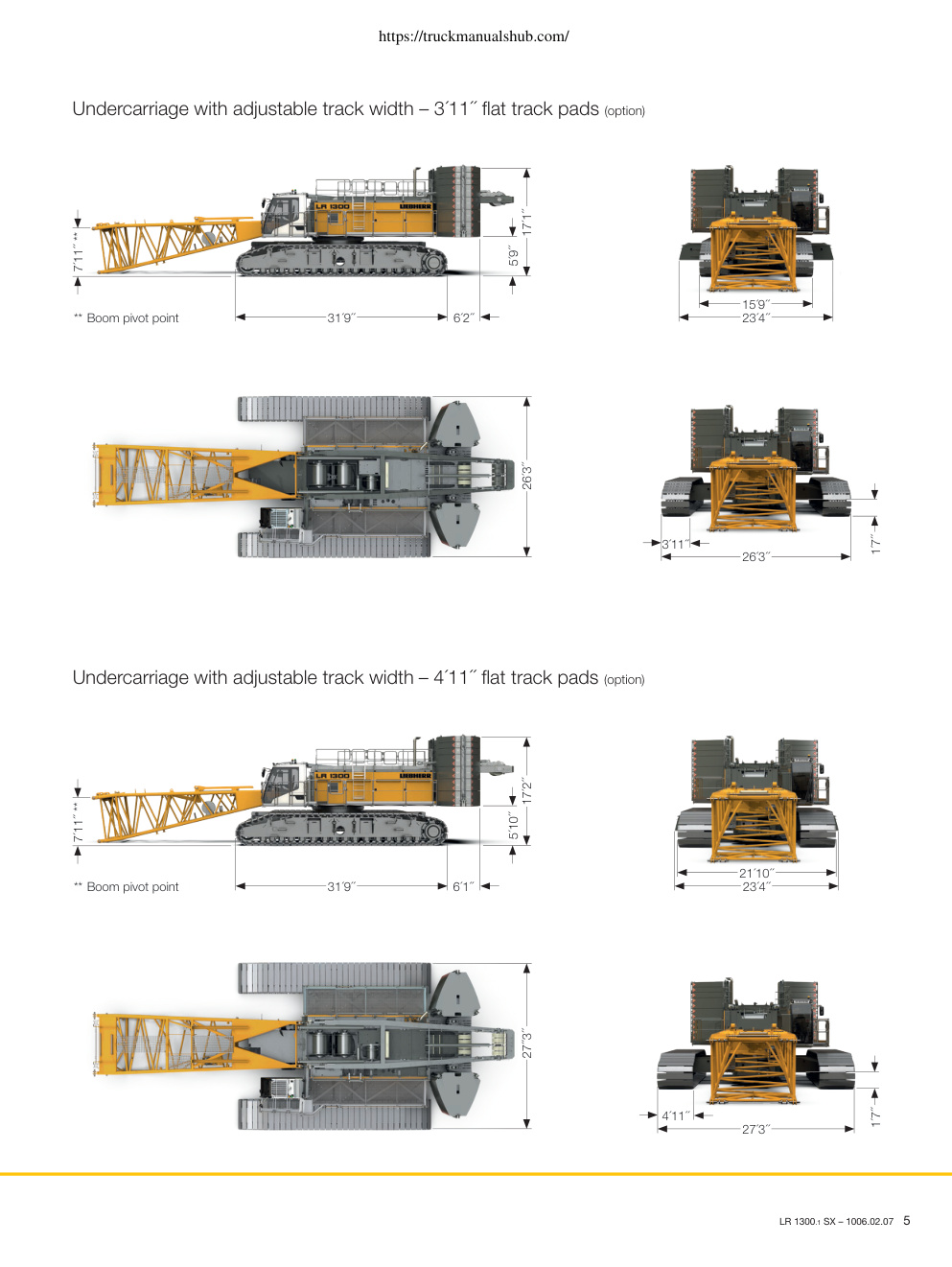

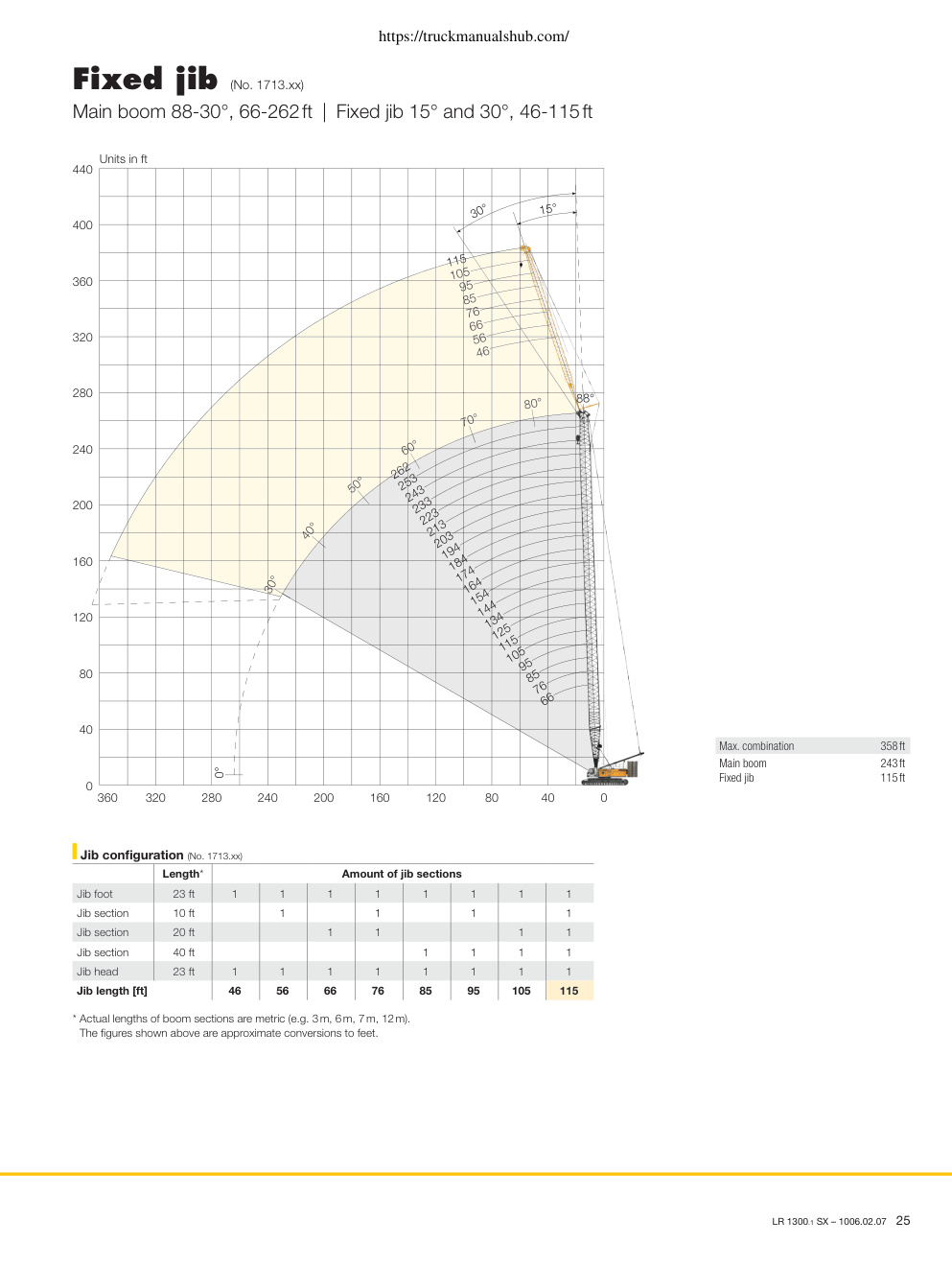

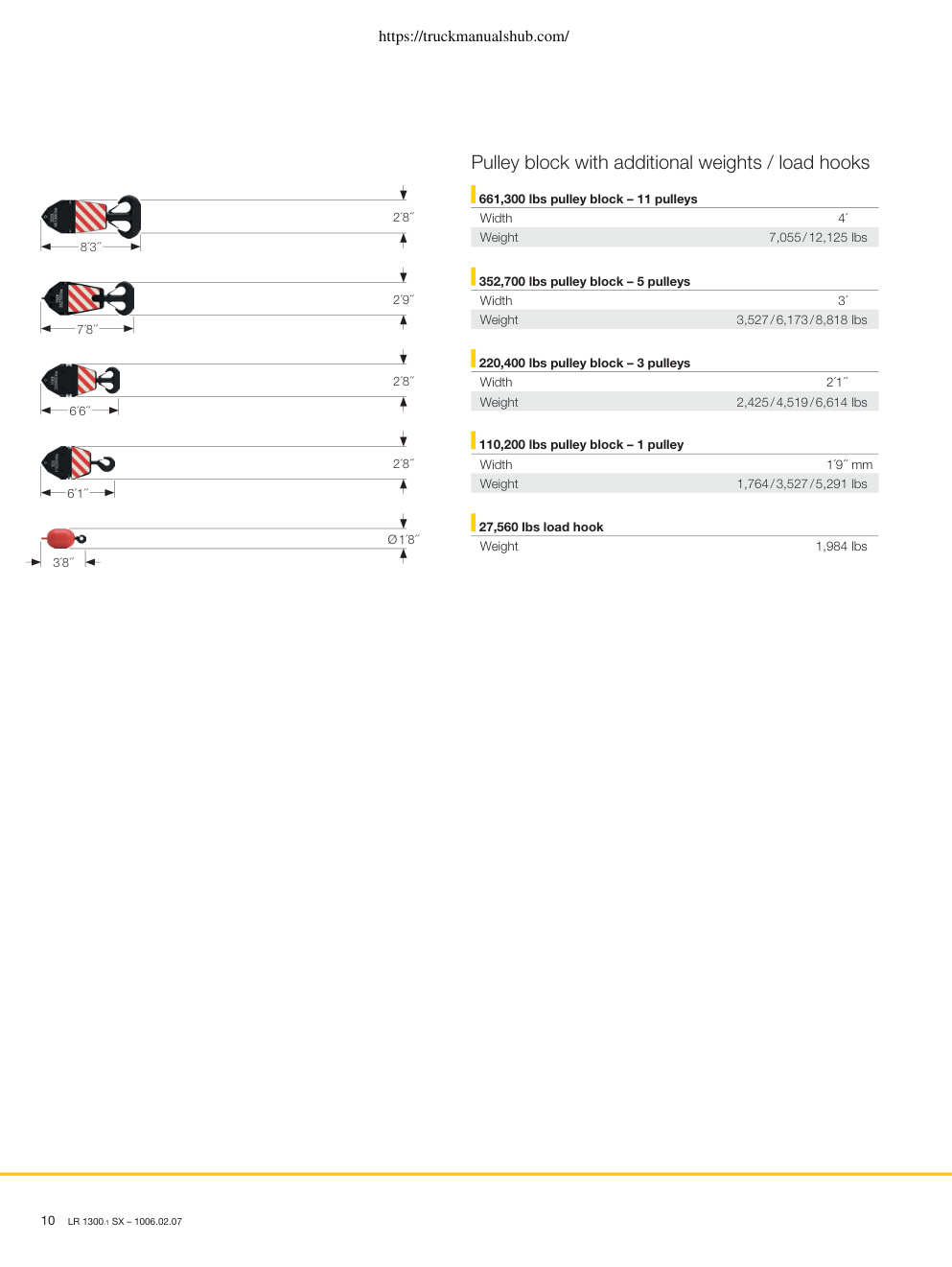

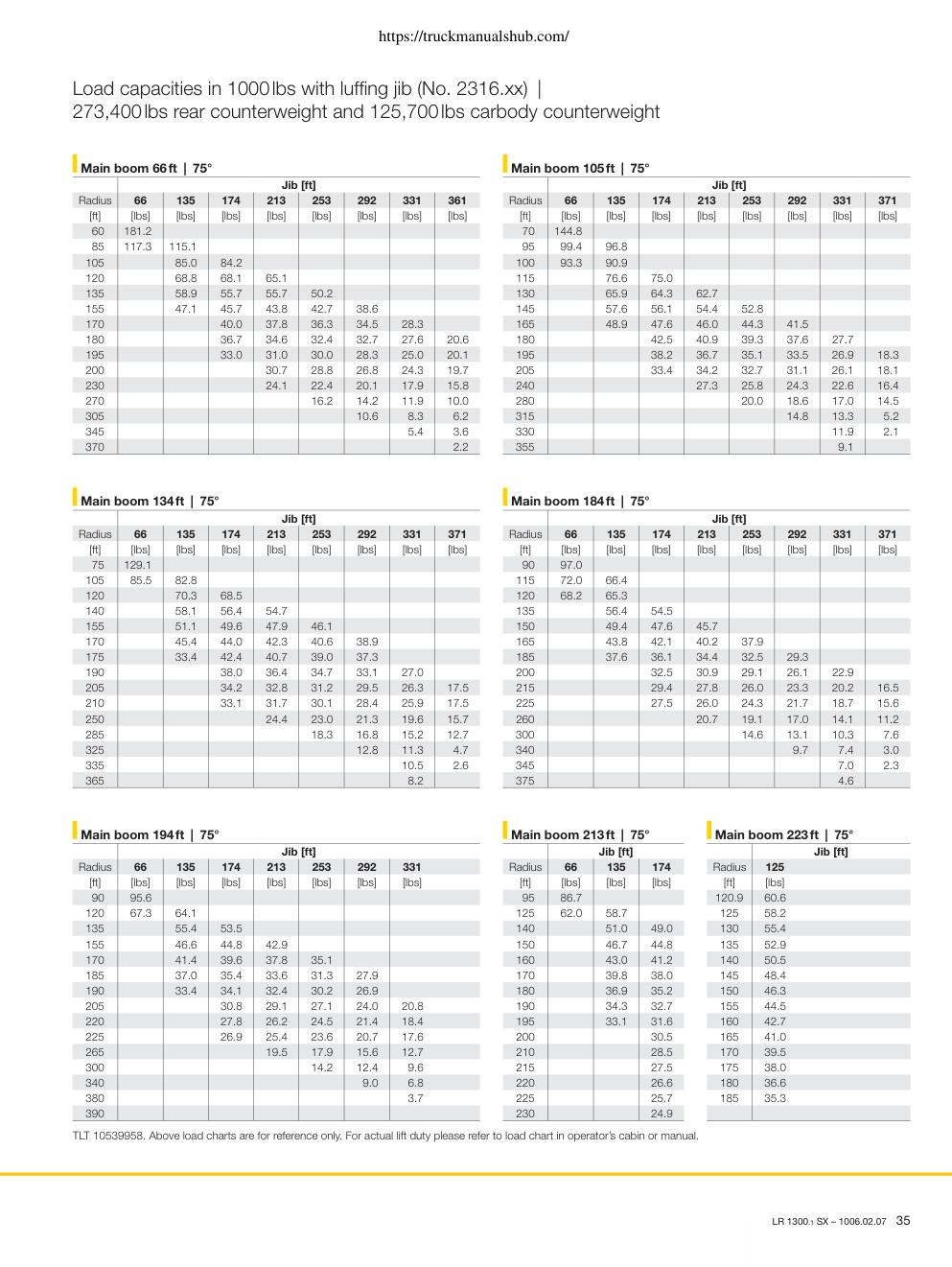

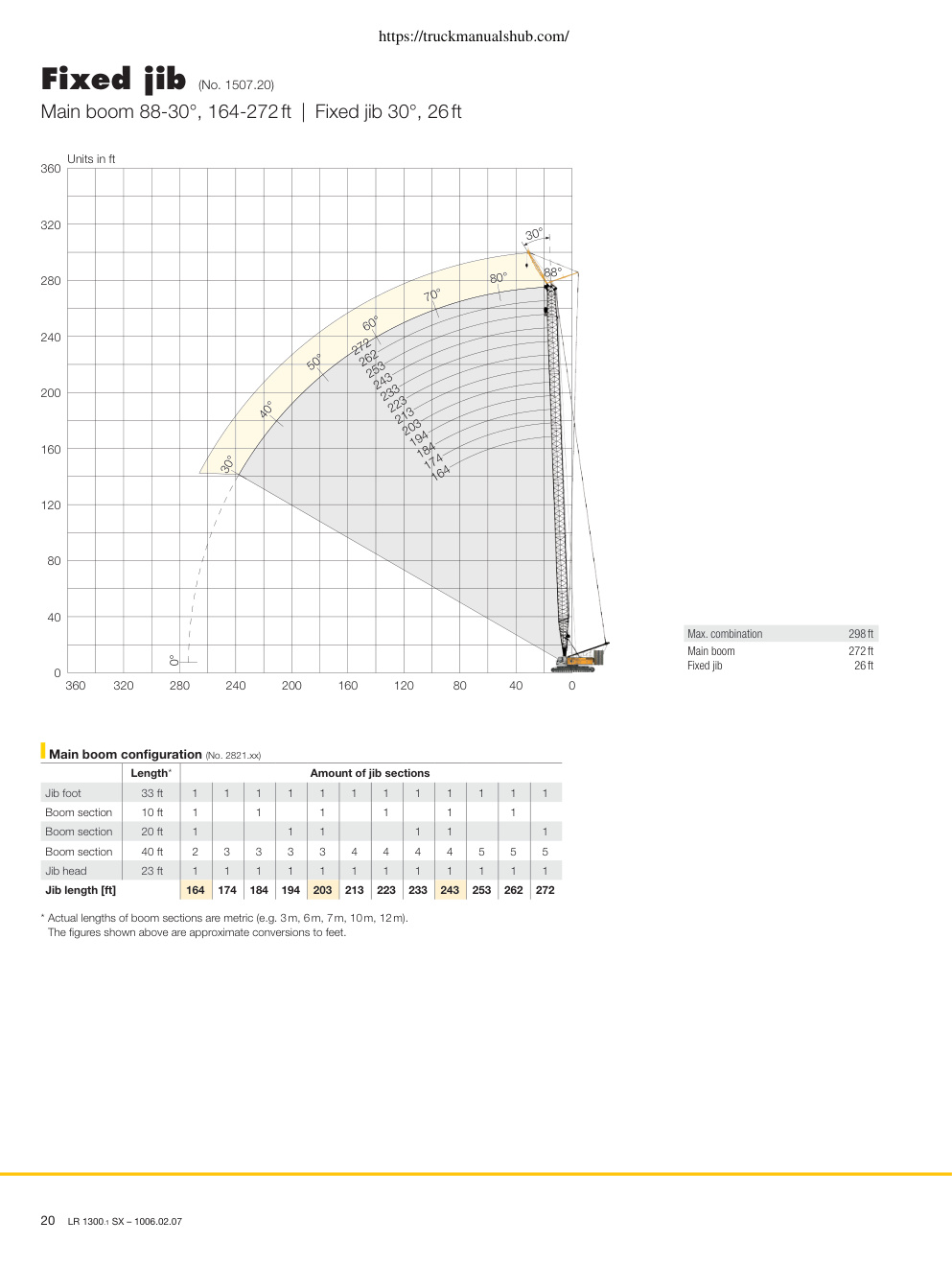

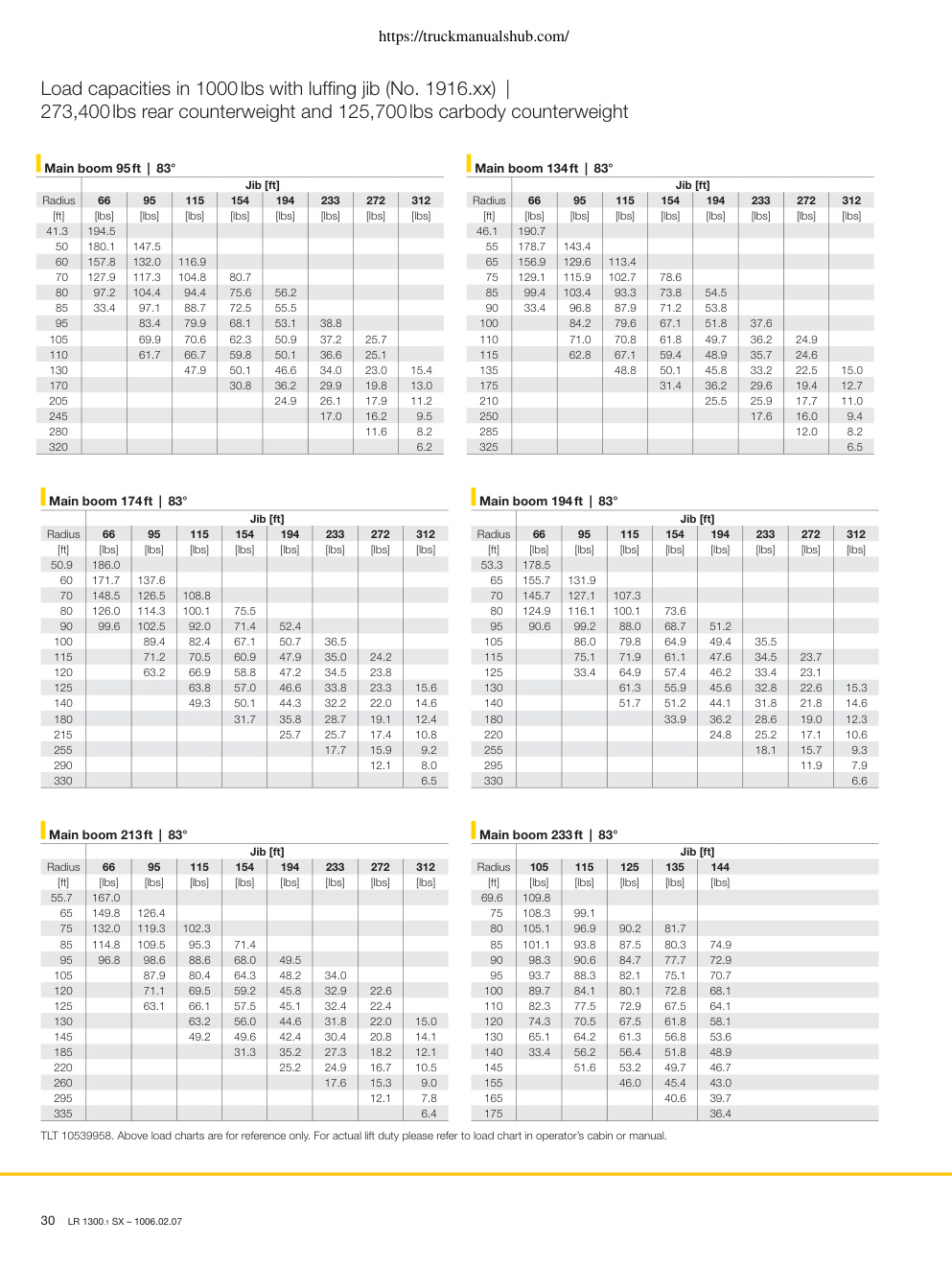

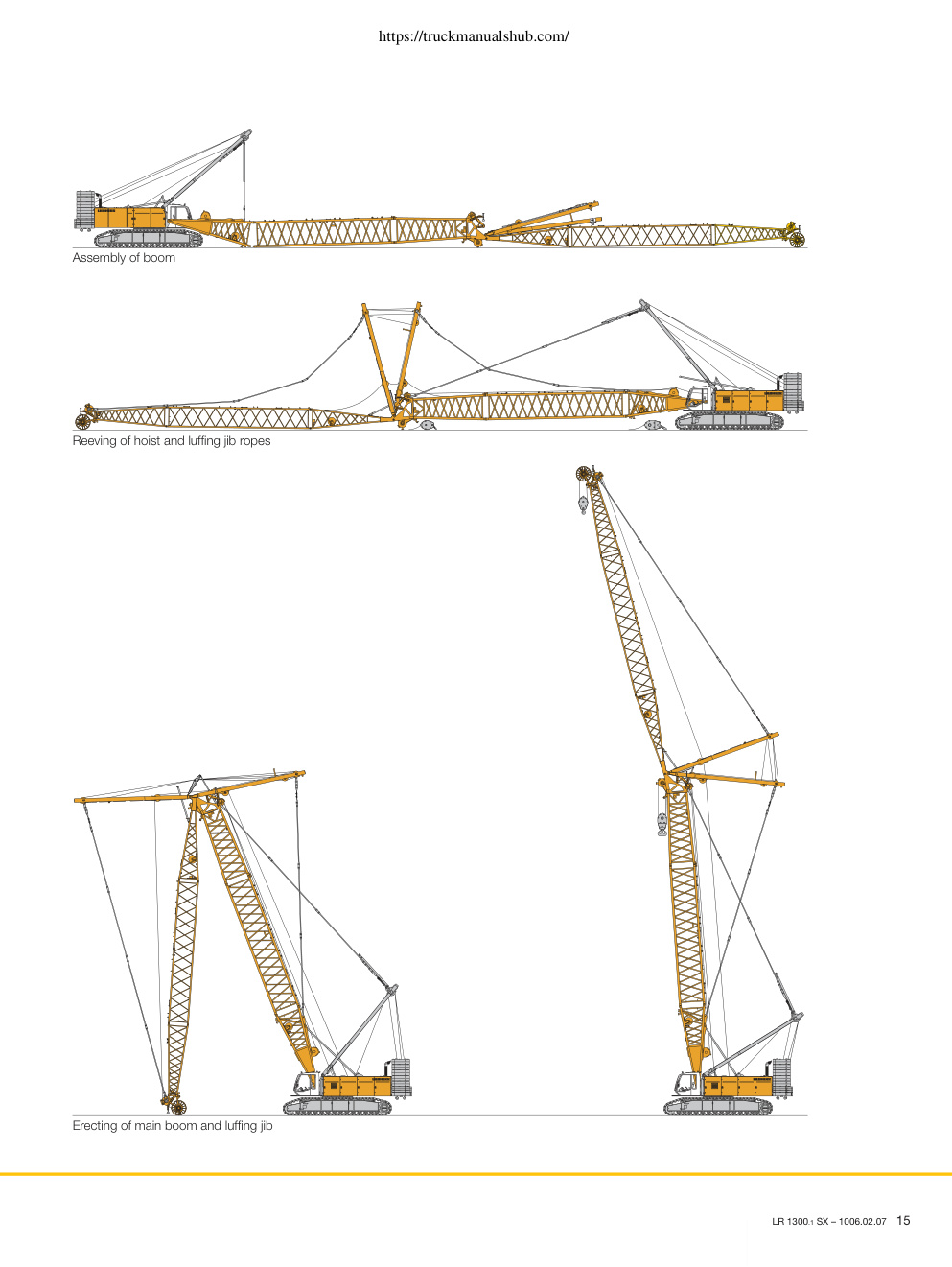

https://truckmanualshub.com/ Crawler crane Complies with ANSI/ASME B 30.5 EN-USLR 1300.1 SX LR 1006.02.07 https://truckmanualshub.com/ Concept and characteristics Pulley block with additional weights Main boom Pendants A-frame Uppercarriage Rear counterweight Undercarriage 2 LR 1300.1 SX – 1006.02.07 https://truckmanualshub.com/ Cabin with high comfort optimized view improved soundproofing orthopaedic seat Additional safety platform Carbody counterweight Crawler side frames with 3´11´´ flat track pads 4´11´´ flat track pads (option) Platforms Counterweight slab 11,023 lbs Pulley set Counterweight slab 22,046 lbs Basic counterweight slab 30,865 lbs LR 1300.1 SX – 1006.02.07 3 https://truckmanualshub.com/ Dimensions Standard 27´8´´ ** 5´7´´ ** R 32´ R 33´4´´ 16´7´´ ** 7´5´´ 5´3´´ 27´11´´ ** Boom pivot point 31´9´´ 6´2´´ * Option: crawler side frames with (31´9´´)* (6´1´´)* 4´11´´ flat track pads 22´11´´ R 22´8´´ (4´11´´)* 3´11´´ 1´7´´(1´7´´)* 28´1´´ 26´3´´ 67´ (27´3´´)* Operating weight Remarks The operating weight includes the basic machine with crawler side 1. The lifting capacities stated are valid for lifting operation only (corre- frames, winches 1 + 2 (2x 33,721 lbf) incl. 2…
