Product advantages Mobile crane LTM 1090/3 Max. lifting capacity: 90 t Max. height under hook: 84 m with biparted swing-away jib Max. radius: 58 m with biparted swing-away jib The performance profile of the LTM 1090/3 at a glance. Outstanding lifting capacities, the strongest 4-axle Rapid-cycle telescoping system “Telematik” with pa- crane on the market tented internal interlocking system, fully automatic or Powerful, energy-saving and emission-optimized Lieb- manually controlled telescoping is practicable herr Diesel engines, carrier engine of 460 kW output 10,8 m – 19,5 m long biparted swing-away jib, mountable (EURO 3) and with fully electronic engine management, at 0°, 20° and 40°, hydraulic erection aid, hydraulically crane engine of 149 kW output adjustable biparted swing-away jib (optional) Ultramodern data bus technology with three CAN busses Two intermediate sections of 7 m each

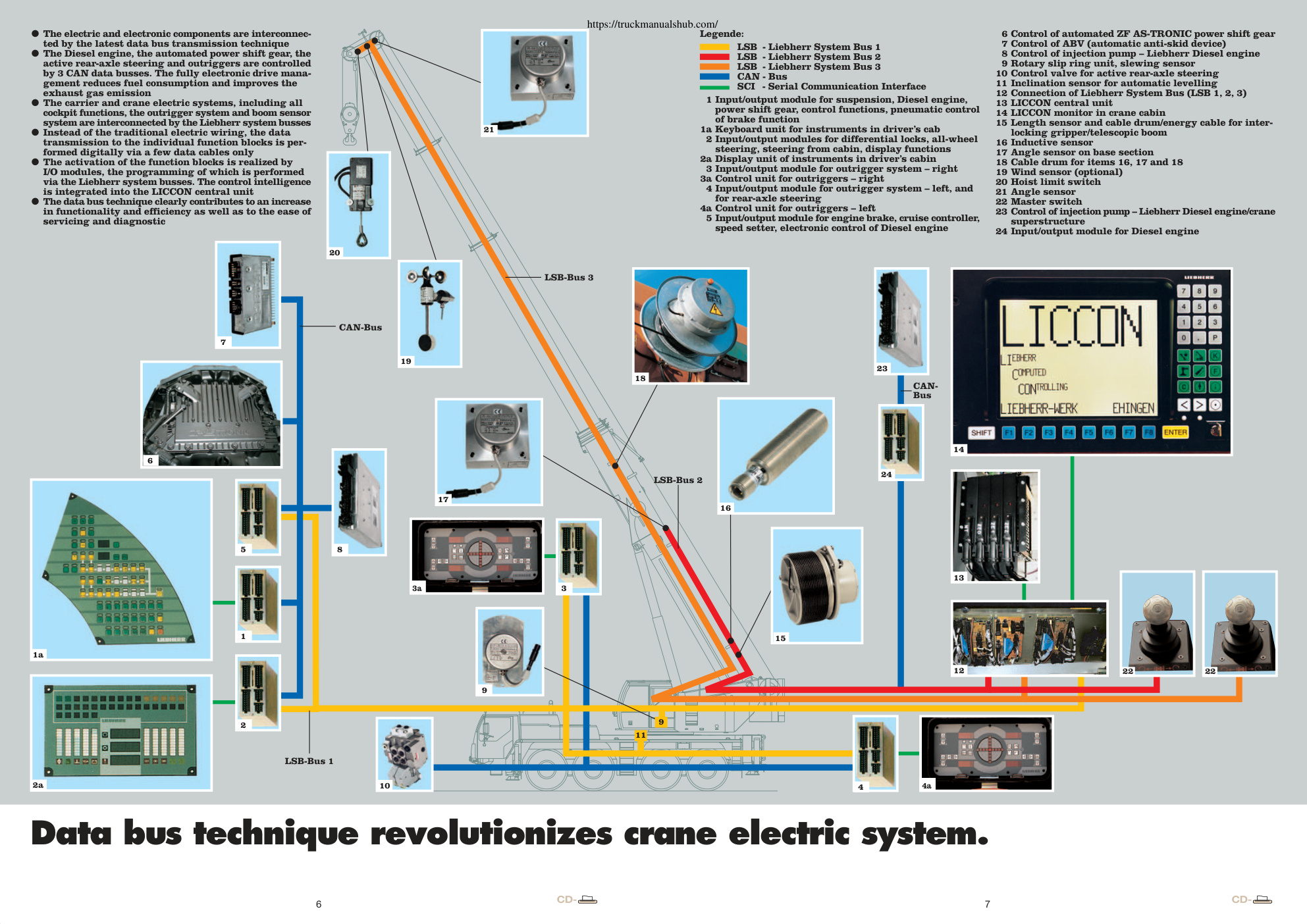

https://truckmanualshub.com/ Product advantages Mobile crane LTM 1090/3 Max. lifting capacity: 90 t Max. height under hook: 84 m with biparted swing-away jib Max. radius: 58 m with biparted swing-away jib The performance profile of the LTM 1090/3 at a glance. Outstanding lifting capacities, the strongest 4-axle Rapid-cycle telescoping system “Telematik” with pa- crane on the market tented internal interlocking system, fully automatic or Powerful, energy-saving and emission-optimized Lieb- manually controlled telescoping is practicable herr Diesel engines, carrier engine of 460 kW output 10,8 m – 19,5 m long biparted swing-away jib, mountable (EURO 3) and with fully electronic engine management, at 0°, 20° and 40°, hydraulic erection aid, hydraulically crane engine of 149 kW output adjustable biparted swing-away jib (optional) Ultramodern data bus technology with three CAN busses Two intermediate sections of 7 m each for the extension and three Liebherr system busses of the telescopic boom at operation with swing-away Active rear-axle steering: Electrohydraulic and speed- jib, max. height under hook 84 m dependent steering of the 4th axle LICCON, the most modern crane computer…
