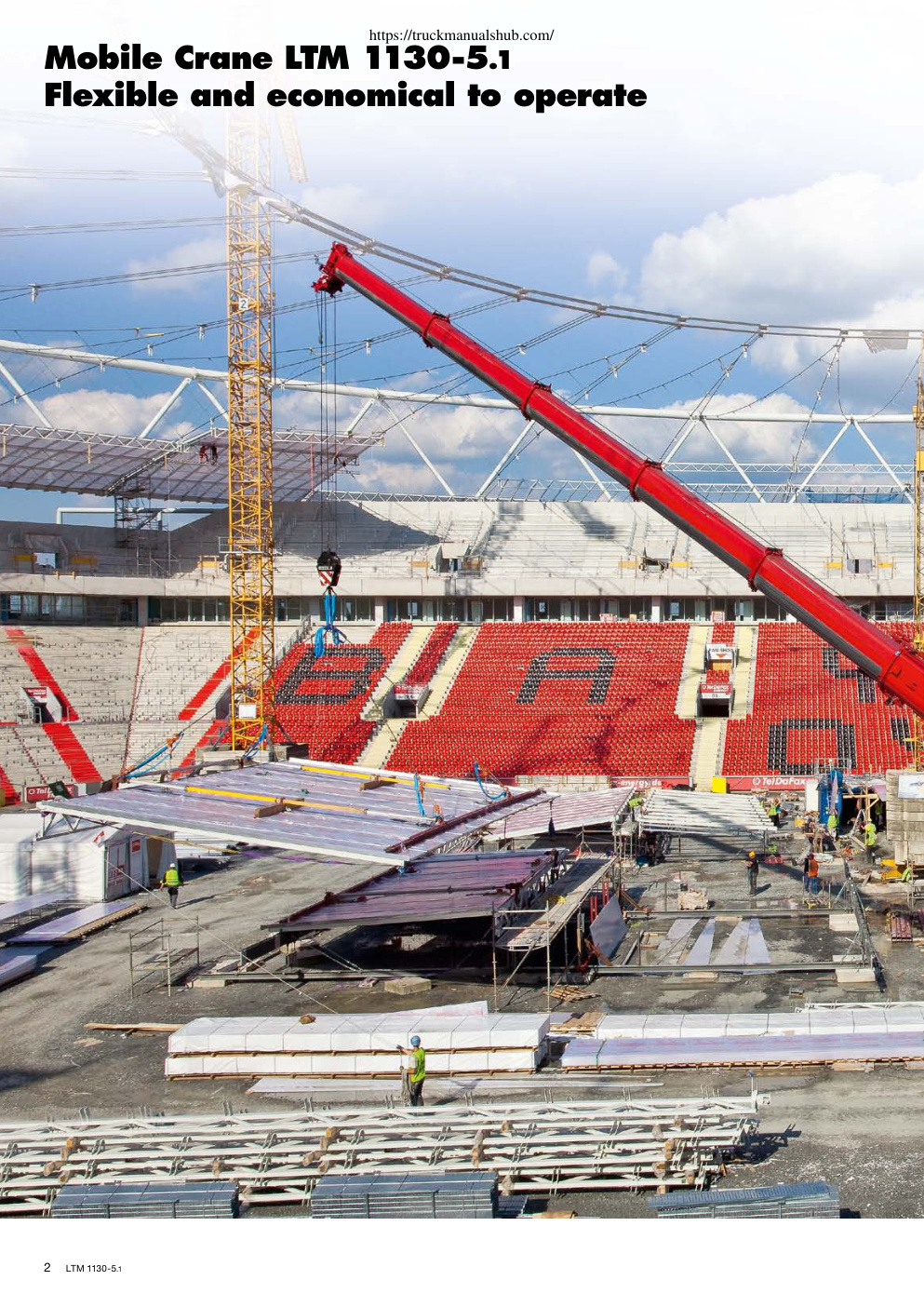

Mobile crane LTM 1130-5.1 Max. lifting capacity: 130t Max. lifting height: 91m Max. working radius: 72m Mobile Crane LTM 1130-5.1 Flexible and economical to operate

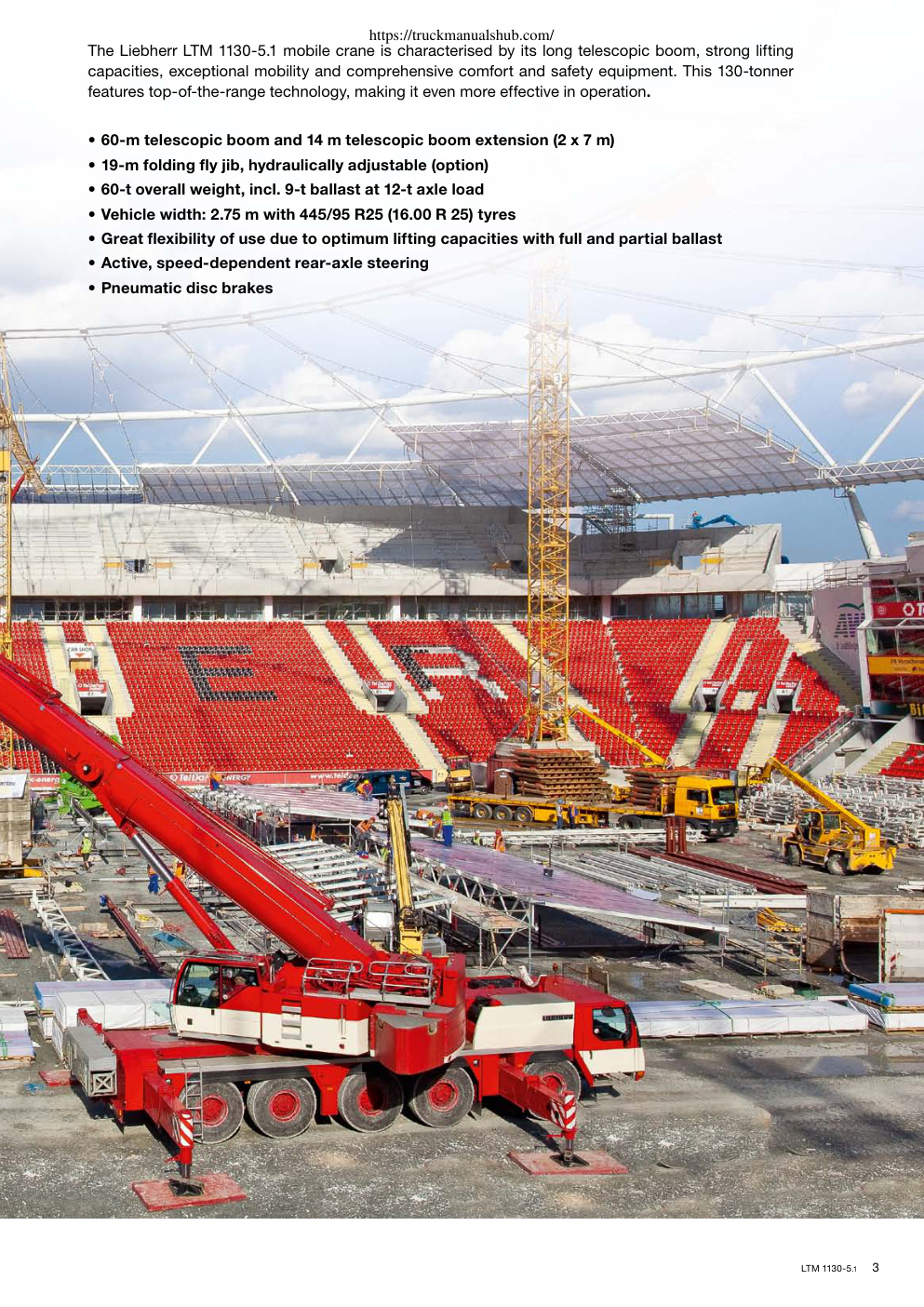

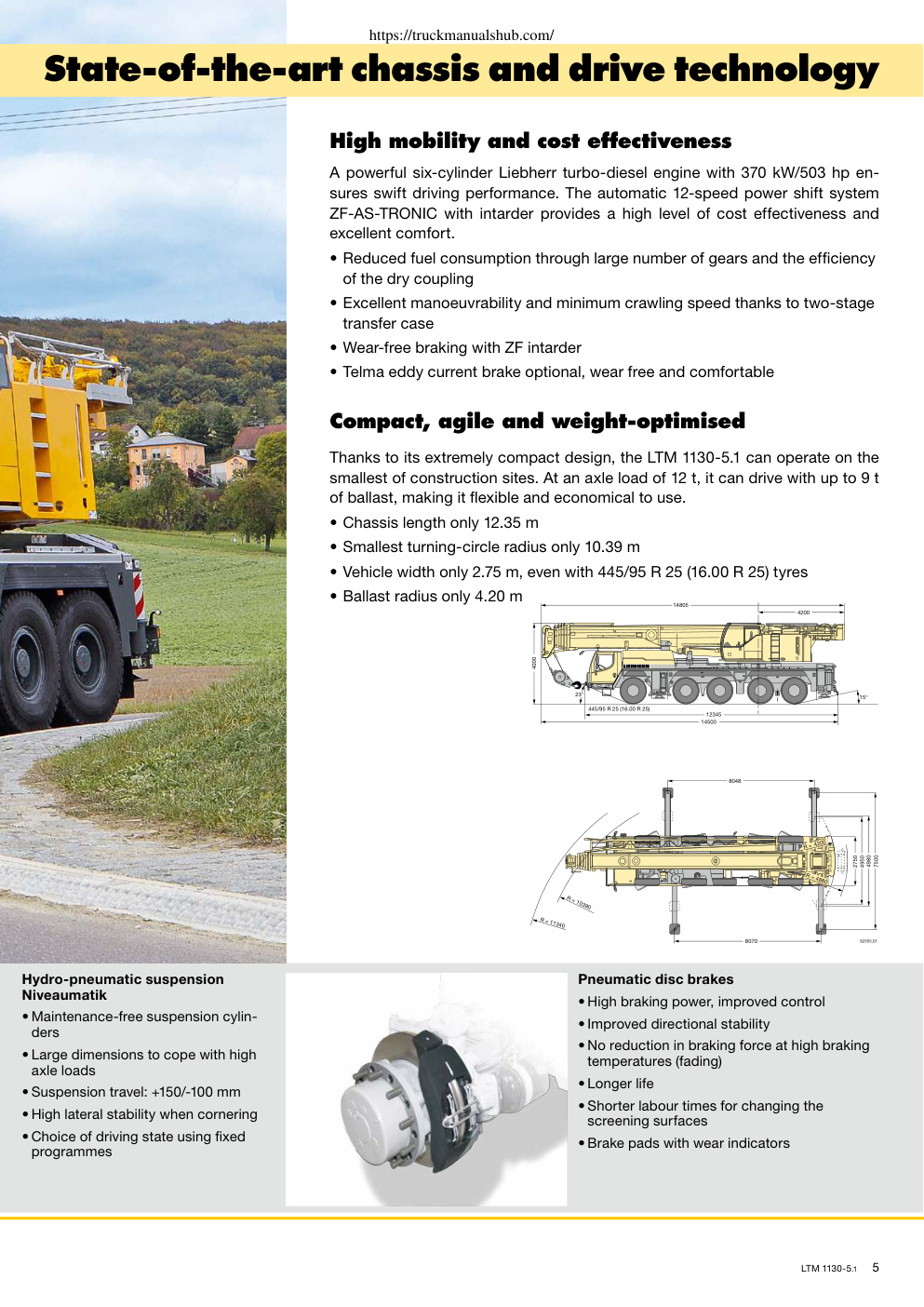

https://truckmanualshub.com/ Mobile crane LTM 1130-5.1 Max. lifting capacity: 130 t Max. lifting height: 91 m Max. working radius: 72 m https://truckmanualshub.com/ Mobile Crane LTM 1130-5.1 Flexible and economical to operate 2 LTM 1130-5.1 https://truckmanualshub.com/ The Liebherr LTM 1130-5.1 mobile crane is characterised by its long telescopic boom, strong lifting capacities, exceptional mobility and comprehensive comfort and safety equipment. This 130-tonner features top-of-the-range technology, making it even more effective in operation. • 60-m telescopic boom and 14 m telescopic boom extension (2 x 7 m) • 19-m folding fly jib, hydraulically adjustable (option) • 60-t overall weight, incl. 9-t ballast at 12-t axle load • Vehicle width: 2.75 m with 445/95 R25 (16.00 R 25) tyres • Great flexibility of use due to optimum lifting capacities with full and partial ballast • Active, speed-dependent rear-axle steering • Pneumatic disc brakes LTM 1130-5.1 3 https://truckmanualshub.com/ Drivetrain • Six-cylinder Liebherr turbo-diesel engine, 370 kW/503 hp, max. torque: 2355 Nm • Automated ZF AS-TRONIC gearbox, 12 forward and 2 reverse speeds • ZF intarder directly at the gearbox •…
