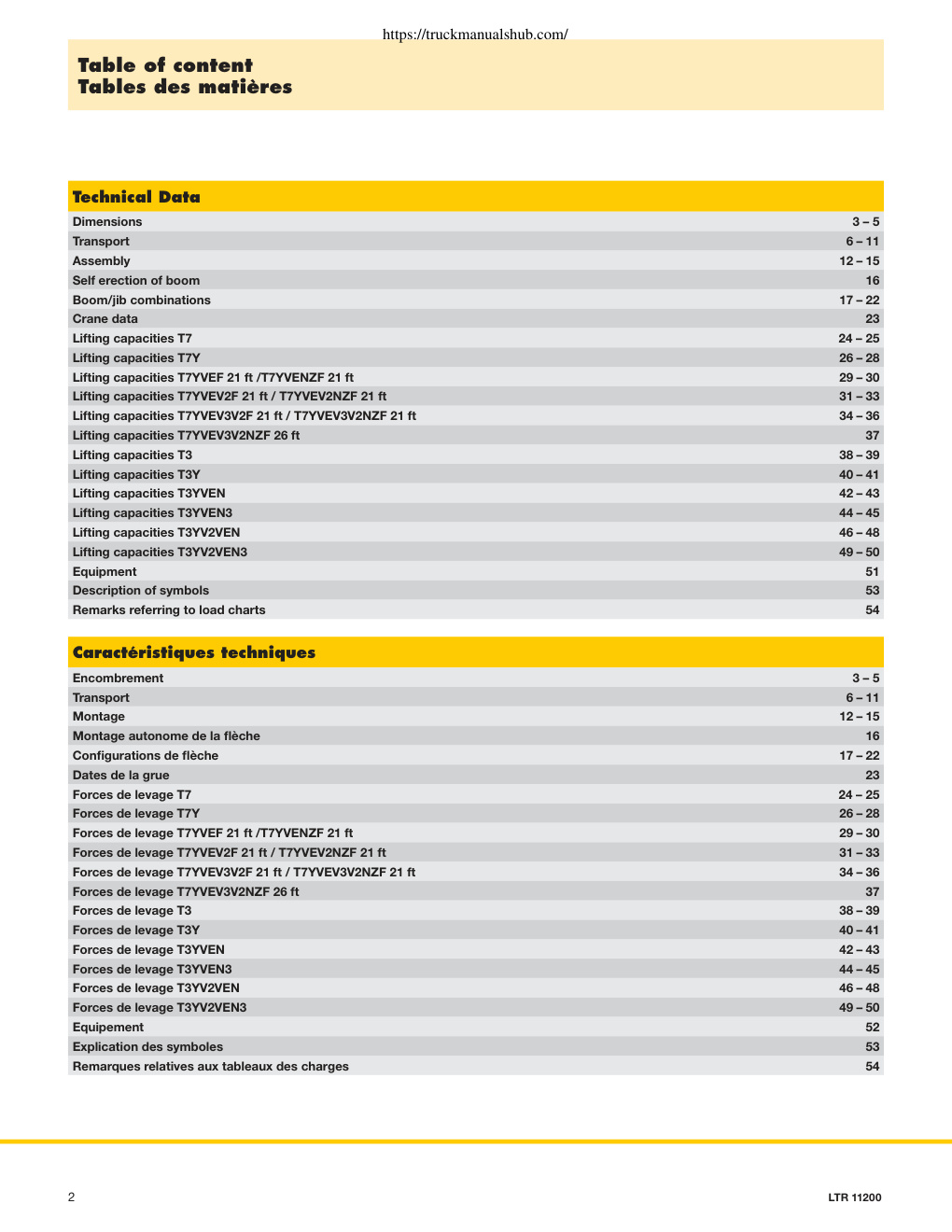

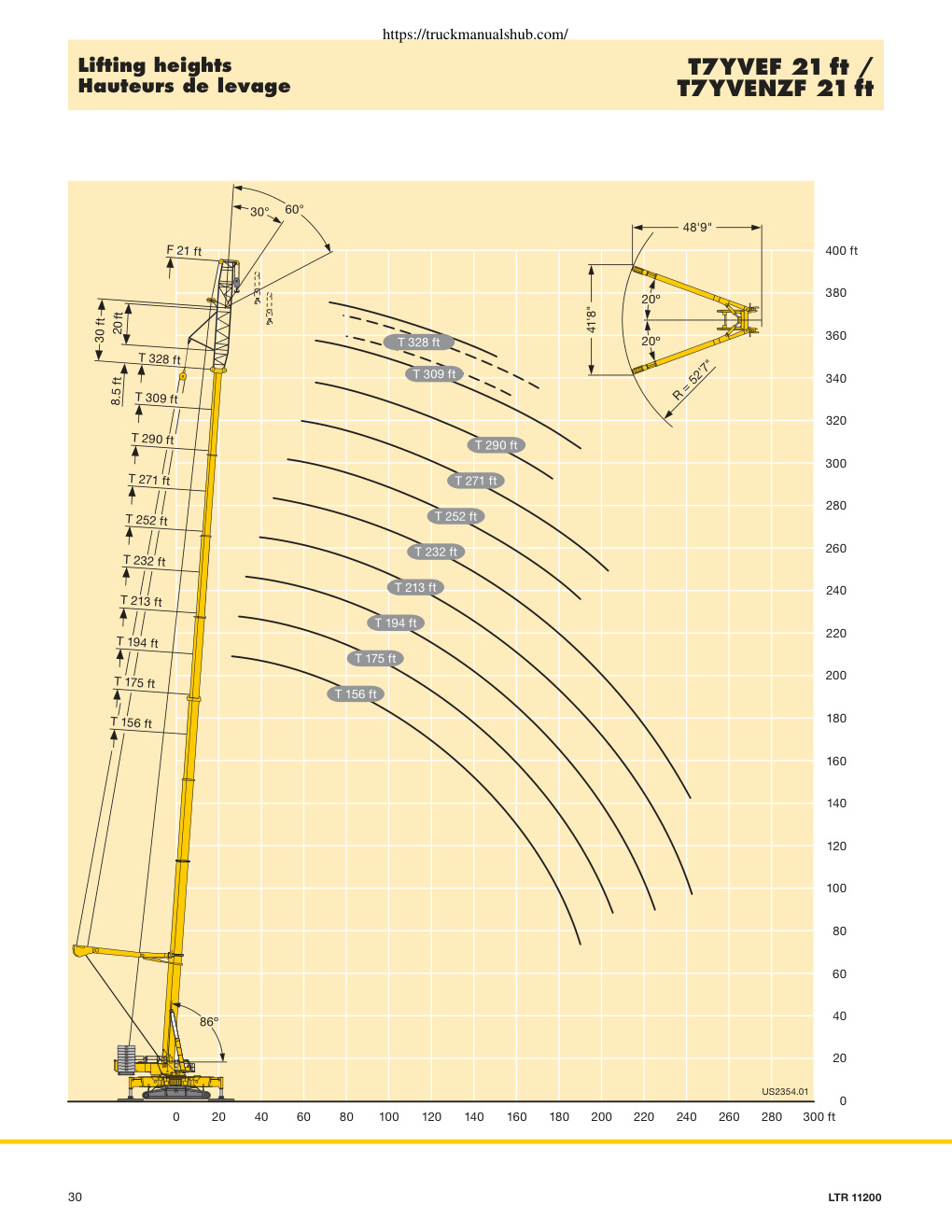

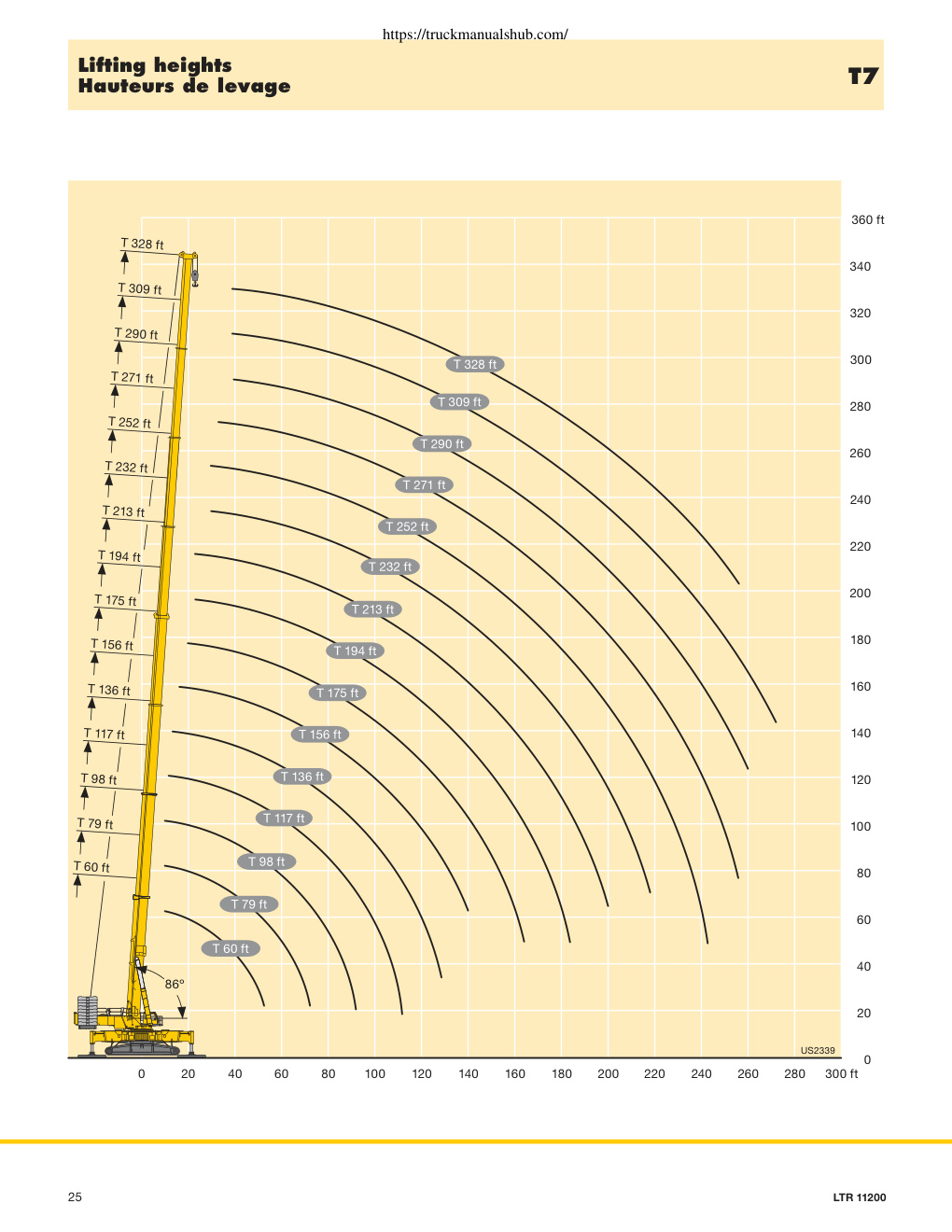

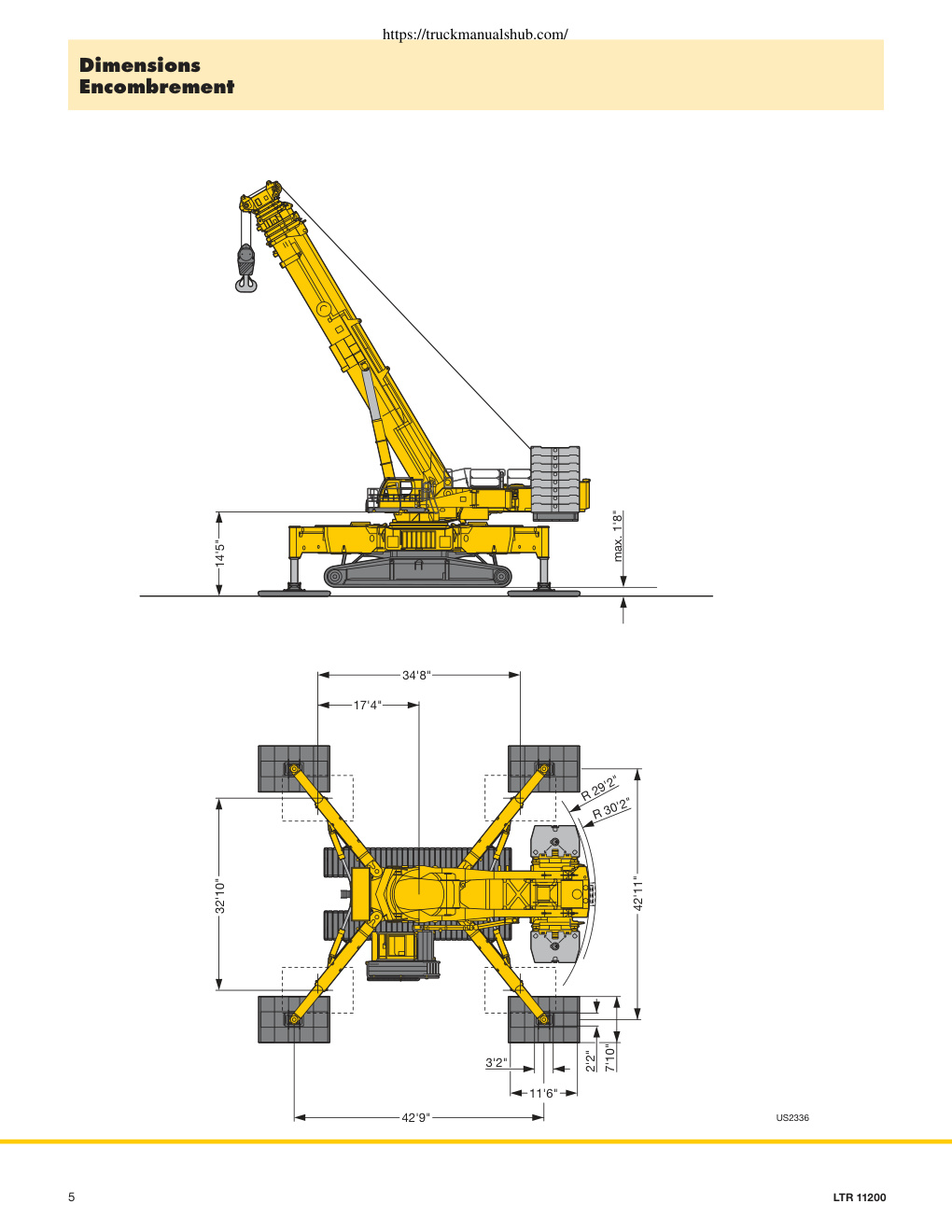

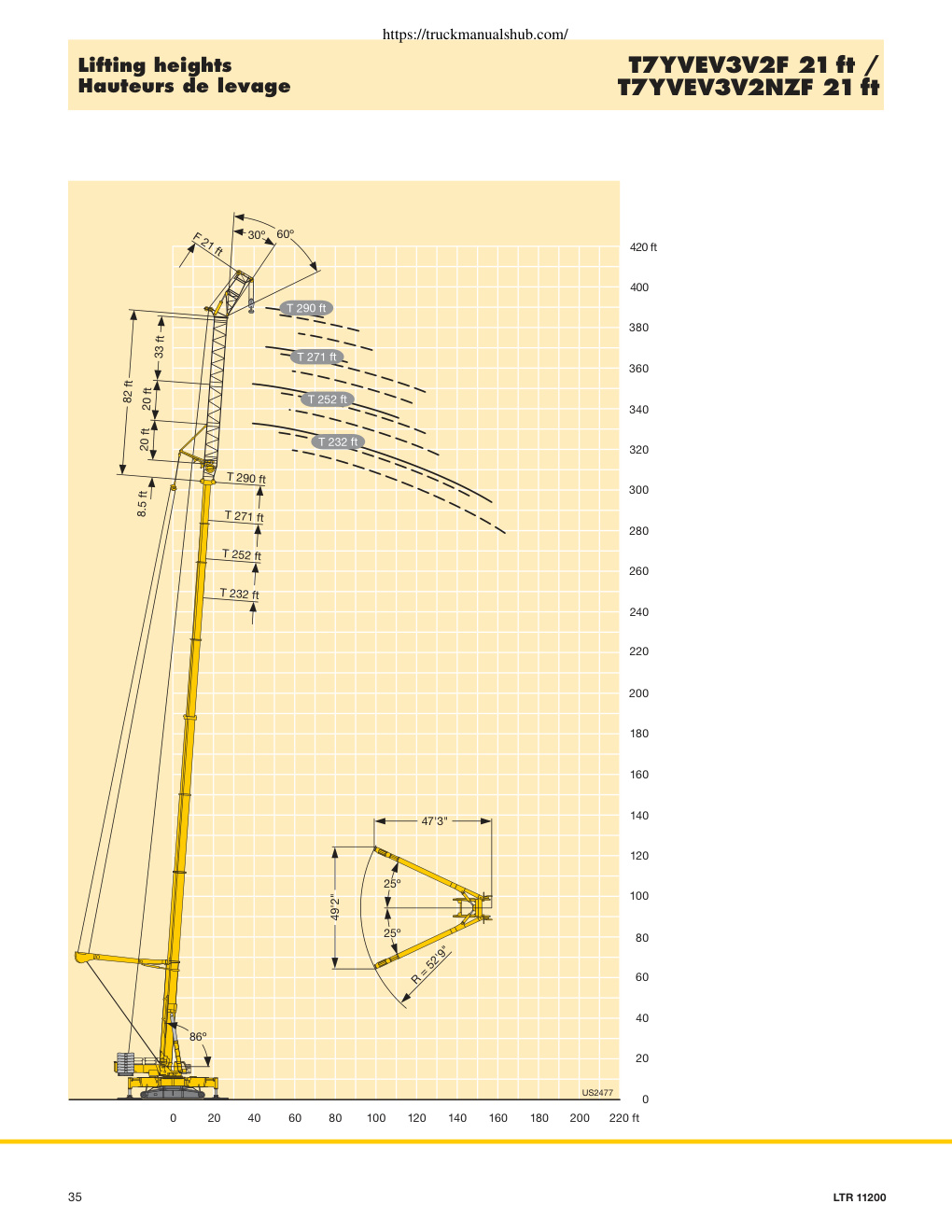

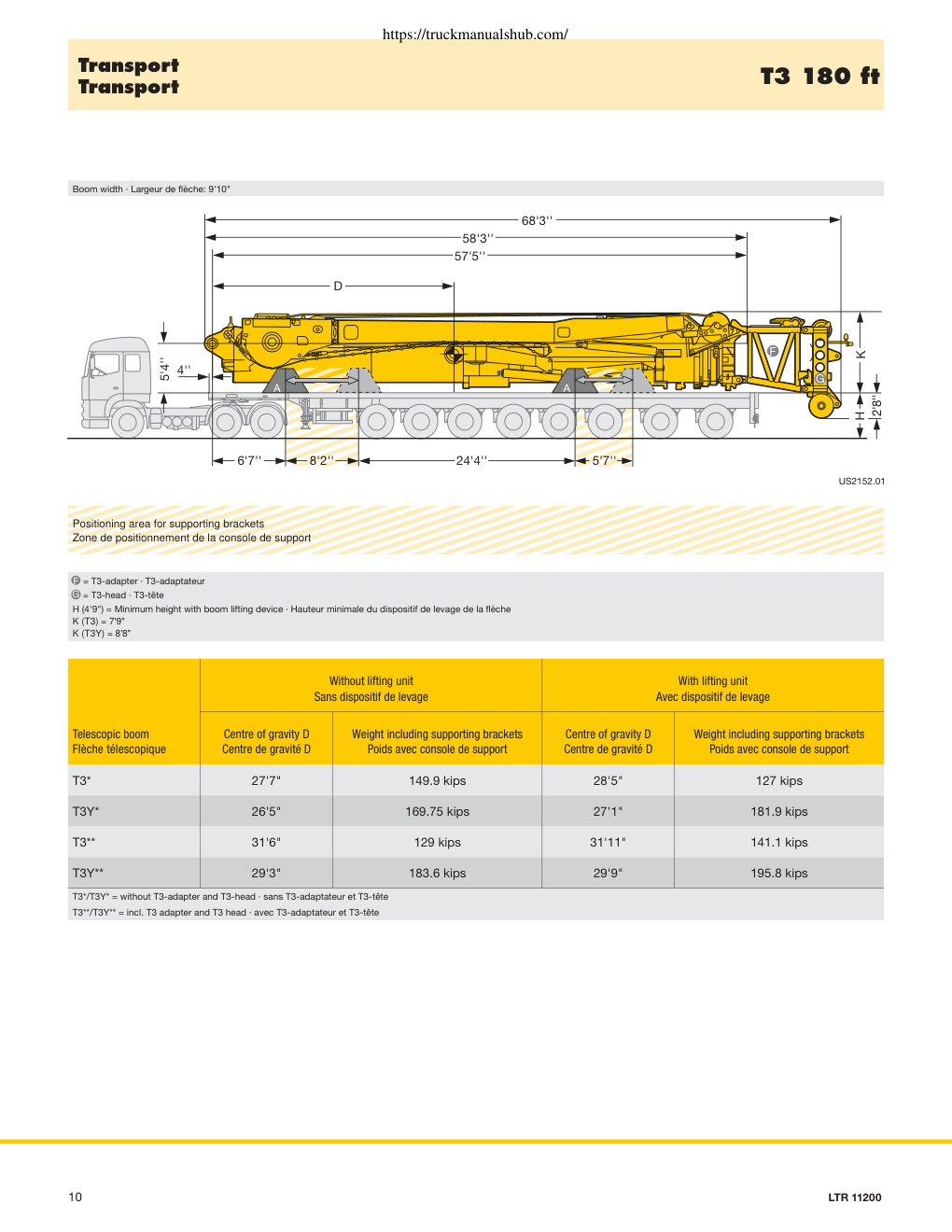

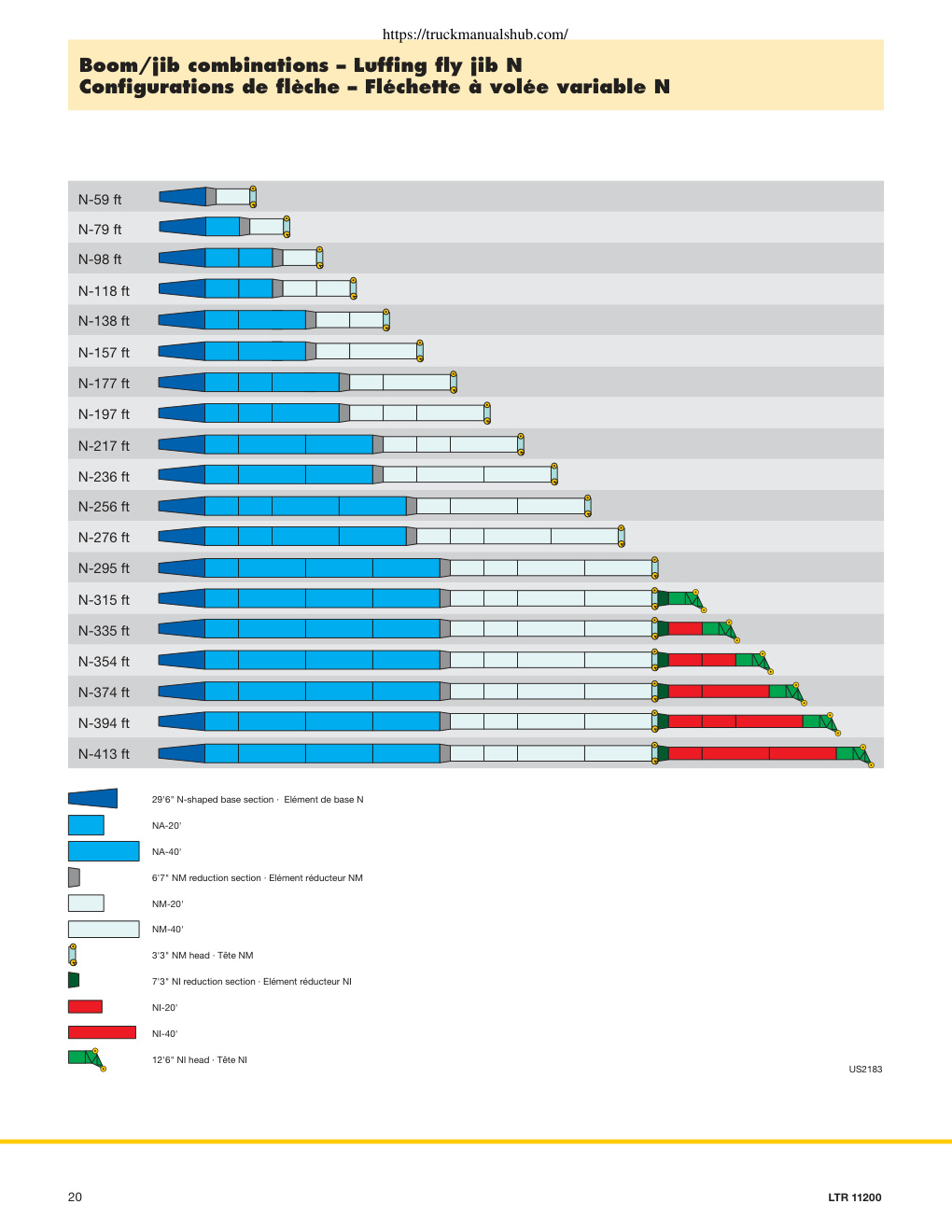

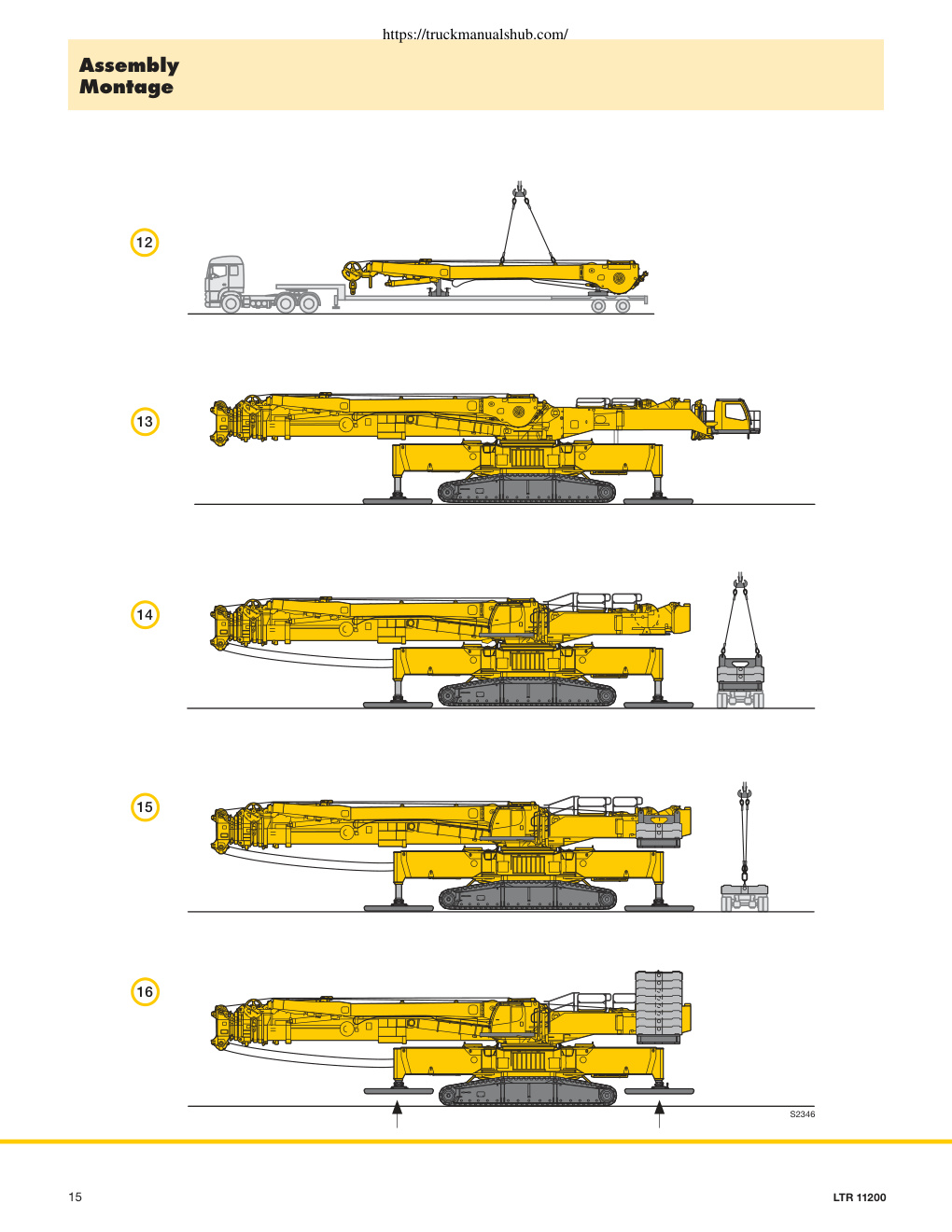

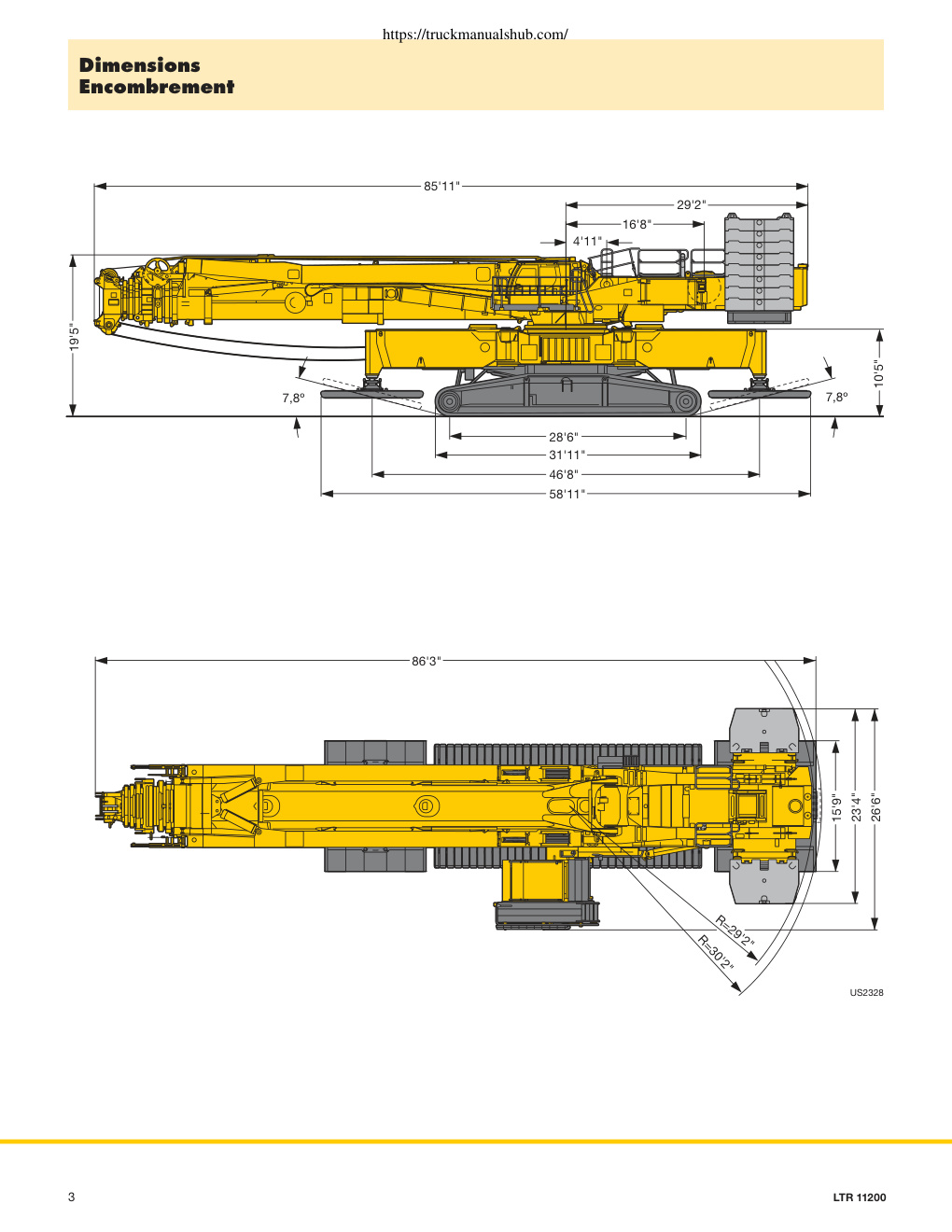

Telescopic Crawler Crane LTR 11200 Grue télescopique sur chenilles · av ec applicaCaractéristiques techniques ons ati tions plic de ap Table of content Tables des matières Dimensions 3 – 5 Transport 6 – 11 Assembly 12 – 15 Self erection of boom 16 Boom/jib combinations 17 – 22 Lifting capacities T7 24 – 25 Lifting capacities T7Y 26 – 28 Lifting capacities T7YVEF 21 ft /T7YVENZF 21 ft 29 – 30 Lifting capacities T7YVEV2F 21 ft / T7YVEV2NZF 21 ft 31 – 33 Lifting capacities T7YVEV3V2F 21 ft / T7YVEV3V2NZF 21 ft 34 – 36 Lifting capacities T7YVEV3V2NZF 26 ft 37 Lifting capacities T3 38 – 39 Lifting capacities T3Y 40 – 41 Lifting capacities T3YVEN 42 – 43 Lifting capacities T3YVEN3 44 – 45 Lifting capacities T3YV2VEN 46 – 48 Lifting capacities T3YV2VEN3 49 – 50 Description of symbols 53 Remarks referring to load charts 54 Caractéristiques techniques Encombrement 3 – 5 Transport 6 – 11 Montage 1

https://truckmanualshub.com/ Telescopic Crawler Crane LTR 11200 Grue télescopique sur chenilles Technical Data · av ec applicaCaractéristiques techniques ons ati tions plic de ap r c e e p ow ntral d e in éo w li hti nne w e https://truckmanualshub.com/ Table of content Tables des matières Technical Data Dimensions 3 – 5 Transport 6 – 11 Assembly 12 – 15 Self erection of boom 16 Boom/jib combinations 17 – 22 Crane data 23 Lifting capacities T7 24 – 25 Lifting capacities T7Y 26 – 28 Lifting capacities T7YVEF 21 ft /T7YVENZF 21 ft 29 – 30 Lifting capacities T7YVEV2F 21 ft / T7YVEV2NZF 21 ft 31 – 33 Lifting capacities T7YVEV3V2F 21 ft / T7YVEV3V2NZF 21 ft 34 – 36 Lifting capacities T7YVEV3V2NZF 26 ft 37 Lifting capacities T3 38 – 39 Lifting capacities T3Y 40 – 41 Lifting capacities T3YVEN 42 – 43 Lifting capacities T3YVEN3 44 – 45 Lifting capacities T3YV2VEN 46 – 48 Lifting capacities T3YV2VEN3 49 – 50 Equipment 51 Description of symbols 53 Remarks referring to load charts 54 Caractéristiques techniques Encombrement 3 – 5 Transport 6 – 11 Montage 12 – 15 Montage autonome de la flèche 16 Configurations de flèche 17 – 22 Dates de la grue 23 Forces de levage T7 24 – 25 Forces de levage…
