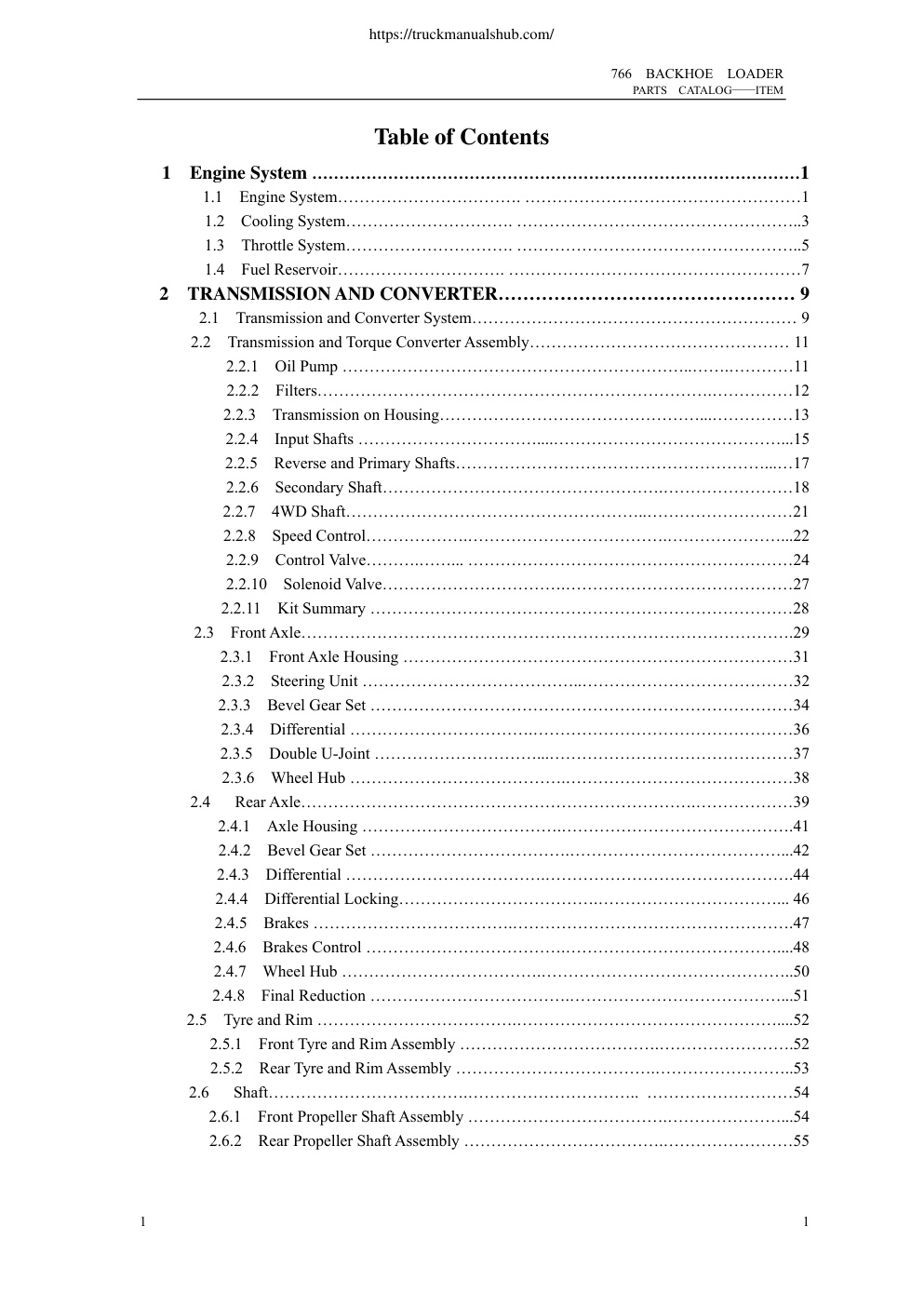

GUANGXI LIUGONG MACHINERY 766 BACKHOE LOADER PARTS CATALOG——ITEM Table of Contents 1 Engine System ………………………………………………………………………………1 1.1 Engine System……………………………. ……………………………………………1 1.2 Cooling System…………………………. ……………………………………………..3 1.3 Throttle System…………………………. ……………………………………………..5 1.4 Fuel Reservoir…………………………. ………………………………………………7 2 TRANSMISSION AND CONVERTER………………………………………… 9 2.1 Transmission and Converter System…………………………………………………… 9 2.2 Transmission and Torque Converter Assembly………………………………………… 11 2.2.1 Oil Pump ………………………………………………………..…….…………11 2.2.2 Filters……………………………………………………………….……………12 2.2.3 Transmission on Housing…………………………………………...……………13 2.2.4 Input Shafts ……………………………....……………………………………...15 2.2.5 Reverse and Primary Shafts…………………………………………………...…17 2.2.6 Secondary Shaft…………………………………………….……………………18 2.2.7 4WD Shaft………………………………………………..………………………21 2.2.8 Speed Control……………….……

https://truckmanualshub.com/ 766 BACKHOE LOADER PARTS CATALOG GUANGXI LIUGONG MACHINERY CO.LTD https://truckmanualshub.com/ 766 BACKHOE LOADER PARTS CATALOG——ITEM Table of Contents 1 Engine System ………………………………………………………………………………1 1.1 Engine System……………………………. ……………………………………………1 1.2 Cooling System…………………………. ……………………………………………..3 1.3 Throttle System…………………………. ……………………………………………..5 1.4 Fuel Reservoir…………………………. ………………………………………………7 2 TRANSMISSION AND CONVERTER………………………………………… 9 2.1 Transmission and Converter System…………………………………………………… 9 2.2 Transmission and Torque Converter Assembly………………………………………… 11 2.2.1 Oil Pump ………………………………………………………..…….…………11 2.2.2 Filters……………………………………………………………….……………12 2.2.3 Transmission on Housing…………………………………………...……………13 2.2.4 Input Shafts ……………………………....……………………………………...15 2.2.5 Reverse and Primary Shafts…………………………………………………...…17 2.2.6 Secondary Shaft…………………………………………….……………………18 2.2.7 4WD Shaft………………………………………………..………………………21 2.2.8 Speed Control……………….……………………………….…………………...22 2.2.9 Control Valve……….……... ……………………………………………………24 2.2.10 Solenoid Valve…………………………….……………………………………27 2.2.11 Kit Summary ……………………………………………………………………28 2.3 Front…
