Gross Power 112 kW (152 hp) @ 1,950 rpm Net Power 102 kW (139 hp) @ 1,950 rpm Maximum Digging Depth 6,615 mm Standard Bucket Capacity 0.88 m3 Operating Weight 20,500 kg ENGINE REFERENCE ARM Emission Regulation Tier 2 / Stage II Arm Length 2,910 mm Make Cummins Arm Breakout Force, normal, ISO 95 kN Gross Power 112 kW (152 hp) @ 1,950 rpm Arm Breakout Force, boost, ISO 103 kN Net Power 102 kW (139 hp) @ 1,950 rpm Peak Torque 614 N·m @ 1,500 rpm WORKING RANGES Number of Cylinders 6 Maximum Dig Depth 6,615 mm Displacement 5.9 L Reach at Ground Level 9,705 mm Depth of 8’ Level Bottom 6,410 mm TRACK DRIVE Maximum Dig Height 9,540 mm Maximum Travel Speed 4.9 km/h Dump Height 6,770 mm Gradeability 70 % Maximum Dig Depth of Vertical Wall 5,655 mm Drawbar Pull 195 kN BUCKET PERFORMANCE UNDERCARRIAGE Standard Bucket Heaped Capacity (Referenced) 0.88 m3 Shoe Width 600 mm Minimum Heaped Capacity of B

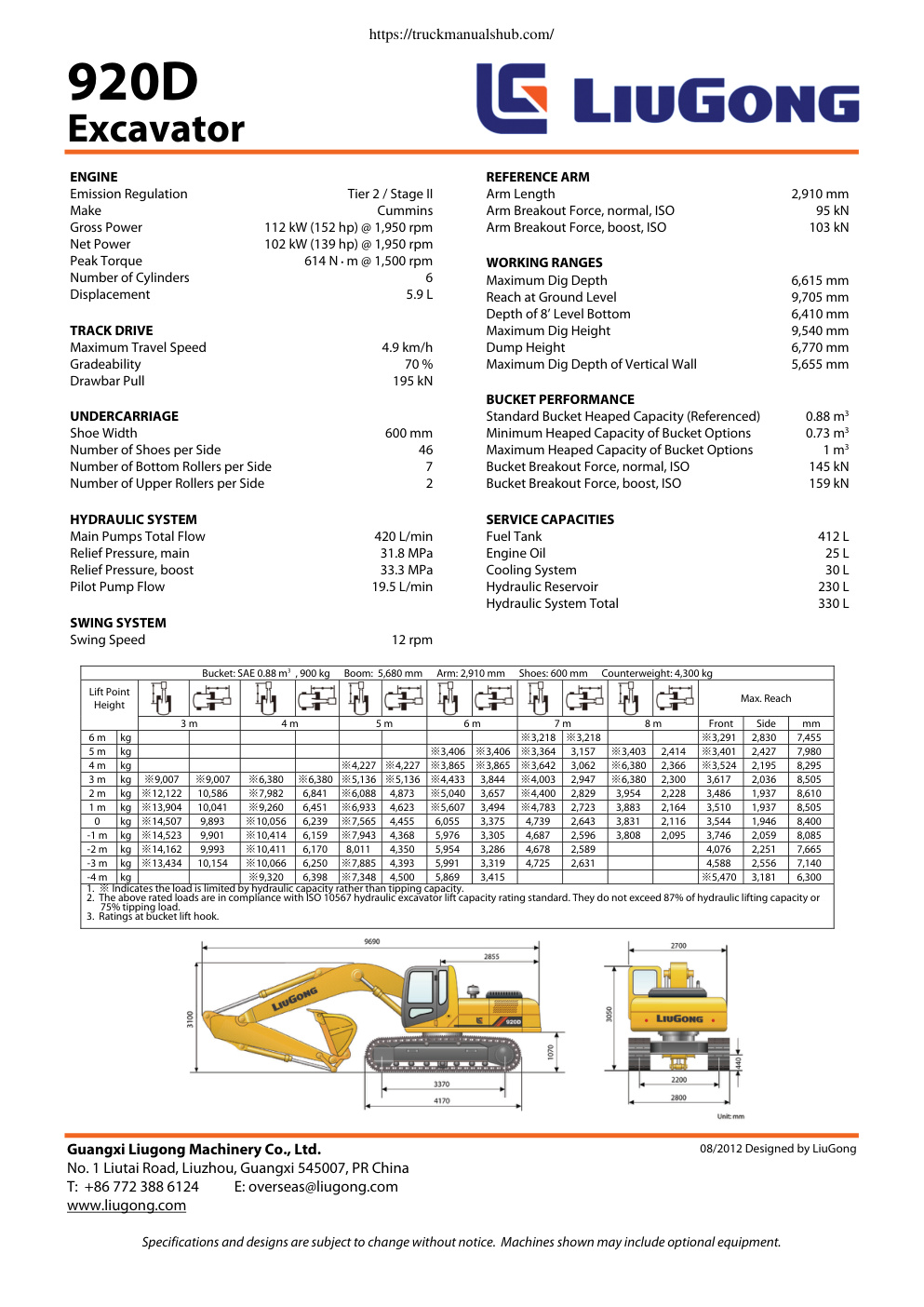

https://truckmanualshub.com/ 920D Excavator Engine Cummins Gross Power 112 kW (152 hp) @ 1,950 rpm Net Power 102 kW (139 hp) @ 1,950 rpm Maximum Digging Depth 6,615 mm Standard Bucket Capacity 0.88 m3 Operating Weight 20,500 kg www.liugong.com https://truckmanualshub.com/ 920D Excavator ENGINE REFERENCE ARM Emission Regulation Tier 2 / Stage II Arm Length 2,910 mm Make Cummins Arm Breakout Force, normal, ISO 95 kN Gross Power 112 kW (152 hp) @ 1,950 rpm Arm Breakout Force, boost, ISO 103 kN Net Power 102 kW (139 hp) @ 1,950 rpm Peak Torque 614 N·m @ 1,500 rpm WORKING RANGES Number of Cylinders 6 Maximum Dig Depth 6,615 mm Displacement 5.9 L Reach at Ground Level 9,705 mm Depth of 8’ Level Bottom 6,410 mm TRACK DRIVE Maximum Dig Height 9,540 mm Maximum Travel Speed 4.9 km/h Dump Height 6,770 mm Gradeability 70 % Maximum Dig Depth of Vertical Wall 5,655 mm Drawbar Pull 195 kN BUCKET PERFORMANCE UNDERCARRIAGE Standard Bucket Heaped Capacity (Referenced) 0.88 m3 Shoe Width 600 mm Minimum Heaped Capacity of Bucket Options 0.73 m3 Number of Shoes per Side 46 Maximum Heaped Capacity of Bucket Options 1 m3 Number of Bottom Rollers per Side 7 Bucket Breakout Force, normal, ISO 145 kN…
