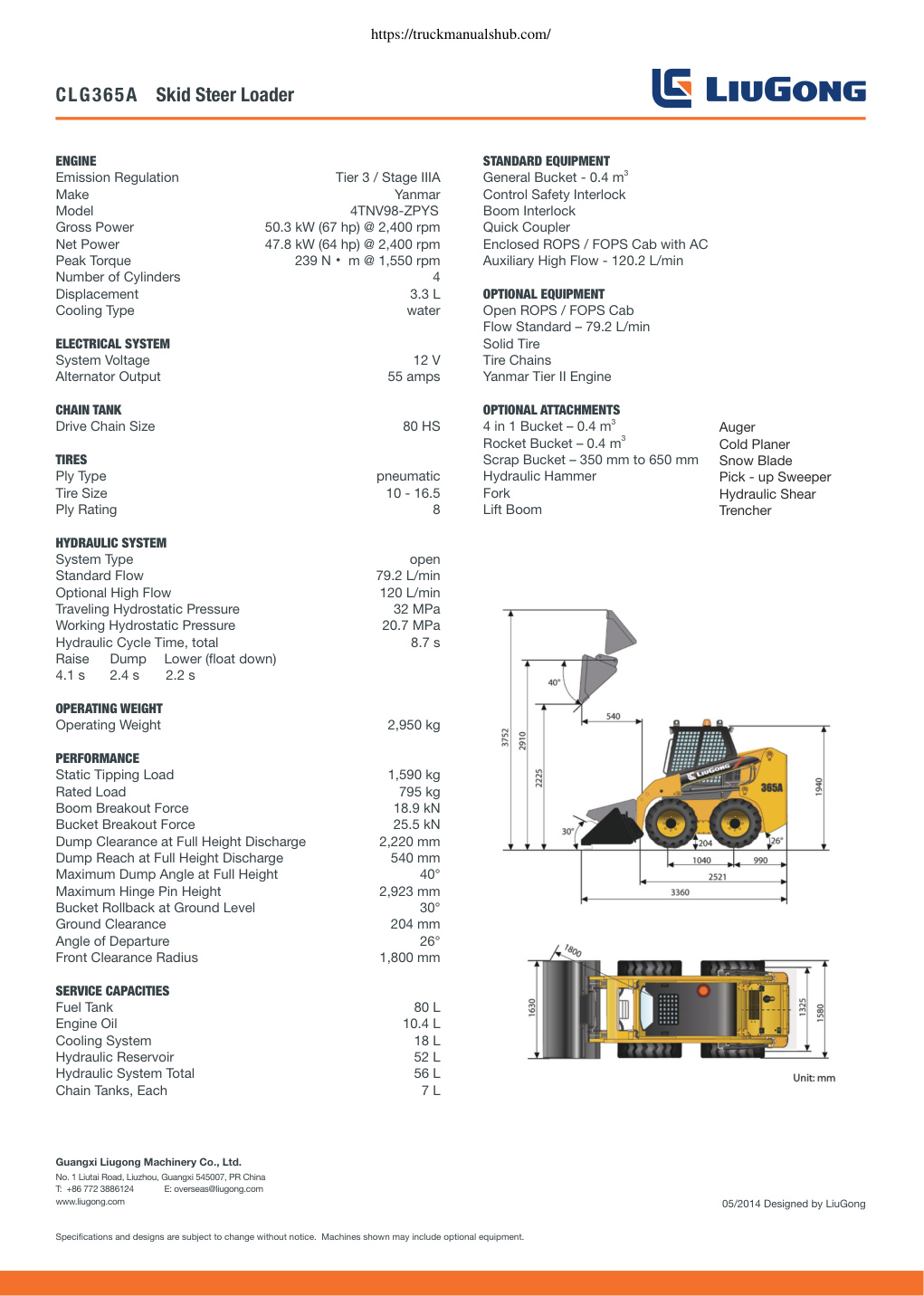

LiuGong CLG365A Skid Steer Loader Technical Specifications.pdf

Engine Yanmar 4TNV98-ZPYS Gross Power 50.3 kW (67 hp) @ 2,400 rpm Net Power 47.8 kW (64 hp) @ 2,400 rpm Breakout Force 25.5 kN Rated Load 795 kg Bucket Capacity 0.4 m³ Operating Weight 2,950 kg Skid Steer Loader TOUGH WORLD. TOUGH EQUIPMENT. CLG365A Skid Steer Loader ENGINE STANDARD EQUIPMENT Emission Regulation Tier 3 / Stage IIIA General Bucket - 0.4 m3 Make Yanmar Control Safety Interlock Model 4TNV98-ZPYS Boom Interlock Gross Power 50.3 kW (67 hp) @ 2,400 rpm Quick Coupler Net Power 47.8 kW (64 hp) @ 2,400 rpm Enclosed ROPS / FOPS Cab with AC Peak Torque 239 N • m @ 1,550 rpm Auxiliary High Flow - 120.2 L/min Number of Cylinders 4 Displacement 3.3 L OPTIONAL EQUIPMENT Cooling Type water Open ROPS / FOPS Cab Flow Standard – 79.2 L/min ELECTRICAL SYSTEM Solid Tire System Voltage 12 V Tire Chains Alternator Output 55 amps Yanmar Tier II Engine CHAIN TANK OPTIONAL ATTACHMENTS Drive Chain

https://truckmanualshub.com/ Engine Yanmar 4TNV98-ZPYS Gross Power 50.3 kW (67 hp) @ 2,400 rpm Net Power 47.8 kW (64 hp) @ 2,400 rpm Breakout Force 25.5 kN Rated Load 795 kg Bucket Capacity 0.4 m³ Operating Weight 2,950 kg Skid Steer Loader CLG365A TOUGH WORLD. TOUGH EQUIPMENT. https://truckmanualshub.com/ CLG365A Skid Steer Loader ENGINE STANDARD EQUIPMENT Emission Regulation Tier 3 / Stage IIIA General Bucket - 0.4 m3 Make Yanmar Control Safety Interlock Model 4TNV98-ZPYS Boom Interlock Gross Power 50.3 kW (67 hp) @ 2,400 rpm Quick Coupler Net Power 47.8 kW (64 hp) @ 2,400 rpm Enclosed ROPS / FOPS Cab with AC Peak Torque 239 N • m @ 1,550 rpm Auxiliary High Flow - 120.2 L/min Number of Cylinders 4 Displacement 3.3 L OPTIONAL EQUIPMENT Cooling Type water Open ROPS / FOPS Cab Flow Standard – 79.2 L/min ELECTRICAL SYSTEM Solid Tire System Voltage 12 V Tire Chains Alternator Output 55 amps Yanmar Tier II Engine CHAIN TANK OPTIONAL ATTACHMENTS Drive Chain Size 80 HS 4 in 1 Bucket – 0.4 m3 Auger Rocket Bucket – 0.4 m3 Cold Planer TIRES Scrap Bucket – 350 mm to 650 mm Snow Blade Ply Type pneumatic Hydraulic Hammer Pick - up Sweeper Tire Size 10 - 16.5 Fork Hydraulic Shear Ply Rating 8…
