Skid Steer Loader Gross Power 61.6 kW (82.6 hp) @ 2,400 rpm Net Power 57.3 kW (76.8 hp) @ 2,400 rpm Breakout Force 25.5 kN Rate Load 955 kg Bucket Capacity 0.5 m3 Operating Weight 3,420 kg Skid Steer Loader ENGINE STANDARD EQUIPMENT Emission Regulation Tier 3 / Stage IIIA General Bucket - 0.65 m3 Make & Model Yanmar Control Safety Interlock Gross Power 61.3 kW (82.6 hp) @ 2,400 rpm Boom Interlock Net Power 57.3 kW (76.8 hp) @ 2,400 rpm Quick Coupler Peak Torque 292.6 N·m @ 1,550 rpm Enclosed ROPS / FOPS Cab with AC Number of Cylinders 4 Auxiliary High Flow – 122.1 L/min Displacement 3.3 L Cooling Type water OPTIONAL EQUIPMENT Open ROPS / FOPS Cab ELECTRICAL SYSTEM Flow Standard – 84.3 L/min System Voltage 12 V Solid Tire Alternator Output 55 amps Tire Chains CHAIN TANK OPTIONAL ATTACHMENTS Drive Chain Size 100 HS 4 in 1 Bucket – 0.4 m3 Auger Rocket Bucket – 0.4 m3 Cold Planer TIR

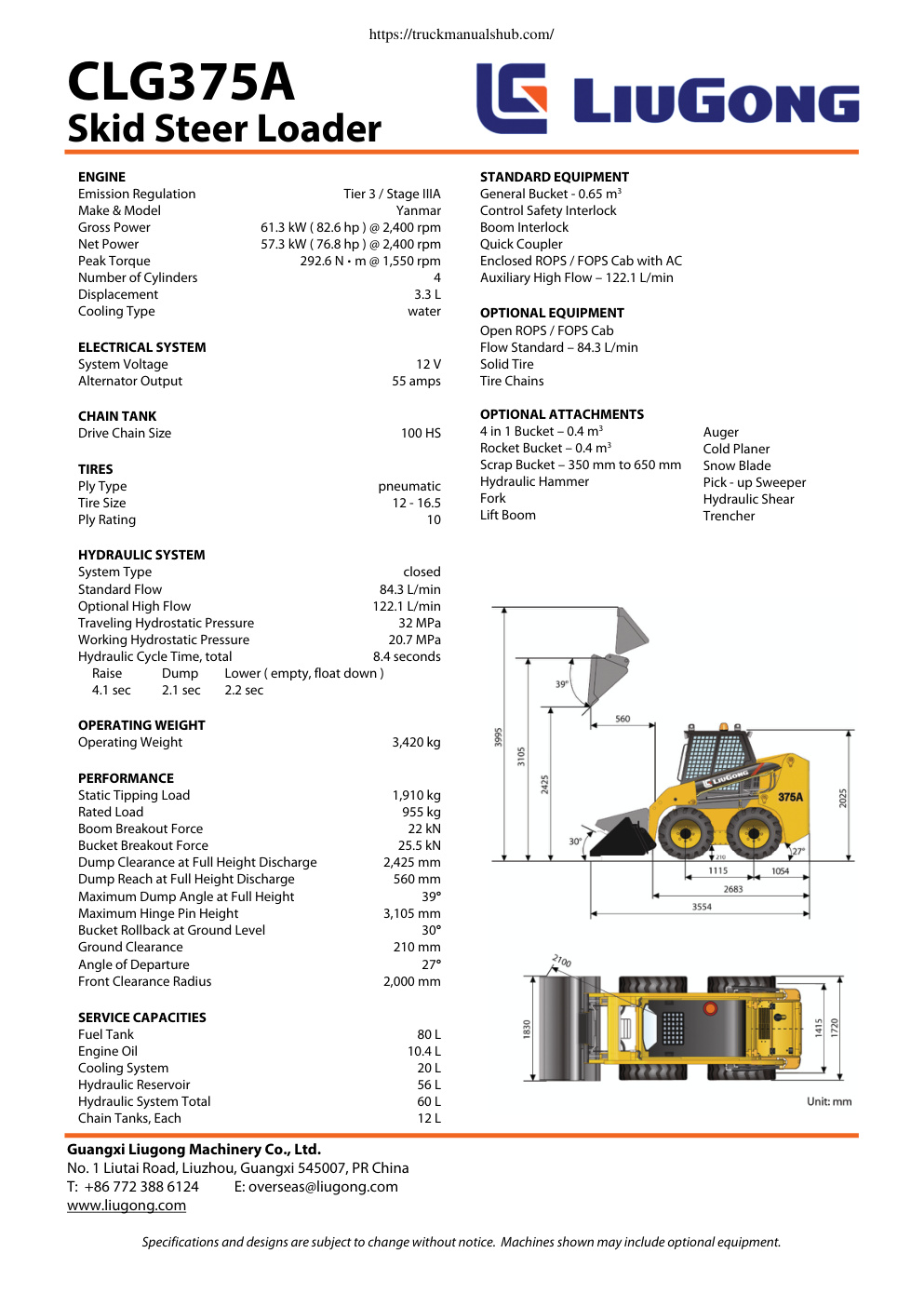

https://truckmanualshub.com/ CLG375A Skid Steer Loader Engine Yanmar Gross Power 61.6 kW ( 82.6 hp ) @ 2,400 rpm Net Power 57.3 kW ( 76.8 hp ) @ 2,400 rpm Breakout Force 25.5 kN Rate Load 955 kg Bucket Capacity 0.5 m3 Operating Weight 3,420 kg www.liugong.com https://truckmanualshub.com/ CLG375A Skid Steer Loader ENGINE STANDARD EQUIPMENT Emission Regulation Tier 3 / Stage IIIA General Bucket - 0.65 m3 Make & Model Yanmar Control Safety Interlock Gross Power 61.3 kW ( 82.6 hp ) @ 2,400 rpm Boom Interlock Net Power 57.3 kW ( 76.8 hp ) @ 2,400 rpm Quick Coupler Peak Torque 292.6 N·m @ 1,550 rpm Enclosed ROPS / FOPS Cab with AC Number of Cylinders 4 Auxiliary High Flow – 122.1 L/min Displacement 3.3 L Cooling Type water OPTIONAL EQUIPMENT Open ROPS / FOPS Cab ELECTRICAL SYSTEM Flow Standard – 84.3 L/min System Voltage 12 V Solid Tire Alternator Output 55 amps Tire Chains CHAIN TANK OPTIONAL ATTACHMENTS Drive Chain Size 100 HS 4 in 1 Bucket – 0.4 m3 Auger Rocket Bucket – 0.4 m3 Cold Planer TIRES Scrap Bucket – 350 mm to 650 mm Snow Blade Ply Type pneumatic Hydraulic Hammer Pick - up Sweeper Tire Size 12 - 16.5 Fork Hydraulic Shear Ply Rating 10 Lift Boom Trencher HYDRAULIC SYSTEM…
