Gross Power 164 kW (220hp) @ 2,200 rpm Net Power 148 kW (198hp) @ 2,200 rpm Operating Weight 17,100 kg Standard Bucket Size 3.0 m3 Standard Breakout Force 158 kN Standard Dump Clearance 3,100 mm ENGINE LOADER ARM PERFORMANCE Emission Regulation Tier 2 / Stage II Tipping Load 13,200 kg Make DCEC Full turn Tipping Load 11,750 kg Gross Power 164 kW (220hp) @ 2,200 rpm Bucket Breakout Force 158 kN Net Power 148 kW (198hp) @ 2,200 rpm Maximum Dump Angle at Full Height 45° Peak Torque 950 N·m @ 1,400 rpm Dump Clearance at Full Height Discharge 3,100 mm Displacement 8.9 L Dump Reach at Full Height Discharge 1,035 mm Number of Cylinders 6 Maximum Hinge Pin Height 4150 mm Aspiration turbo air - to - air aftercooled Maximum Digging Depth, Bucket Level 61 mm Bucket Rollback at Ground Level 45° TRANSMISSION Bucket Rollback at Carry 50° Transmission Type power shift Bucket Rollback at Maximum

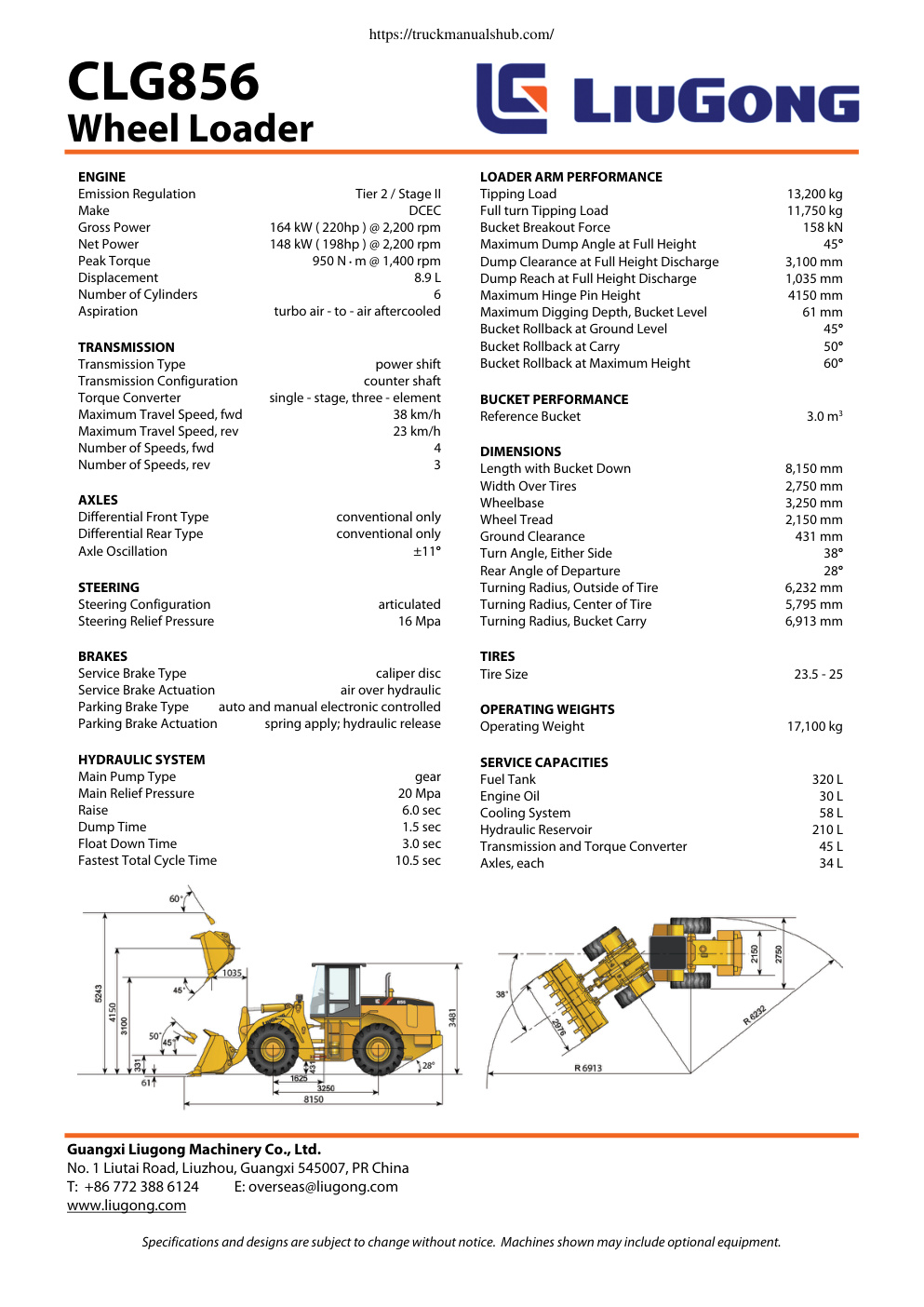

https://truckmanualshub.com/ CLG856 Wheel Loader Engine DCEC Gross Power 164 kW ( 220hp ) @ 2,200 rpm Net Power 148 kW ( 198hp ) @ 2,200 rpm Operating Weight 17,100 kg Standard Bucket Size 3.0 m3 Standard Breakout Force 158 kN Standard Dump Clearance 3,100 mm www.liugong.com https://truckmanualshub.com/ CLG856 Wheel Loader ENGINE LOADER ARM PERFORMANCE Emission Regulation Tier 2 / Stage II Tipping Load 13,200 kg Make DCEC Full turn Tipping Load 11,750 kg Gross Power 164 kW ( 220hp ) @ 2,200 rpm Bucket Breakout Force 158 kN Net Power 148 kW ( 198hp ) @ 2,200 rpm Maximum Dump Angle at Full Height 45° Peak Torque 950 N·m @ 1,400 rpm Dump Clearance at Full Height Discharge 3,100 mm Displacement 8.9 L Dump Reach at Full Height Discharge 1,035 mm Number of Cylinders 6 Maximum Hinge Pin Height 4150 mm Aspiration turbo air - to - air aftercooled Maximum Digging Depth, Bucket Level 61 mm Bucket Rollback at Ground Level 45° TRANSMISSION Bucket Rollback at Carry 50° Transmission Type power shift Bucket Rollback at Maximum Height 60° Transmission Configuration counter shaft Torque Converter single - stage, three - element BUCKET PERFORMANCE Maximum Travel Speed, fwd 38 km/h Reference Bucket…
