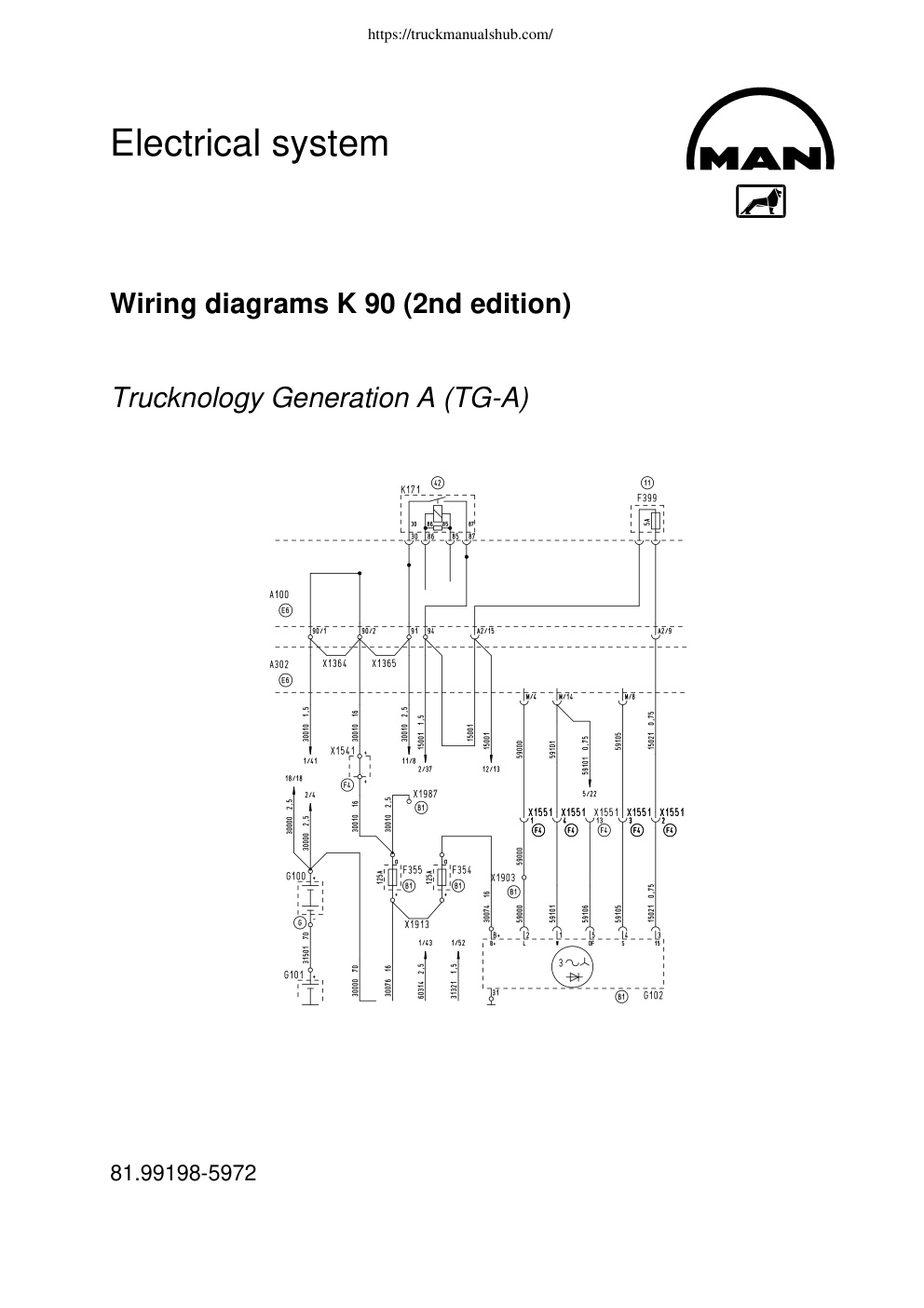

Electrical system Trucknology Generation A (TG-A) 2002 1 | 2 3 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 Publication no.: Wiring diagrams 81.99198-5972 2nd Edition K 90 MAN Nutzfahrzeuge Aktiengesellschaft Elektrische Anlage TG-A Dachauer Str. 667 oder Postfach 50 06 20 Schaltpläne K 90 (2. Ausgabe) 80995 MÜNCHEN 80976 MÜNCHEN – englisch – Printed in Germany Electrical system MAN Wiring diagrams K 90 (2nd edition) Trucknology Generation A (TG-A) 2 30 186 _ [es [82 2 ee, eres CS CS CE NO PAT TT AIT — A302 X1364 X1365 eee RS enn WT RAT We sat, # à 3 + 4 CF tat red 11/8 “| “| S| 2 x1551 x1551 x1551 x 155 x 155 | 4 OE e oe © 6107

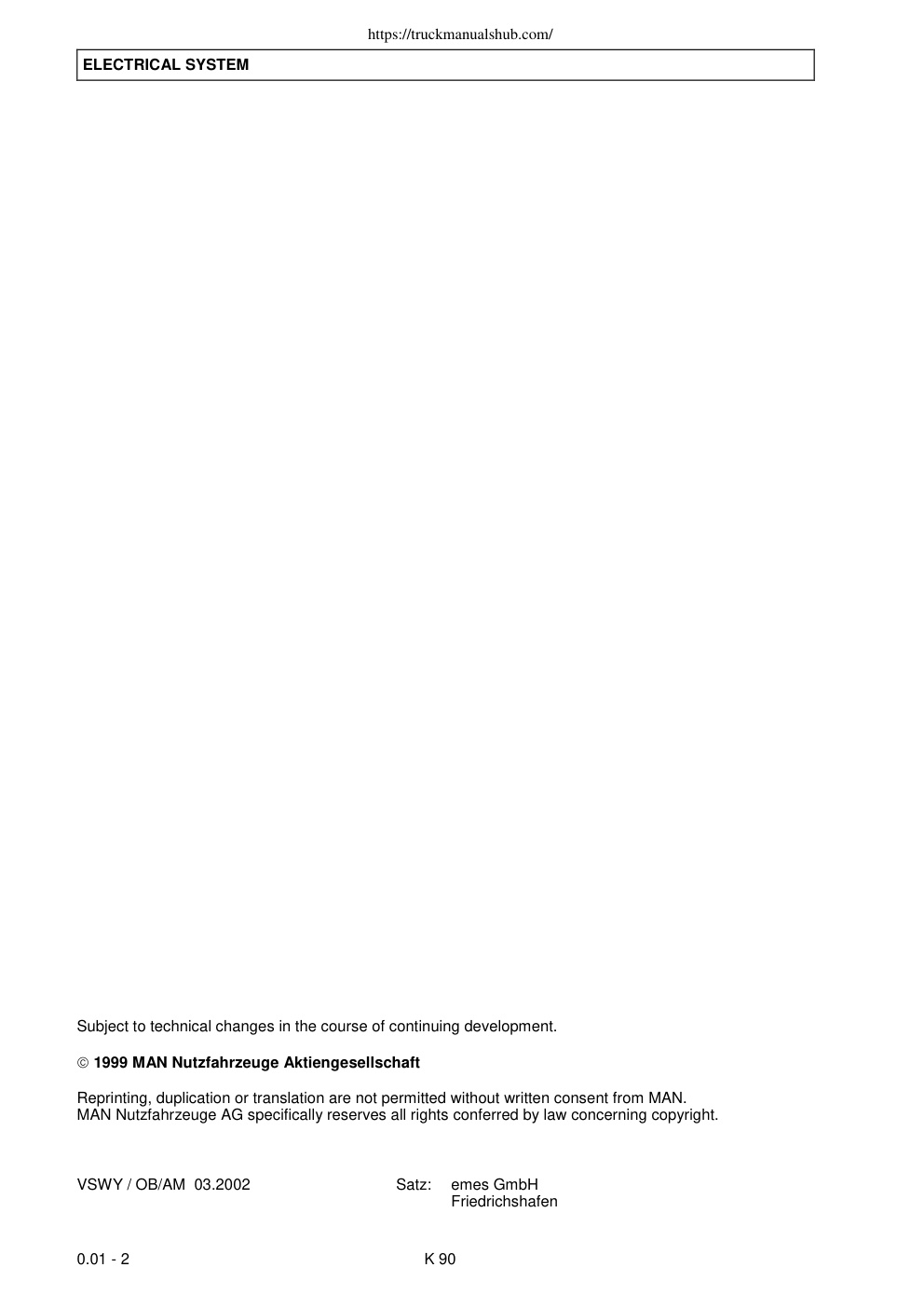

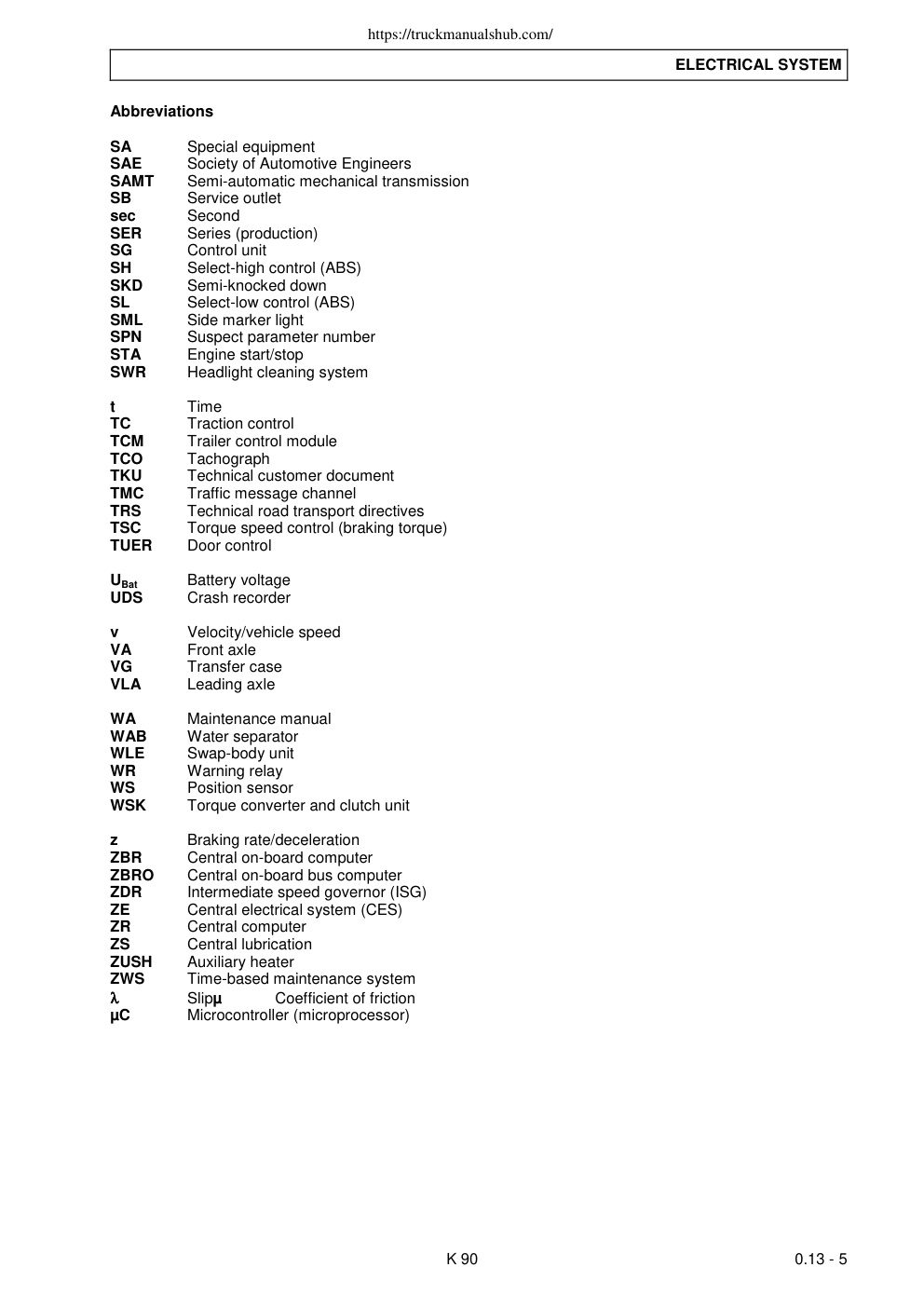

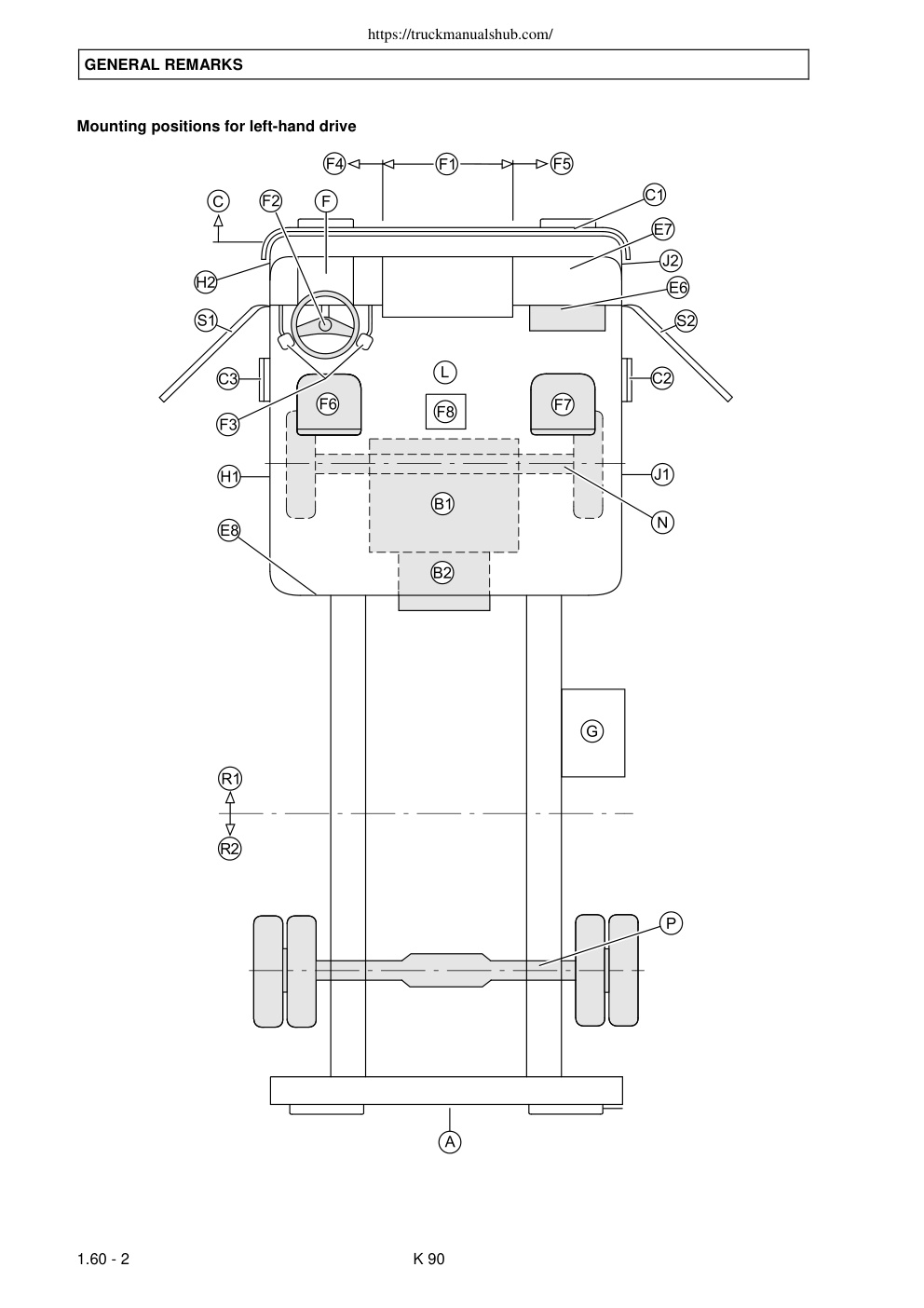

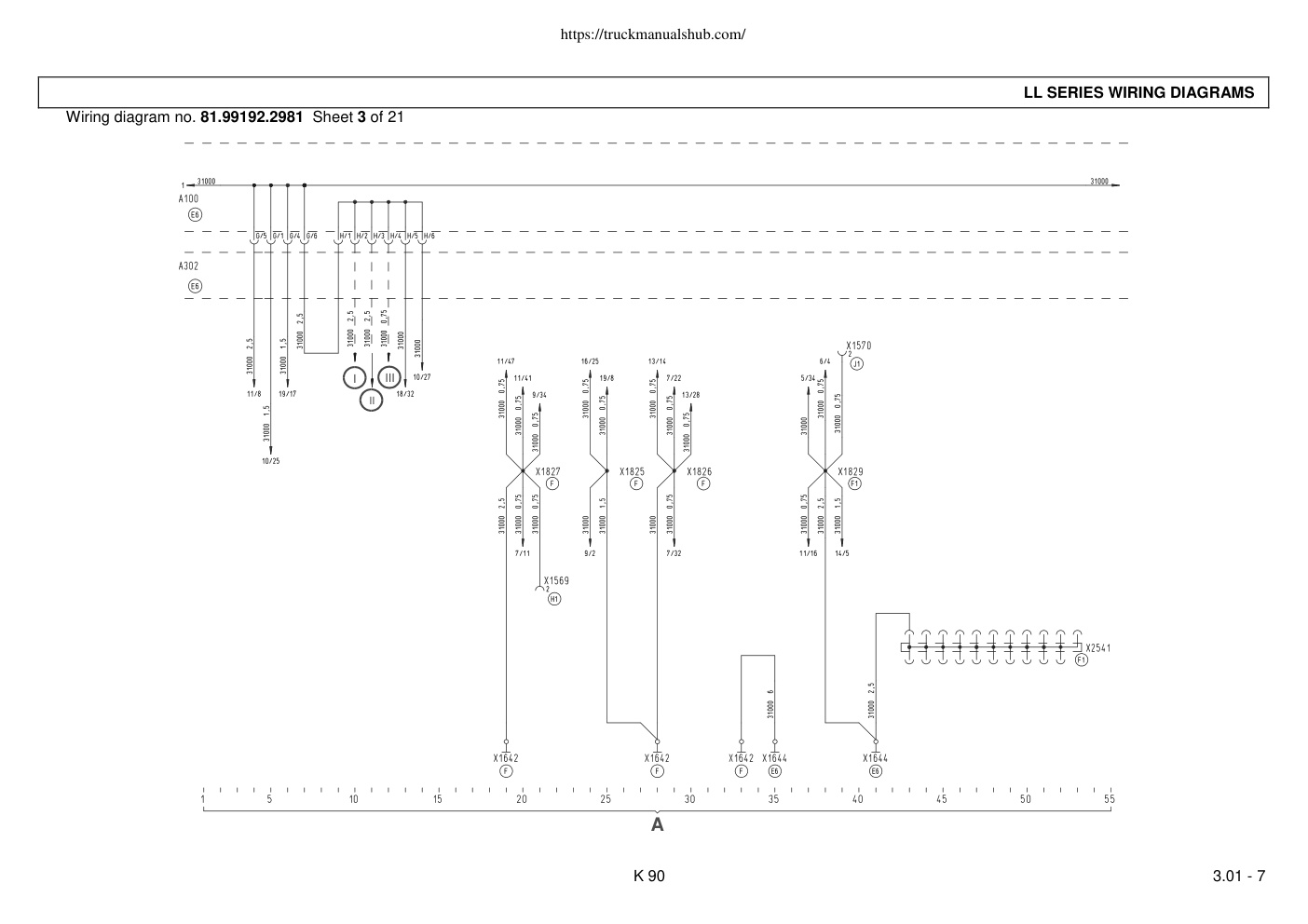

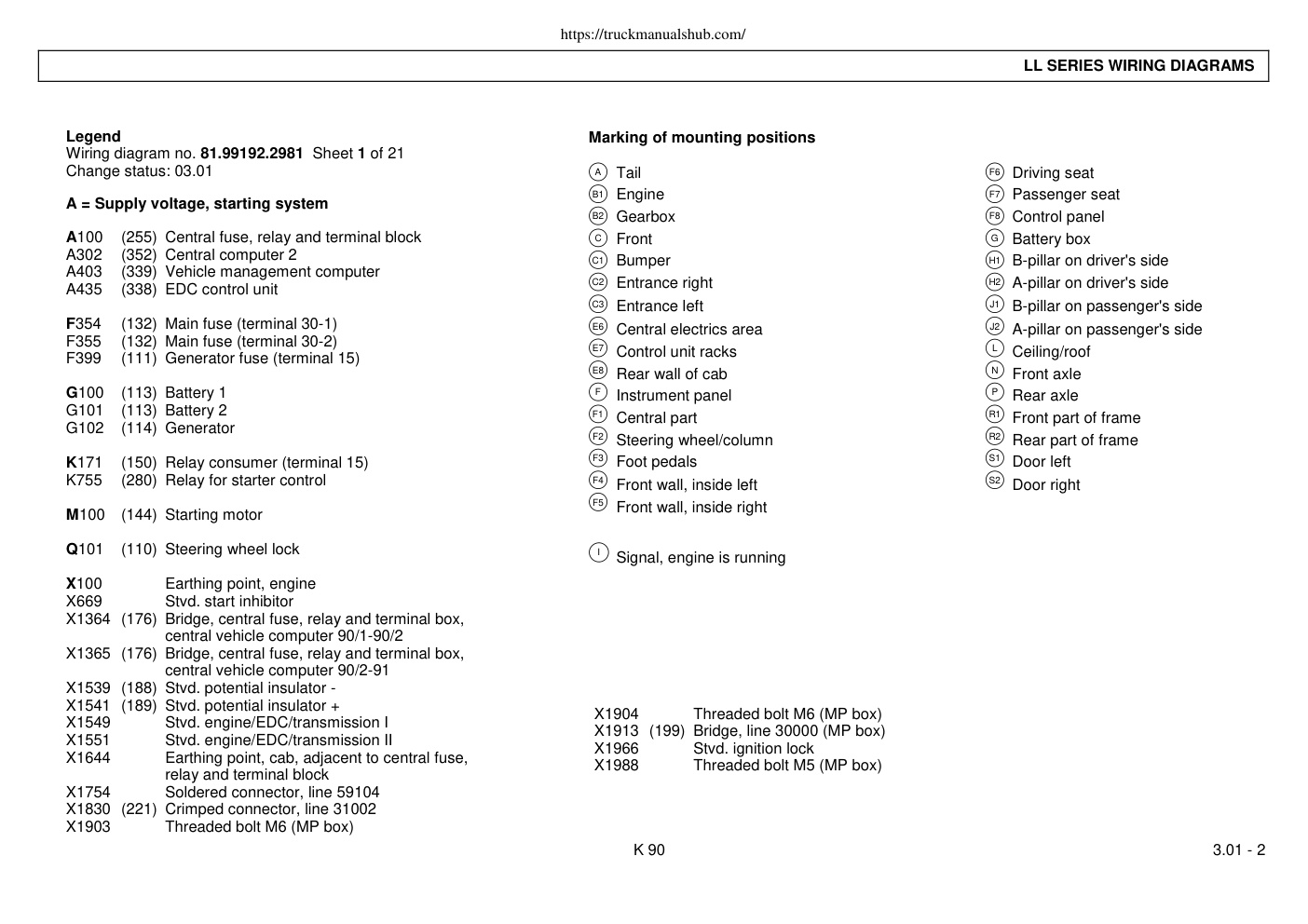

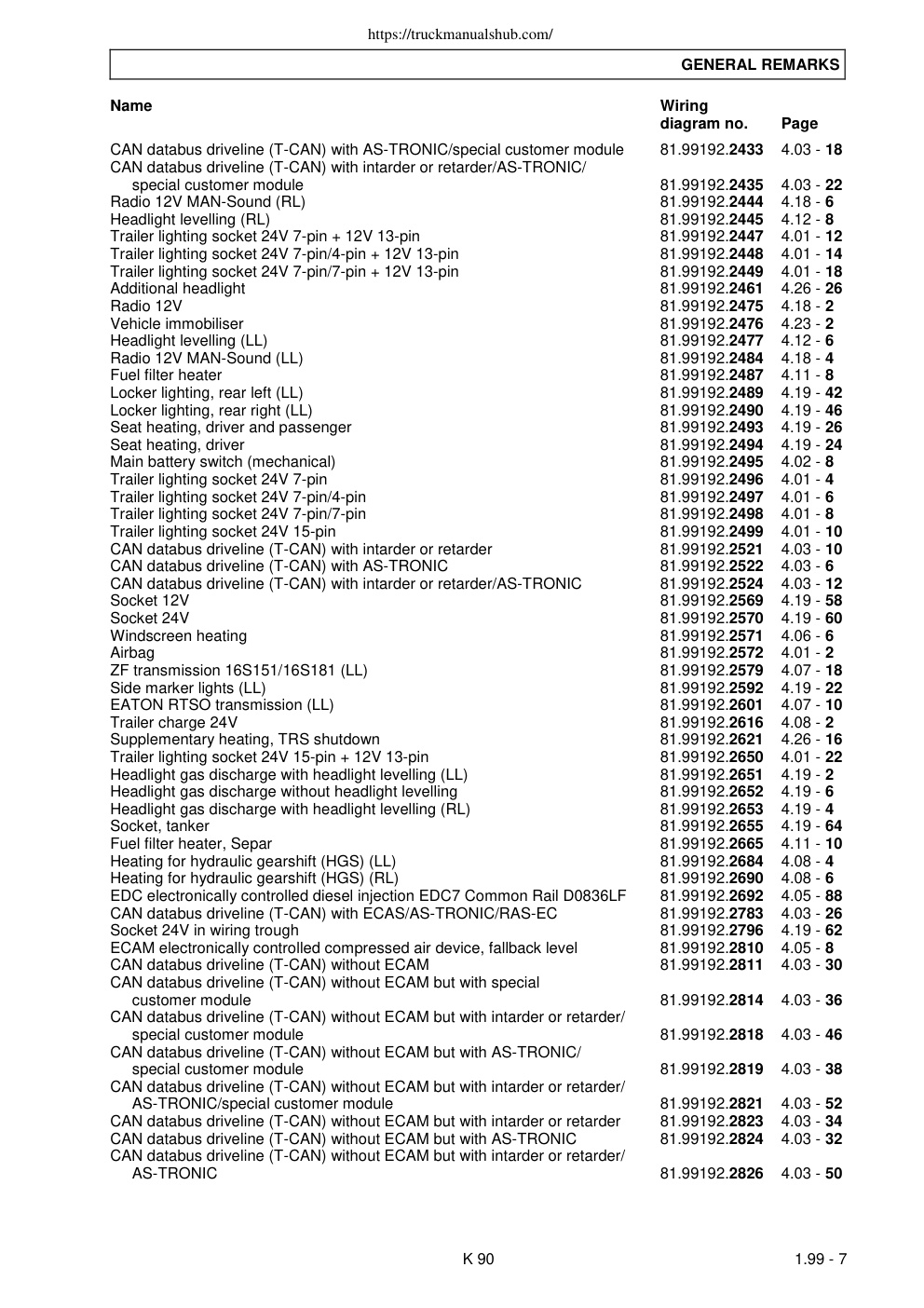

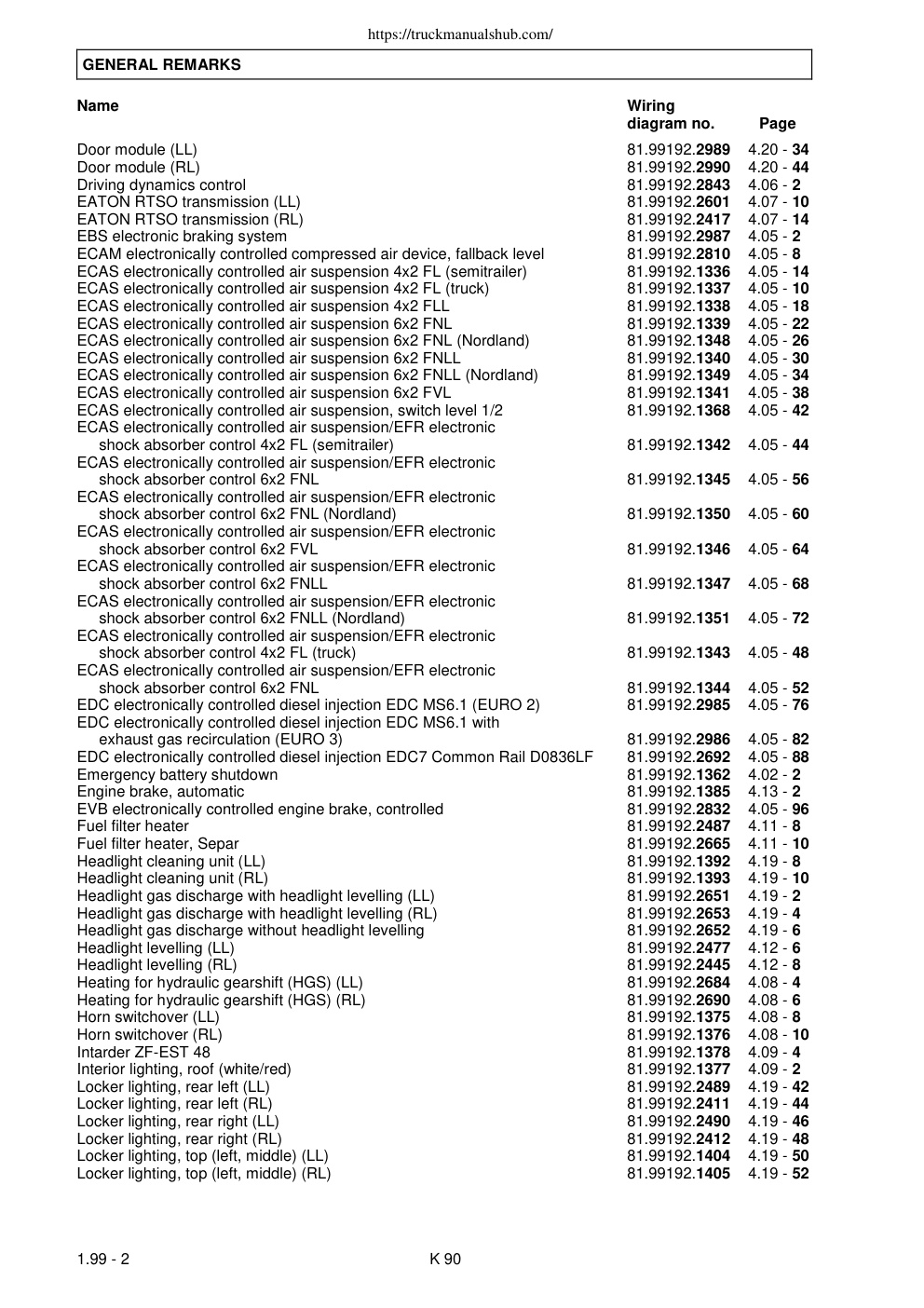

https://truckmanualshub.com/ K Electrical system Trucknology Generation A (TG-A) 2002 1 | 2 3 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 Publication no.: Wiring diagrams 81.99198-5972 2nd Edition K 90 MAN Nutzfahrzeuge Aktiengesellschaft Elektrische Anlage TG-A Dachauer Str. 667 oder Postfach 50 06 20 Schaltpläne K 90 (2. Ausgabe) 80995 MÜNCHEN 80976 MÜNCHEN – englisch – Printed in Germany https://truckmanualshub.com/ Electrical system Wiring diagrams K 90 (2nd edition) Trucknology Generation A (TG-A) 81.99198-5972 https://truckmanualshub.com/ ELECTRICAL SYSTEM Subject to technical changes in the course of continuing development.  1999 MAN Nutzfahrzeuge Aktiengesellschaft Reprinting, duplication or translation are not permitted without written consent from MAN. MAN Nutzfahrzeuge AG specifically reserves all rights conferred by law concerning copyright. VSWY / OB/AM 03.2002 Satz: emes GmbH Friedrichshafen 0.01 - 2 K 90 https://truckmanualshub.com/ ELECTRICAL SYSTEM Preface All series and additional wiring diagrams are documented in the instructions for the “wiring diagrams”. The series wiring diagrams (Ch. 3.00) and the additional wiring diagrams (Ch. 4.00) are shown in detail to…
