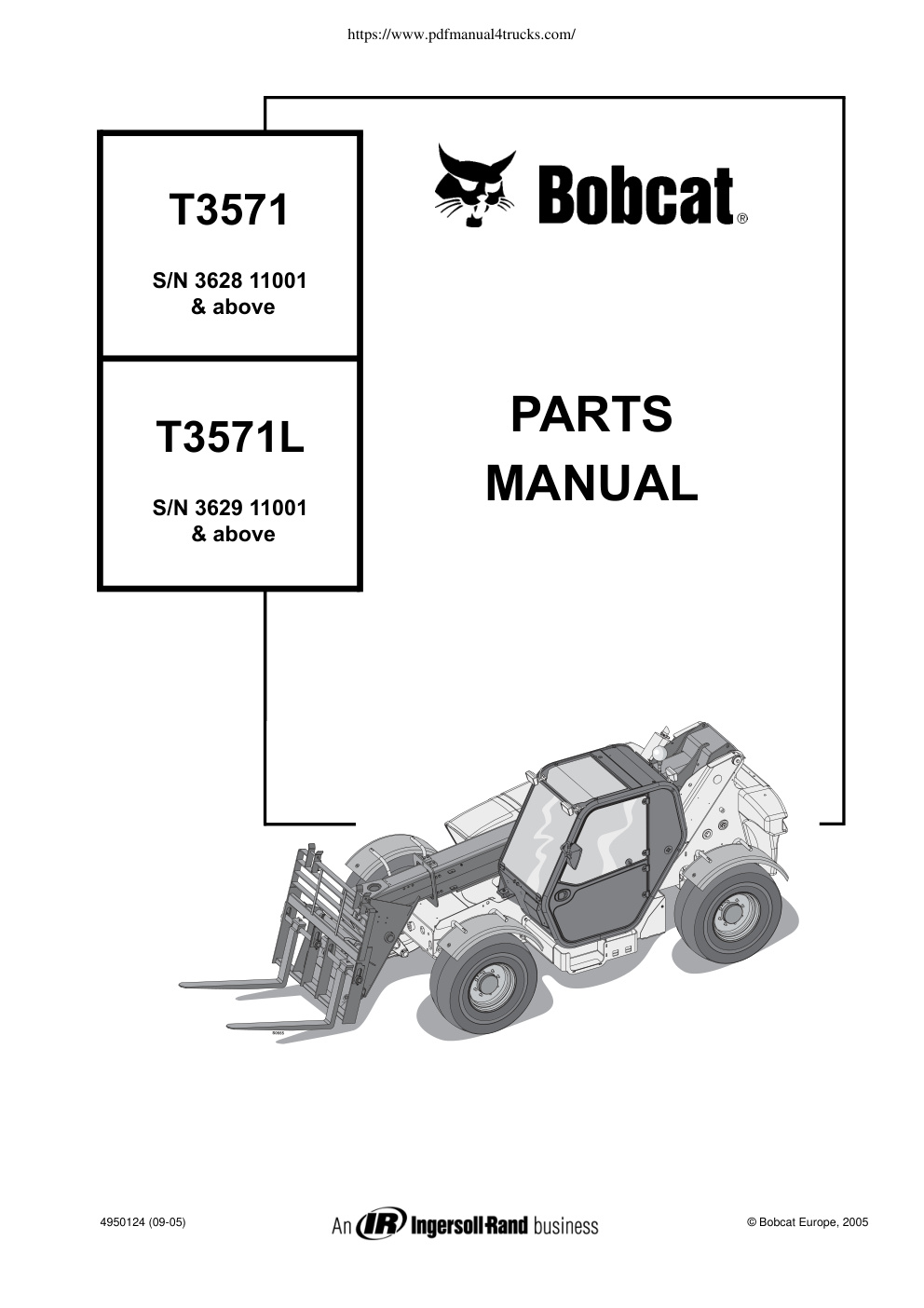

Bobcat T3571 T3571L Parts Manual
T3571 i Bobcat. SIE N iy] ((= | VE” = a" DS à } ‘e) | - 4950124 (09-05) An GY Ingersoll Rand business © Bobcat Europe, 2005 GENERAL INFORMATION When using the machine serial number (S/N), use the complete number. In the serial number column S/N ranges are displayed as follows: S/N 3632 11001 & above: range starting from and including S/N 3632 11001 S/N 3632 11001 & below: range up to and including S/N 3632 11001 3632 11001 thru 3632 11059: from S/N 3632 11001 up to and including S/N 3632 11059 The number shown in the quantity column in this manual is the number of parts needed for the illustration on the page. For some parts an “x” will be shown in the quantity column. This ”x” indicates that the quantity to be used is ”As Needed”. When references L.H. and R.H. are used in this manual, it is done from the operator’s seat in the forward operating position. Some of the illustrations a
